Schneider Harmony Plug-in Relay · 4 C/O · 15 A · 24 V AC 50/60 Hz coilRPM42B7↓ 1% off MRP1 / 8
BrandSchneider
CategoryIndustrial Control
Brand SKURPM42B7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

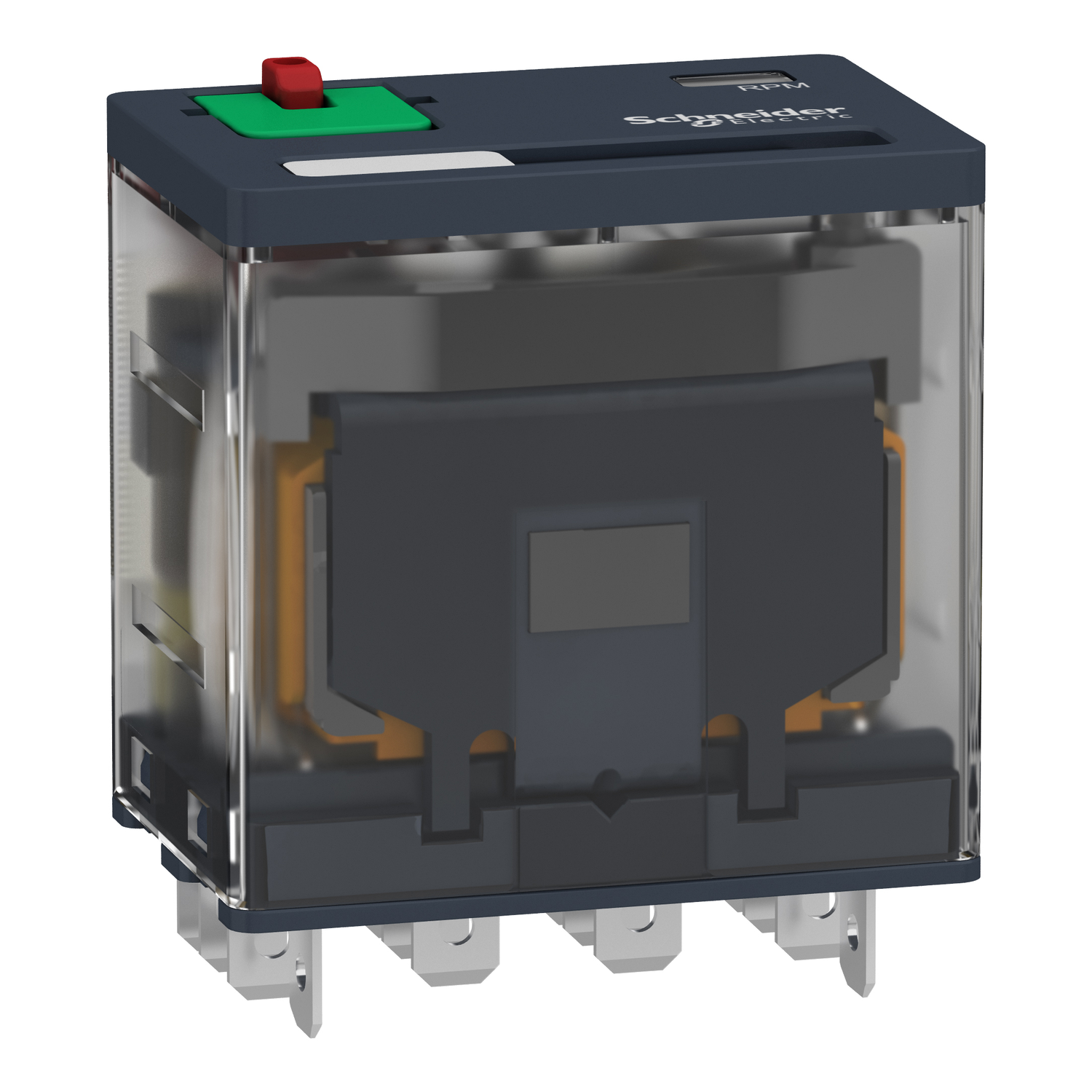

Schneider Harmony Plug-in Relay · 4 C/O · 15 A · 24 V AC 50/60 Hz coil

NEW added this week
₹2,329/pcincl. GST-1%
₹1,974 + 18% GST · MRP ₹2,353
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,329 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Plug-in Relay · 4 C/O · 15 A · 24 V AC 50/60 Hz coil: Elume price today ₹2,329 per pc incl. GST, 1% below the ₹2,353 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,518₹2,430₹2,342₹2,254₹2,166₹2,353₹2,329
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,329
MRP
₹2,353
Lowest in view · 17 Oct
₹2,329
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹2,213/pc on this product

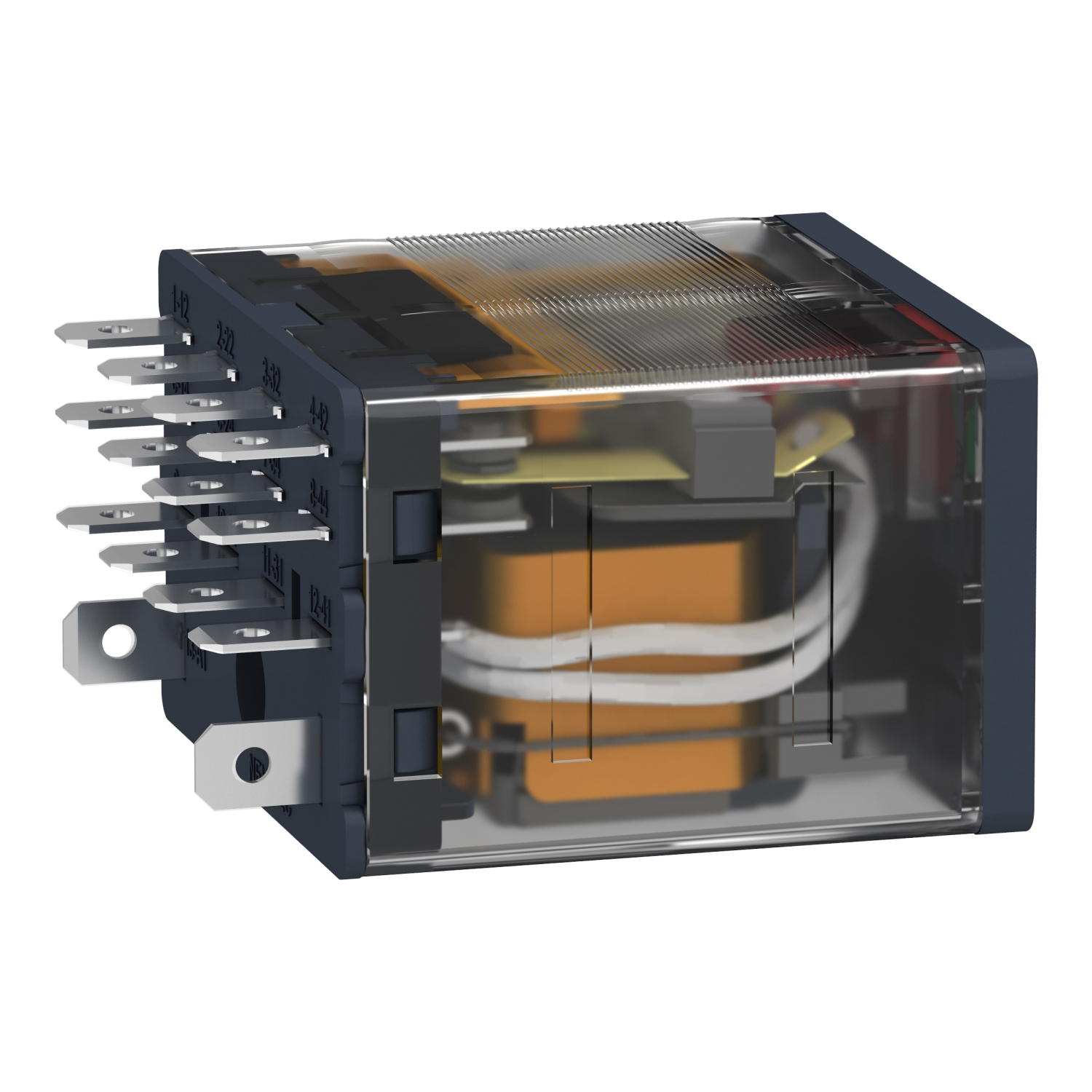

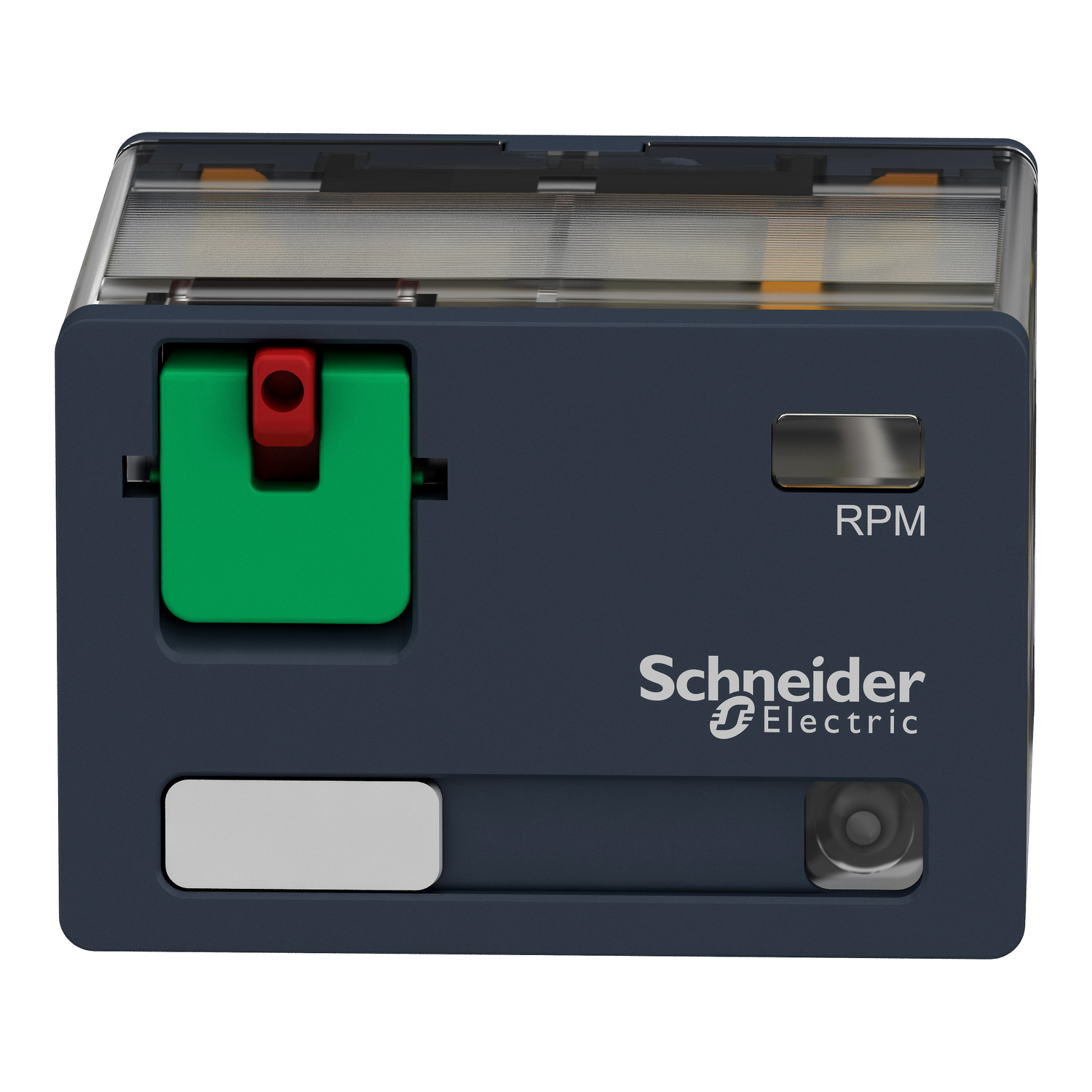

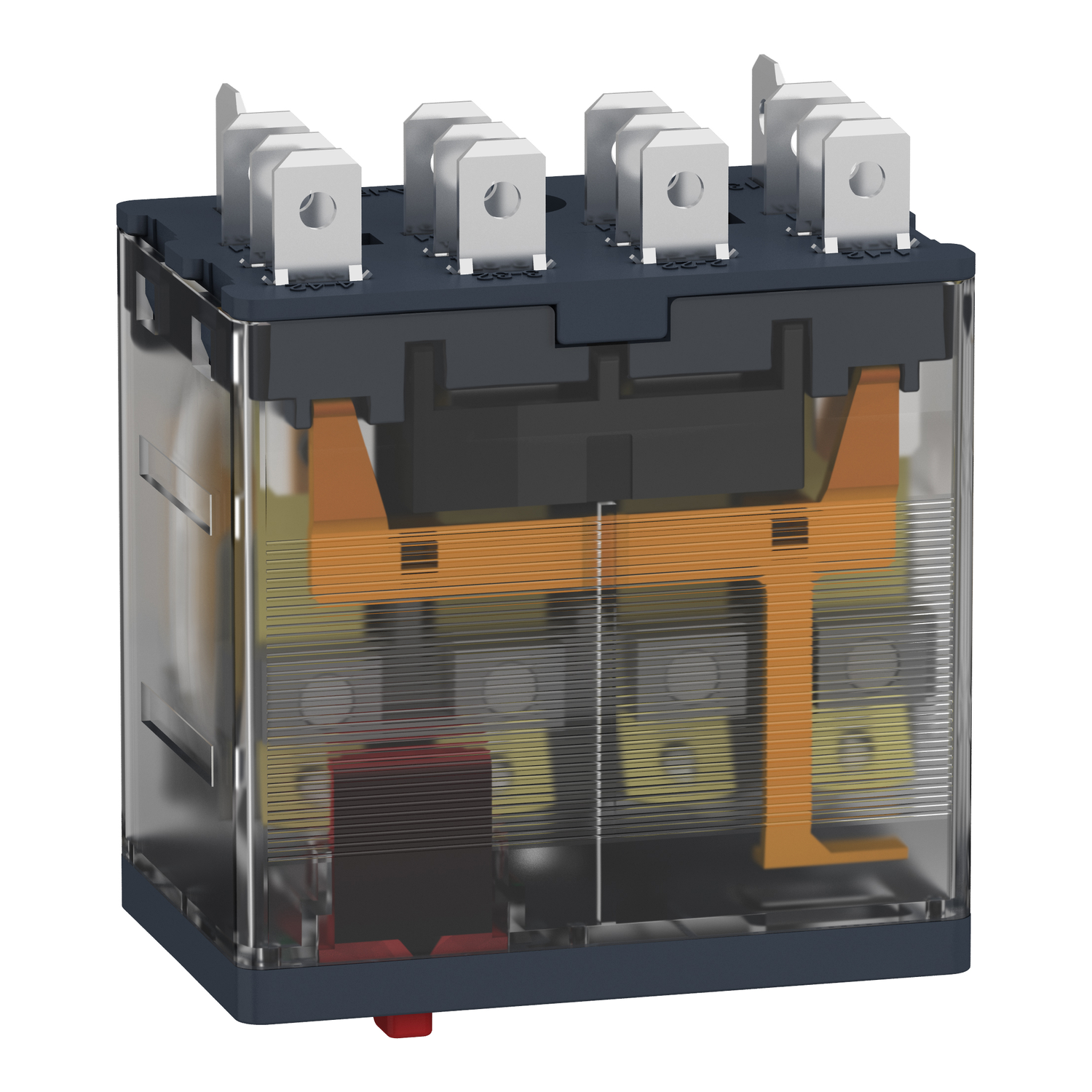

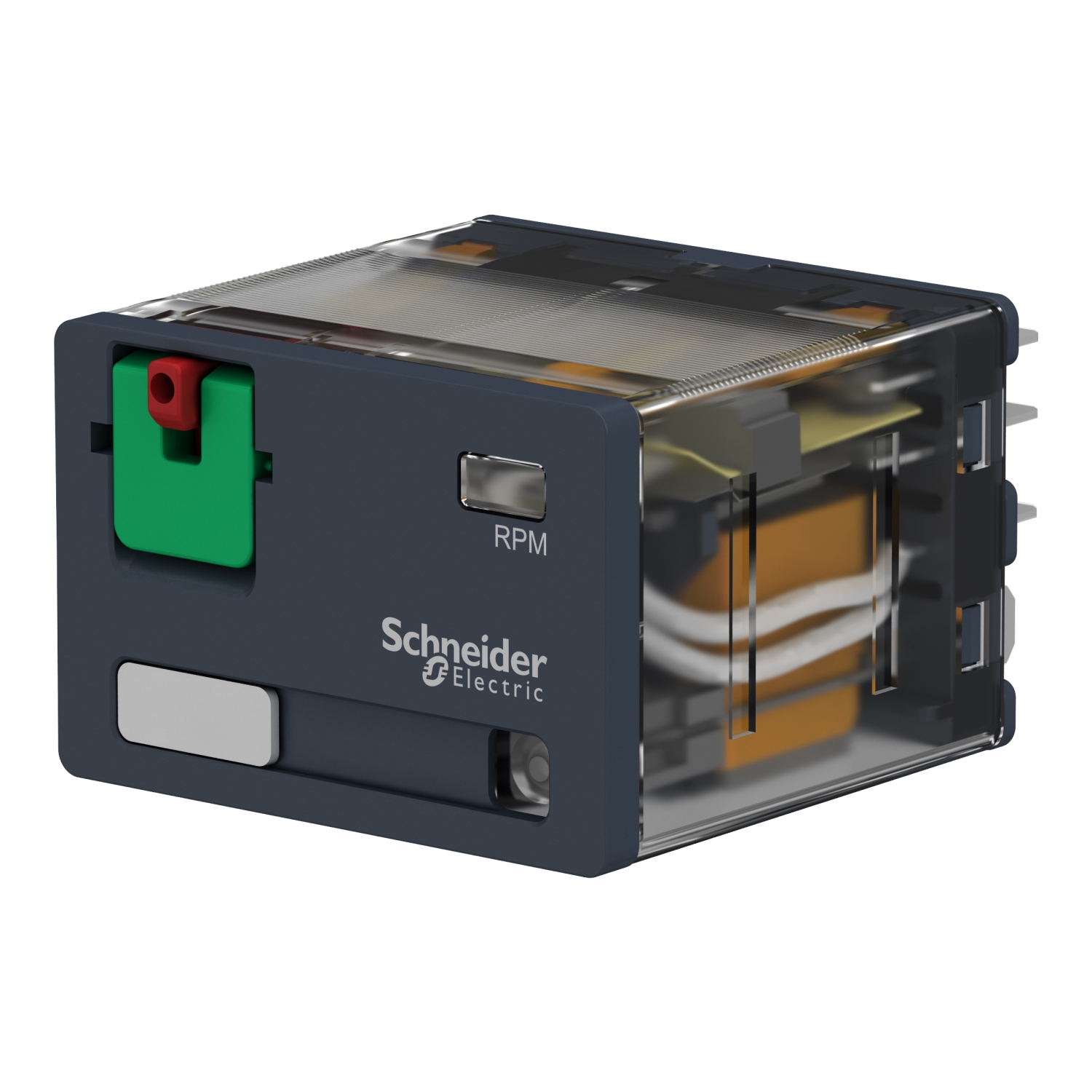

This Harmony RPM power plug-in relay has a coil control voltage of 24V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 15A. It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Plug-in Relay · 4 C/O · 15 A · 24 V AC 50/60 Hz coil · RPM42B7
Rated current15 A
Reference standardIEC 61810-1
coil voltage24 V AC 50/60 Hz
Net weight0.071 kg
BrandSchneider
Brand SKURPM42B7
ELINE9243K2HM6
Sold asPer pc
StandardsIEC 61810-1 · CSA C22.2 No 14 · UL 508
Relay typePower relay
status LEDWith
Series nameRPM series
Test levelsLevel A group mounting
Control typeLockable test button
Load current15 A at 250 V AC · 15 A at 28 V DC
Release time20 ms at nominal voltage

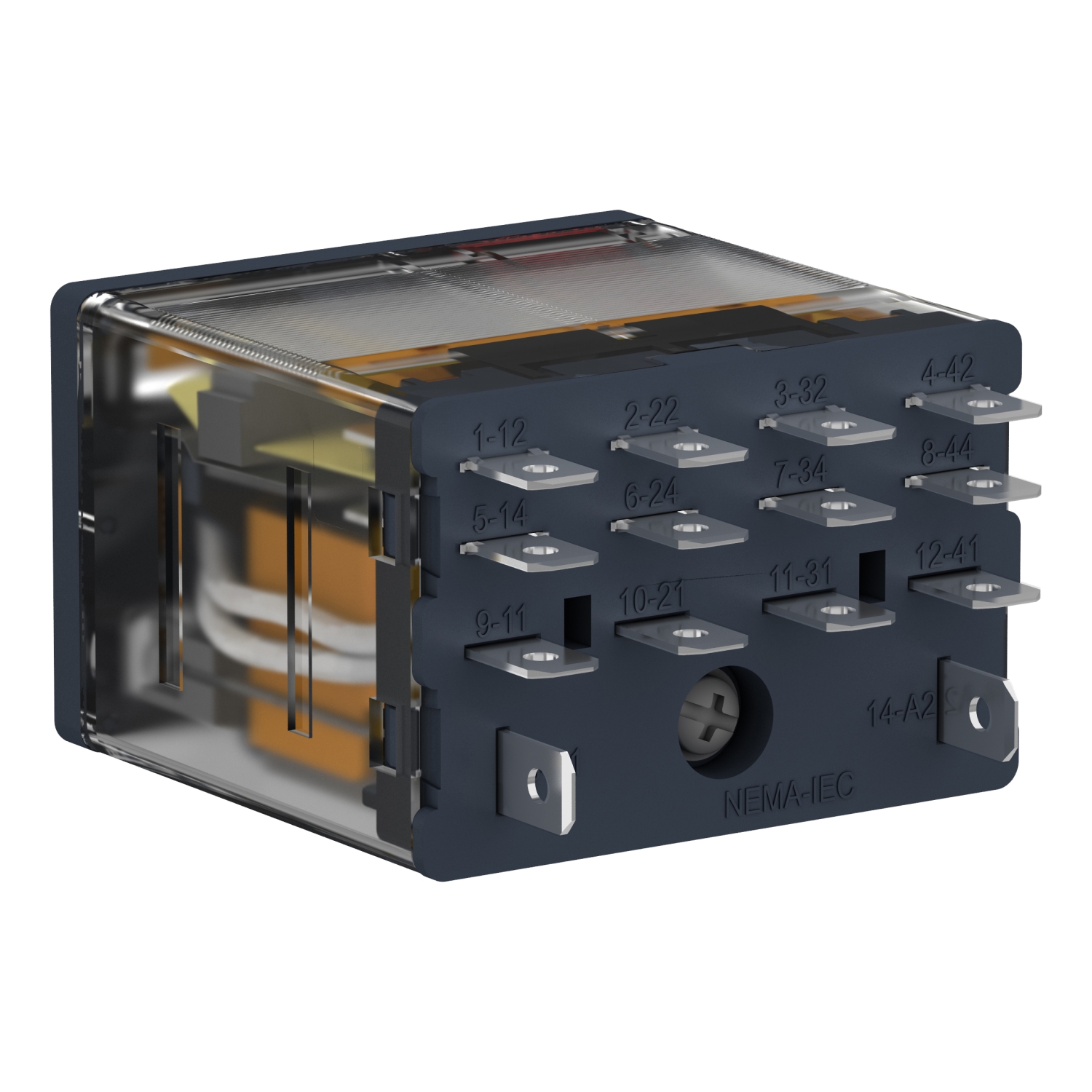

Shape of pinFlat (faston type)
Operating rate<= 1200 cycles/hour under load · <= 18000 cycles/hour no-load
Operating time20 ms at nominal voltage
Mounting supportPlug-in
Pollution degree3
Range of productHarmony Electromechanical Relays
Shock resistance15 gn for in operation · 30 gn for not operating
Contacts materialAgNi
Average resistance80 Ohm at 20 °C +/- 15 %
Operating positionAny position
Device presentationComplete product
Dielectric strength1500 V AC between contacts with micro disconnection · 2000 V AC between coil and contact with reinforced · 2000 V AC between poles with basic
Protection categoryRT I
Vibration resistance3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation · 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
Electrical durability100000 cycles for resistive load
Mechanical durability10000000 cycles
Product certificationsCSA · EAC · UL
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching voltage250 V conforming to IEC
Product or component typePlug-in relay
Drop-out voltage threshold>= 0.15 Uc AC
Maximum switching capacity3750 VA · 420 W
Minimum switching capacity170 mW at 10 mA, 17 V
[Uc] control circuit voltage24 V AC 50/60 Hz
Contacts type and composition4 C/O
[Ui] rated insulation voltage250 V conforming to IEC · 300 V conforming to CSA · 300 V conforming to UL
Average coil consumption in VA2.5 at 60 Hz
[Ie] rated operational current15 A at 277 V (AC) conforming to UL · 15 A at 28 V (DC) conforming to UL · 15 A at 250 V (AC) NO conforming to IEC · 15 A at 28 V (DC) NO conforming to IEC · 7.5 A at 250 V (AC) NC conforming to IEC · 7.5 A at 28 V (DC) NC conforming to IEC
Rated operational voltage limits19.2...26.4 V AC
Ambient air temperature for storage-40…85 °C
Degree of protection (Housing only)IP40 conforming to IEC 60529
Ambient air temperature for operation-40…55 °C
[Uimp] rated impulse withstand voltage4 kV during 1.2/50 µs
[Ithe] conventional enclosed thermal current15 A at -40…55 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
