Schneider Harmony Control Relay · RM10TA00NRM10TA00N↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
SpecificationHarmony 3 phase voltage monitoring relay, Range 208 to 480 VAC, phase sequence, phase failure, Phase imbalance, 1 CO
Brand SKURM10TA00N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Control Relay · RM10TA00N

NEW added this week
₹2,929/pcincl. GST-1%
₹2,482 + 18% GST · MRP ₹2,958
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,929 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Control Relay · RM10TA00N: Elume price today ₹2,929 per pc incl. GST, 1% below the ₹2,958 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹3,165₹3,055₹2,945₹2,834₹2,724₹2,958₹2,929
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,929
MRP
₹2,958
Lowest in view · 17 Oct
₹2,929
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹2,783/pc on this product

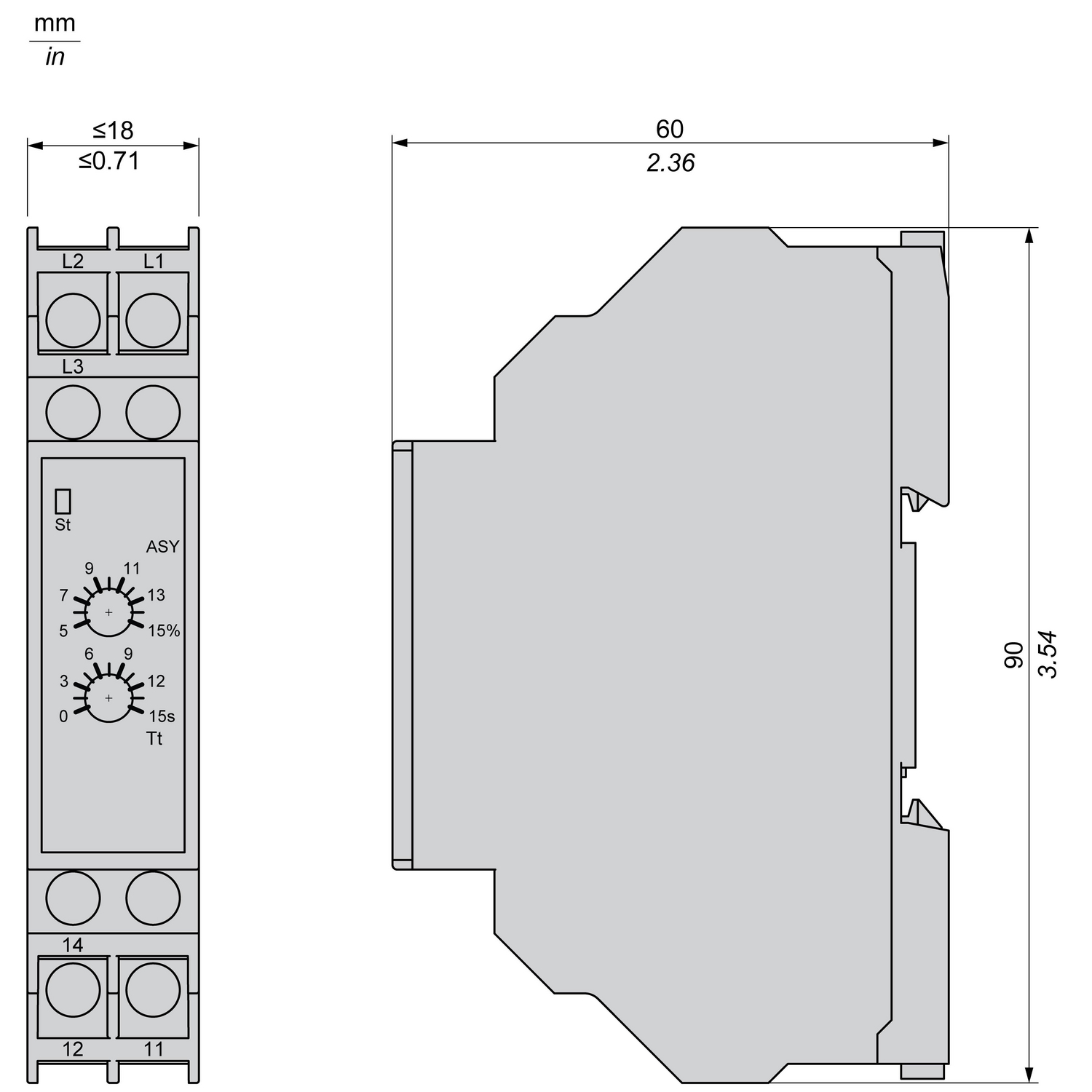

This monitoring relay relay belongs to Schneider Electric's Easy Harmony Control relays range. It allows monitoring of power supply circuits in 3-phase networks. This standard version relay monitors phase loss, phase sequence, and phase asymmetry. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail. This product comes with simple rotary dial setting for intended 3 phase monitoring control function. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. Its dimensions are 17.5mm (width) x 58.5mm (height) x 90mm (depth) and weighs 0.075 kg. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, HVAC compressor, pump and fan motor related monitoring and control. It conforms to international standard, certifications and markings cULus, CE, CCC, and UKCA.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Control Relay · RM10TA00N · RM10TA00N
Ingress protectionIP20 (terminals)
Reference standardIEC 60255-1
Net weight0.075 kg
BrandSchneider
Brand SKURM10TA00N
ELINEDP4C792M4
Sold asPer pc
Depth58.5 mm · 58.4 mm
Width17.5 mm · 17.8 mm
Height90 mm · 88.9 mm
MarkingCULus · CE · UKCA · CCC
StandardsIEC 60255-1
Hysteresis2 %
Relay nameRM10TA
Relay typeControl relay
Reset time1.5 s time delay
Response time< 550 ms (in the event of a fault)
Output contacts1 C/O
Time delay typeAdjustable 0...15 s, +/- 10 % of the full scale value
Housing materialPolycarbonate
Local signallingLED (green) for ST (status)
Mounting support35 mm symmetrical DIN rail conforming to IEC 60715
Pollution degree2
Range of productHarmony Control Relays
Reliability dataMTTFd = 158 years
Supply frequency47...63 Hz
Measurement error< 0.05 %/°C with temperature variation · < 1 % over the whole range with voltage variation
Measurement range208...480 V AC
Relative humidity10…95 %
Tightening torque0.5…0.7 N.m
Overvoltage categoryII
Electrical durability100000 cycles
Insulation resistance> 100 MOhm at 500 V DC
Mechanical durability10000000 cycles
Supply voltage limits183…528 V AC, 3 phases
Product certificationscULus · CE · UKCA · CCC
nominal output current5 A
Connections - terminalsScrew terminals, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid with or without cable end
Dielectric test voltage1.89 kV, 1 min AC 50 Hz
IP degree of protectionIP20 (terminals) · IP40 (casing)
Power consumption in VA0…4.5 VA
Switching capacity in VA1250 VA
Product or component type3-phase control relay
Relay monitored parametersPhase sequence · Phase failure detection · Asymmetry
Voltage detection threshold< 175 V AC
Product specific applicationFor 3-phase supply
Electromagnetic compatibilityconforming to IEC 61000-6-4 · conforming to IEC 61000-6-3 · conforming to IEC 61000-6-2
[Ui] rated insulation voltage400 V
Setting accuracy of time delay10 %
Adjustment of asymmetry threshold5...15 % of Un selected
Ambient air temperature for storage-40…70 °C · -40…70 °C
Ambient air temperature for operation-15…60 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
