Schneider Harmony Timer Timing Relay · 1 C/O · 5 A · IP20 · RE10RCMUNRE10RCMUN↓ 1% off MRP1 / 10
BrandSchneider
CategoryIndustrial Control
Specification1 C/O · 5 A
Brand SKURE10RCMUN
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Timer Timing Relay · 1 C/O · 5 A · IP20 · RE10RCMUN

NEW added this week
₹2,037/pcincl. GST-1%
₹1,726 + 18% GST · MRP ₹2,058
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,037 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Timer Timing Relay · 1 C/O · 5 A · IP20 · RE10RCMUN: Elume price today ₹2,037 per pc incl. GST, 1% below the ₹2,058 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,202₹2,125₹2,048₹1,971₹1,894₹2,058₹2,037
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,037
MRP
₹2,058
Lowest in view · 17 Oct
₹2,037
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,935/pc on this product

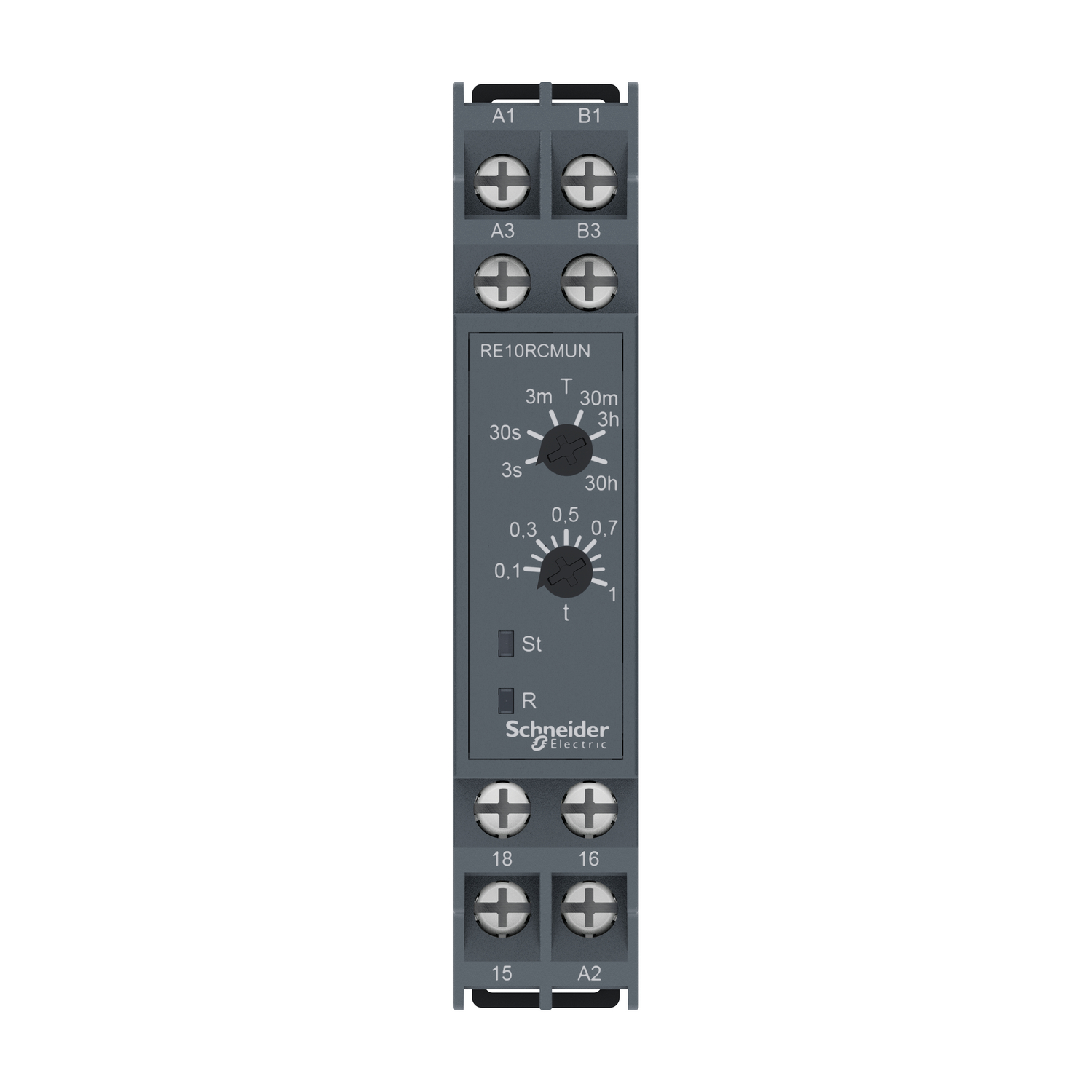

This modular timing relay relay belongs to Schneider Electric's Easy Harmony Timer relays range. This is a 5A, 24Vac/dc or 240Vac supply, 1 CO, din rail mount timer relay and OFF delay with control signal 'C' time function. This timer relay can be set between 0.1 seconds and 30 hours OFF delay timing with control signal. It has 1 changeover (CO) 5A contact, in SPDT (single pole double throw) configuration. It has single OFF delay time function in 17.5mm form-factors, allowing for a flexible and easy installation on DIN rail. This product comes with simple rotary dial setting for intended timing control. Its dimensions are 17.5mm (width) x 58.5mm (height) x 90mm (depth) and weighs 0.075 kg. Its design is suitable for industrial machines, HVAC compressor, pump fan control machines, automation control panels, low/medium voltage switchgear, motor controls. It is also suitable for building automation, panel electrical distribution, and lighting controls. It conforms to international standard, certifications and markings cULus, CE, CCC, and UKCA.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Timer Timing Relay · 1 C/O · 5 A · IP20 · RE10RCMUN · RE10RCMUN
Rated current5 A
Ingress protectionIP20 terminals:
Reference standardIEC 61812-1
Net weight0.075 kg
BrandSchneider
Brand SKURE10RCMUN
ELINEHCRKDH794
Sold asPer pc

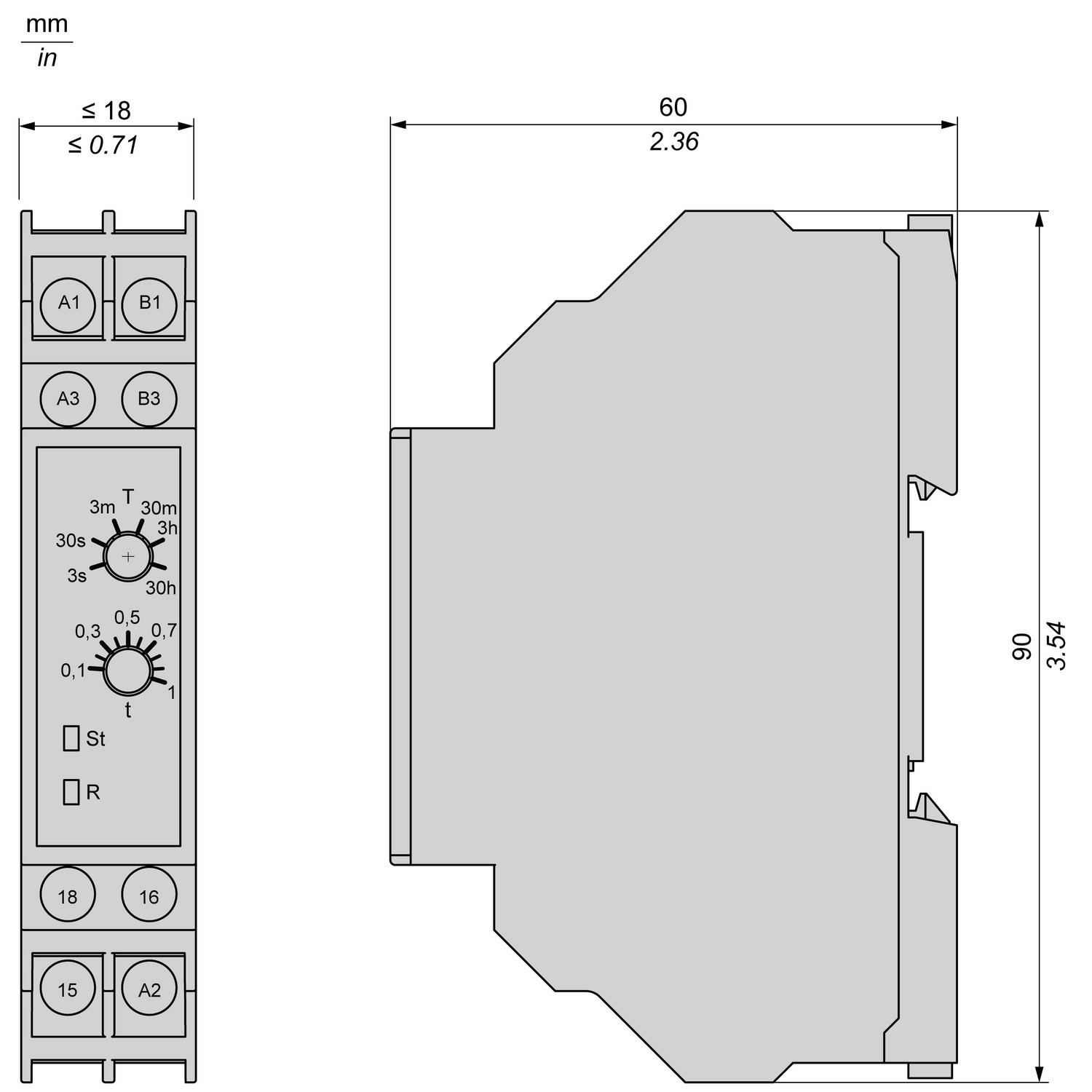

Depth90 mm
Width18 mm
Height58.5 mm
MarkingCULus · CE · CCC · UKCA
StandardsIEC 61812-1
Reset time100 ms on de-energisation
Control typeSelector switch front panel
Voltage range0.8...1.1 Un
Repeat accuracy+/- 0.5 %
Time delay typeC
Housing materialPolycarbonate
Local signallingLED indicator green, flashing for timing in progress · LED indicator red, steady for relay energised
Mounting support35 mm symmetrical mounting rail
Range of productHarmony Timer Relays
Time delay range0...30 h
Relative humidity10…95 % without condensation
Compatibility codeRE10
Function availableC- Off-delay relay w/ control signal-1 C/O
Dielectric strength2.5 kV for 1 mA/1 minute at 50 Hz
Number of functions1
Discrete output typeRelay
Vibration resistance0.15 mm (f= 10…150 Hz)
Electrical durability100000 cycles at 5 A, 250 V for resistive load
Mechanical durability5000000 cycles
Width pitch dimension17.5 mm
Minimum pulse duration100 ms with load in parallel
Power consumption in W0.6 W at 24 V
Product certificationscULus · CE · CCC · UKCA
nominal output current5 A
Connections - terminalsScrew connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid with or without cable end
IP degree of protectionIP20 terminals: · IP40 casing:
Power consumption in VA7 VA at 240 V
Product or component typeModular timing relay
[Us] rated supply voltage240 V AC 50/60 Hz · 24 V AC/DC
Contacts type and composition1 C/O
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 · Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 · Fast transients immunity test - test level: 2 kV level 3 conforming to IEC 61000-4-4
Setting accuracy of time delay+/- 10 % of full scale at 25 °C
[Ie] rated operational current5 A 250 V AC-1 conforming to IEC 60947-5-1 · 5 A 28 V DC-1 conforming to IEC 60947-5-1 · 1.5 A 240 V AC-15 conforming to IEC 60947-5-1 · 2 A 24 V DC-13 conforming to IEC 60947-5-1
Ambient air temperature for storage-20…60 °C
Ambient air temperature for operation-10…55 °C
[Uimp] rated impulse withstand voltage5 kV for 1.2…50 µs
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Is Schneider Harmony Timer Timing Relay · 1 C/O · 5 A · IP20 · RE10RCMUN genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
