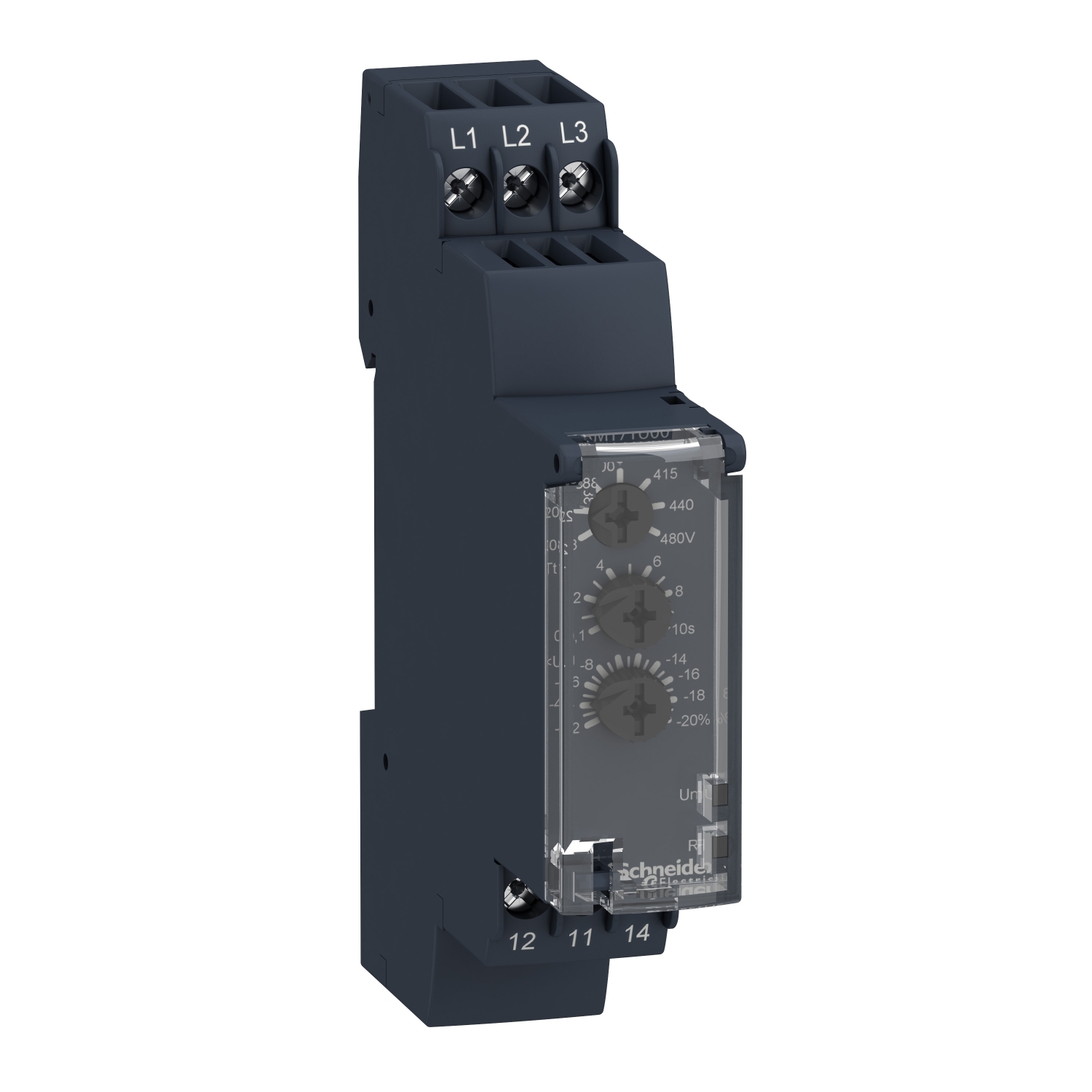

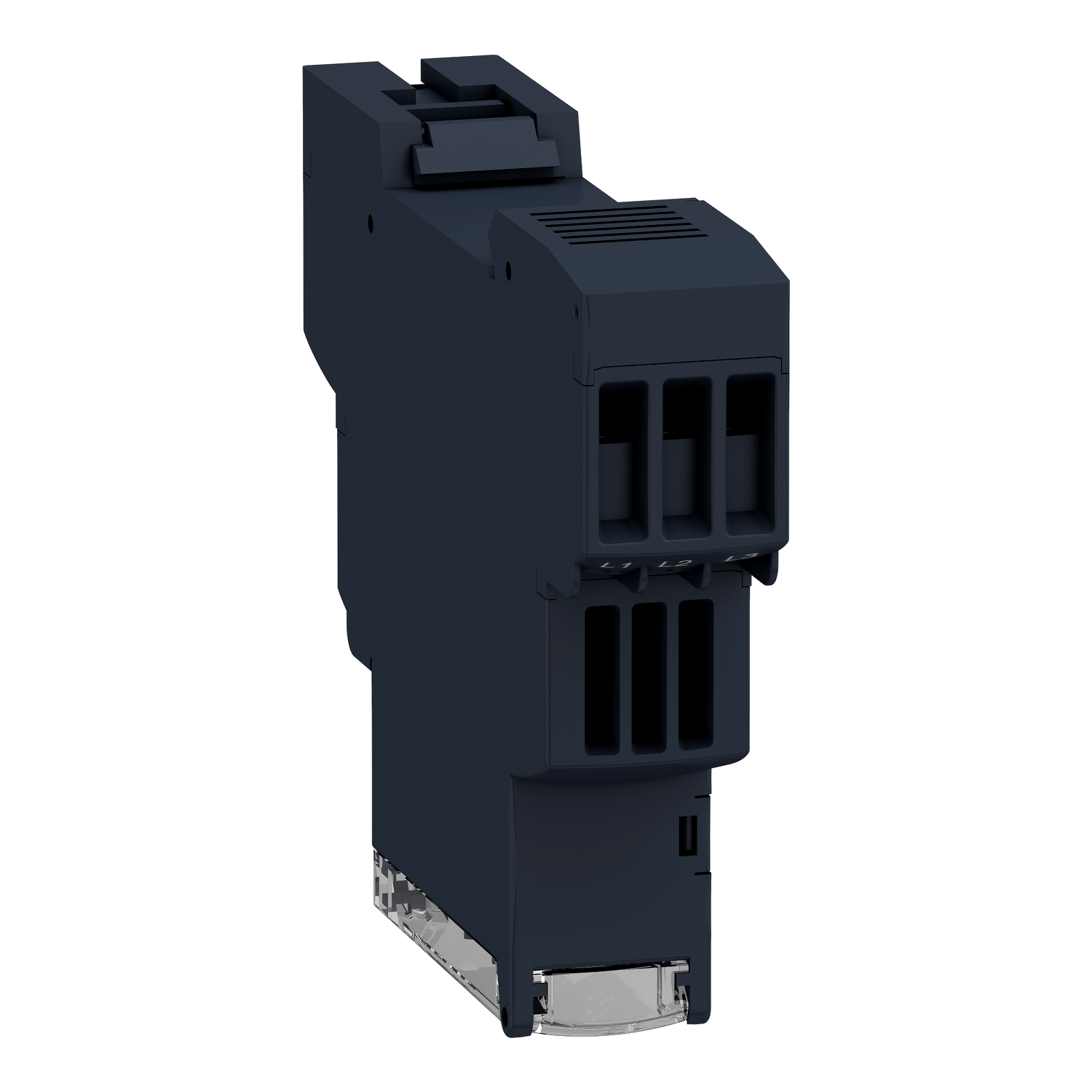

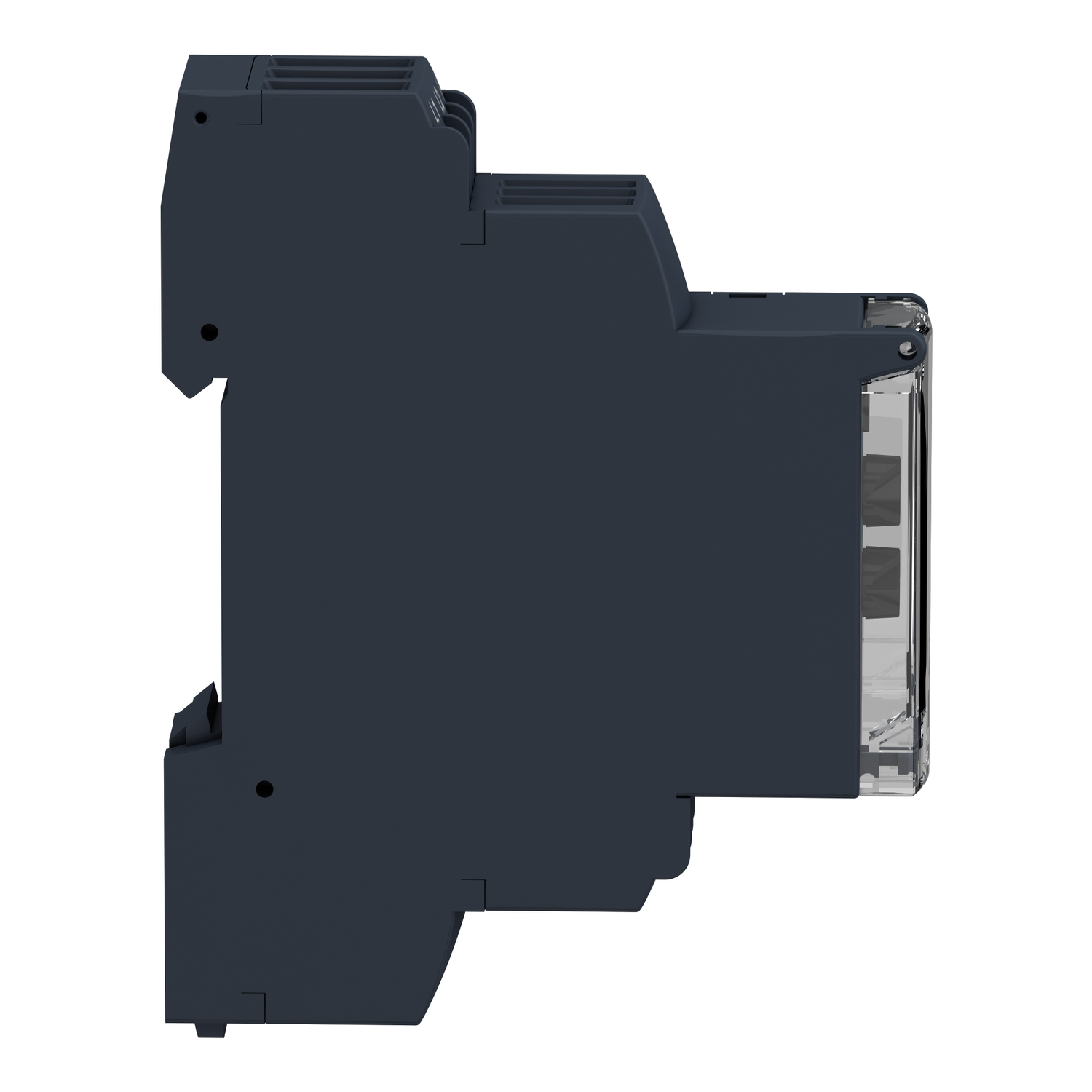

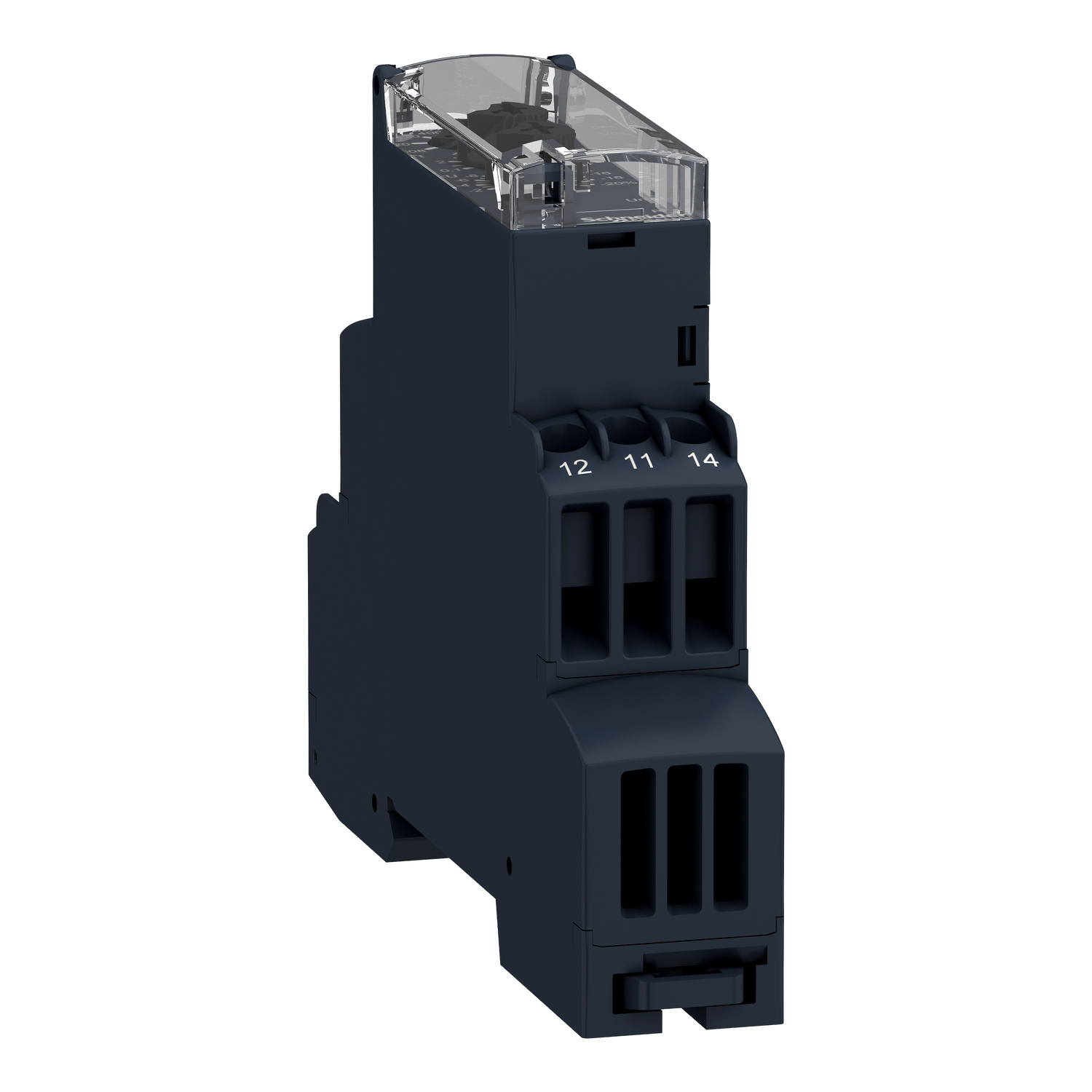

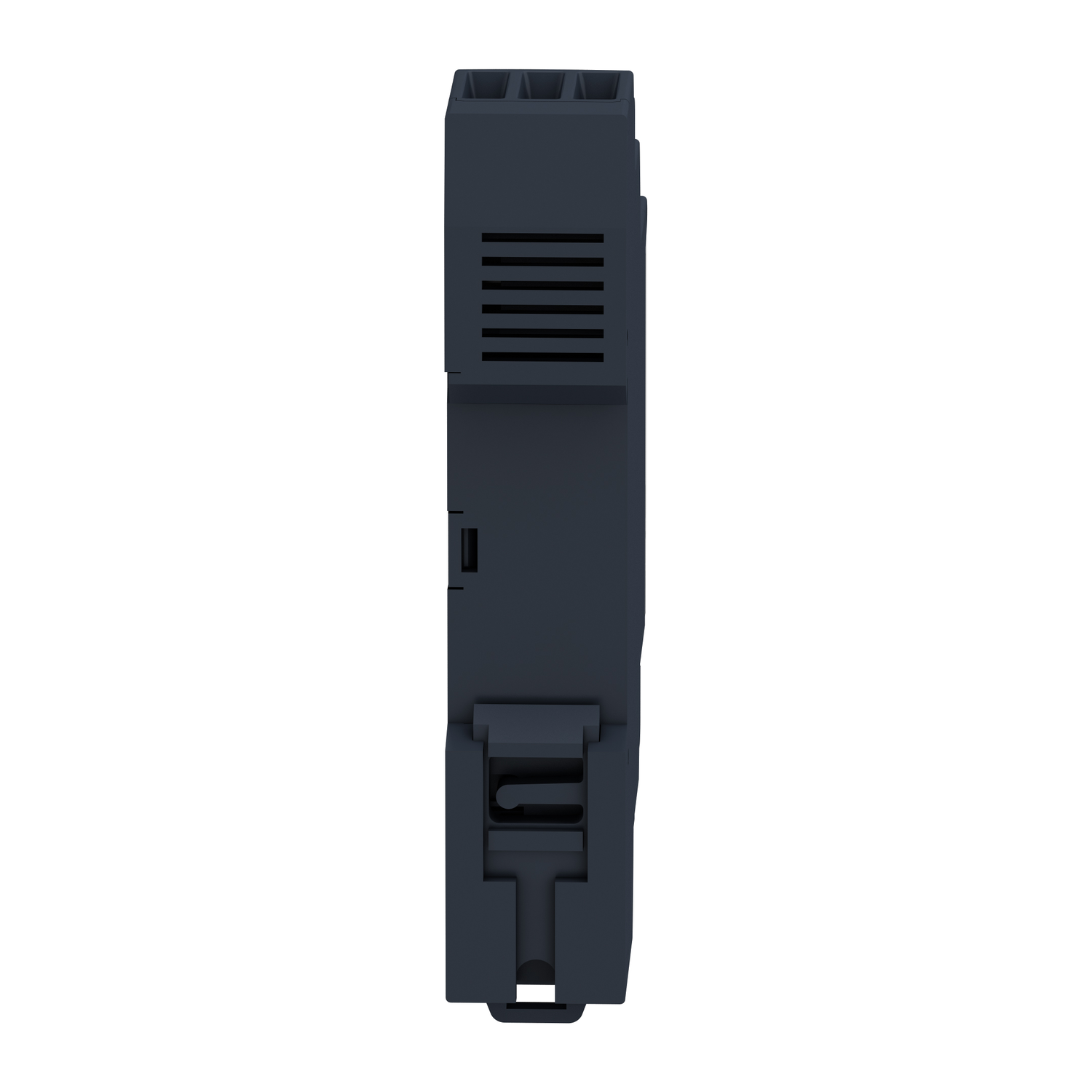

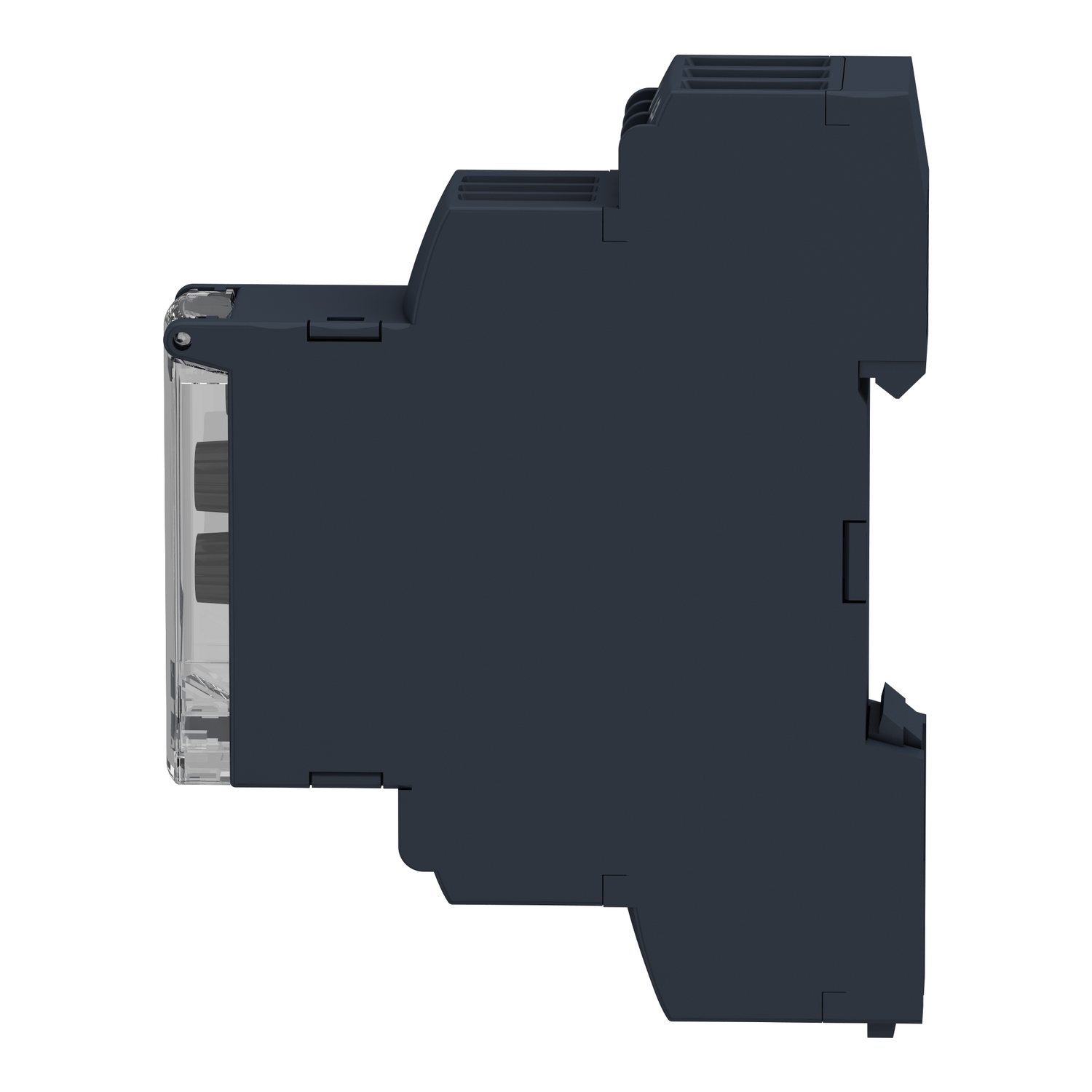

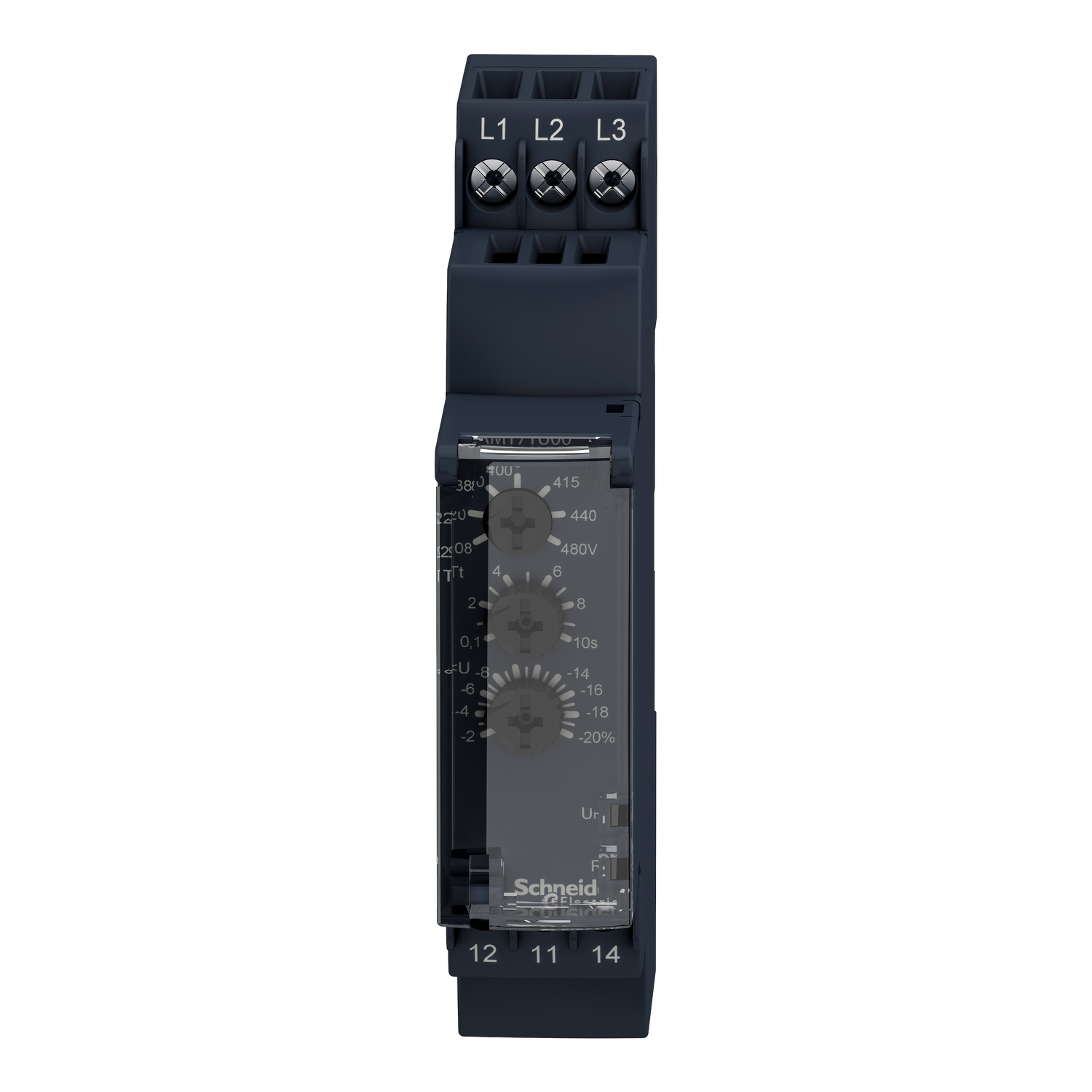

Schneider Harmony Control Relay · 1 C/O · 208...480 V coil · IP20 · RM17TU00RM17TU00↓ 1% off MRP1 / 12
BrandSchneider
CategoryIndustrial Control
Specification1 C/O · 208...480 V coil
Brand SKURM17TU00
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Control Relay · 1 C/O · 208...480 V coil · IP20 · RM17TU00

NEW added this week
₹12,263/pcincl. GST-1%
₹10,392 + 18% GST · MRP ₹12,386
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹12,263 /pc incl. GST
Free pan-India delivery

Schneider Harmony Control Relay · 1 C/O · 208...480 V coil · IP20 · RM17TU00: Elume price today ₹12,263 per pc incl. GST, 1% below the ₹12,386 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹13,253₹12,791₹12,329₹11,867₹11,405₹12,386₹12,263
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹12,263
MRP
₹12,386
Lowest in view · 17 Oct
₹12,263
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹11,650/pc on this product

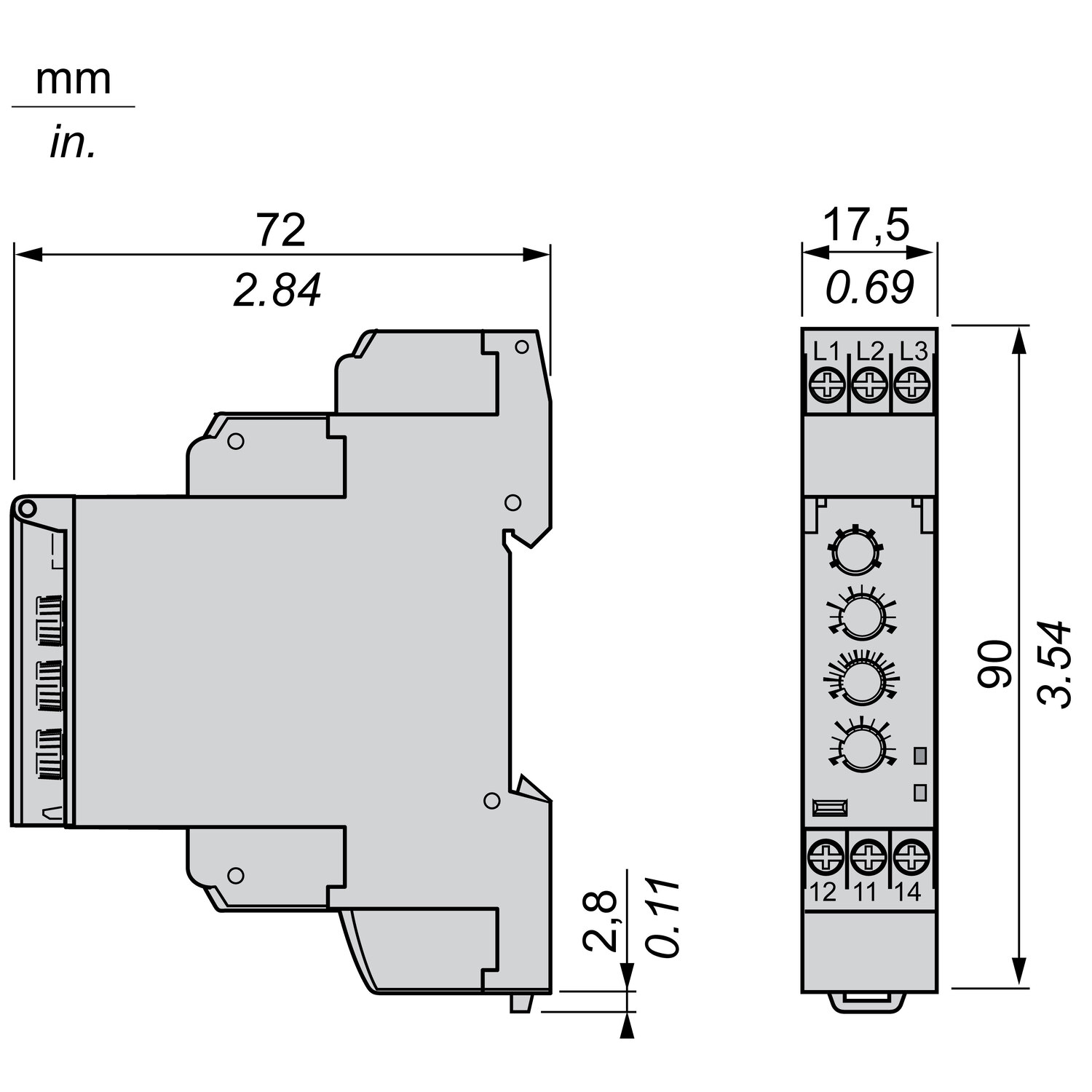

This Harmony RM17-TU relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Control Relay · 1 C/O · 208...480 V coil · IP20 · RM17TU00 · RM17TU00
Ingress protectionIP20 (terminals)· IP30 (casing)
Reference standardIEC 60255-1
coil voltage208...480 V
Net weight0.08 kg
BrandSchneider
Brand SKURM17TU00
ELINE6GHR6GH2F
Sold asPer pc
MarkingCE
StandardsIEC 60255-1
Directives73/23/EEC - low voltage directive · 89/336/EEC - electromagnetic compatibility
Hysteresis2 %
Relay nameRM17TU
Relay typeMultifunction control relay
Reset time1500 ms time delay
Control typeWithout test button
Response time< 200 ms (in the event of a fault)
Output contacts1 C/O
Time delay typeAdjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Pollution degree3 conforming to IEC 60664-1
Range of productHarmony Control Relays
Supply frequency50/60 Hz +/- 10 %
Measurement error< 0.05 %/°C with temperature variation · < 1 % over the whole range with voltage variation
Measurement range208...480 V AC
Relative humidity95 % at 55 °C conforming to IEC 60068-2-30
Overvoltage categoryIII conforming to IEC 60664-1
Electrical durability100000 cycles
Mechanical durability30000000 cycles
Supply voltage limits183…528 V AC
Product certificationsGL · GOST · UL · C-Tick · CSA
nominal output current5 A
Dielectric test voltage2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
IP degree of protectionIP20 (terminals) conforming to IEC 60529 · IP30 (casing) conforming to IEC 60529
Maximum measuring cycle150 ms measurement cycle as true rms value
Power consumption in VA0…22 VA at 400 V AC 50 Hz
Switching capacity in VA1250 VA
Control circuit frequency50...60 Hz +/- 10 %
Maximum switching current5 A AC · 5 A DC
Maximum switching voltage250 V AC
Minimum switching current10 mA at 5 V DC
Phase failure sensitivity0.7 Un
Product or component type3-phase control relay
[Us] rated supply voltage, self-powered
Measurement voltage limits183…528 V AC

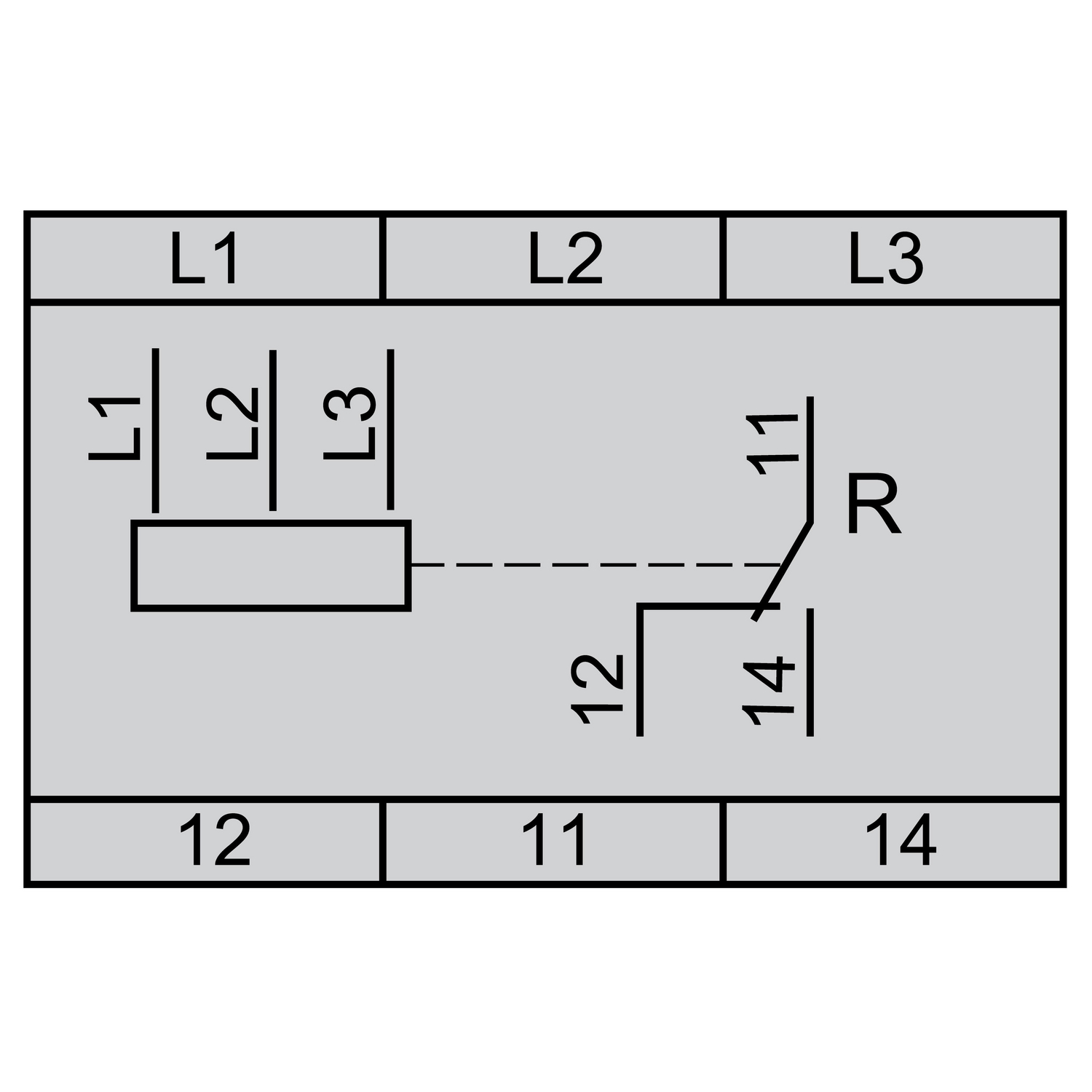

Relay monitored parametersUndervoltage detection · Phase sequence · Phase failure detection
Product specific applicationFor 3-phase supply
Threshold adjustment voltage2...20 % of Un selected · -2...-12 % in the range 208 V AC · -2...-17 % in the range 220 V AC
[Uc] control circuit voltage208...480 V
Contacts type and composition1 C/O
Electromagnetic compatibilityEmission standard for industrial environments conforming to IEC 61000-6-4 · Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 · Immunity for industrial environments conforming to IEC 61000-6-2
Control circuit voltage limits- 12 % + 10 % Un
Ambient air temperature for storage-40…70 °C · -40…70 °C
Ambient air temperature for operation-20…50 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
