Legrand Lyncus Modular MCB · 20 A · 1 M · White · 677282677282↓ 34% off MRP1 / 3
BrandLegrand
CategorySwitchgear
SpecificationMiniature circuit breaker · 20 A · 1 M · 240 V AC · White
Brand SKU677282
AvailabilityReady to ship · Only 6 left · Ships tomorrow
DeliveryPan-India · 5 working days
Legrand· Ready to ship
Visit the Legrand store

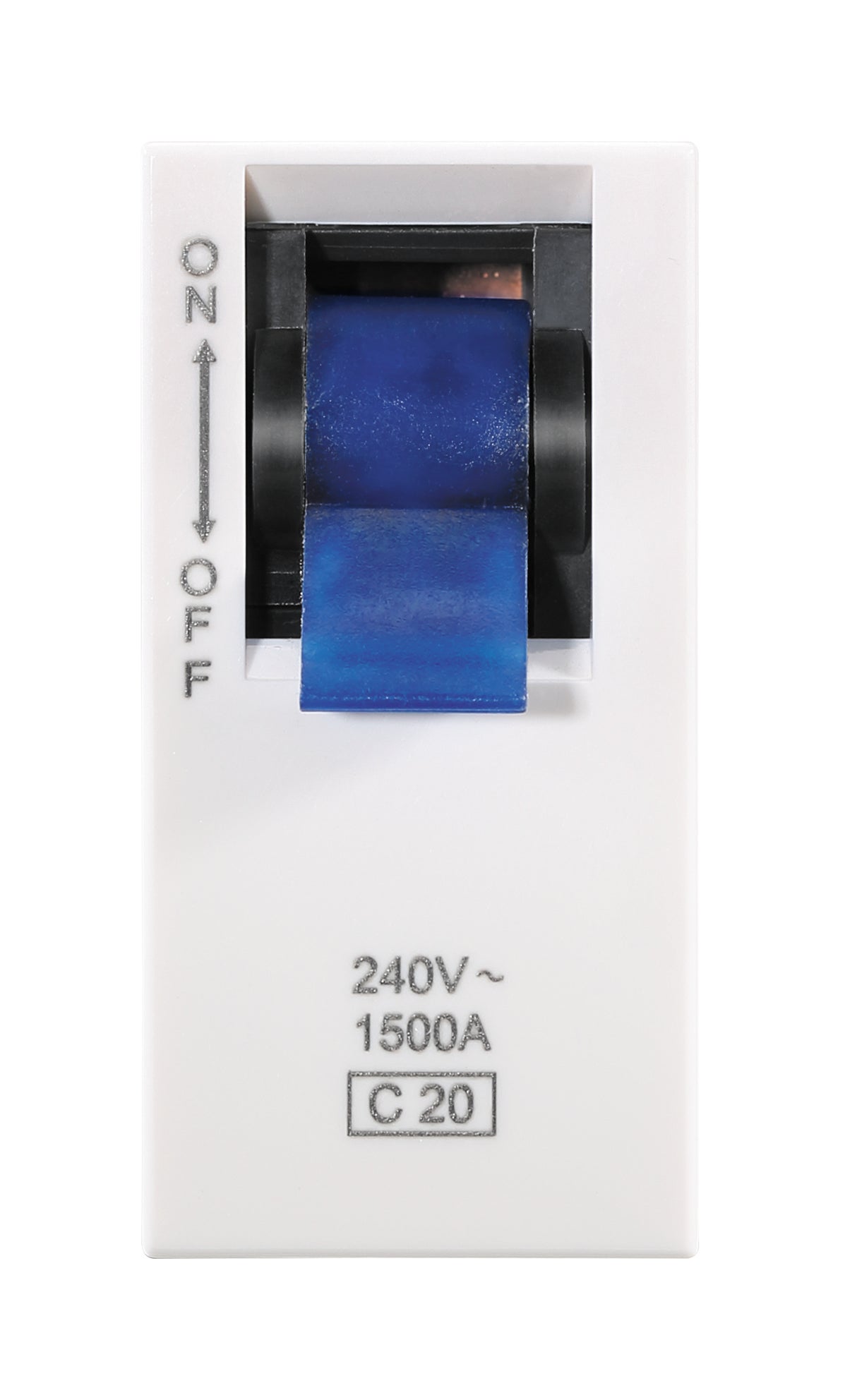

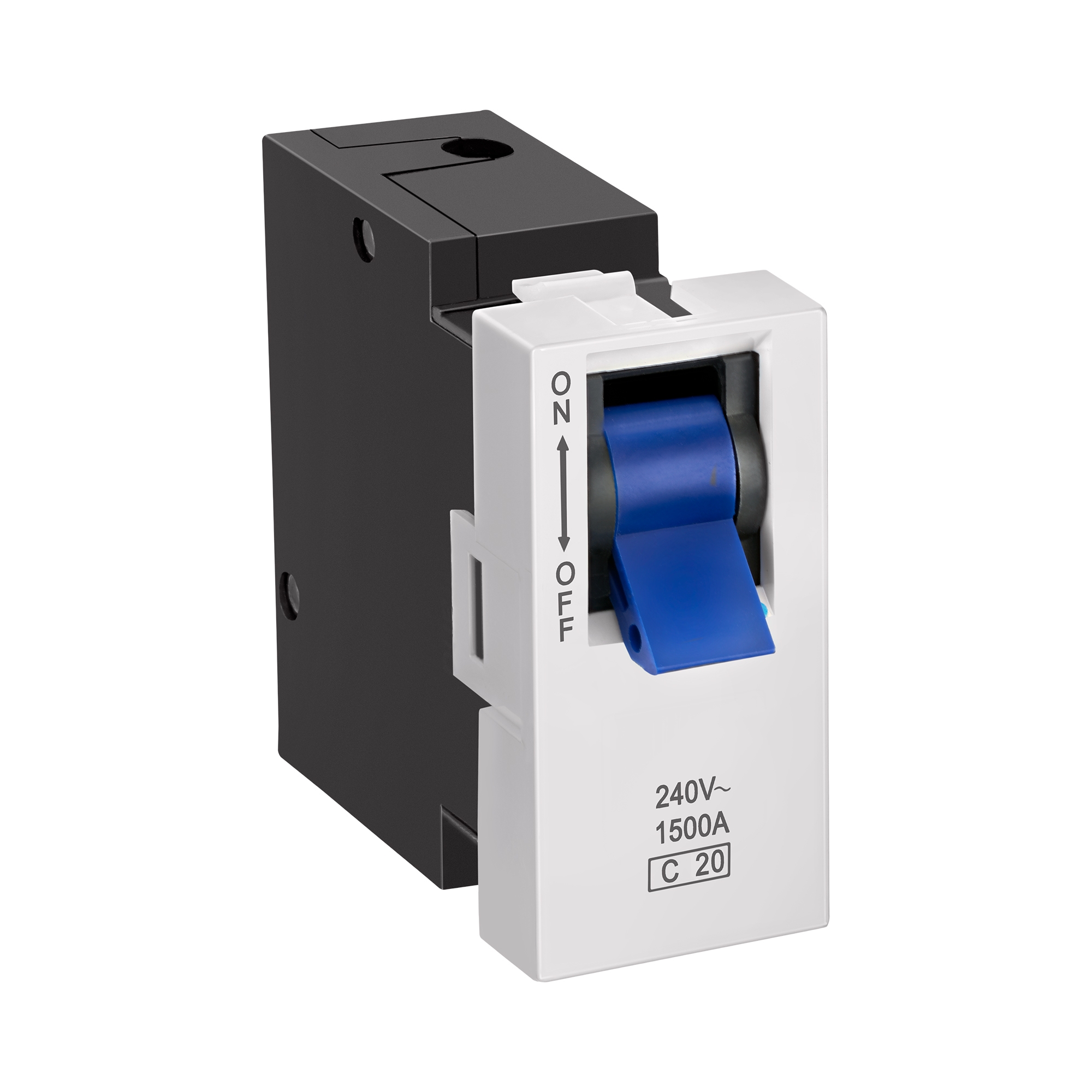

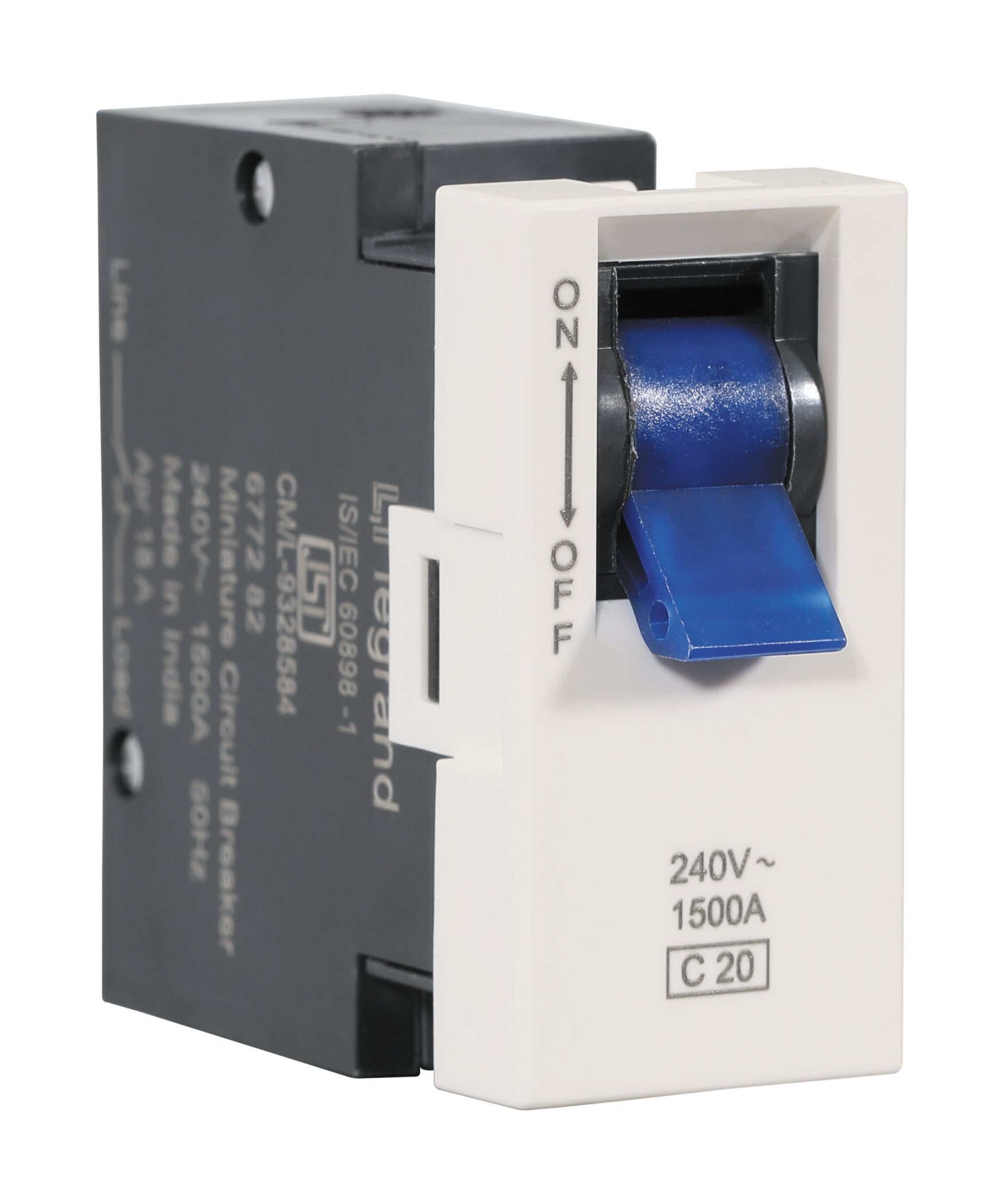

Legrand Lyncus Modular MCB · 20 A · 1 M · White · 677282

₹392/pcincl. GST-34%
₹332 + 18% GST · MRP ₹590
Add to cart
Buy now
Ready to shipOnly 6 left
Ships tomorrow. Delivery by Sat, 28 Nov.
In Delhi NCR? Get it today. Order before 1 pm for delivery the same day, after that the next day, for ₹400 extra. Choose Delhi NCR express at checkout.
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹392 /pc incl. GST
Free delivery over ₹4,000

Legrand Lyncus Modular MCB · 20 A · 1 M · White · 677282: Elume price today ₹392 per pc incl. GST, 34% below the ₹590 MRP. Today's price is the lowest of the last 30 days (high ₹393). The average price across the sellers we track is ₹317, ₹75 less than here. The lowest tracked seller lists it at ₹317, ₹75 below it (tell us and we match it).

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
24 Aug to 22 Nov
₹790₹665₹541₹416₹292₹590₹392₹317
24 Aug11 Sep29 Sep17 Oct4 Nov22 Nov
Elume today
₹392
Avg market price
₹317
MRP
₹590
Lowest in view · 7 Oct
₹314
Highest in view · 23 Oct
₹393
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹384/pc on this product, applied automatically

The Lyncus range product with catalog number 677282 is a 20A Modular MCB SP 1M C Curve designed for overload and short circuit protection in electrical circuits. This single-pole miniature circuit breaker is compact, occupying just one module, and is suitable for both flush and surface-mounted installations. It features a sleek white color that blends seamlessly with modern interiors. The device is equipped with screw terminals, supporting wire capacities ranging from 1.5mm² to 6mm², and is compatible with flat-blade screwdrivers of 4mm to 5mm. Its dimensions include a width of 22.5mm, height of 45mm, and depth of 41mm, with a weight of 58 grams, ensuring ease of installation and handling. The MCB operates via a dolly (knob) mechanism and is constructed with high-quality materials such as nylon reinforced with 30% glass fiber for the dolly, PBT for the top and bottom covers, and brass with silver plating for the screws and terminals. Electrically, it is rated for 240V AC and 20A current, with a short circuit capacity of 1.5kA. The product is marked with essential details such as ratings, voltage, short circuit capacity, ON-OFF indication, connection diagram, manufacturing country,

As published by Legrand. Verify critical parameters against the datasheet before specifying.
Legrand Legrand Lyncus Modular MCB · 20 A · 1 M · White · 677282 · 677282
Device typeMiniature circuit breaker (MCB)
SeriesLyncus
Rated current20 A
Rated voltage240 V AC
MountingFlush or surface
Country of originIndia
ColourWhite
FinishGlossy White
Module size1 M
Current rating20 A
Reference standardIS/IEC 60898-1
BrandLegrand
Brand SKU677282
ELINE4FFC9FF3G
Sold asPer pc
ColorWhite
Warranty2 years warranty provided by the manufacturer from date of purchase
Product Code677282
Product FinishedGlossy White
Product features• Rated Current 20A MCB SP C curveat 240V • For 1 module 22.5 x 45 mm• Single module mechanism • Modular in nature• Switch with Dolly ( Knob) • As per IS : 60898-1:2002 • Overload and short circuit protection
Product Width (mm)22.5
Mechanism / AccessoriesMechanism
Product Technical specifications• Material Characteristics Dolly (Knbb) : Nylon +30% glass field Bottom Cover : PBT Top Cover :PBT Top plate : Polycarbonate Screws : Brass with silver plating Terminal : Brass with silver plating • Electricals Characteristics Voltage :240V AC Current : 20A Short Circuit Capacity-1.5KA • Marking Rating ,Voltage , Short circuit capacity, ON-OFF indication ,Connection diagram, Manufacturing country ,tracebiIity and ISI Marking
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
Which MCB rating do I need for a 1.5 ton split AC?

Many 1.5 ton split ACs are put on a dedicated 16A or 20A MCB (C curve is common) with 2.5 or 4 sq mm copper wire, depending on the rated current on the nameplate and the cable run. Follow the AC's installation manual and have a licensed electrician size the MCB to protect the cable, not just the appliance.

What is the difference between B, C and D curve MCBs?

The curve sets how fast the MCB trips on a surge: B trips at 3-5 times rated current, C at 5-10 times and D at 10-20 times (IS/IEC 60898-1). B suits lighting and resistive loads, C is the usual choice for homes with ACs, fans, motors and pumps, and D is for high inrush loads like transformers and large motors.

Should I use SP or DP MCB for my geyser or AC?

A DP (double pole) MCB switches off both phase and neutral, giving full isolation for high-load or wet-area appliances like geysers, ACs and the main incomer. SP MCBs are fine for normal lighting and socket circuits where only the phase needs protection.

Is 6kA or 10kA breaking capacity better for home?

Breaking capacity is the maximum fault current the MCB can safely interrupt; 6kA is adequate for most homes and 10kA is recommended near large transformers, in commercial buildings or industrial sites where prospective fault current is higher. Choosing 10kA does not change how the MCB behaves on normal overloads.

Will this MCB fit in my existing DB of another brand?

Most modular MCBs mount on a standard 35mm DIN rail and are one module (about 18mm) wide per pole, so they usually physically fit. The front cover cutout height and busbar terminal type can differ between brands, so check the cover alignment before mixing brands in one DB.

Does an MCB protect against electric shock?

No. An MCB protects wiring against overload and short circuit only; protection against shock and earth leakage needs an RCCB or RCBO (typically 30mA) in the same circuit.
