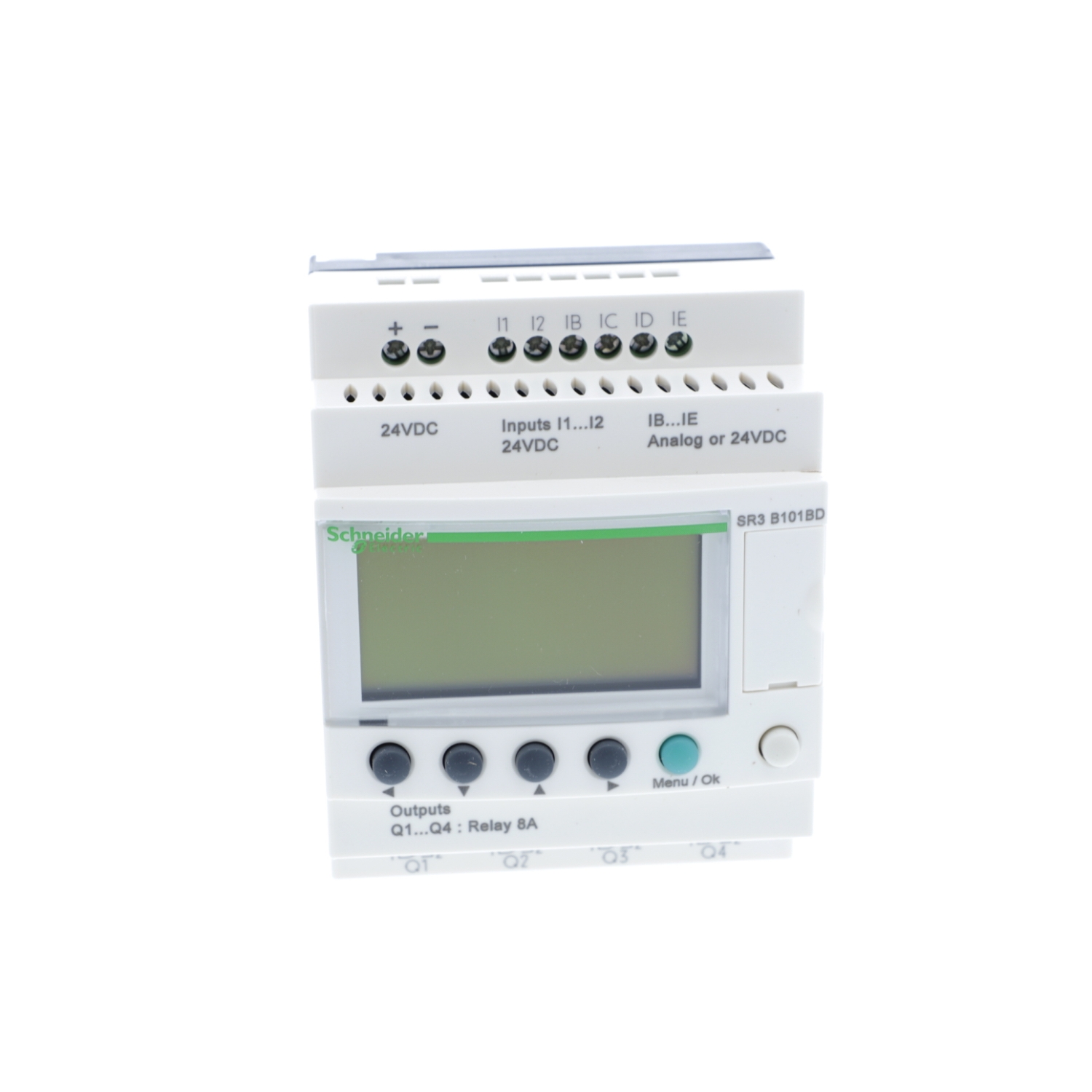

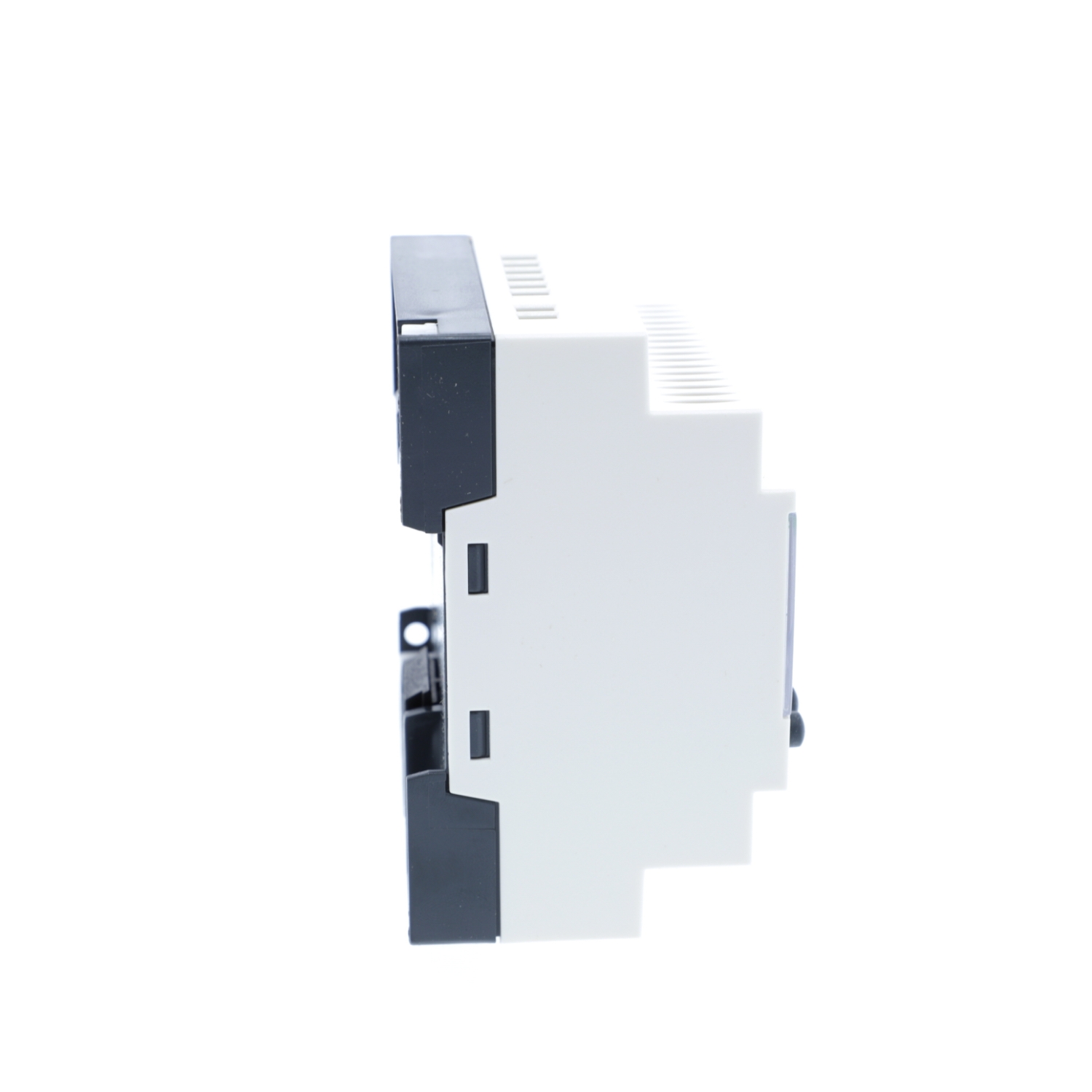

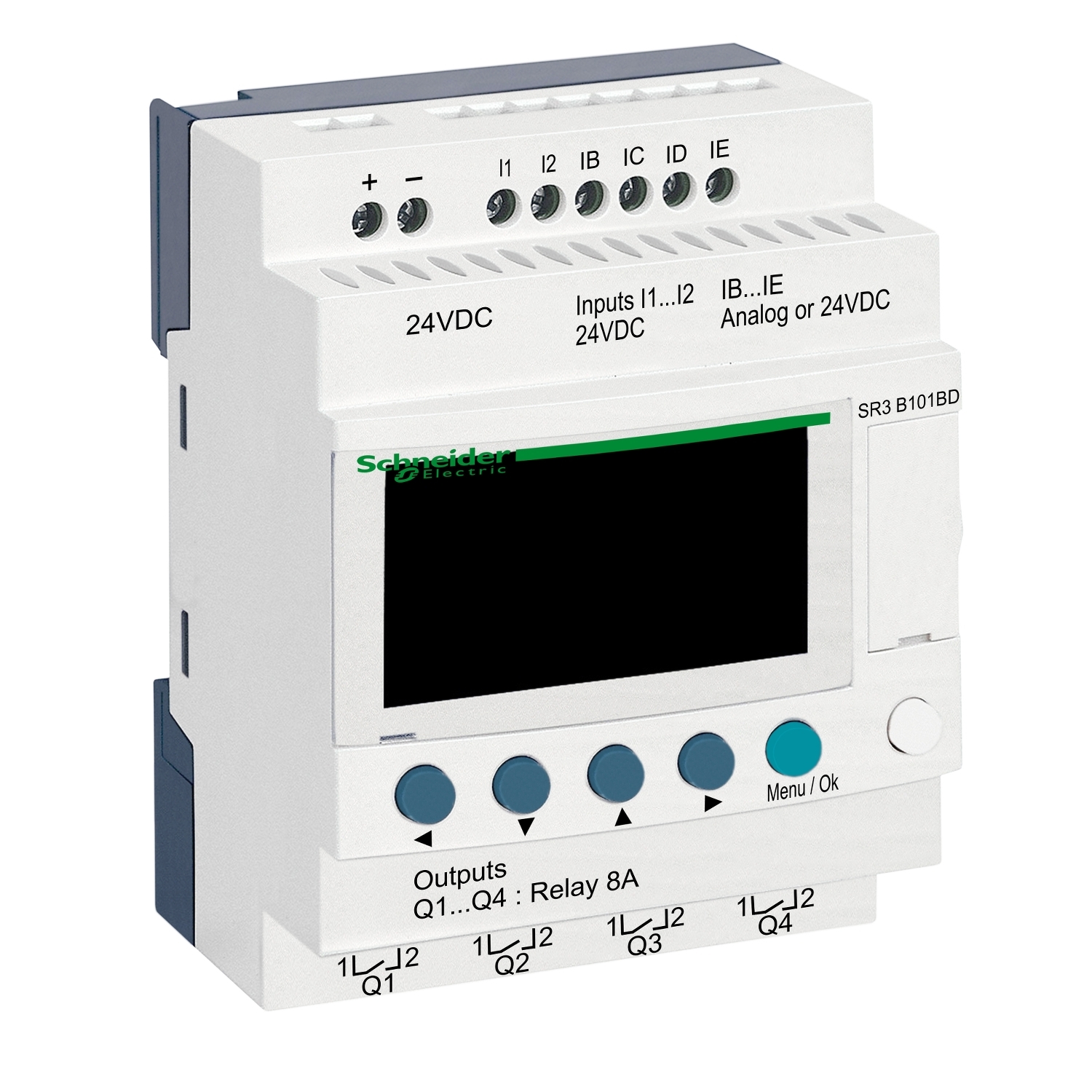

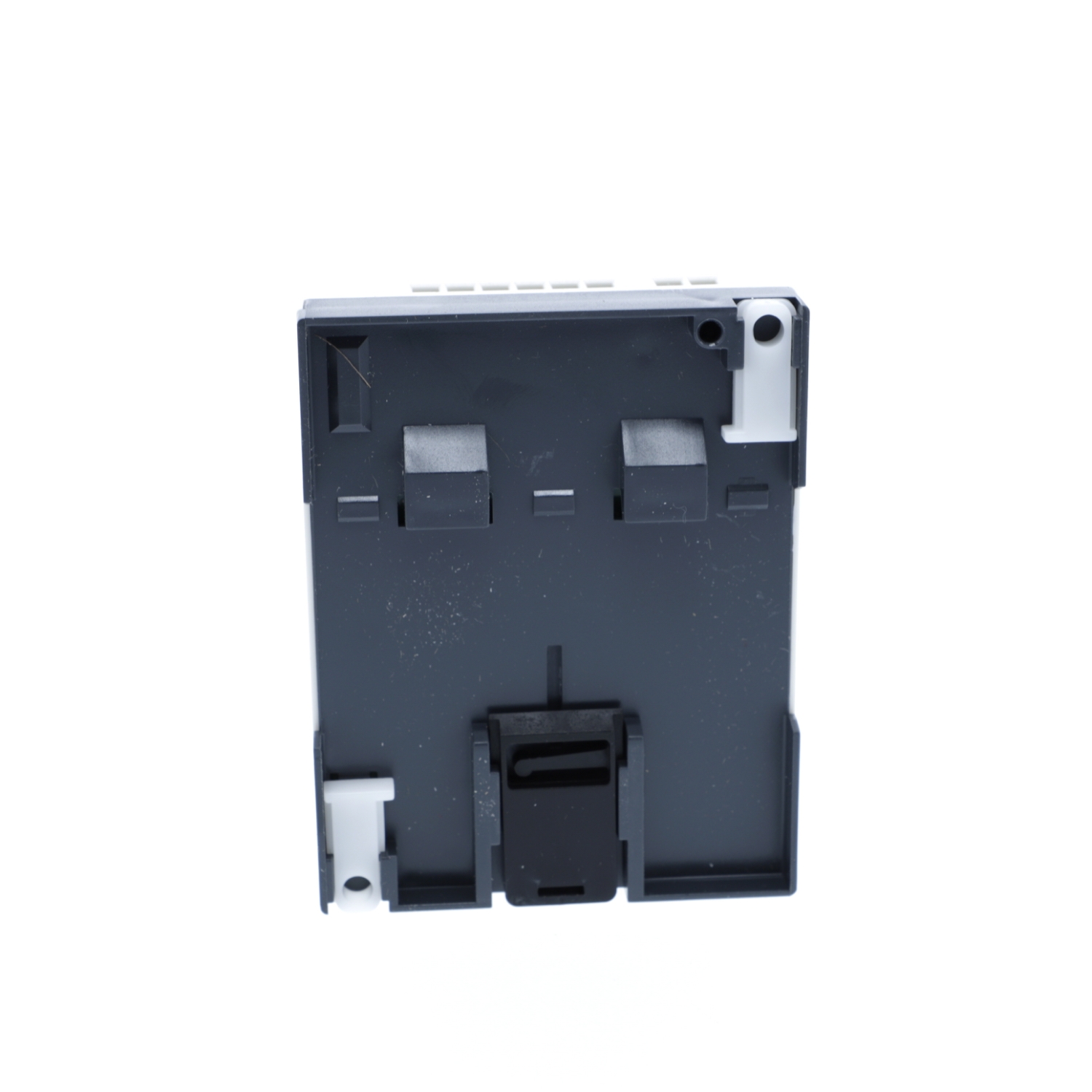

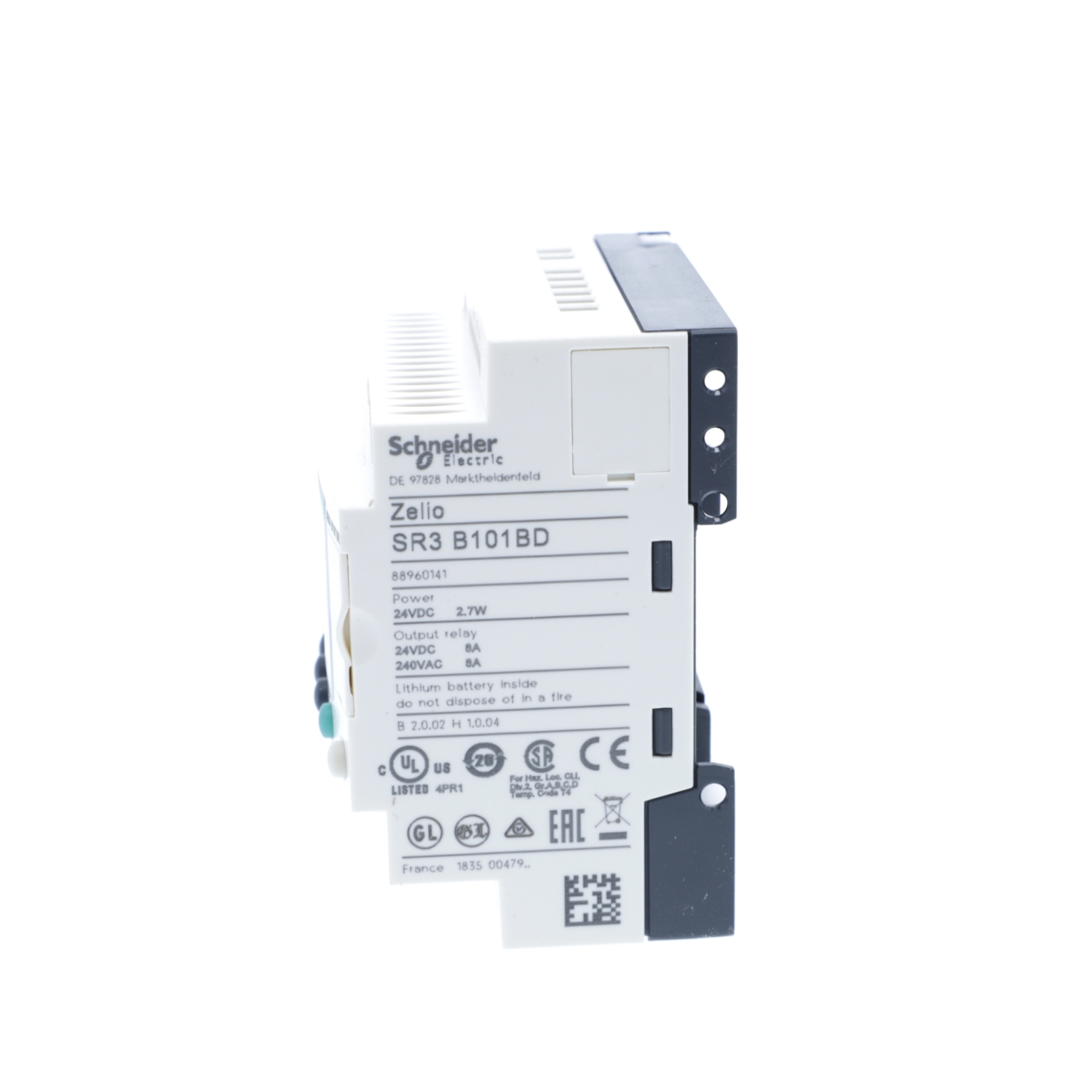

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B101BDSR3B101BD↓ 1% off MRP1 / 6
BrandSchneider
CategoryIndustrial Control
Specification10 I O · 24 V DC · clock · display
Brand SKUSR3B101BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B101BD

NEW added this week
₹28,420/pcincl. GST-1%
₹24,085 + 18% GST · MRP ₹28,707
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹28,420 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B101BD: Elume price today ₹28,420 per pc incl. GST, 1% below the ₹28,707 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹30,716₹29,645₹28,574₹27,502₹26,431₹28,707₹28,420
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹28,420
MRP
₹28,707
Lowest in view · 17 Oct
₹28,420
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹26,999/pc on this product

This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The compact smart relay provides a real alternative to solutions based on cabled logic or specific cards. It comes with display and clock. Checks program memory on each power up and 0 to 240 with ladder programming number or control scheme lines. Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards It offers 4 relay outputs with normally opened contact and 6 discrete inputs. It has a rated supply voltage of 24V, a maximum supply current of 100mA (without extension) and a power dissipation of 3W without extension. It is an IP20 and IP40 rated product. It weighs 0.25kg. This product meets EN/IEC 60068-2-6 Fc, EN/IEC 61000-4-11, EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-3, EN/IEC 61000-4-6 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5 and EN/IEC 61000-4-12 standards. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to u

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Modular Smart Relay · 10 I O · 24 V DC · clock · display · IP20 · SR3B101BD · SR3B101BD
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 60068-2-6 Fc
Net weight0.25 kg
BrandSchneider
Brand SKUSR3B101BD
ELINE3C7C6J4C7
Sold asPer pc
ClockWith
ChecksProgram memory on each power up
LSB value39 mV for analogue input circuit
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C · 6 s/month at 25 °C
Local displayWith
Conversion timeSmart relay cycle time for analogue input circuit
Input impedance12 kOhm for IB...IG used as analogue input circuit · 12 kOhm for IB...IG used as discrete input circuit · 7.4 kOhm for I1...IA and IH...IR discrete input circuit
Repeat accuracy+/- 2 % at 55 °C for analogue input circuit
Conversion error+/- 5 % at 25 °C for analogue input circuit · +/- 6.2 % at 55 °C for analogue input circuit
Range of productZelio Logic
Number of outputs4 relay
Counting frequency1 kHz for discrete input
Operating distance10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Analogue input typeCommon mode
Discrete input typeResistive
Input compatibility3-wire proximity sensors PNP for discrete input
Analogue input range0...10 V · 0...24 V
Operating rate in Hz0.1 Hz (at Ie) for relay output · 10 Hz (no load) for relay output
Analogue input number4
Discrete input number6 conforming to IEC 61131-2 Type 1
Electrical durabilityAC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 · AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 · DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1 · DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1
Mechanical durability10000000 cycles for relay output
Output voltage limits24...250 V AC (relay output) · 5...30 V DC (relay output)
Supply voltage limits19.2…30 V
Discrete input current4 mA
Discrete input voltage24 V DC
Maximum supply current100 mA (with extensions) · 100 mA (without extension)
Output thermal current8 A for all 4 outputs for relay output
Power dissipation in W3 W without extension · 8 W with extensions
Temperature probe typeNTC 10k at 25 °C · NTC 1000k at 25 °C · KTY81 210/220/221/222/250 · Pt 500
Switching capacity in mA>= 10 mA at 12 V (relay output)
Analogue input resolution8 bits
Product or component typeModular smart relay
[Us] rated supply voltage24 V
Current state 0 guaranteed<= 0.5 mA (IB...IG used as discrete input circuit) · <= 0.75 mA (I1...IA and IH...IR discrete input circuit)
Current state 1 guaranteed>= 1.2 mA (IB...IG used as discrete input circuit) · >= 2.2 mA (I1...IA and IH...IR discrete input circuit)
Voltage state 0 guaranteed<= 5 V for I1...IA and IH...IR discrete input circuit · <= 5 V for IB...IG used as discrete input circuit · <= 5 V
Voltage state 1 guaranteed>= 15 V for I1...IA and IH...IR discrete input circuit · >= 15 V for IB...IG used as discrete input circuit
Maximum permissible voltage30 V for analogue input circuit
Reverse polarity protectionWith
Contacts type and compositionNO for relay output
Number or control scheme lines0…500 with FBD programming · 0…240 with ladder programming
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
