Schneider PowerLogic PowerTag A9 F63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1560A9MEM1560↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
SpecificationClass 1 current· Class 0.5 voltage· Class 1 active power· Class 1 active energy· Class 1 power factor
Brand SKUA9MEM1560
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider PowerLogic PowerTag A9 F63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1560

NEW added this week
₹16,245/pcincl. GST-1%
₹13,767 + 18% GST · MRP ₹16,409
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹16,245 /pc incl. GST
Free pan-India delivery

Schneider PowerLogic PowerTag A9 F63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1560: Elume price today ₹16,245 per pc incl. GST, 1% below the ₹16,409 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹17,558₹16,945₹16,333₹15,720₹15,108₹16,409₹16,245
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹16,245
MRP
₹16,409
Lowest in view · 17 Oct
₹16,245
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹15,433/pc on this product

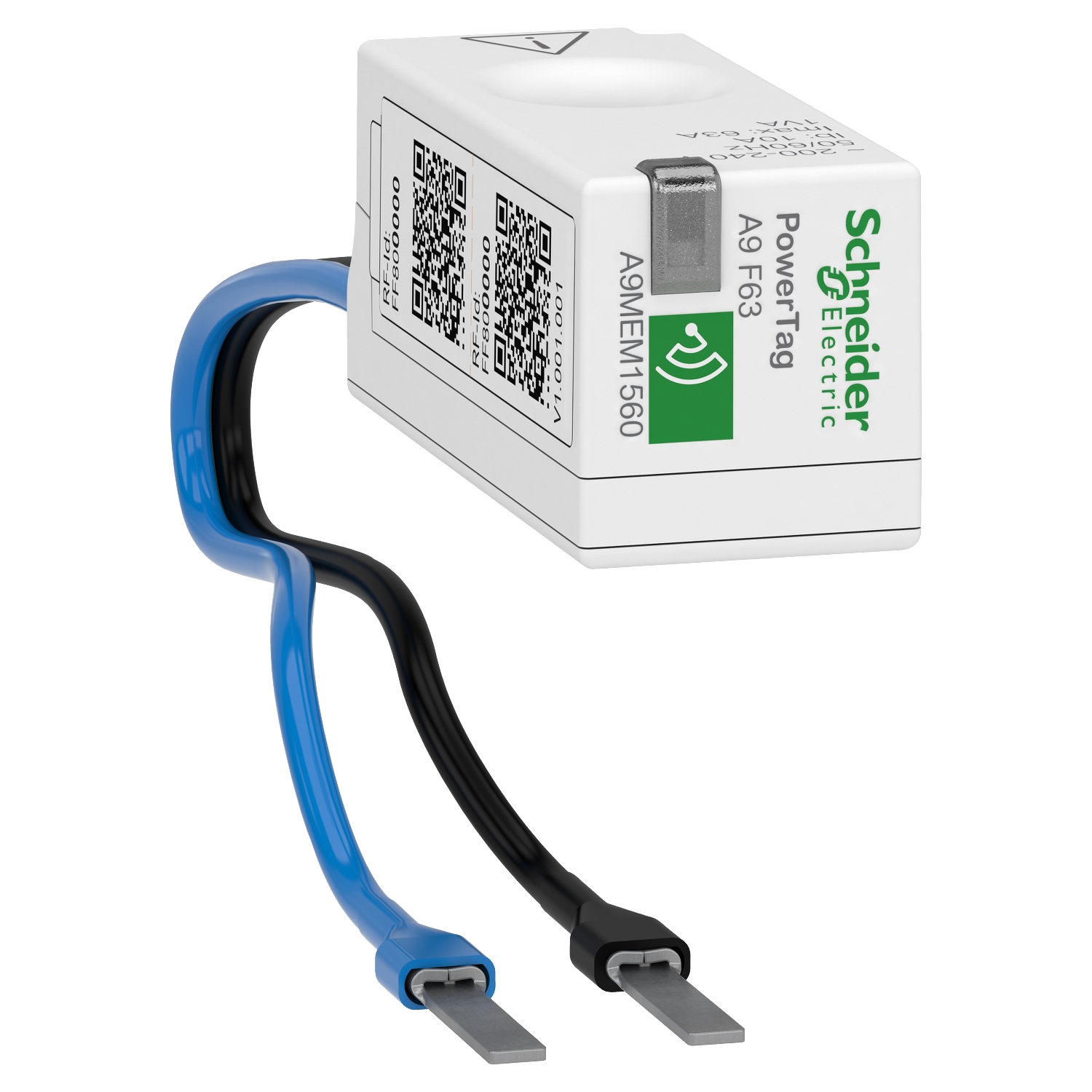

This PowerTag Energy F63 1P+N is a wireless communication energy sensor. With its Flex design, it is dedicated to 1P+N devices, rating less than or equal 63A. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized. PowerTag Energy 63A complies with IEC 61557-12 standard. It is a PMD-I/DD/K55/1. The Performance category is Class 1. The Imax Maximum current is 63A. The Ib Base current is 10A. The Saturation current is 130A. The Ist Starting current is 40mA. The Un rated voltage is Phase-to-neutral 200VAC to 240VAC +/- 20%. The maximum consumption is below or equal to 1VA. It can be either mounted on the top or the bottom of the protective device. The product color is white (RAL9003). The weight is 16g. The degree of protection is IP20 and IK05 The operating temperature is between -25°C to +60°C.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider PowerLogic PowerTag A9 F63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1560 · A9MEM1560
Ingress protectionIP20
Reference standardIEC 61557-12
ColourWhite (RAL 9003)
Net weight0.016 kg
BrandSchneider
Brand SKUA9MEM1560
ELINE2MKDH2RC4
Sold asPer pc

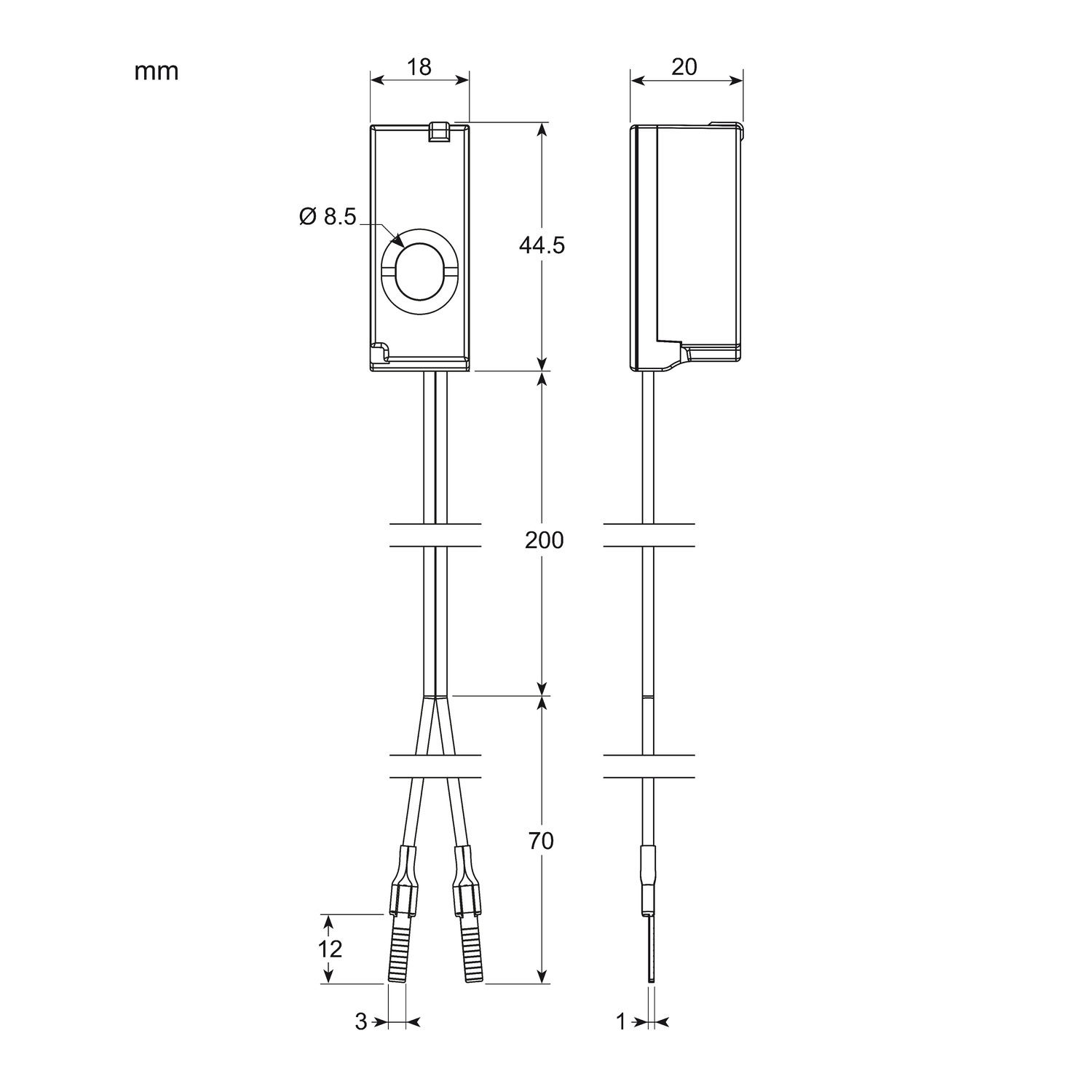

DepthSensor element: 44.5 mm
Poles1P + N
WidthSensor element: 18 mm
HeightSensor element: 20 mm
StandardsIEC 61557-12 · IEC 61010-1 · IEC 61010-2-030 · IEC 61326-1 · ETSI EN 300 328 · ETSI EN 301 489-1
Directives2014/53/EU - radio equipment directive
ApplicationBuildings: breaker voltage monitoring · Buildings: cost allocation · Buildings: overload alarm
Form factorFlex
Cable length0.25 m
Product namePowerTag A9 F63
Mounting modeBy screws (terminals)
Accuracy classClass 1 current conforming to IEC 61557-12 · Class 0.5 voltage conforming to IEC 61557-12 · Class 1 active power conforming to IEC 61557-12 · Class 1 active energy conforming to IEC 61557-12 · Class 1 power factor conforming to IEC 61557-12
Emission power10 mW
Quality labelsCE
supply voltage200...240 V AC, +/- 20 %
Event managementVoltage loss with measured current at voltage loss
Mounting supportOn circuit breaker
Range of productPowerLogic
Starting current40 mA
Cable composition1 x 0.33 mm²
Mounting locationTop or bottom
Network frequency50 Hz · 60 Hz
Compatibility codePowerTag A9 P63
Operating altitude0...2000 m
Saturation current130 A
[Ib] Basic current10 A
Cable cross section1 rigid cable 1.5…16 mm² · 2 stranded cable 1.5…2.5 mm² · 2 rigid cable 1.5…2.5 mm² · 1 stranded cable 1.5…16 mm²
Product destinationSwitchboard
Range compatibilityActi9 Acti9 iCV40 · Acti9 Vigi iC40 · Acti9 Vigi iC60 · Acti9 Acti9 iDD40 XA · Acti9 Acti9 iCV40 XA · Acti9 Vigi iDT40 · Acti9 iCVm40 · Acti9 iCVr40 · Acti9 iDDm40
Type of measurementActive energy · Current · Voltage · Power factor · Active power
Measurement categoryCategory III conforming to IEC 61010-2-030
Overvoltage categoryIII conforming to IEC 61010-1
Maximum current [Imax]63 A
Product certificationsIEC · DNV Marine
IP degree of protectionIP20 conforming to IEC 60529
Maximum power consumption1 VA
Product or component typeEnergy sensor
Concentrator compatibilityEcoStruxure Panel Server Entry · EcoStruxure Panel Server Universal · EcoStruxure Panel Server Advanced · Harmony Hub · Wiser hub generation 2 · Acti9 Smartlink SI B · Acti9 Smartlink SI D · Acti9 PowerTag Link · Acti9 PowerTag Link HD
Transmission support mediumRadio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
Product specific applicationCost allocation · Load monitoring · Circuit monitoring · Overload alarm · Energy management
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Electrical connection (voltage sensing & power supply)Wires with cable end
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Other Schneider ranges and models in this category, closest in price to this one.
Is Schneider PowerLogic PowerTag A9 F63 Energy Sensor · Class 1 current · Class 0.5 voltage · White (RAL 9003) · A9MEM1560 genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
