Catalogue / Lighting / Havells Trim NXT LED Panel SQ V2 — 20 W · 3000 K
BrandHavells
CategoryLighting
SpecificationLED Panels · Suitable For For Residential & Domestic Application · Wattage (W) 20 W · Rated Input Voltage 220 V - 240 V AC · Rated Lumens 500 lm · Net Weight 0.1 kg
SKULHEBLEPRPVNW020
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Havells· In stock

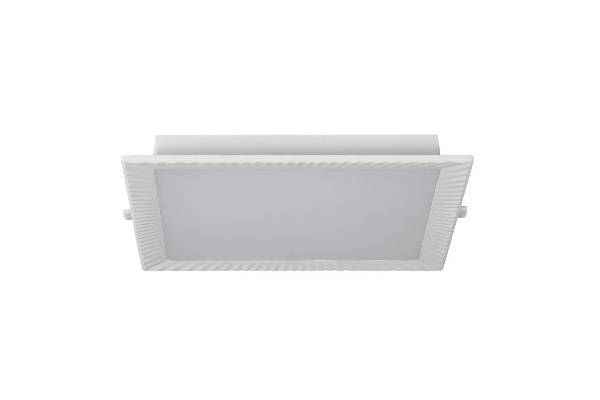

Havells Trim NXT LED Panel SQ V2 — 20 W · 3000 K
Wattage: 20 W
Colour temp: 3000 K
₹647/pc+ 12% GST
₹725 incl. GST · MRP ₹1,12142% off
Wholesale · 15+ units
₹615 +GST /pc
Add to cart
Buy now
🚚 Delivered pan-India · 30-day NBFC credit is coming soon — join the waitlist.
Price history
Elume price over time. Market comparison appears once we track this item. Updated regularly.
ElumeMRP
Elume today
₹725
MRP
₹1,255
1 price point
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units — ₹689/pc on this product
About this product
from havells.com- First in the industry with designer bezel (Design Registered)
- First in the industry to use Lens based optics in Panels
- Premium grade diffuser
As published by Havells. Verify critical parameters against the datasheet before specifying.
Technical specifications
Havells Havells Trim NXT LED Panel SQ V2 — 20 W · 3000 K · LHEBLEPRPVNW020
Luminaire typeLED panel
Wattage20 W
Colour temperature3000 K
Reference standardIS 16102 / IS 10322
BrandHavells
SKULHEBLEPRPVNW020
Sold asPer pc
THD≤33
Life25000 hours
Lumen500 lm
UsageSuitable for Residences, Small Shops, and Schools & Colleges
Width104 mm
DriverDOB Based
Height21 mm
Length104 mm
DiffuserPC
DimmableNon Dimmable
MaterialPolycarbonate
Warranty2 Years
Frequency50 Hz
IP RatingIP20
Net Weight0.1 kg
Protection440 V High Voltage Protection
Shape TypeSquare
Body ColourWhite
Wattage (W)20 W
ApplicationsSuitable for Residences, Small Shops, and Schools & Colleges
Net Contents1 N Main Unit
Net Quantity1 N
Power Factor≥0.90
Rated Lumens500 lm
Suitable ForFor Residential & Domestic Application
Fixture shapeSquare
Mounting TypeRecess
Product rangeLED Panels
Start Up TimeInstant
CertificationsBIS
Product Weight100 g
Rated Efficacy100 lm/W in 6500 K
Manufactured ByHavells India Ltd.
Mercury ContentZero Mercury Content
Country Of OriginIndia
Diffuser MaterialPC
Master Box Weight0.1 kg
UV / IR RadiationNo Harmful Radiations
Cut out Dimensions75 mm
Product Dimensions75 mm x 22 mm
Rated Input Voltage220 V - 240 V AC
Mounting ArrangementRecess
Packaging Dimensions45.4 cm x 26.5 cm x 12.7 cm
In Built Surge Protection4 kV
Warm Up Time To 60 % LightInstant
Mercury Content Mg Per LampZero Mercury Content
Colour Rendering Index (CRI)≥ 80
Rated Luminous Flux (at 6500 K)100 lm/W in 6500 K
Rated Correlated Colour Temperature3000 K
The full range · 6 options
Every option is its own product with live pricing — tap a row to switch.
| Option | Wattage | Colour temp | Elume price (ex-GST) | MRP | Off |
|---|---|---|---|---|---|
| Havells Trim NXT LED Panel SQ V2 — 20 W · 6500 K | 20 W | 6500 K | ₹647 | ₹1,121 | 42% |
| Havells Trim NXT LED Panel SQ V2 — 15 W · 3000 KParent | 15 W | 3000 K | ₹359 | ₹772 | 54% |
| Havells Trim NXT LED Panel SQ V2 — 20 W · 4000 K | 20 W | 4000 K | ₹647 | ₹1,121 | 42% |
| Havells Trim NXT LED Panel SQ V2 — 20 W · 3000 KViewing | 20 W | 3000 K | ₹647 | ₹1,121 | 42% |
| Havells Trim NXT LED Panel SQ V2 — 15 W · 4000 K | 15 W | 4000 K | ₹359 | ₹772 | 54% |
| Havells Trim NXT LED Panel SQ V2 — 15 W · 6500 K | 15 W | 6500 K | ₹359 | ₹772 | 54% |
Know before you buy
Read: Top 10 LED Lights in India (2026) →How many watts of LED do I need to replace an old bulb?
A 9W LED bulb (around 800-900 lumens) replaces a 60W incandescent, and a 12W LED replaces a 75-100W bulb. Always check lumens rather than watts: aim for roughly 800 lumens for general room lighting and more for kitchens or task areas.
What is the difference between 3000K, 4000K and 6500K?
These are colour temperatures. 3000K is warm yellow light for bedrooms, hotels and living rooms; 4000K is neutral white, ideal for offices; 6500K is cool daylight, best for kitchens, shops, security and outdoor areas. Pick one CCT per zone and keep it consistent.
Do LED lights for outdoor use need a special rating?
Yes. Any outdoor or wet-area fixture - floodlights, street lights, garden and facade lighting - should be IP65 rated, meaning dust-tight and protected against water jets. A non-rated indoor light will fail quickly in monsoon or dusty site conditions, so always confirm IP65 before ordering.
