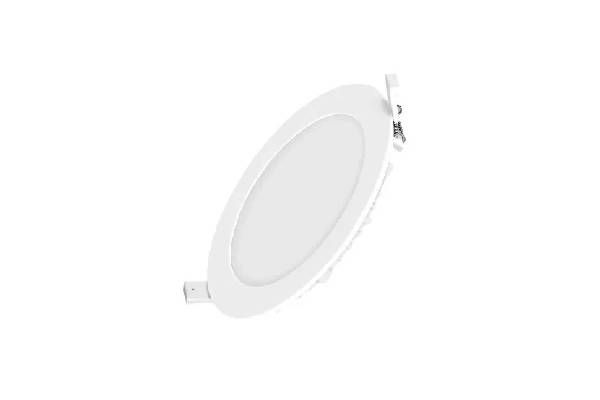

Luminaire typeLED panel
Wattage9 W
Colour temperature4000 K
Reference standardIS 16102 / IS 10322
BrandHavells
SKULHEBADP6IZ1W009
Sold asPer pc
Dia190 mm
THD≤33
Life30000 hrs
Lumen1000 lm
UsageSuitable for Residences, Small Shops, and Schools & Colleges
DriverIndependent driver
Height23 mm
DimmableNon Dimmable
MaterialAluminum Die Cast
Warranty2 Years
Frequency50 Hz
IP RatingIP 20
Protection380 V High Voltage Protection
Shape TypeRound
Body ColourWhite
Wattage (W)9 W
ApplicationsCeiling Light
InstallationRecess
Net Contents1 N Main Unit
Net Quantity1 N
Power Factor≥0.90
Rated Lumens1000 lm
Suitable ForFor Residential, Domestical, Shops and Showroom application
Fixture shapeRound
Mounting TypeRecess
Product rangeLED Panels
Start Up TimeInstant
CertificationsBIS
Product Weight465 gm
Rated Efficacy70 lm/W 6500 K
Manufactured ByHavells India Ltd.
Mercury ContentZero Mercury Content
Country Of OriginIndia
Diffuser MaterialPC
UV / IR RadiationNo Harmful Radiations
Cut out Dimensions180 mm
Rated Input Voltage220 V - 240 V AC
Mounting ArrangementRecess
In Built Surge Protection3 kV
Colour Rendering Index (CRI)≥ 80
Rated Luminous Flux (at 6500 K)70 lm/W 6500 K
Rated Correlated Colour Temperature4000 K
