ABB S804PV-SP10 · 2CCF019622R00012CCF019622R0001↓ 2% off MRP
BrandABB
CategorySwitchgear
Specification4P (FP) · 10 A · 5 kA · acc. to IEC 60947-2 1500 V DC · SP
Brand SKU2CCF019622R0001
AvailabilityOut of stock
DeliveryPan-India · 7 working days
ABB· Out of stock
Visit the ABB store

ABB S804PV-SP10 · 2CCF019622R0001

₹30,201/pcincl. GST-2%
₹25,594 + 18% GST · MRP ₹30,818
Out of stock

We list this so you can see the spec and our price, but it cannot be ordered right now. Email info@elumenuvo.com and we will source it for you.

💳 30 Day credit facility available launching soon - join waitlist.

ABB S804PV-SP10 · 2CCF019622R0001: Elume price today ₹30,201 per pc incl. GST, 2% below the ₹30,818 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
25 May to 22 Nov
₹32,975₹31,419₹29,862₹28,306₹26,750₹30,818₹30,201
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹30,201
MRP
₹30,818
Lowest in view · 10 Aug
₹28,763
Highest in view · 3 Oct
₹30,201
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹28,691/pc on this product, applied automatically

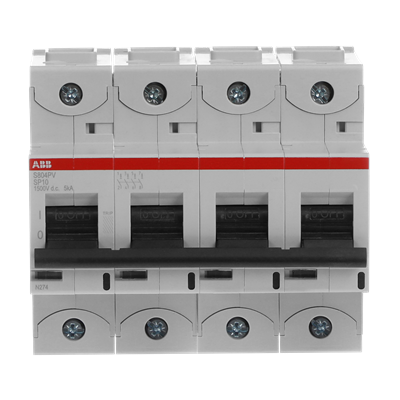

The S804PV-SP10 is a P4-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 10 A. It is a current limiting device with a maximum breaking capacity of 5kA at 1500V. It can be used for voltages up to 1500V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechan

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB S804PV-SP10 · 2CCF019622R0001 · 2CCF019622R0001
SeriesS800PV
Poles4P (FP)
Rated current10 A
Breaking capacity5 kA
Rated voltageacc. to IEC 60947-2 1500 V DC
Frequency0 Hz
Ultimate breaking capacity (Icu)5 kA
Service breaking capacity (Ics)5 kA
ReleaseSP
Insulation voltage (Ui)acc. to IEC/EN 60664-1 1500 V
Impulse withstand (Uimp)8 kV
Terminal capacityFlexible 0 … 50 mm²
Ingress protectionIP20
Reference standardIEC/EN 60947-2
Net weight0.98 kg
Device typeMiniature circuit breaker (MCB)
Current rating10 A
BrandABB
Brand SKU2CCF019622R0001
ELINERJD44FRM6
Sold asPer pc
Ratings as published by ABB (abb.com product data, datasheet 9AKK108468A9560; Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
