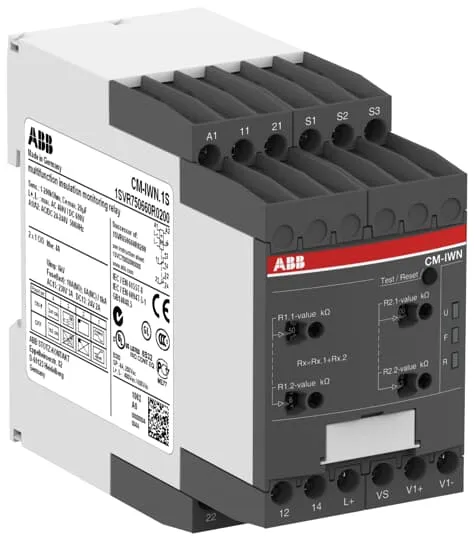

ABB CM-IWN.1S Relay · Insulation monitoring relay 2c/o · 1-100kOhm,2-200kOhm · 24-240 V AC/DC · 1SVR750660R02001SVR750660R0200↓ 53% off MRP
BrandABB
CategorySwitchgear
SpecificationCM-IWN.1S Insulation monitoring relay 2c/o, 1-100kOhm,2-200kOhm, 24-240VAC/DC System leakage capacitance 20 µF Replacement for 1SVR650660R0200
Brand SKU1SVR750660R0200
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

ABB CM-IWN.1S Relay · Insulation monitoring relay 2c/o · 1-100kOhm,2-200kOhm · 24-240 V AC/DC · 1SVR750660R0200

₹50,848/pcincl. GST-53%
₹43,092 + 18% GST · MRP ₹1,07,730
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹50,848 /pc incl. GST
Delivery ₹1,000, ships insured

ABB CM-IWN.1S Relay · Insulation monitoring relay 2c/o · 1-100kOhm,2-200kOhm · 24-240 V AC/DC · 1SVR750660R0200: Elume price today ₹50,848 per pc incl. GST, 53% below the ₹1,07,730 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹46,006, ₹4,842 less than here.

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹1,15,271₹95,568₹75,864₹56,161₹36,458₹1,07,730₹50,848₹46,006
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹50,848
Avg market price
₹46,006
MRP
₹1,07,730
Lowest in view · 10 Aug
₹39,202
Highest in view · 3 Oct
₹50,848
For panel builders
Buying this for a panel?
The price above is for a single piece. Send the whole BOM in any file and a person quotes the job within 24 hours.
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹48,306/pc on this product, applied automatically

The CM-IWN.1S serves to monitor insulation resistance in accordance with IEC 61557-8 in unearthed IT AC systems, IT AC systems with galvanically connected DC circuits, or unearthed IT DC systems with a voltage up to 400 V AC and 600 V DC. The measuring range can be extended up to 690 V AC and 1000 V DC by using the coupling unit CM-IVN. It can be configured to the requirements of the applications and therefore used multi-functional.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB CM-IWN.1S Relay · Insulation monitoring relay 2c/o · 1-100kOhm,2-200kOhm · 24-240 V AC/DC · 1SVR750660R0200 · 1SVR750660R0200
Device typeRelay
Rated voltage240 V AC
FrequencyMeasuring Circuit 15 ... 400 Hz
Insulation voltage (Ui)Measuring Circuit / Output Circuit 600 V
Impulse withstand (Uimp)Measuring Circuit / Output Circuit 6 kV
Width2.5 modules (45 mm)
Terminal capacityFlexible with Ferrule 1x 0.5 ... 2.5 mm²
Ingress protectionIP50
Reference standardCAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61326-2-4, IEC/EN 61557-1, IEC/EN 61557-8, UL 508
Net weight0.241 kg
Country of originGermany
BrandABB
Brand SKU1SVR750660R0200
ELINEHC399CD26
Sold asPer pc
Ratings as published by ABB (abb.com product data, datasheet 2CDC112198D0201; shop.in.abb.com listing for 1SVR750660R0200, 23 Sep 2026; Product name). Verify critical parameters against the datasheet before specifying.
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
What is the difference between on-delay and off-delay timers?

An on-delay timer switches its output after the set time once it receives power or a start signal, while an off-delay timer holds its output on for the set time after the signal is removed. Multifunction timers offer both and other modes such as cyclic and interval.

Which timer do I need for a star-delta starter?

A dedicated star-delta timer has a built-in short dead time between star and delta changeover to prevent a short circuit across contactors. The star time is set to suit how fast the motor reaches near full speed, often a few seconds to around 15 seconds.

What does a phase failure relay protect against?

A phase monitoring relay detects phase loss, phase reversal (wrong sequence) and often phase unbalance or under/over voltage, and trips the contactor coil to protect three-phase motors. It is especially useful for pumps, compressors and lifts where wrong rotation or single phasing can cause damage.

Can I use a timer to run a water pump automatically?

A cyclic or programmable timer can switch a pump contactor on and off at set intervals, but for tank level control a level controller relay with probes or a float switch is more reliable. The pump also needs proper motor protection like an MPCB or overload relay.

Do these mount on DIN rail?

Most modern timers and monitoring relays are DIN rail mounted (35mm), while some older or plug-in types use an 8-pin or 11-pin socket base. Check the mounting type and whether the base is included.
