ABB NL22E 24 V DC Contactor Relay · 1SBH143001R81221SBH143001R8122↓ 53% off MRP
BrandABB
CategorySwitchgear
SpecificationNL... contactor relays are used for switching auxiliary circuits and control circuits - Poles: 4-pole contactor relays (mechanically linked contact elements available) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available NL... contactors are fitted with low consumpti
Brand SKU1SBH143001R8122
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 7 working days
ABB· In stock
Visit the ABB store

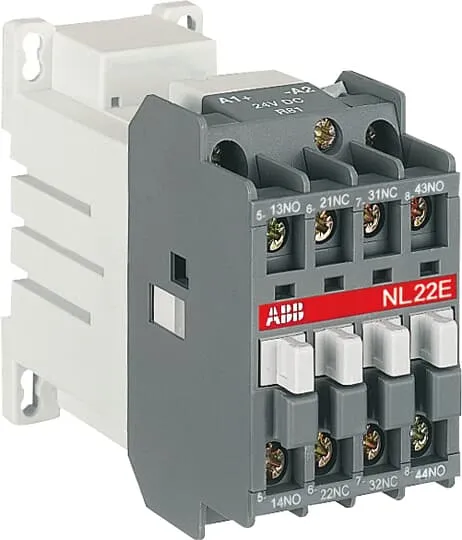

ABB NL22E 24 V DC Contactor Relay · 1SBH143001R8122

₹2,443/pcincl. GST-53%
₹2,070 + 18% GST · MRP ₹5,177
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice, claim input tax credit
  • Tracked delivery, 5 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,443 /pc incl. GST
Free delivery over ₹4,000

ABB NL22E 24 V DC Contactor Relay · 1SBH143001R8122: Elume price today ₹2,443 per pc incl. GST, 53% below the ₹5,177 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹1,774, ₹669 less than here. The lowest tracked seller lists it at ₹1,774, ₹669 below it (tell us and we match it).

Price history
Elume price vs the average market price across the sellers we track, day by day. Tap a legend entry to show or hide a line.
25 May to 22 Nov
₹5,539₹4,472₹3,405₹2,338₹1,271₹5,177₹2,443₹1,774
May 26Jun 26Aug 26Sep 26Oct 26Nov 26Nov 26
Elume today
₹2,443
Avg market price
₹1,774
MRP
₹5,177
Lowest in view · 10 Aug
₹1,367
Highest in view · 3 Oct
₹2,443
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
7 working days to your location
📦
Wholesale built in
Wholesale price at 15+ units: ₹2,321/pc on this product, applied automatically

ABB NL22E 24V DC Contactor Relay (ABB article 1SBH143001R8122) belongs to ABB's Auxilary Contactors range, listed under . NL... contactor relays are used for switching auxiliary circuits and control circuits - Poles: 4-pole contactor relays (mechanically linked contact elements available) - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available NL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs. Sold by Elume with a GST invoice and delivery across India.

As published by ABB. Verify critical parameters against the datasheet before specifying.
ABB ABB NL22E 24 V DC Contactor Relay · 1SBH143001R8122 · 1SBH143001R8122
Device typeMiniature circuit breaker (MCB)
Poles4-pole
Reference standardIS/IEC 60898-1
BrandABB
Brand SKU1SBH143001R8122
ELINE236GK326P
Sold asPer pc
Read: Contactor Sizing for 400 V and 415 V Motors: kW to Amps, AC-3 Ratings and Overload Relays →
What size contactor do I need for a 7.5 kW motor?
A 7.5 kW three-phase motor at 400 V draws about 14.5 A, so a contactor rated at least 16 to 18 A at AC-3 is the usual choice, with an overload relay set to the nameplate current.
What is the difference between AC-1 and AC-3?
AC-1 is the rating for resistive loads such as heaters; AC-3 is the rating for switching squirrel-cage motors in normal duty. Motors are always sized on the AC-3 figure, which is lower.
How many amps per kW for a three-phase motor?
At 400 V, roughly 2 A per kW for small motors, falling towards about 1.8 A per kW above 30 kW, because larger motors run at a better power factor and efficiency. Use the nameplate for the exact figure.
How do I choose a contactor for my motor?

Select by the contactor's AC-3 current (or kW) rating at your supply voltage, which should be at least the motor's full-load current from the nameplate. Do not go by the higher AC-1 rating, which applies only to resistive loads (contactors are covered by IS/IEC 60947-4-1).

What is the difference between AC-1 and AC-3 rating?

AC-1 is for non-inductive or slightly inductive loads like heaters, while AC-3 is for starting and stopping squirrel cage motors. The same contactor has a much lower AC-3 rating than AC-1, and AC-4 (inching or plugging) is even more demanding.

Does a contactor protect the motor?

No. A contactor only switches the motor on and off; overload protection needs a thermal overload relay and short-circuit protection needs an MPCB, MCB, MCCB or fuses upstream.

Why is my contactor humming or chattering?

Common causes are low or fluctuating control voltage, a wrong coil voltage, dust or rust on the magnet faces, or a broken shading ring. Check the supply at the coil terminals first, then clean or replace the contactor if needed.

How many auxiliary contacts does this have and can I add more?

Most contactors have built-in auxiliary contacts (NO and/or NC) for holding and interlocking circuits, and many allow add-on auxiliary blocks on the front or side. Check the contact configuration and add-on compatibility in the product details.

How many contactors do I need for a star-delta starter?

A star-delta starter uses three contactors (main, delta and star), a star-delta timer and an overload relay. The main and delta contactors are typically sized at about 58% of the motor current and the star contactor smaller, as per the manufacturer's selection table.
