Schneider Acti9 Phase Segregated Distribution Board · 46 modules · split door · IP43 · surface mount · White (RAL 9003) · A9HPSG12A9HPSG12↓ 1% off MRP
BrandSchneider
CategoryDB & Panels
Specification46 modules · split door · IP43 · surface mount
Brand SKUA9HPSG12
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 Phase Segregated Distribution Board · 46 modules · split door · IP43 · surface mount · White (RAL 9003) · A9HPSG12

NEW added this week
₹36,178/pcincl. GST-1%
₹30,659 + 18% GST · MRP ₹36,543
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹36,178 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 Phase Segregated Distribution Board · 46 modules · split door · IP43 · surface mount · White (RAL 9003) · A9HPSG12: Elume price today ₹36,178 per pc incl. GST, 1% below the ₹36,543 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹39,101₹37,737₹36,373₹35,009₹33,646₹36,543₹36,178
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹36,178
MRP
₹36,543
Lowest in view · 17 Oct
₹36,178
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Heavy item
23.39 kg per unit · ₹1,000 freight per 10 kg beyond the first 10 kg of an order, added at checkout · 3-7 working days
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹34,369/pc on this product

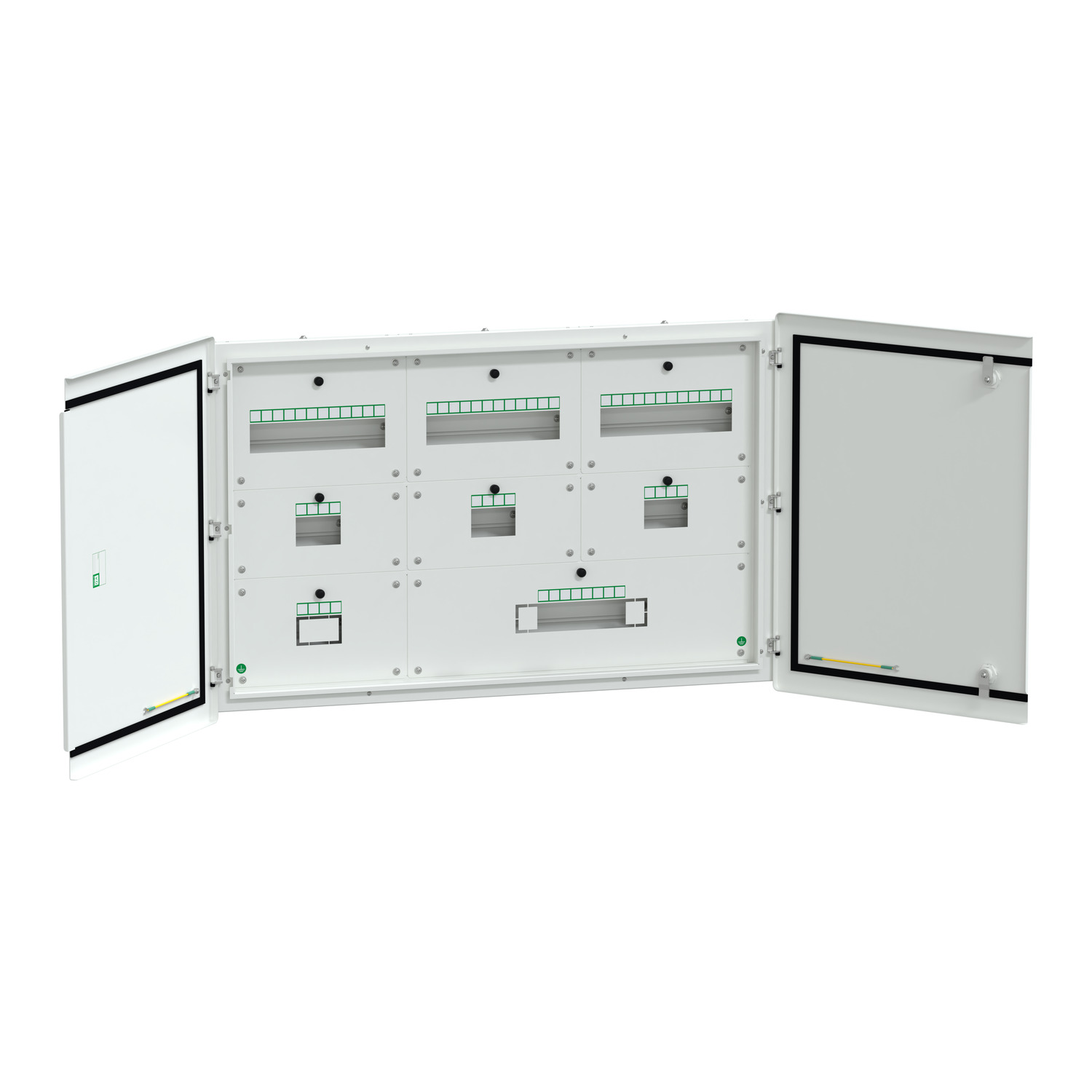

This Acti9 product is a surface or flush mounted 6 ways phase segregated distribution board. It allows the mounting of modular devices on 46 modules of 18mm such as MCBs (4P and 1P), isolator (4P), RCCB (2P), and RCBO (2P). This distribution board comes with a reversible split metal door for door opening. The In rated current is 63A. It is provided with removable gland plates, removable centre plates, removable frame, grounding bar, neutral bar, busbar, cable, and rotary lock. The dimensions are (W) 926mm x (H) 607.2mm x (D) 98.6mm. The colour of the distribution board is white (RAL 9003). The weight is 23.39kg. The box, cable gland plate, and DIN rail are made of galvanized steel and CRCA is for the door, frame, and centre plate. The IP degree of protection is IP43 and IK09 with the split metal door. This distribution board complies with IS 8623-1 and 3, and IEC 61439-3 standards. It is certified with NABL certification.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 Phase Segregated Distribution Board · 46 modules · split door · IP43 · surface mount · White (RAL 9003) · A9HPSG12 · A9HPSG12
Rated current63 A
Ingress protectionIP43
ColourWhite (RAL 9003)
Reference standardIS 8623-1
Net weight23.39 kg
Enclosure typeDistribution board - SPN (single phase)
BrandSchneider
Brand SKUA9HPSG12
ELINERGD9JGPPK
Sold asPer pc
DepthExternal : 98.6 mm
RangeActi9
WidthExternal: 926 mm
HeightExternal: 607.2 mm
StandardsIS 8623-1 · IS 8623-3 · IEC 61439-3
Product namePhase Segregated
Number of ways6 ways
Door opening sideReversible
Device applicationDistribution
Enclosure materialGalvanized steel box · Galvanized steel DIN rail · Galvanized steel cable gland plate · CRCA door · CRCA central plate · CRCA frame
Enclosure mountingSurface · Flush
Provided equipmentRemovable gland plates · Removable centre plates · Removable frame · Grounding bar · Neutral bar · Busbar · Cable · Rotary lock
[In] rated current63 A
Product certificationsNABL
Protection device typeMain incomer: isolator - 4P · Main incomer: miniature circuit breaker (MCB) - 4P · Sub feeder: residual current circuit breaker (RCCB) - 2P (phase) · Sub feeder: residual current circuit breaker with overcurrent protection (RCBO) - 2P (phase) · Outgoer: miniature circuit breaker (MCB) - 1P
IK degree of protectionIK09
IP degree of protectionIP43
Product or component typeDistribution board
Enclosure/cubicle descriptionSplit door enclosure
Total number of 18 mm modules46
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Read: How Many Ways Should Your Distribution Board Have? 4, 8, 12 or 16 Way Explained →
What does 8 way or 12 way mean in a distribution board?
The number of single-module slots on the outgoing rail. Each single-pole MCB uses one way; wider devices like a double-pole RCCB use two or more. The usable circuit count is therefore the way count minus the width of incomer and protection devices.
How many ways do I need for a 2BHK?
Usually 8 to 12: two lighting circuits, two socket circuits, kitchen power, plus dedicated ways per AC and geyser, the RCCB's two ways, and spares. Buy 12 if the kitchen is appliance-heavy or an AC may be added later.
What is the difference between SPN and TPN distribution boards?
SPN boards serve single-phase (230 V) supplies with one phase busbar. TPN boards serve three-phase (415 V) supplies with three phase sections plus neutral, letting circuits balance across phases. Your electricity connection type decides which you need.
Is Schneider Acti9 Phase Segregated Distribution Board · 46 modules · split door · IP43 · surface mount · White (RAL 9003) · A9HPSG12 genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
