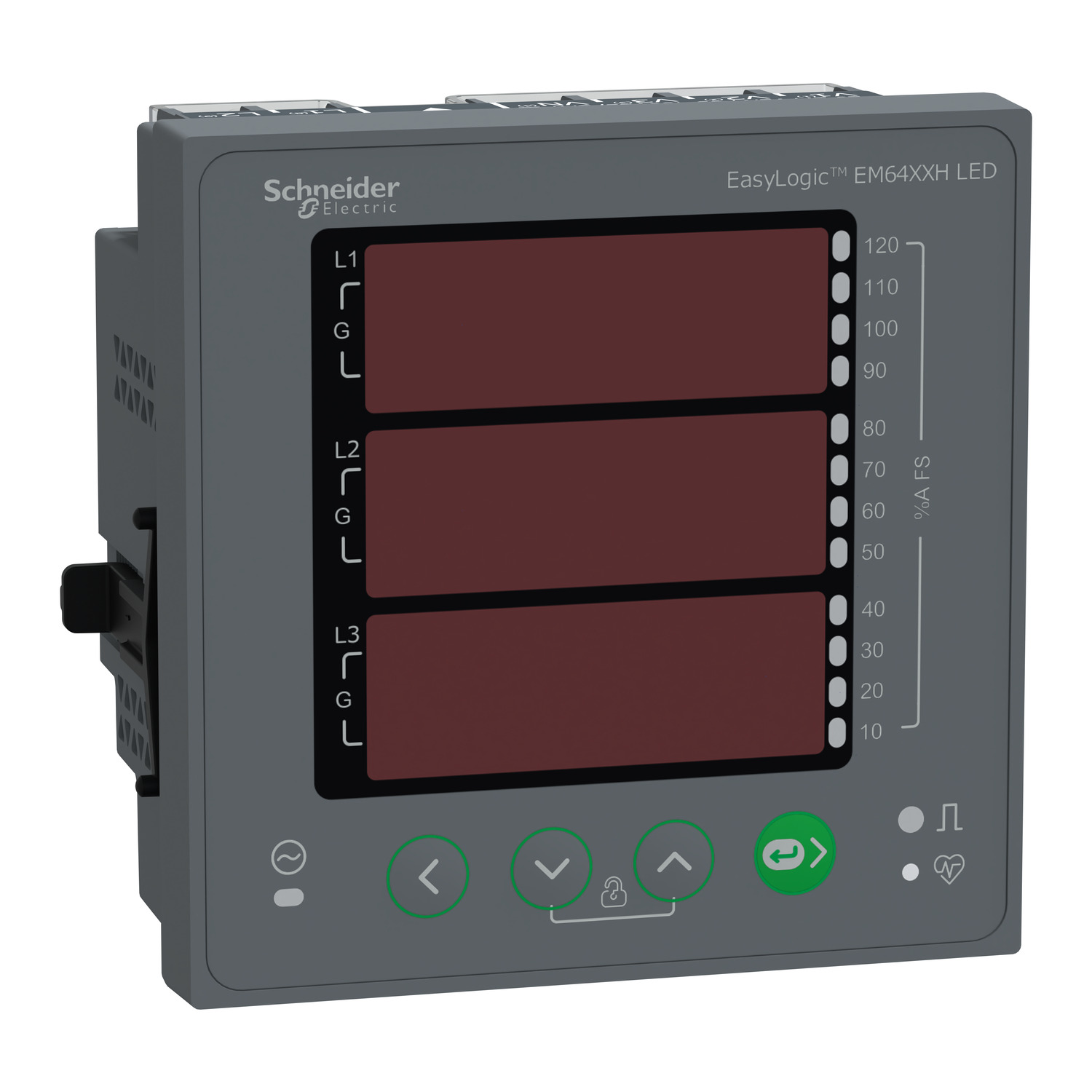

Schneider EasyLogic EM6438H Energy Meter · 1P/3P · 5 A · Class 2 reactive energy · Class 0.5METSEEM6438HCL05RS↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Specification1P/3P · 5 A · Class 2 reactive energy· Class 0.5 · Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Brand SKUMETSEEM6438HCL05RS
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider EasyLogic EM6438H Energy Meter · 1P/3P · 5 A · Class 2 reactive energy · Class 0.5

NEW added this week
₹13,525/pcincl. GST-1%
₹11,462 + 18% GST · MRP ₹13,662
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹13,525 /pc incl. GST
Free pan-India delivery

Schneider EasyLogic EM6438H Energy Meter · 1P/3P · 5 A · Class 2 reactive energy · Class 0.5: Elume price today ₹13,525 per pc incl. GST, 1% below the ₹13,662 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹14,618₹14,108₹13,598₹13,088₹12,578₹13,662₹13,525
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹13,525
MRP
₹13,662
Lowest in view · 17 Oct
₹13,525
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹12,849/pc on this product

EM6438H include two energy registers separately records consumption for dual source energy accounting. Utility vs Genset, Utility vs Solar, Utility vs Wind, or a combination of any two power sources. Form A relay to control the load in the event of abnormality in the electrical circuit including excess consumption of power. Providing Class 0.5S active energy accuracy per IEC 62053-21 standard, the meter will measure active and reactive energy. This meter can be used in billing and load management. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyLogic EM6438H Energy Meter · 1P/3P · 5 A · Class 2 reactive energy · Class 0.5 · METSEEM6438HCL05RS
Rated current5 A
Ingress protectionIP51 front:· IP30 body:
Reference standardIEC 61010-1:ed. 3
Net weight0.3 kg
BrandSchneider
Brand SKUMETSEEM6438HCL05RS
ELINER76326RR7
Sold asPer pc
RangeEasyLogic
SignalVoltage (impedance 5 MOhm)4 x · Current 0.005...10 A (impedance 0.3 MOhm)6 x
MaterialPolycarbonate
fixing modeBy clamp
Display type7 segments LED
Product nameEasyLogic EM64XXH RS
Metering typeReactive power Q1, Q2 · Apparent power S, S1, S2, S3 · Active power P, P1, P2, P3 · Rotation speed · Active, reactive, apparent energy (signed, two quadrant) · Apparent energy (source 1) · Alternate source meter · Power factor and displacement PF (signed, four quadrant) · Apparent energy (source 2)
Mounting modeFlush-mounted
Sampling rate32 samples/cycle
Accuracy classClass 2 reactive energy conforming to IEC 62053-23 · Class 0.5 active energy conforming to IEC 62053-22
Display colourRed
Display digits12 digit(s) - 14.2 mm in height
type of network2P · 3P + N · 1P + N · 3P · 2P + N
Demand intervals1 s
Flame retardanceV-0 conforming to UL 94
Local signallingGreen LED: activity · Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) · Red LED: alternate source
Mounting supportFramework
Counter functionsAlternate-source hour counting · ON hour counting
Device short nameEM6438H
Network frequency50 Hz · 60 Hz
Number of outputs0
Tightening torqueCurrent circuit: 0.9…1 N.m Philips No 2 screwdriver · Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver · Control circuit: 0.9…1 N.m Philips No 2 screwdriver · Communication: 0.5…0.6 N.m Philips no 1 screwdriver · Secondary circuit: 0.5…0.6 N.m Philips no 1 screwdriver
Device applicationSolar generation · GenSet · Main or redundant power monitoring · Energy monitoring · Wind generation
Provided equipmentInstallation guide
[In] rated current5 A · 1 A
Measurement current5…6000 mA
Measurement voltage46…277 V AC 50...60 Hz between phase and neutral · 80…480 V AC 50...60 Hz between phases · 277…999000 V AC 50...60 Hz with external VT
Type of measurementPower factor · Phase angle · RPM · Active power · Active energy
Measurement accuracyPower factor +/- 0.01 · Reactive power +/- 2 % · Reactive energy +/- 2 % · Active power +/- 0.5 % · Apparent power +/- 0.5 % · Active energy +/- 0.5 % · Apparent energy +/- 0.5 %
Measurement categoryCategory III 35…480 V
Type of installationIndoor installation
Communication of dataReading of measurements · System power production · All counters · Last cleared log · Revolution speed
Installation categoryIII
Wire stripping lengthCurrent circuit: 3.68 mm · Voltage circuit: 7 mm · Control circuit: 7 mm · Communication: 7 mm · 7 mm
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) · Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Communication: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s) · Secondary circuit: screw clamp terminals (bottom) 0.33…3.31 mm² cable(s)
Tamperproof of settingsProtected by access code
Messages display capacity3 fields of 4 characters
Product or component typeDual source energy meter
[Us] rated supply voltage44...300 V AC 45...65 Hz · 44...300 V DC
Communication port supportScrew terminal block: RS485
Communication port protocolModbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Electrical insulation classClass II
Frequency measurement range45…65 Hz
Maximum power consumption in W2 W at 240 V
Maximum power consumption in VA4 VA at 240 V between phase and neutral
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
