Schneider Acti9 PRD1 25r SPD · 1P16329↓ 1% off MRP
BrandSchneider
CategorySwitchgear
Brand SKU16329
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

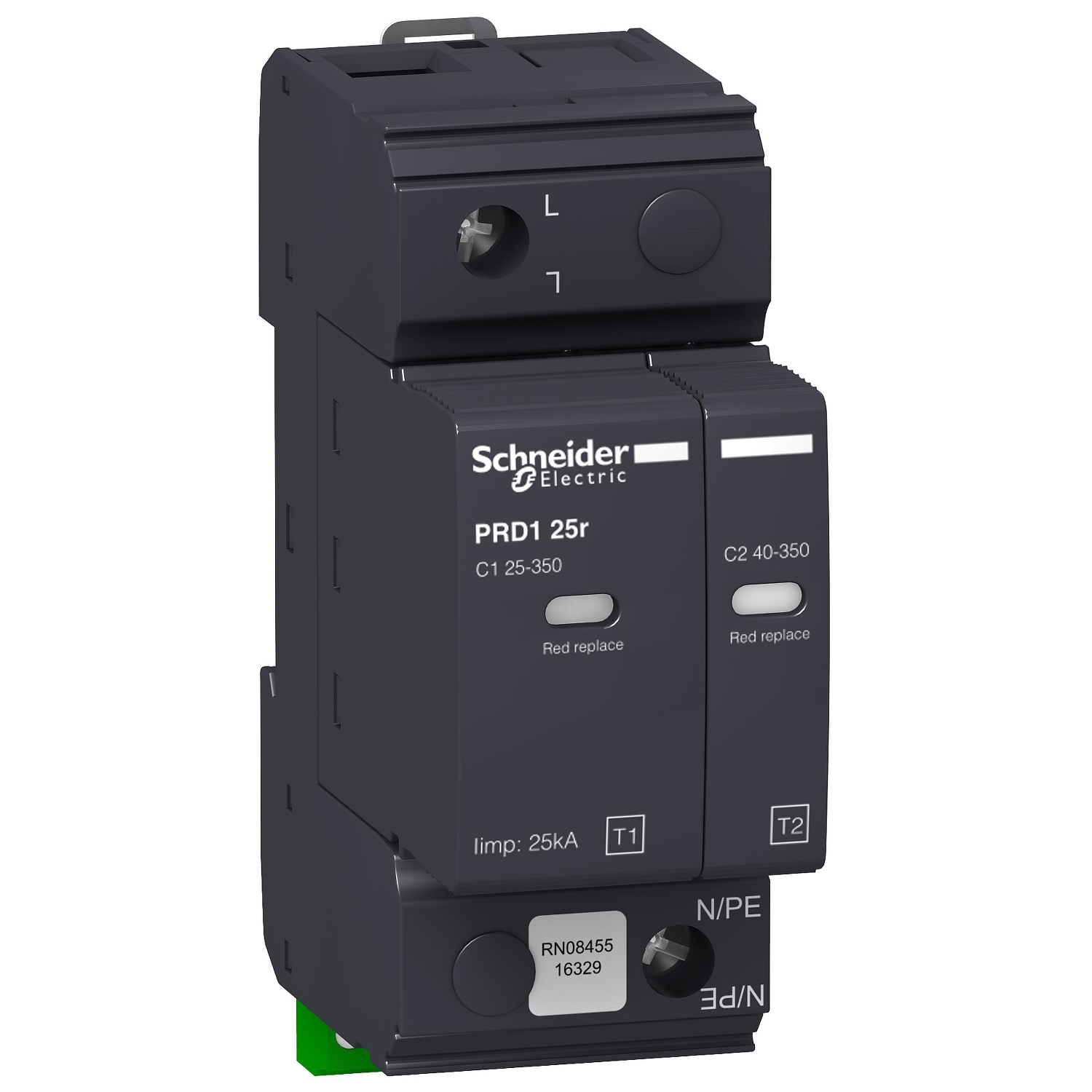

Schneider Acti9 PRD1 25r SPD · 1P

Poles: 1P
NEW added this week
₹31,210/pcincl. GST-1%
₹26,449 + 18% GST · MRP ₹31,525
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹31,210 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 PRD1 25r SPD · 1P: Elume price today ₹31,210 per pc incl. GST, 1% below the ₹31,525 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹33,732₹32,555₹31,379₹30,202₹29,025₹31,525₹31,210
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹31,210
MRP
₹31,525
Lowest in view · 17 Oct
₹31,210
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹29,650/pc on this product

This Acti9 PRD1 25r product is a modular surge arrester protecting 1P electrical installations against direct lightning strikes. The Imax maximum discharge current is 40kA .The In nominal discharge current is 25kA. The Type 1 surge arrester is recommended for electrical installations in the service sector and industrial buildings protected by a lightning conductor. It also provides type 2 protection and protect the electrical installation by finely clipping the lightning wave overvoltage. The surge arresters with "r" indication have remote transfer of the information "Cartridge to be replaced". The Uc maximum continuous operating voltage in common mode (between phase and earth) is 350VAC. The Up Voltage protection level in common mode (between phase and earth) is 1.5kV. The Ue rated operational voltage is 230VAC +/- 10%. The product colour is anthracite grey (RAL7016).The dimensions are (W) 36mm x (H) 90mm x (D) 71mm. The weight is 334g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 80°C. This product is compliant with EN 61643-11 and IEC 61643-11 standards.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 PRD1 25r SPD · 1P · 16329
Poles1P
Reference standardEN 61643-11:2012
Net weight0.334 kg
ColourAnthracite grey (RAL 7016)
Device typeMiniature circuit breaker (MCB)
BrandSchneider
Brand SKU16329
ELINEPGH7CRJ76
Sold asPer pc
Depth71 mm
Width36 mm
Height90 mm
MaterialPBT (polybutylene terephthalate)
StandardsEN 61643-11:2012 · IEC 61643-11:2011
9 mm pitches4
Product nameActi9 PRD1
Mounting modeClip-on (DIN rail)
Market segmentSmall commercial
Quality labelsKEMA-KEUR
Earthing systemTN-C
Impulse current25 kA
Range of productPRD1
Device short namePRD1 25r
Poles description1P
Relative humidity5…95 %
Remote signallingWith
Tightening torque4.5 N.m
Compatibility codePRD1_25r
Device applicationDistribution
Operating altitude2000 m
Surge arrester typeElectrical distribution network
[Ifi] follow current25 kA differential mode L/N · 3 kA differential mode L/N · 100 A common mode N/PE
Product certificationsCE
[Iimp] impulse currentCommon mode: 25 kA L/PE 12.5 A.s
Connections - terminalsTunnel type terminal (top or bottom) 10…35 mm² rigid · Tunnel type terminal (top or bottom) 10…25 mm² flexible
IK degree of protectionIK05 conforming to IEC 62262
Short-circuit withstand25 kA
Disconnector device typeAssociated fuse gG 315 A up to Isc = 25 kA · Associated circuit breaker NSXm 100E TM-D up to Isc = 16 kA · Associated circuit breaker NSXm 100B TM-D up to Isc = 25 kA · Associated circuit breaker Compact NSX100B TM-D up to Isc = 25 kA
Maximum discharge currentCommon mode: 40 kA L/PE
Nominal discharge currentCommon mode: 25 kA (L/PE)
Product or component typeSurge arrester with pluggable cartridge
Surge arrester class typeType 1 + 2
Surge arrester technologyMOV · Spark gap
Signalling circuit voltage1 A/250 V AC · 1 A/30 V DC
[Ut] temporary overvoltage1200 V N/PE 200 ms withstand · 415 V L/N 5 s withstand · 440 V L/N 7200 s safe failure mode
Signal contacts composition1 SD (1 C/O)
[Ue] rated operational voltage230 V AC (+/- 10 %) at 50 Hz
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelCommon mode 1.5 kV type 2 L/PE
[Uc] maximum continuous operating voltageCommon mode: 350 V L/PE
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
