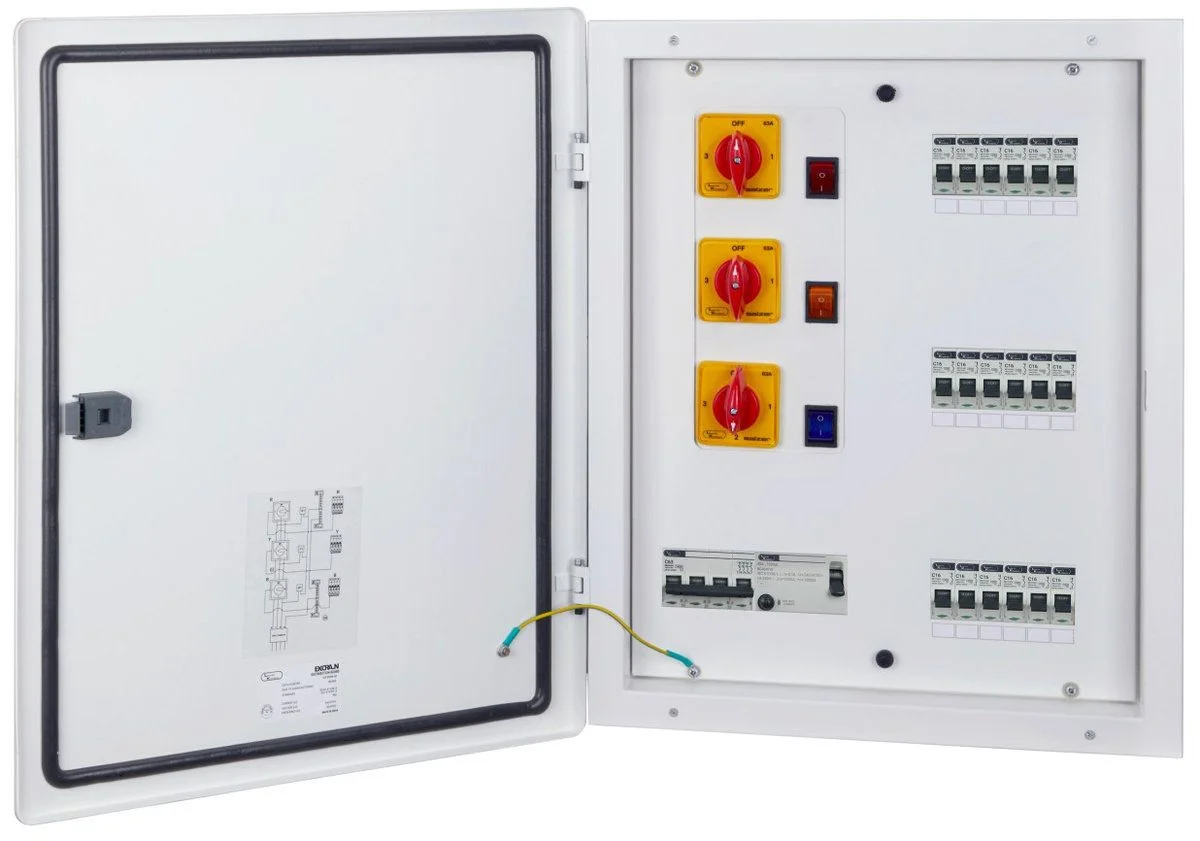

Lauritz Knudsen TPN Phase Selector Distribution Board · 8 way · Metal door · IP43 · DEPSR008DD: Elume price today ₹17,095 per pc incl. GST, 31% below the ₹24,638 MRP. The price has held steady for the last 30 days.
Lauritz Knudsen TPN Phase Selector Distribution Board · 8 way · Metal door · IP43 is a distribution board from Lauritz Knudsen. It houses the incomer and outgoing devices of a circuit group, with bus bars, neutral and earth bars fitted. Key ratings: Module size Outgoing 8+8+8 M, Ways 8 way, Phase Three phase (TPN, phase selector), Incomer 8 M (FP MCB / isolator / RCCB / RCBO), Door Double door, metal, Ingress protection IP43. It is built to IEC 61439-1 & 3.
TPN stands for Triple Pole and Neutral, a DB for three-phase, four-wire supply with R, Y and B busbars, a neutral link and an earth bar. It is used for homes and buildings with three-phase connections, shops, offices and light industry.
Common incomers are a 4 pole MCB, 4 pole isolator, 4 pole RCCB with MCB, or an MCCB for higher currents, rated for the total load and the supply company's sanctioned load. Choose the incomer to match the DB's incomer space.
Spread single-phase loads like ACs, geysers and kitchen circuits evenly across R, Y and B so no phase is heavily loaded. Unbalanced phases cause neutral current, voltage drop and nuisance tripping; your electrician can plan this using the load list.
Yes, a TP or 4P MCB can be used for three-phase outgoings like motors or sub-DBs, but it needs adjacent ways on all three phases. Vertical TPN (VTPN) boards are designed to make three-phase outgoings easier.
A TPN DB is designed for three-phase supply. For single-phase supply, use an SPN DB, which is more compact and economical.
