Schneider Harmony XB5N Push Button · 22 mm · 1 NC · IP65 · XB5AS542NXB5AS542N↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Specification22 mm · 1 NC
Brand SKUXB5AS542N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N Push Button · 22 mm · 1 NC · IP65 · XB5AS542N

NEW added this week
₹556/pcincl. GST-1%
₹471 + 18% GST · MRP ₹562
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹556 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Push Button · 22 mm · 1 NC · IP65 · XB5AS542N: Elume price today ₹556 per pc incl. GST, 1% below the ₹562 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹601₹580₹559₹538₹517₹562₹556
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹556
MRP
₹562
Lowest in view · 17 Oct
₹556
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹528/pc on this product

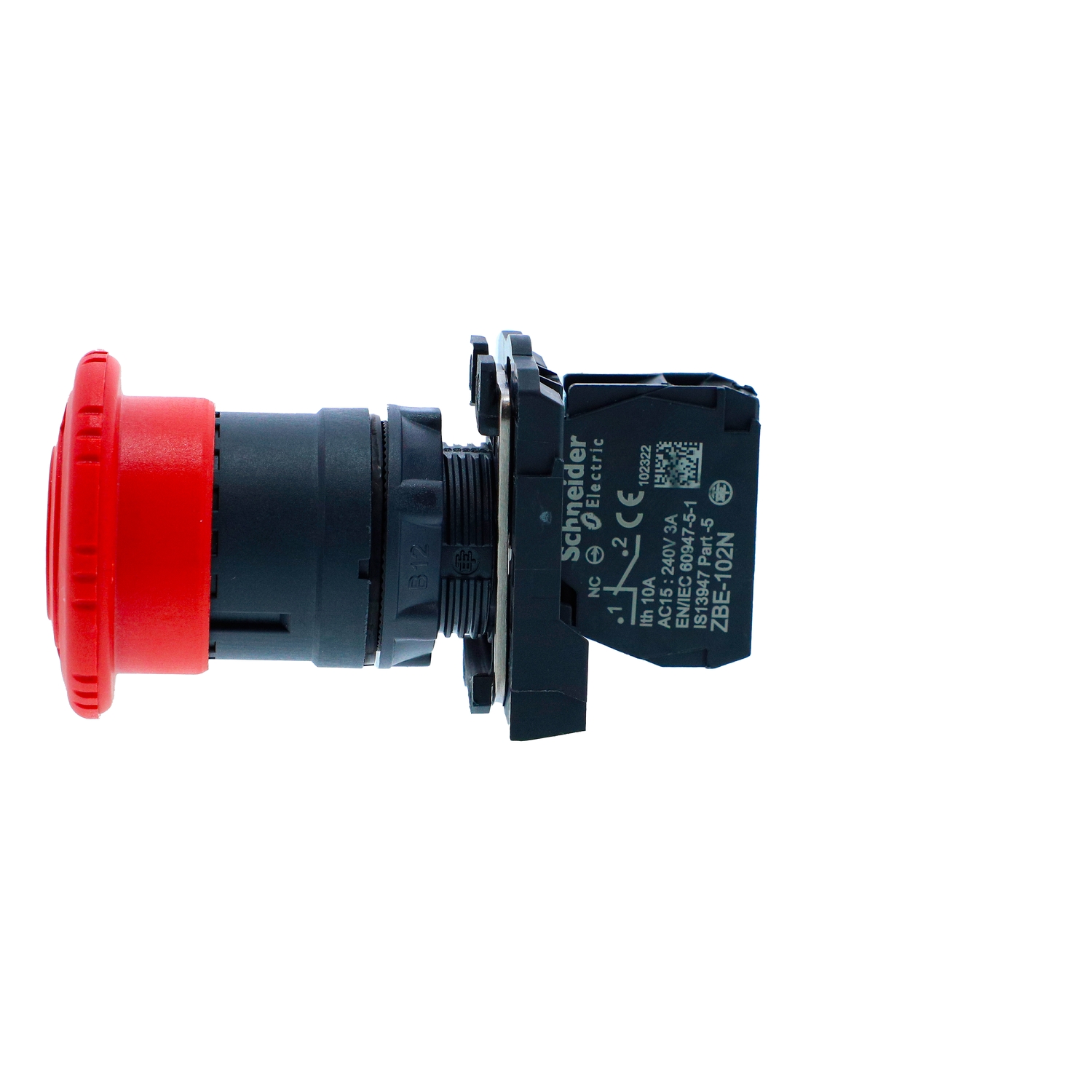

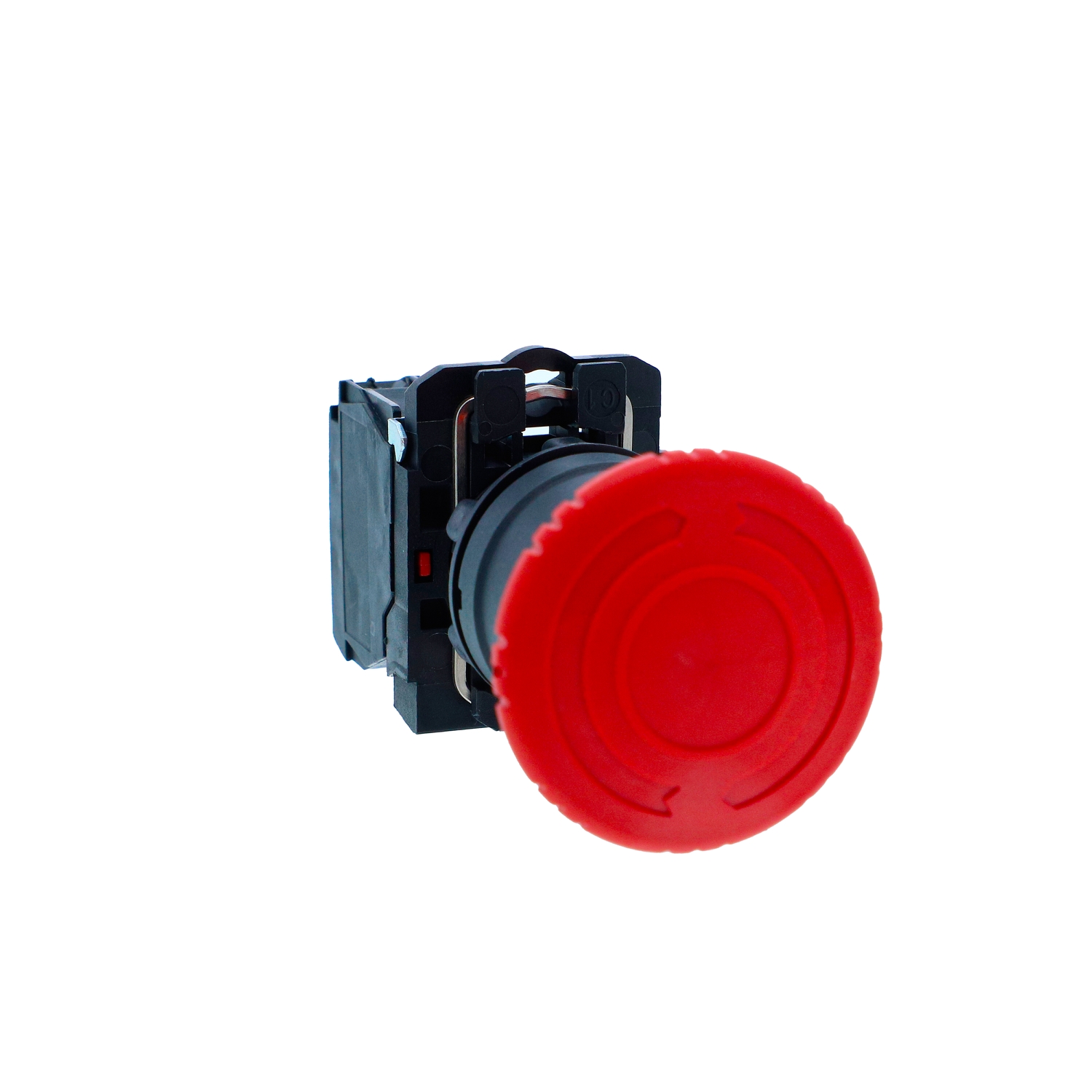

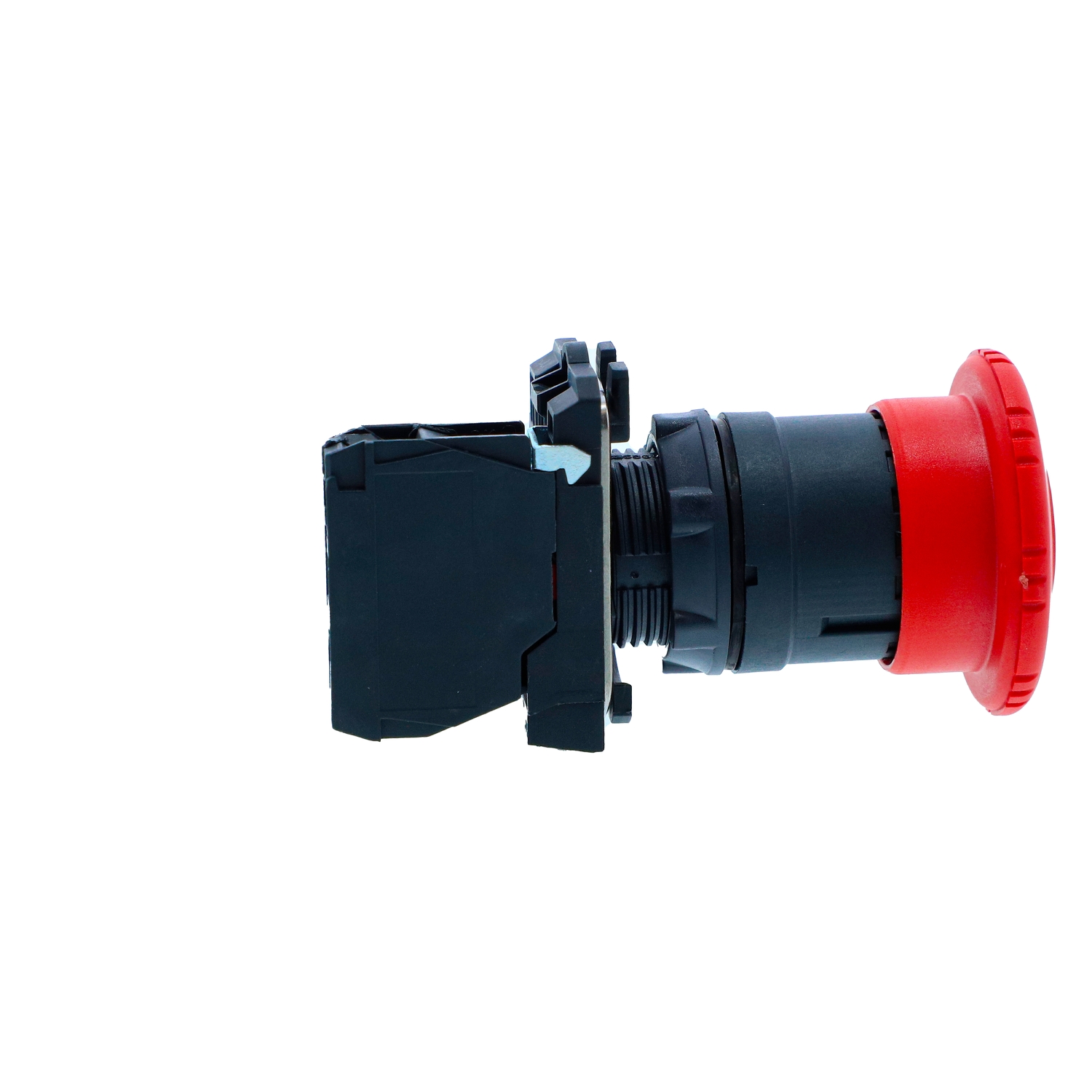

This Harmony XB5N/XB7N, emergency shutdown 40mm mushroom modular red push button operates with a turn-to-release mechanism. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Push Button · 22 mm · 1 NC · IP65 · XB5AS542N · XB5AS542N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.072 kg
BrandSchneider
Brand SKUXB5AS542N
ELINEP7PJ4K7D2
Sold asPer pc

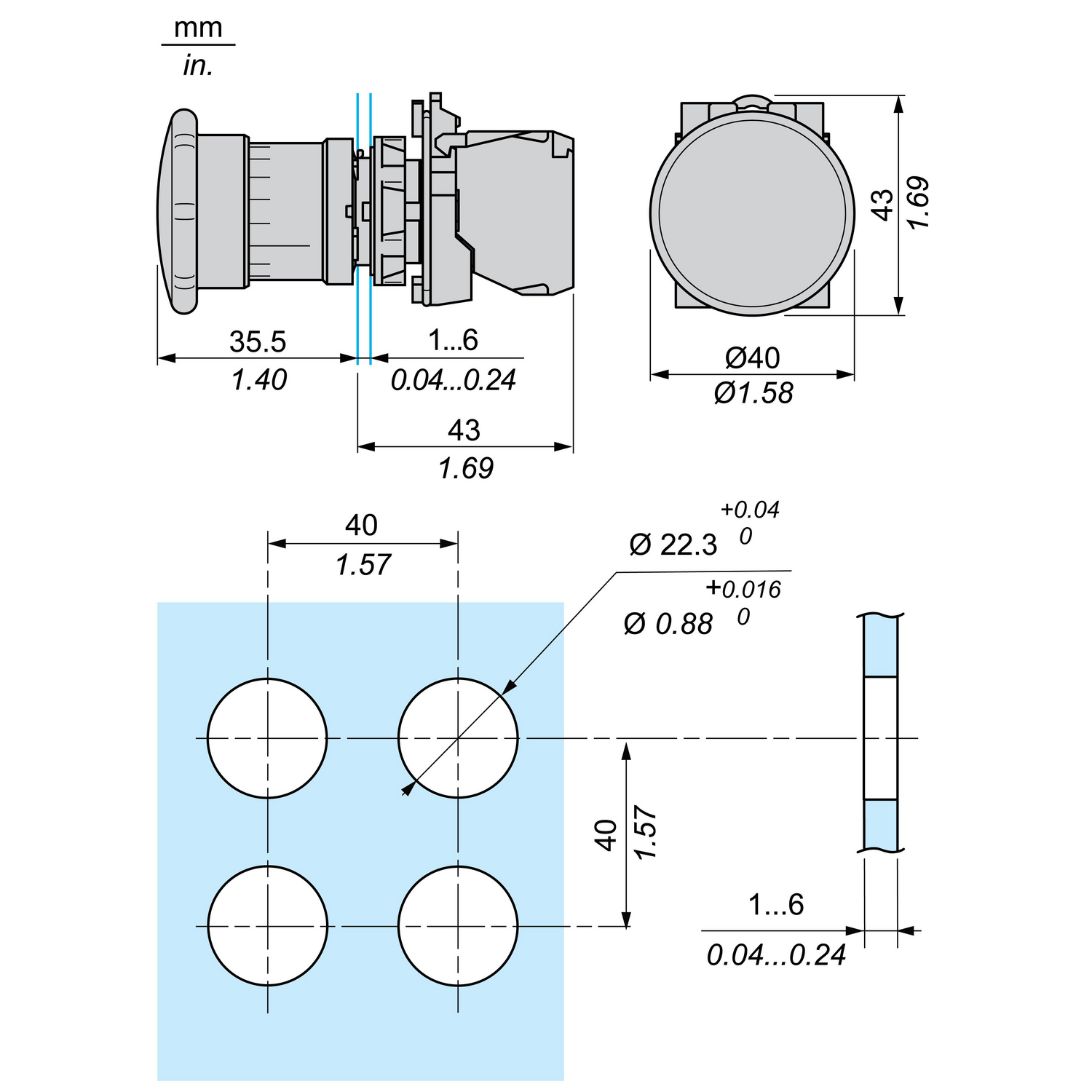

Depth78.5 mm
ResetTurn to release
Width40 mm
Height43 mm
Head typeMushroom
StandardsIEC 60947-5-4 · IEC 60947-1 · IEC 60947-5-1 · IS 13947-5-1
Fixing modeFixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Bezel materialDark grey plastic
Contacts usageStandard contacts
Operating forceNC changing electrical state · NO changing electrical state
Operating travel1.5 mm (NC changing electrical state) · 2.6 mm (NO changing electrical state) · 4.3 mm (total travel)

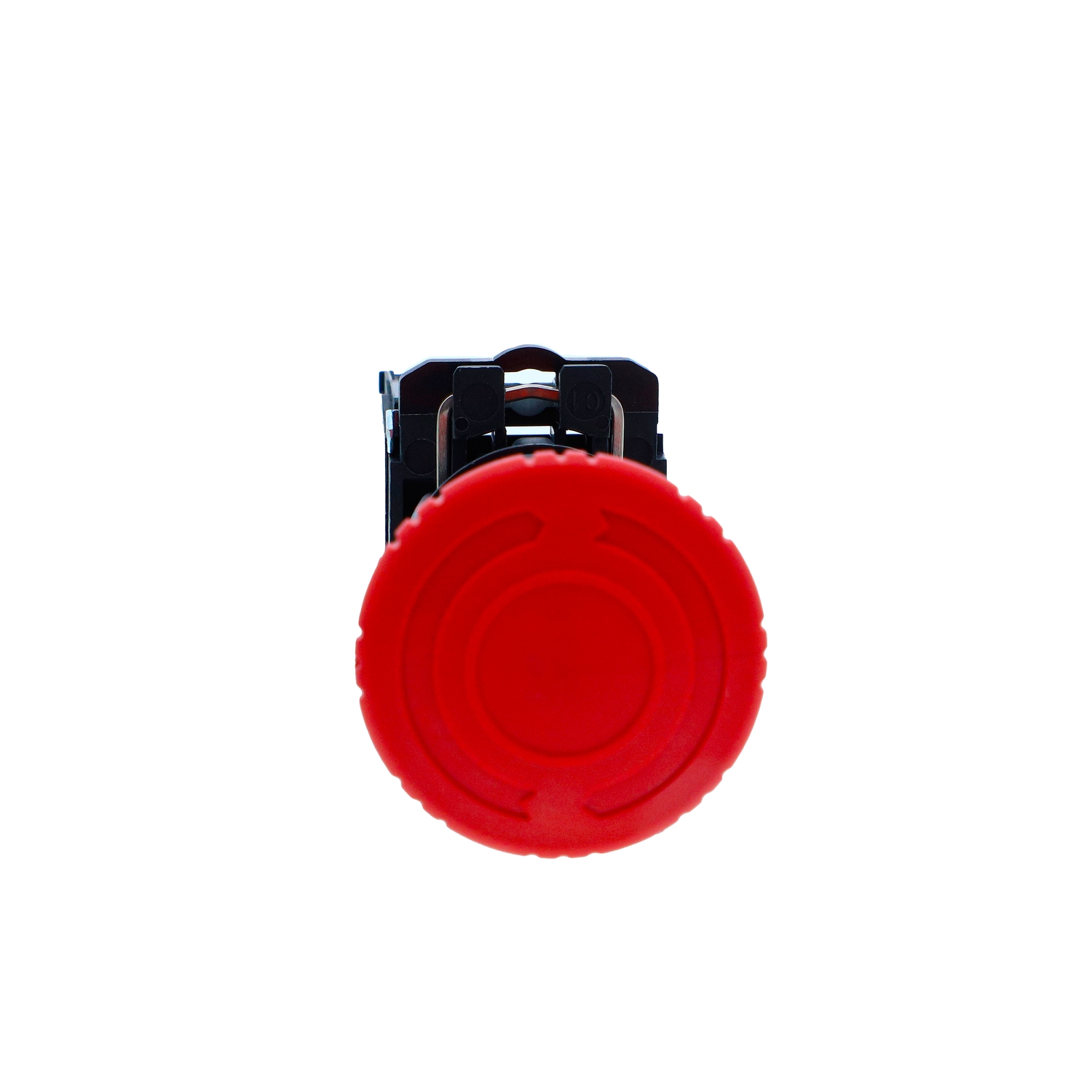

Operator profileRed mushroom Ø 40 mm, unmarked
Positive openingWith conforming to IEC 60947-5-1 appendix K
Range of productHarmony XB5N/XB7N
Type of operatorTurn to release mechanical latching
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Compatibility codeXB5
Device presentationComplete product
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass II conforming to IEC 60536
Protective treatmentTH
Electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.2 A at
Mechanical durability300000 cycles
Product compatibilityZB5...N
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Product certificationsCE
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeEmergency switching off push-button
Shape of signaling unit headRound
Contacts type and composition1 NC
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1

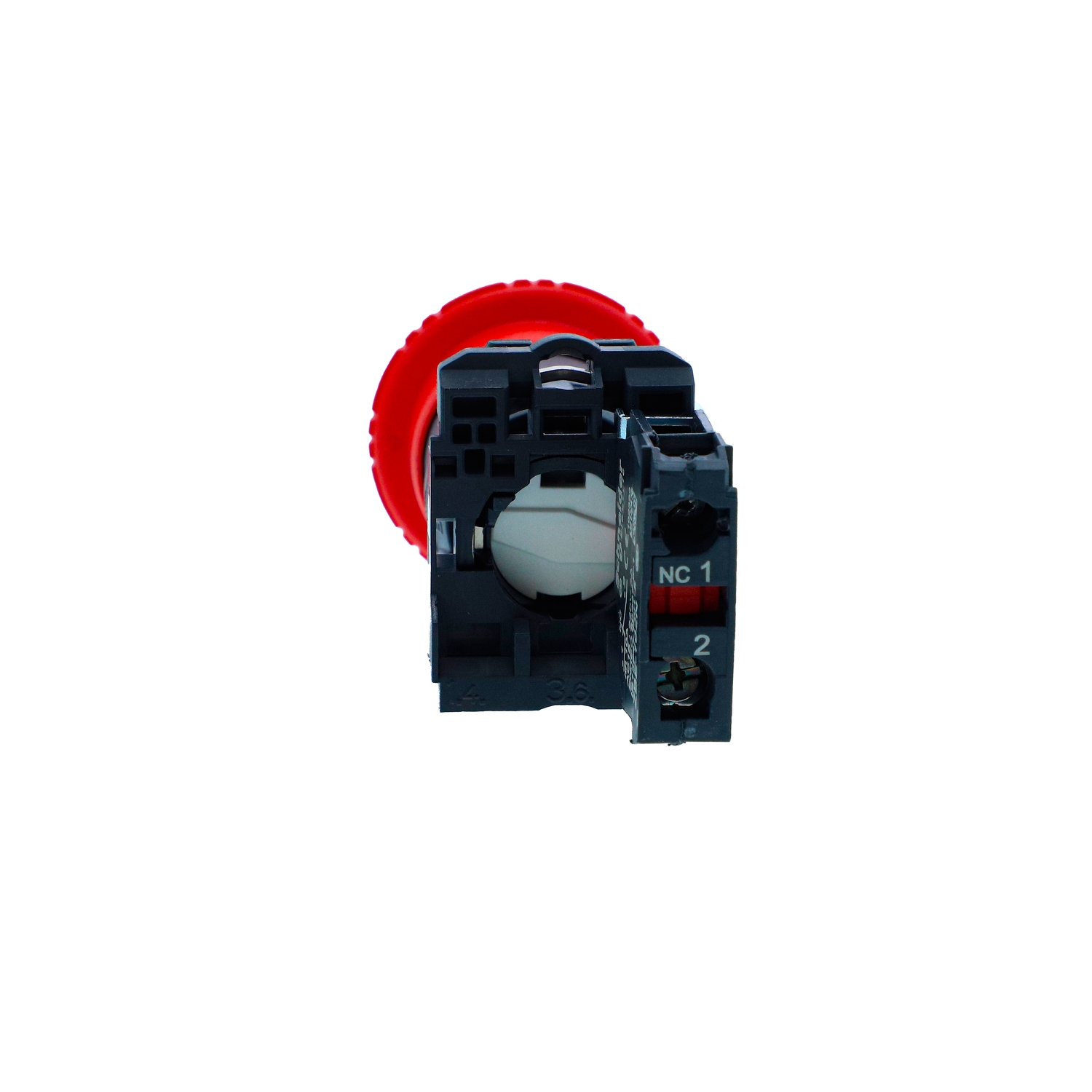

Terminals description ISO n°1(11-12)NC
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
