Schneider Harmony XB2 Push Button · 22 mm · 1 NO · Green · IP66XB2BP31C↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Specification22 mm · 1 NO · Green
Brand SKUXB2BP31C
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

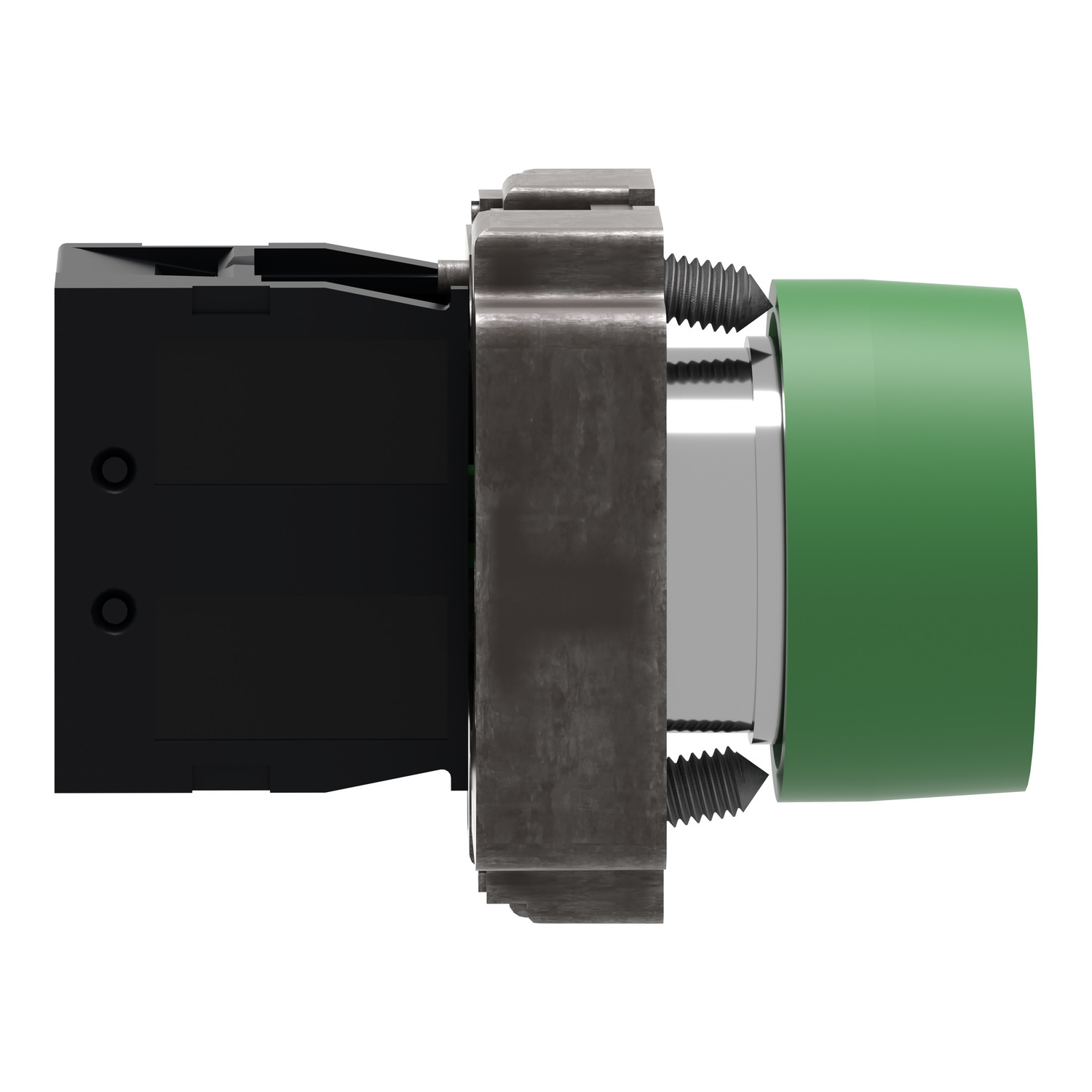

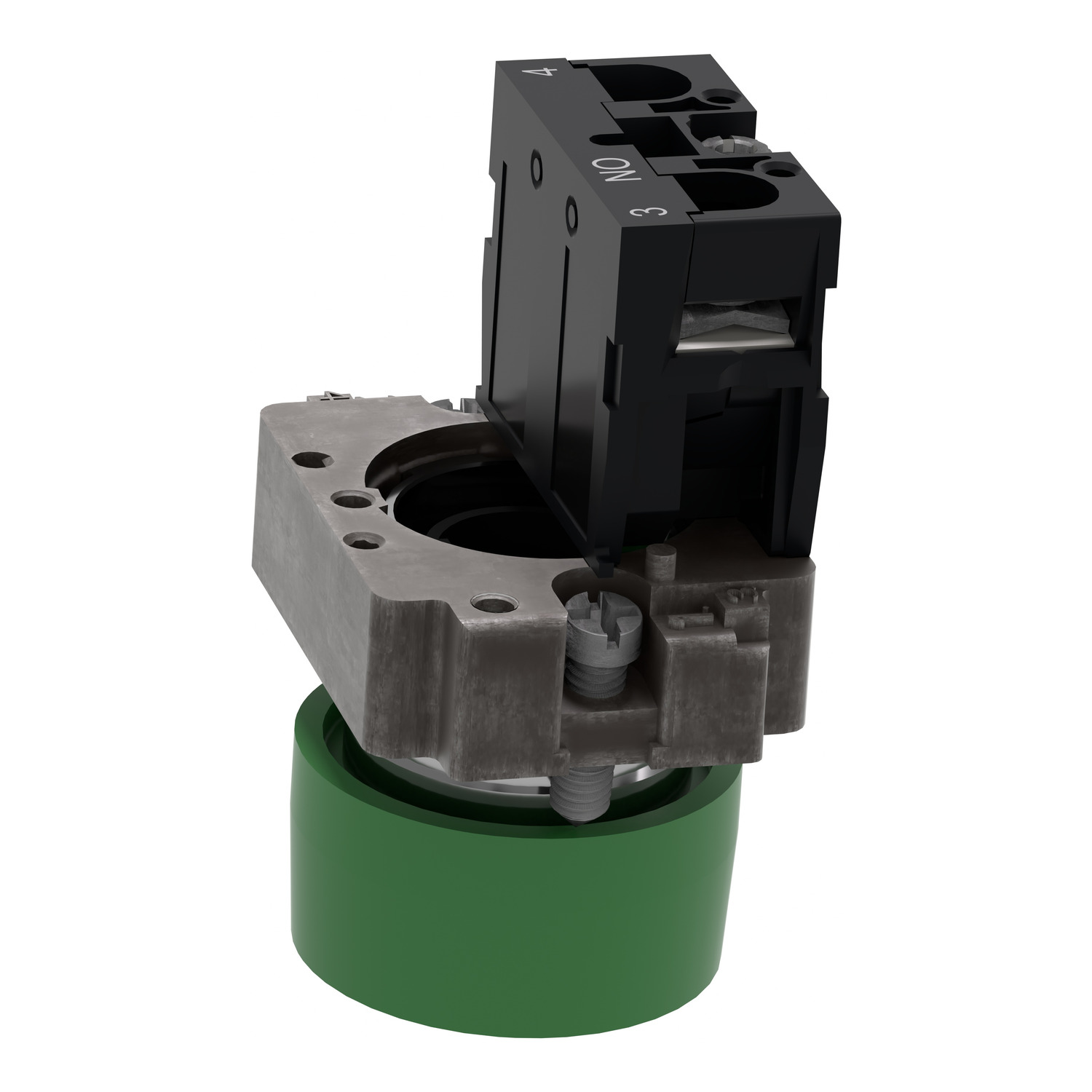

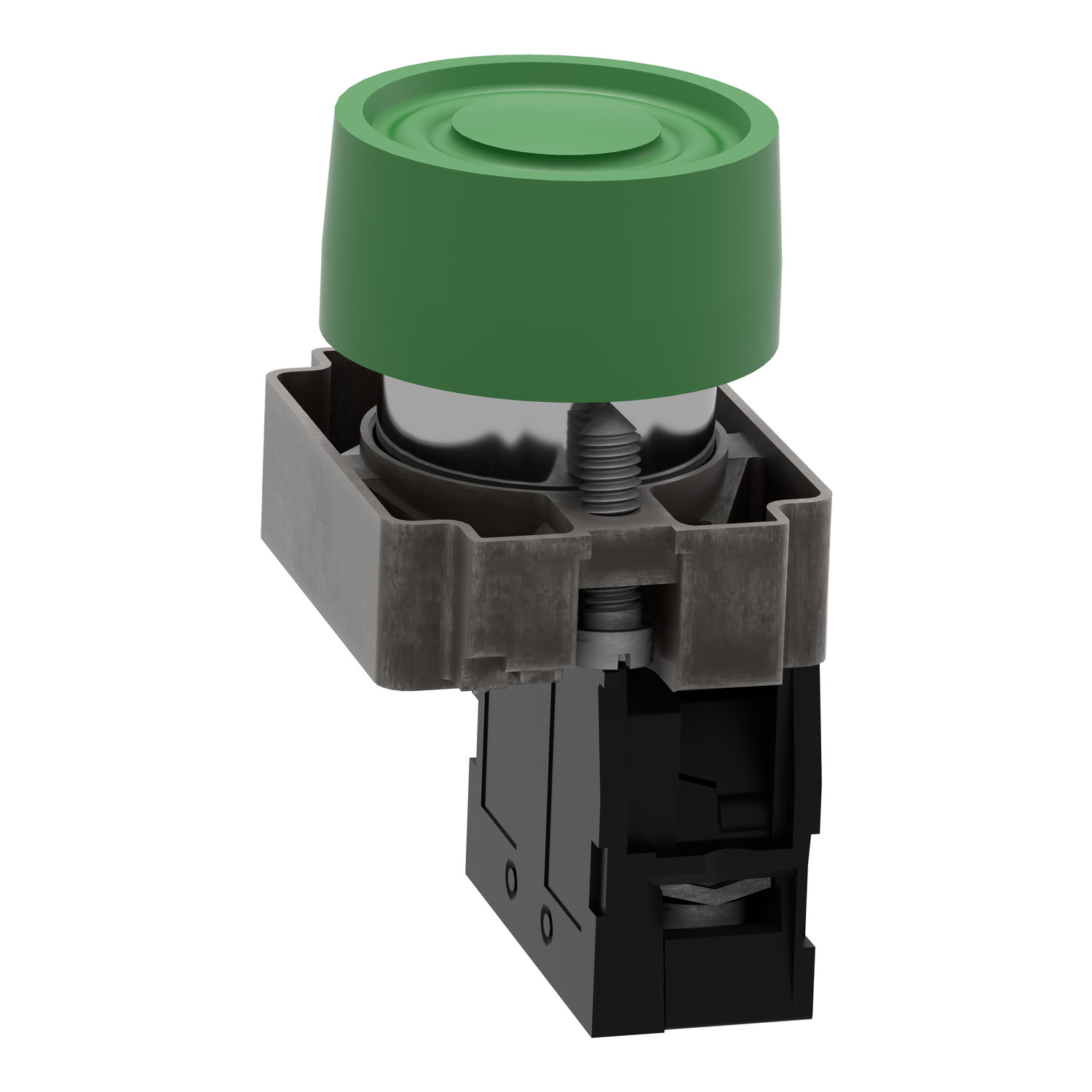

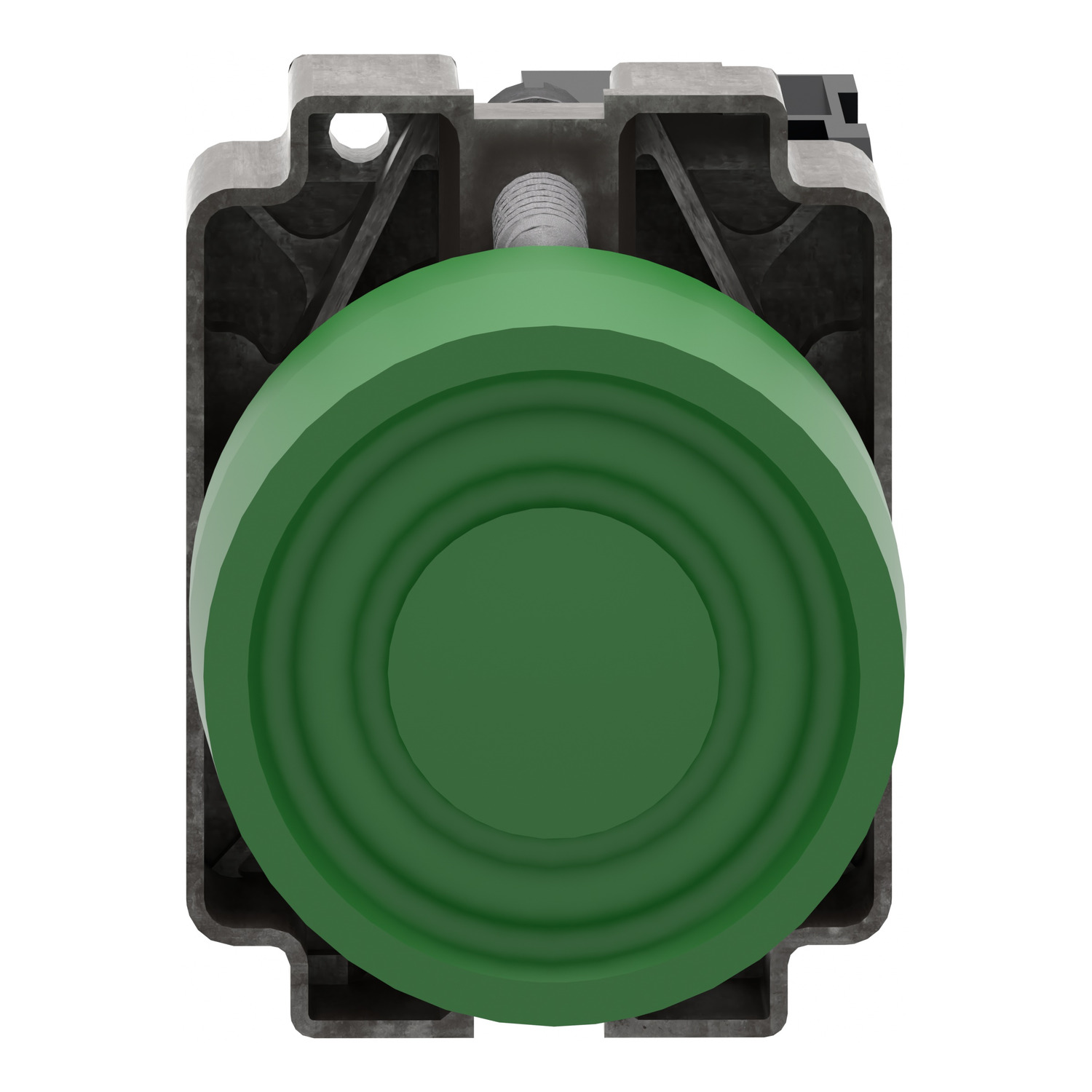

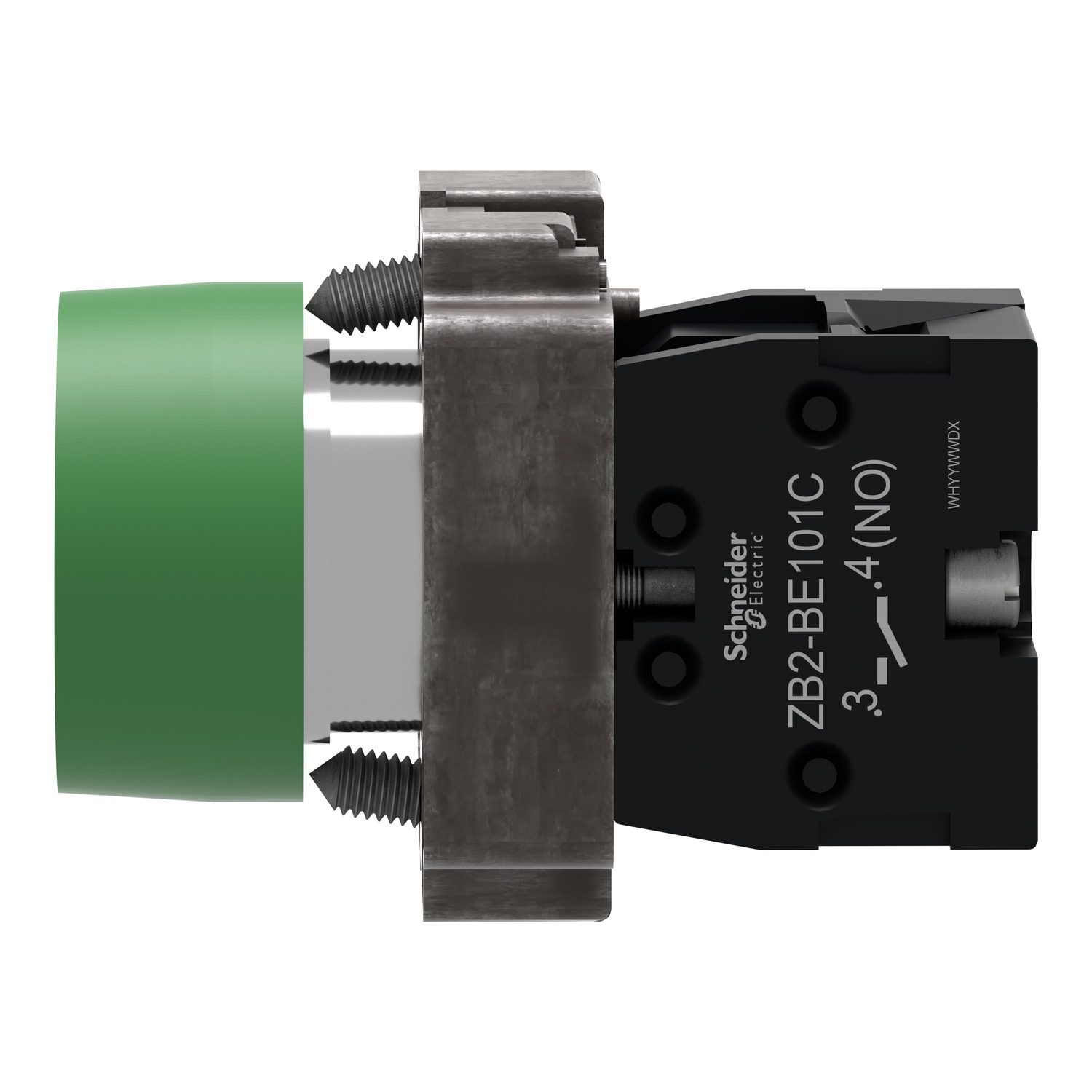

Schneider Harmony XB2 Push Button · 22 mm · 1 NO · Green · IP66

NEW added this week
₹439/pcincl. GST-1%
₹372 + 18% GST · MRP ₹444
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹439 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB2 Push Button · 22 mm · 1 NO · Green · IP66: Elume price today ₹439 per pc incl. GST, 1% below the ₹444 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹475₹458₹442₹425₹408₹444₹439
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹439
MRP
₹444
Lowest in view · 17 Oct
₹439
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹417/pc on this product

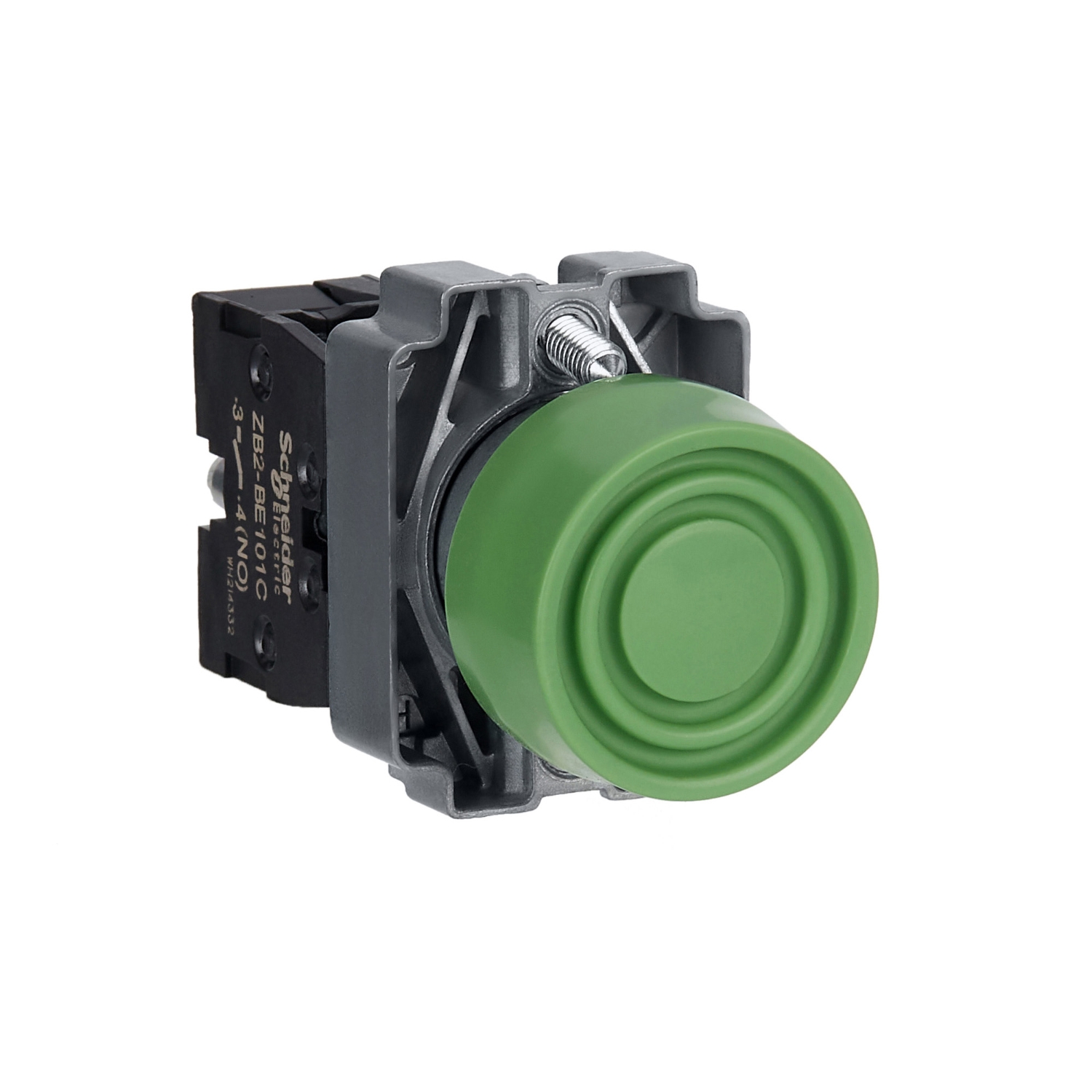

This Harmony XB2 modular green booted push button operates with a spring return mechanism. It's body/ fixing collar is pre-mounted with an NO contact block. It has a metal bezel, metal fixing base and metal screws for impact and vibration resistance. This push button provides a classic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable because of clear markings, minimizing errors during initial wiring and later maintenance operations. It is dust resistant and water resistant due to its IP65, making it ideal to operate in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It is vibration, high pressure washer and dust resistant thanks to its IP66 protection, making it ideal for operation in harsh environments.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB2 Push Button · 22 mm · 1 NO · Green · IP66 · XB2BP31C
Rated current3 A
Ingress protectionIP66
Reference standardIEC 60947-5-1
Net weight0.07 kg
BrandSchneider
Brand SKUXB2BP31C
ELINERCM9D4JMF
Sold asPer pc

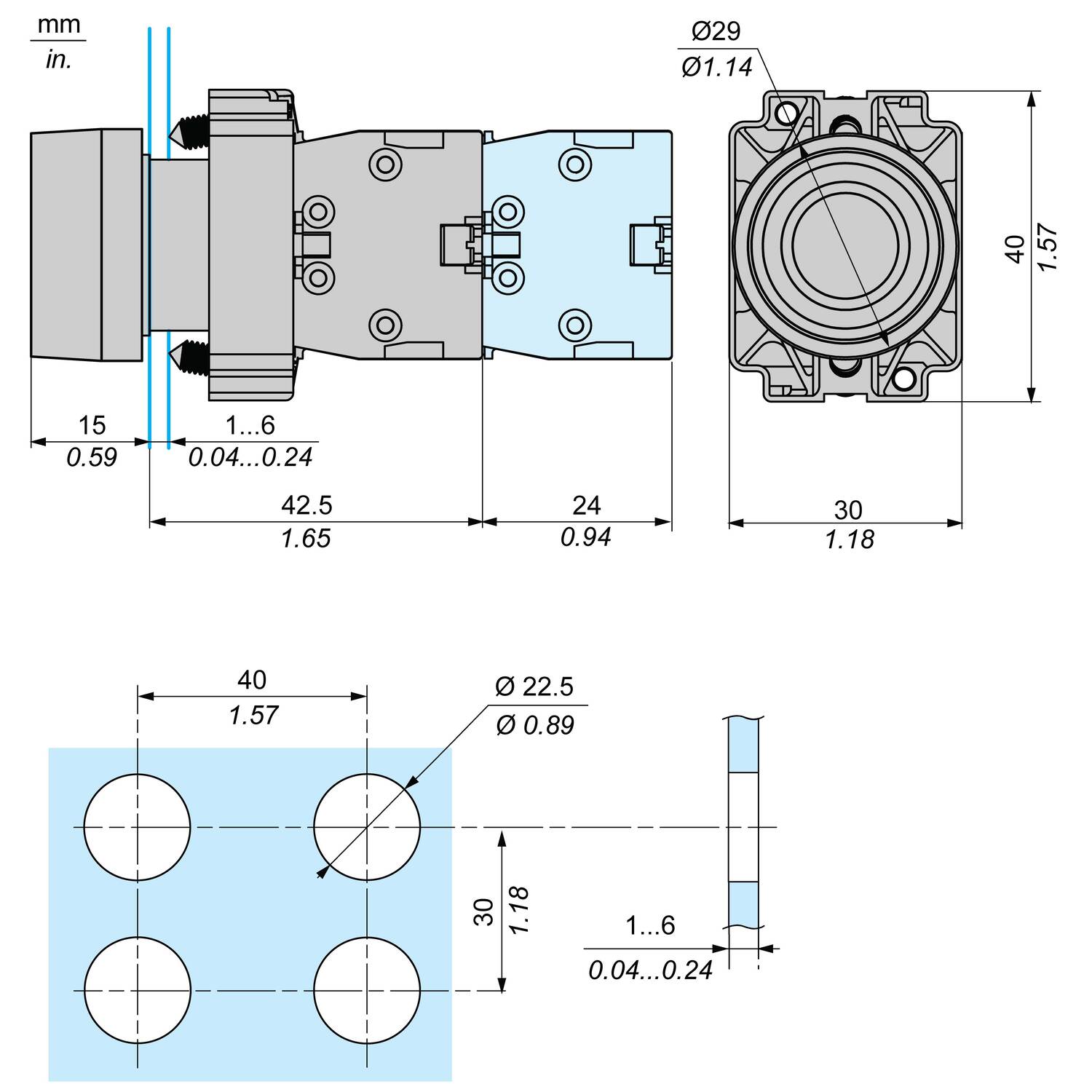

Depth57.5 mm
Width40 mm
Height30 mm
MarkingUnmarked
Head typeBooted
Fixing modeFixing screw beneath head recommended torque: 0.8 N.m · Fixing screw beneath head recommended torque: 1.0 N.m
CustomizableNo
Fixing center>= 30 x 40 mm (1...6 mm thick panel) zamak - thickness: 1…6 mm
Bezel materialChromium plated metal
Contacts usageStandard contacts
Device mountingFixing hole - diameter: 22.5 mm
Operating travel2.88 mm (NO changing electrical state) · 5.0 mm (total travel)
Operator profileGreen booted, unmarked
Positive openingWithout
Range of productHarmony XB2
Type of operatorspring return
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB2
Mounting diameter22.5 mm
Tightening torque0.8…1.0 N.m
Operating positionAny position
Device presentationComplete product
Shape of screw headCross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass I conforming to IEC 60536
Protective treatmentTC/TH
Electrical durability1000000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C · 1000000 cycles, DC-13, 0.27 A at 250 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability3000000 cycles
Product compatibilityZB2..C
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialZamak
Connections - terminalsScrew clamp terminal, = 1 x 0.5 mm² with and without cable ends · Faston terminals, connection size: 6.3 mm
Short-circuit protection10 A gL fuse type gG conforming to IEC 60947-5-1
Product or component typeComplete push-button
Cap/operator or lens colourGreen
Shape of signaling unit headRound
Contacts type and composition1 NO
Sale per indivisible quantity1
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1

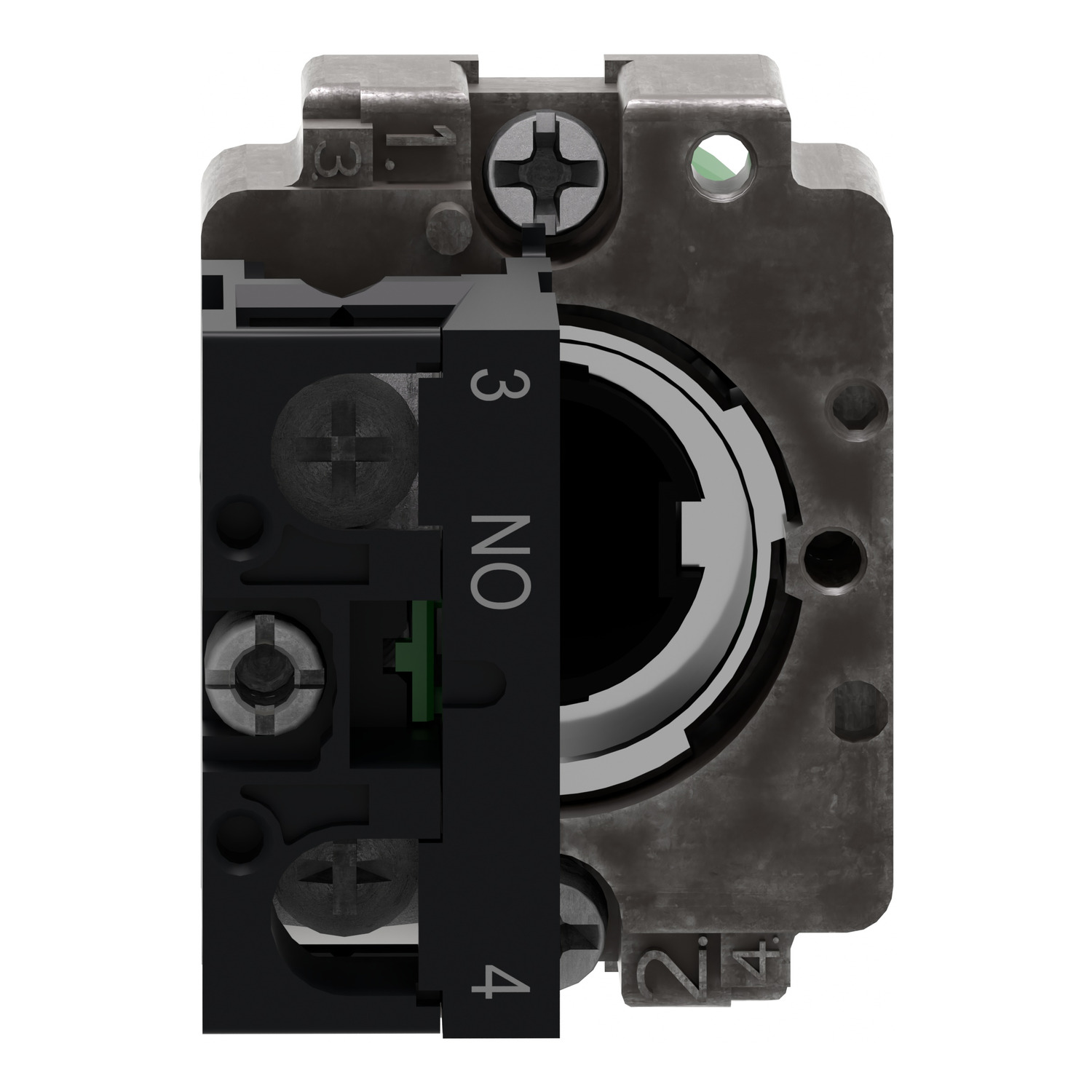

Terminals description ISO n°1(13-14)NO
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-4 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-4
Ambient air temperature for storage-40…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
