Legrand Allzy Bell Push Switch · 1-way · 6 A · 1 M · White · 681109: Elume price today ₹83 per pc incl. GST, 33% below the ₹124 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹67, the same as here. The lowest tracked seller lists it at ₹67, ₹16 below it (tell us and we match it).

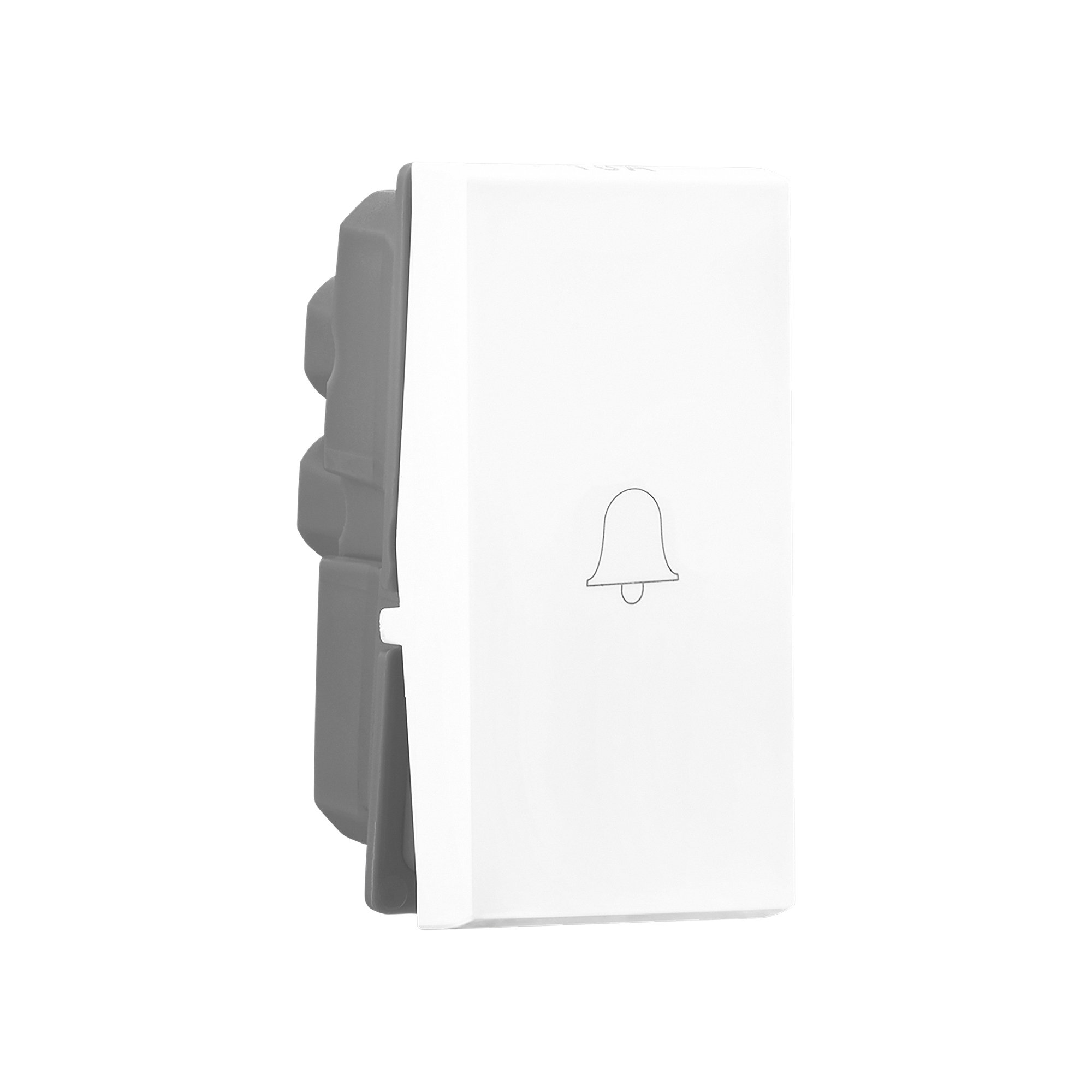

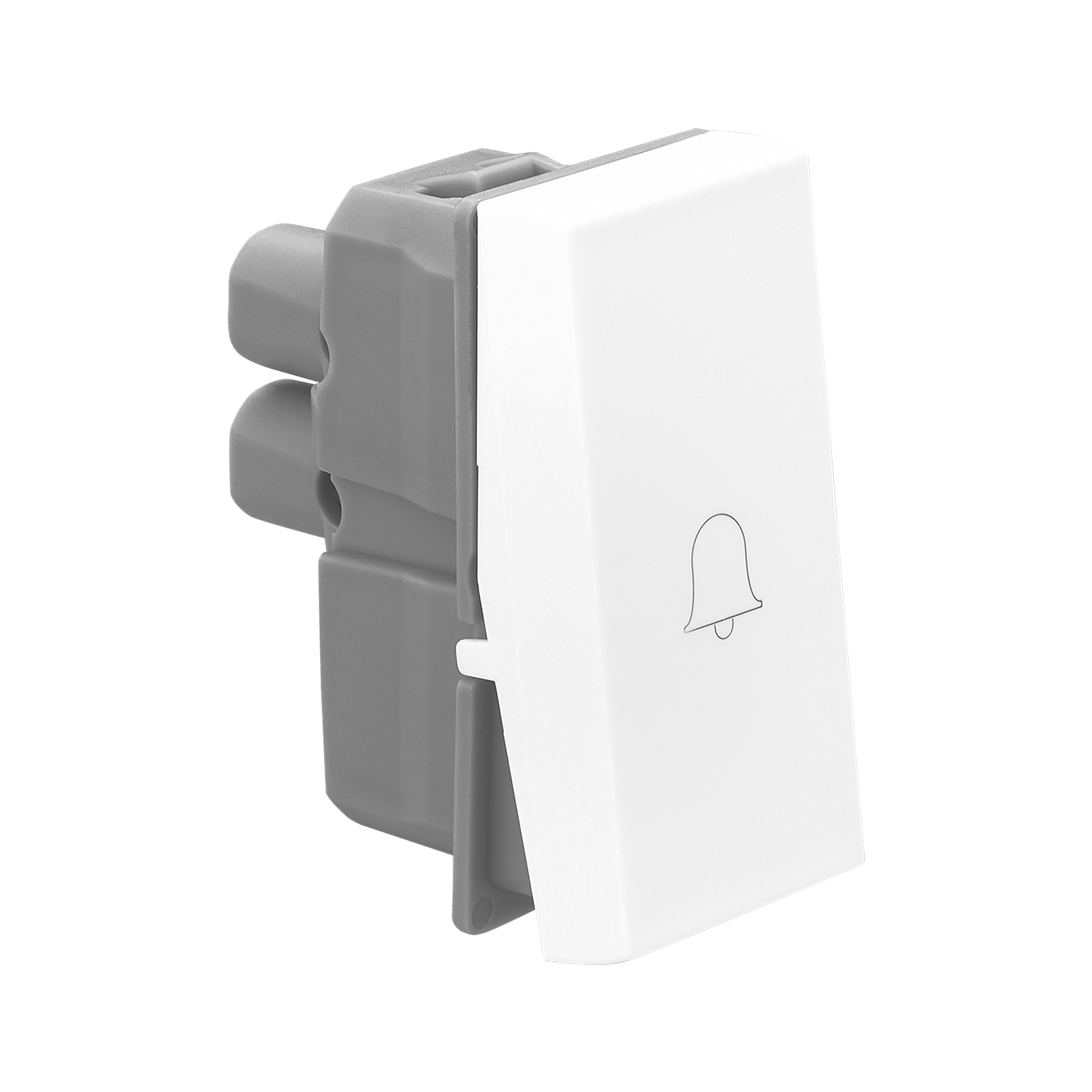

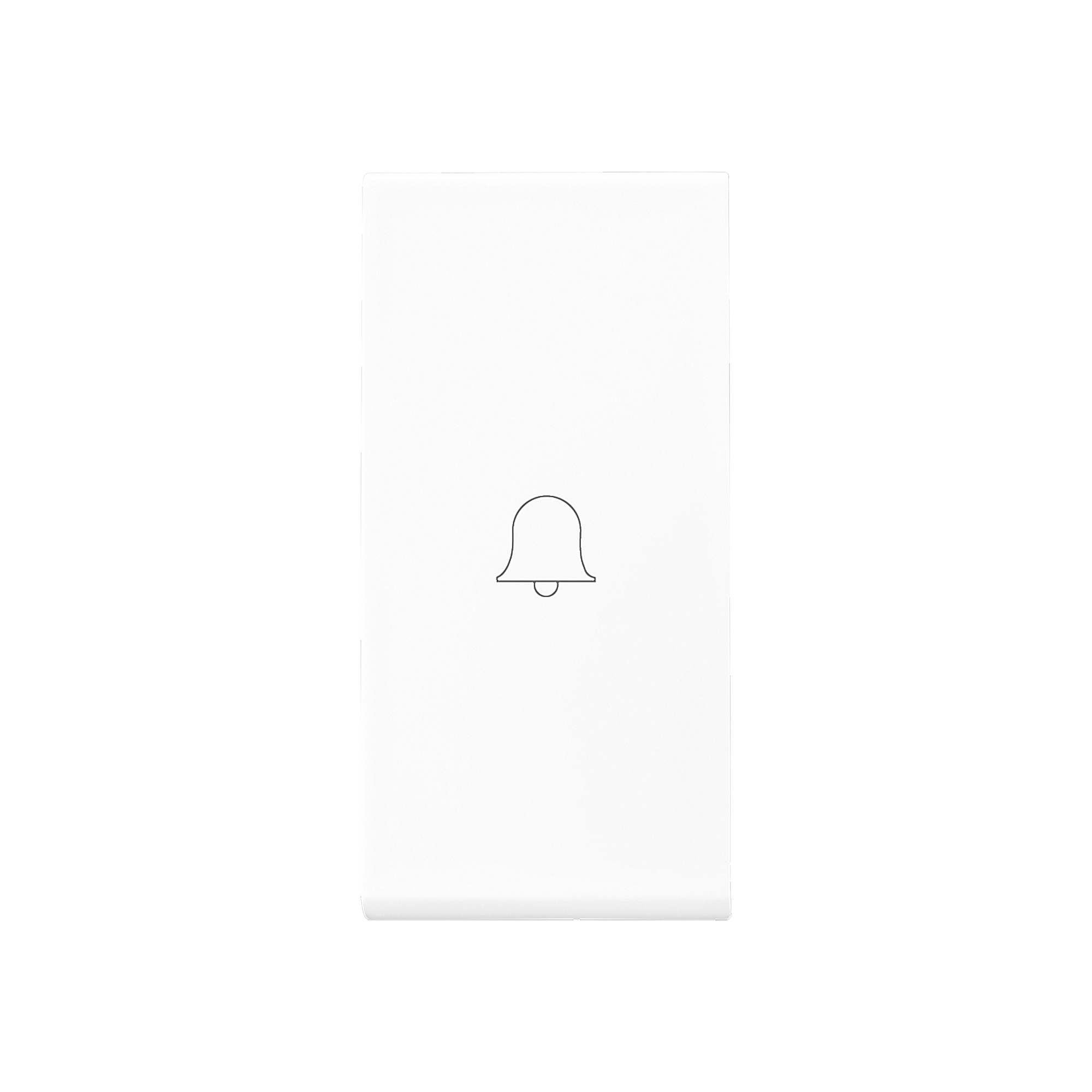

The Allzy range CAT number 681109 is a 6A bell push switch designed for general lighting control. It features a single module with a white color and can be mounted both flush and surface-mounted. The switch has overall dimensions of 22.5 mm in width, 45 mm in height, and 37.8 mm in depth, with a weight of 14.3 grams. It is equipped with screw terminals that can accommodate wires with a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver for installation. The switch operates with a rocker mechanism and is made from durable materials including polycarbonate for the rocker and plunger, polypropylene for the base and transmitter, and brass for the contact and pivot terminals. The contact tip is made of bi-metal (Cu+AgNi). The switch is rated for 230V AC and 6A current, with a self-extinguishing capability of 850°C for 30 seconds. The product conforms to Indian Standard IS 3854:1997.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
