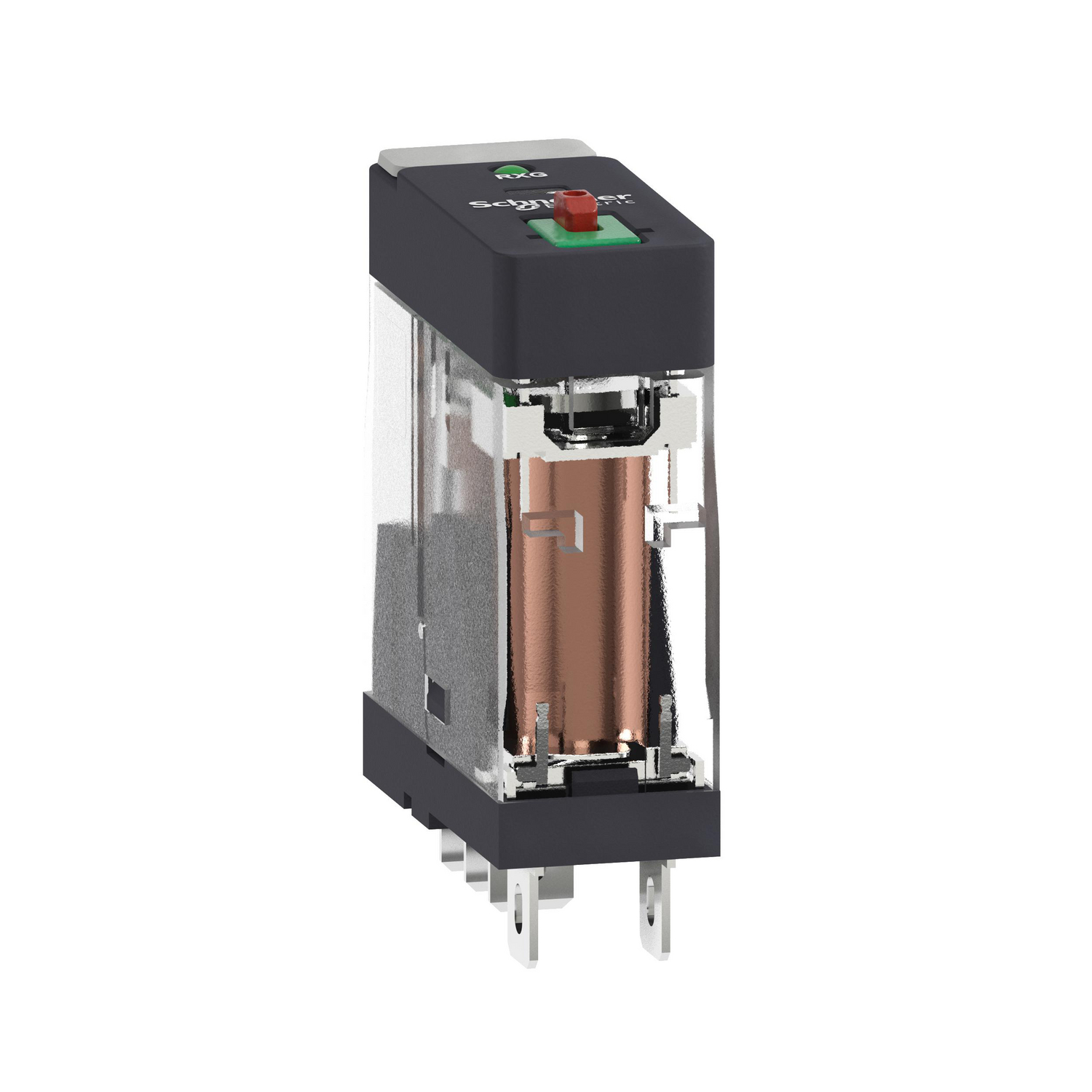

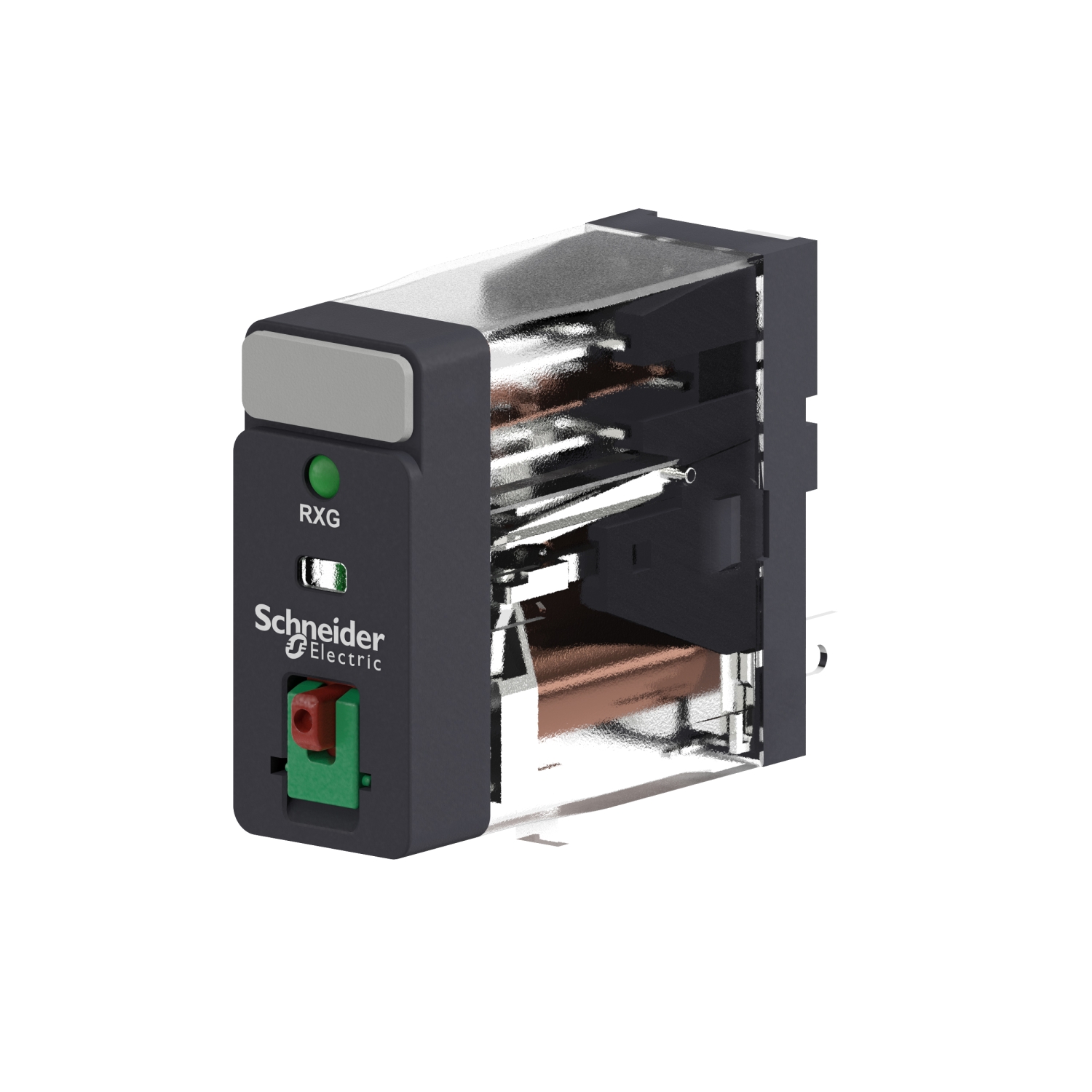

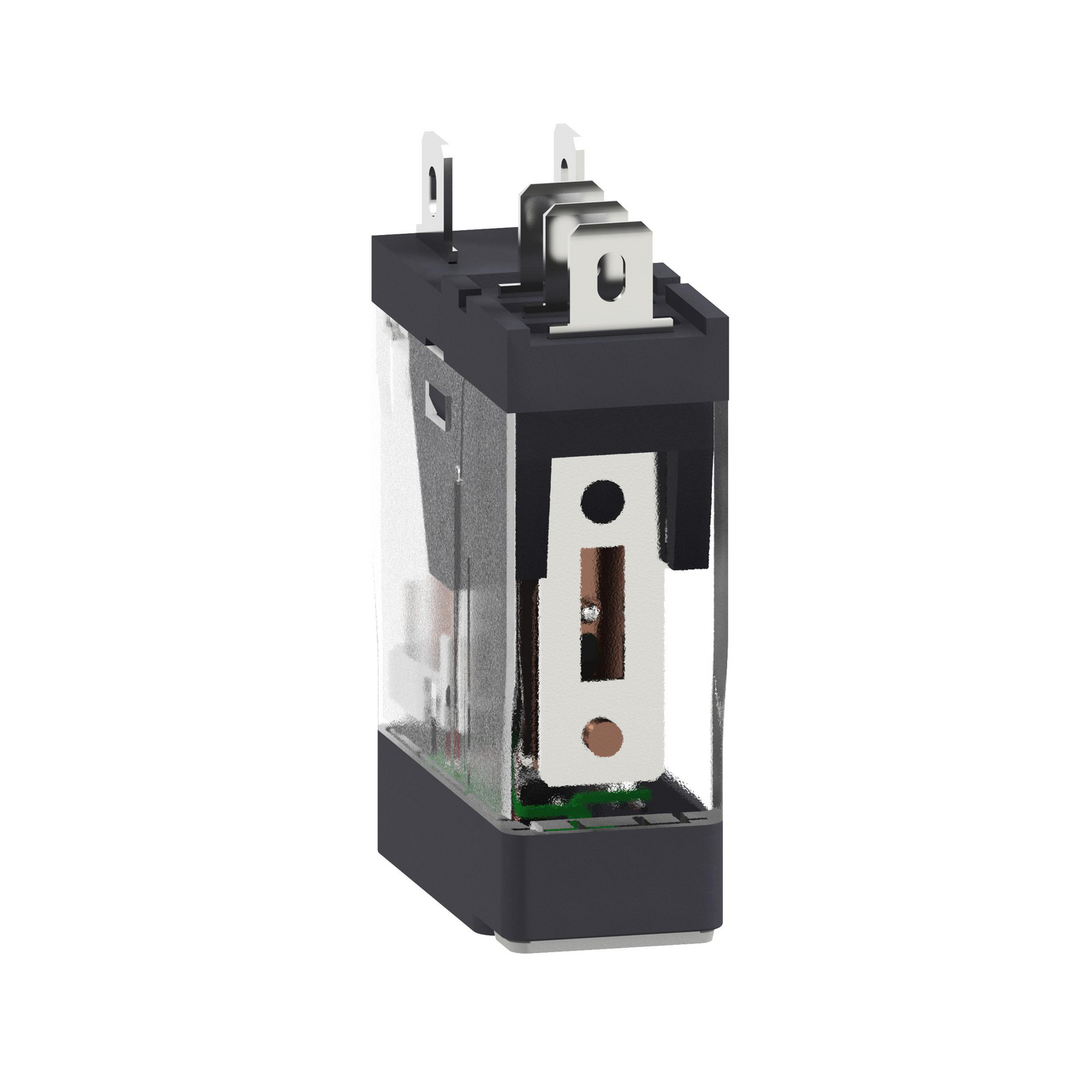

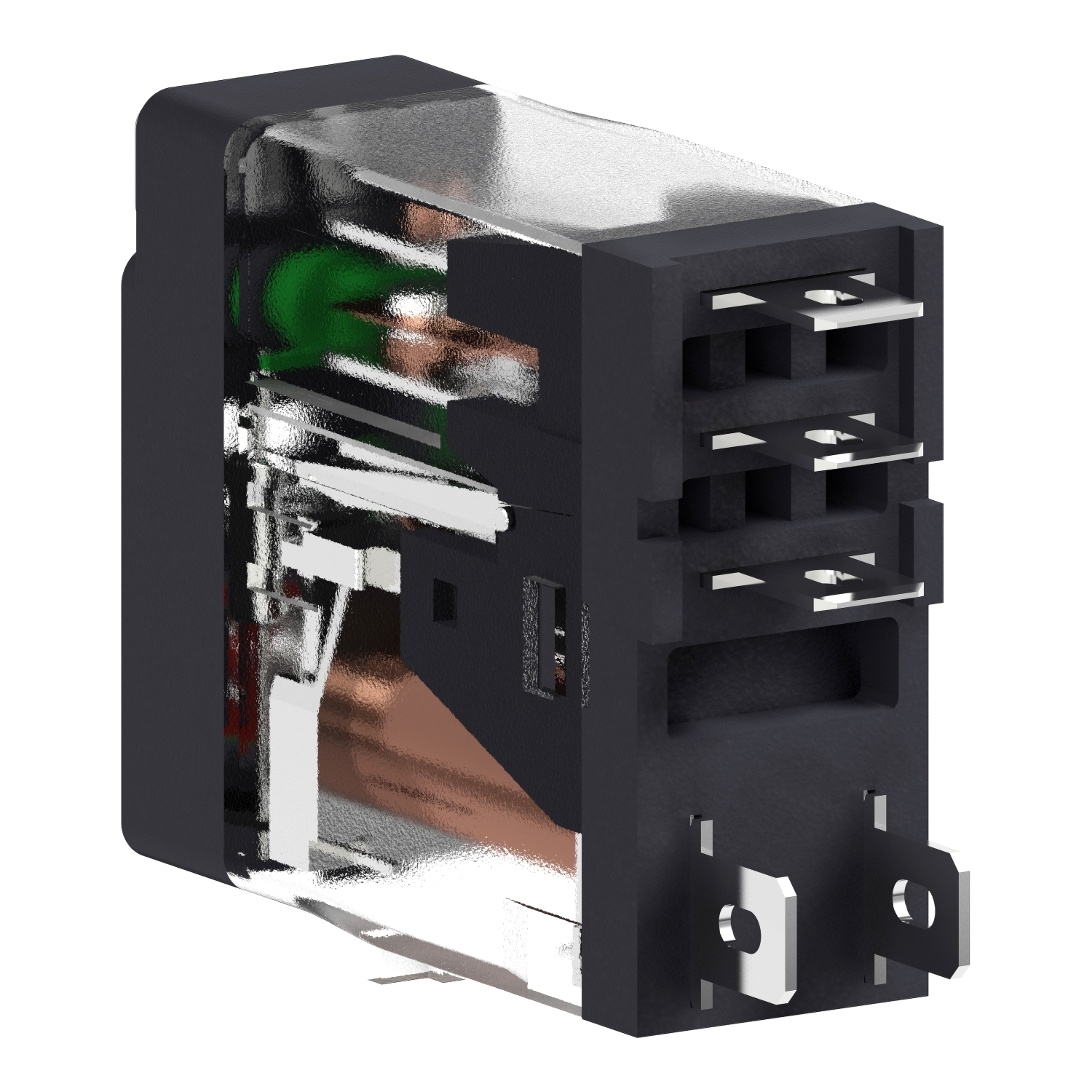

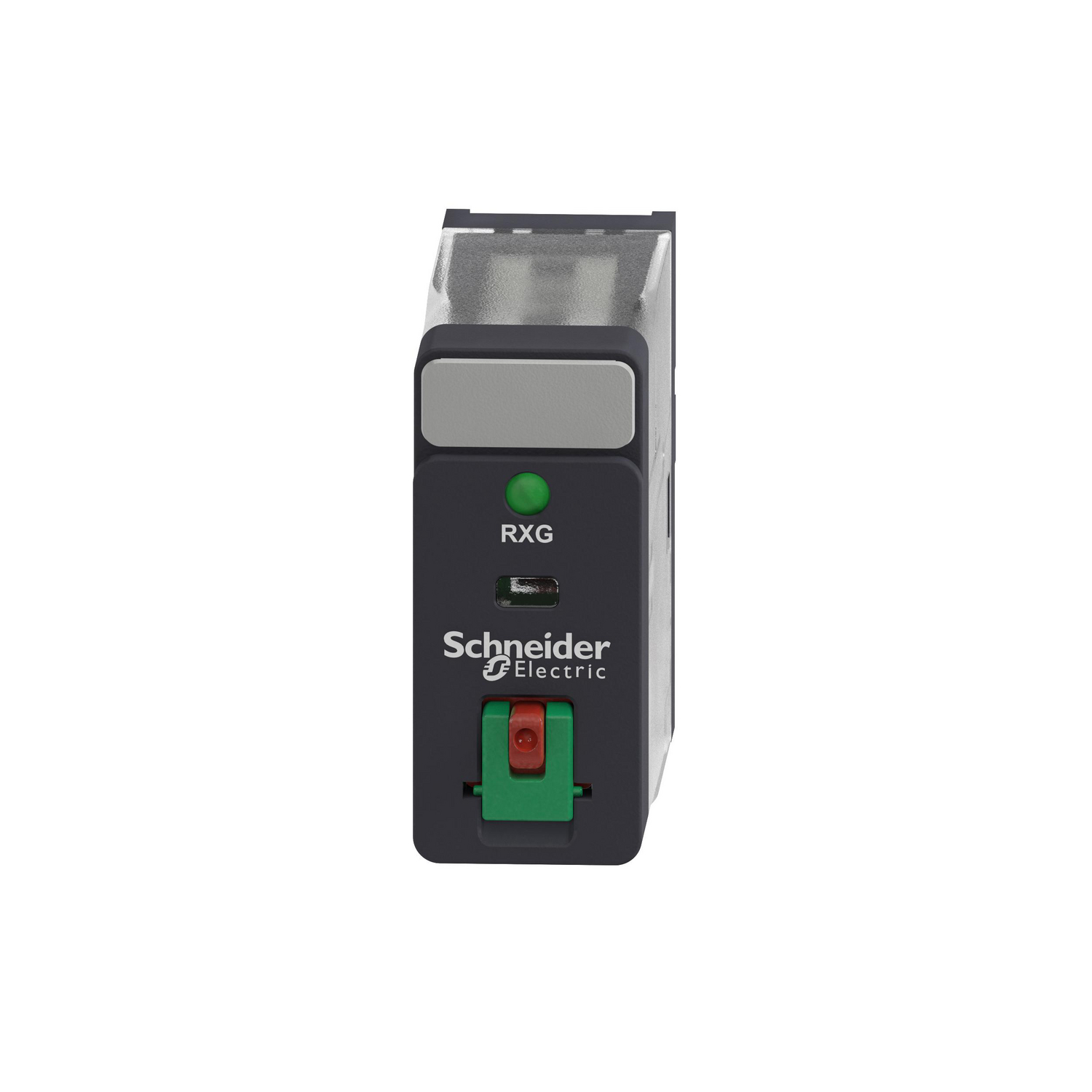

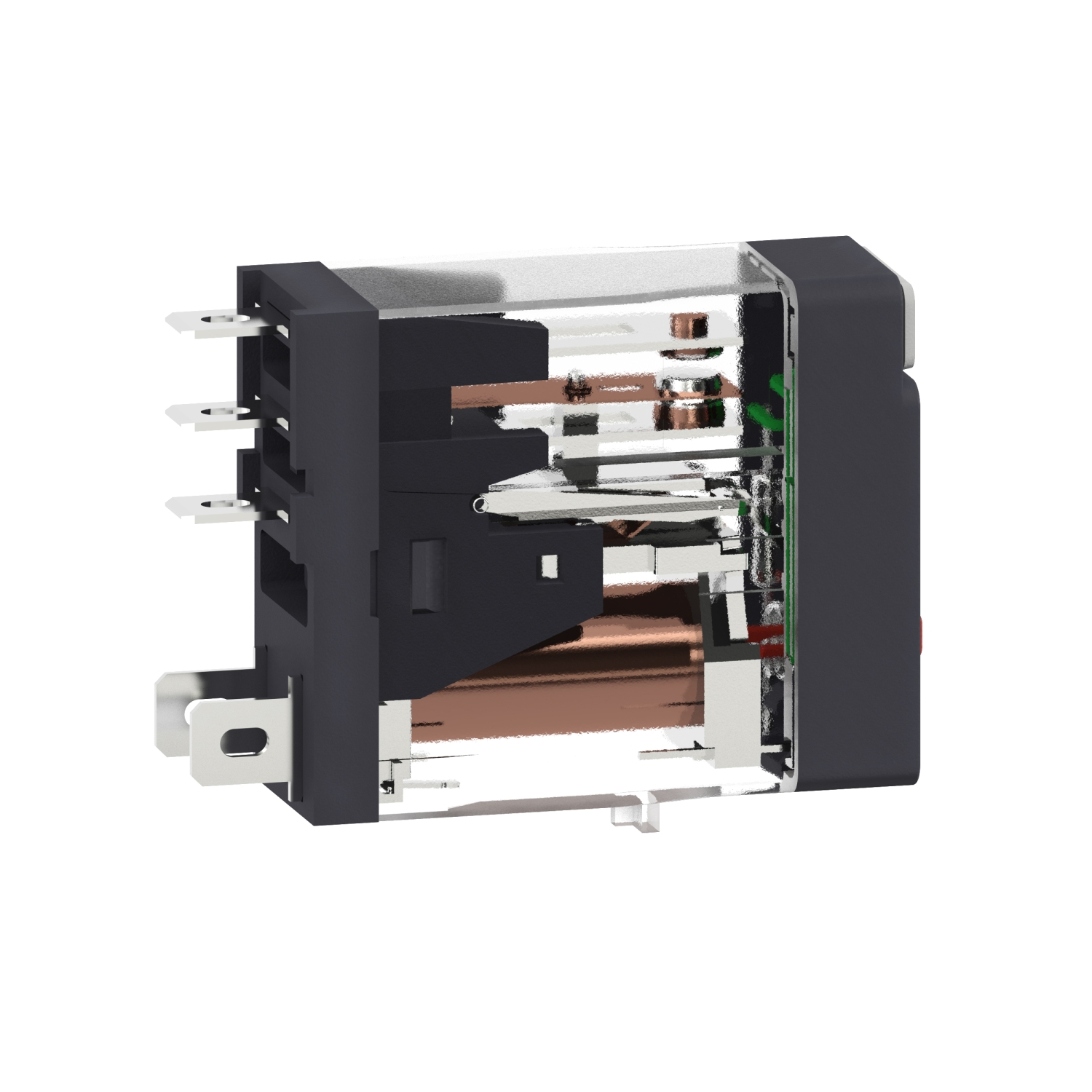

Schneider Harmony Plug-in Relay · 1 C/O · 10 A · 120 V AC coil · IP40 · RXG12F7RXG12F7↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Specification1 C/O · 10 A · 120 V AC coil
Brand SKURXG12F7
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Plug-in Relay · 1 C/O · 10 A · 120 V AC coil · IP40 · RXG12F7

NEW added this week
₹1,255/pcincl. GST-1%
₹1,064 + 18% GST · MRP ₹1,267
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,255 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Plug-in Relay · 1 C/O · 10 A · 120 V AC coil · IP40 · RXG12F7: Elume price today ₹1,255 per pc incl. GST, 1% below the ₹1,267 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,356₹1,309₹1,261₹1,214₹1,167₹1,267₹1,255
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,255
MRP
₹1,267
Lowest in view · 17 Oct
₹1,255
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,192/pc on this product

"This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button and LED indicator." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Plug-in Relay · 1 C/O · 10 A · 120 V AC coil · IP40 · RXG12F7 · RXG12F7
Rated current10 A
Ingress protectionIP40
Reference standardUL 508
coil voltage120 V AC
Net weight0.02 kg
BrandSchneider
Brand SKURXG12F7
ELINEMPC64CR4K
Sold asPer pc
StandardsUL 508 · IEC 61810-1 · CSA C22.2 No 14
Relay typeInterface relay
Reset time20 ms
status LEDWith
Series nameRXG series
Test levelsLevel A group mounting
Control typeLockable test button
Load current10 A at 250 V AC
Shape of pinFlat (faston type)
Operating rate<= 1800 cycles/hour under load · <= 18000 cycles/hour no-load
Operating time20 ms
Local signallingFlag
Pollution degree2
Range of productHarmony Electromechanical Relays
Removable legendWith
Contacts materialSilver alloy (AgSnO2In2O3)
Relative humidity10…85 %
Average resistance6300 Ohm at 23 °C +/- 10 %
Contact resistance100 mOhm
Device presentationComplete product
Dielectric strength1000 V AC between contacts with micro disconnection · 5000 V AC between coil and contact with reinforced insulation · 1300 V AC terminals and case with basic insulation
Protection categoryRT I
Overvoltage categoryIII
Electrical durability100000 cycles for NO resistive load at 55 °C · 100000 cycles for NC resistive load at 55 °C
Insulation resistance1000 MOhm at 500 V DC
Mechanical durability10000000 cycles
Product certificationsUL · EAC · CSA · CE · DNV
IP degree of protectionIP40
Safety reliability dataB10d = 100000
Utilisation coefficient20 %
Maximum switching voltage250 V AC · 30 V DC
Product or component typePlug-in relay
Drop-out voltage threshold>= 0.3 Uc AC
Maximum switching capacity2500 VA
Minimum switching capacity500 mW at 100 mA, 5 V DC
Electrical insulation classClass F
[Uc] control circuit voltage120 V AC
Contacts type and composition1 C/O
[Ui] rated insulation voltage250 V conforming to IEC · 300 V conforming to CSA · 300 V conforming to UL
[Ie] rated operational current10 A at 30 V (DC) conforming to UL · 10 A at 30 V (DC) conforming to IEC · 10 A at 250 V (AC) conforming to UL · 10 A at 250 V (AC) conforming to IEC
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-40…70 °C
[Uimp] rated impulse withstand voltage1200 V AC between contacts with micro disconnection · 6000 V between coil and contact with reinforced insulation · 1500 V between terminals and case with basic insulation
[Ithe] conventional enclosed thermal current10 A at -40…55 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
