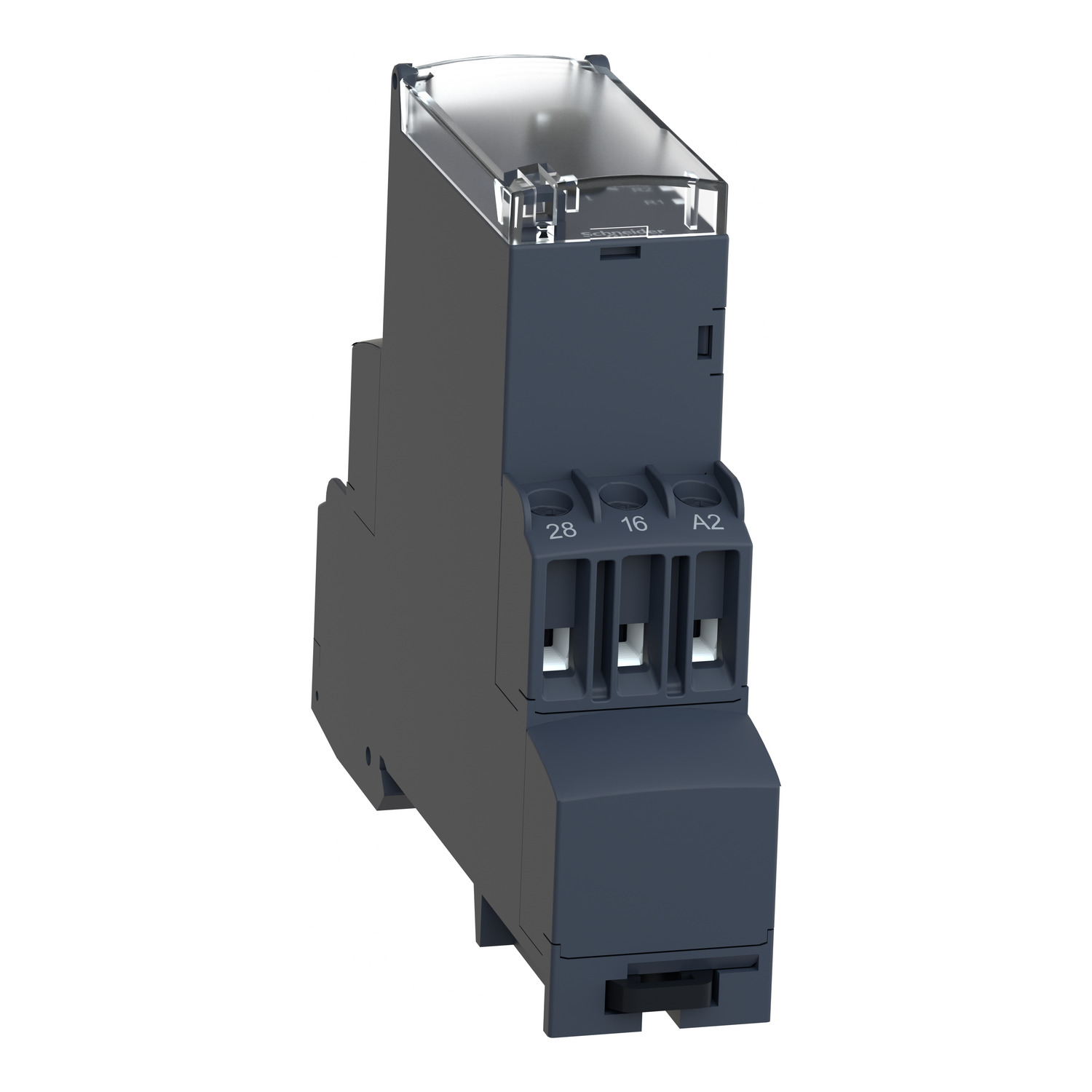

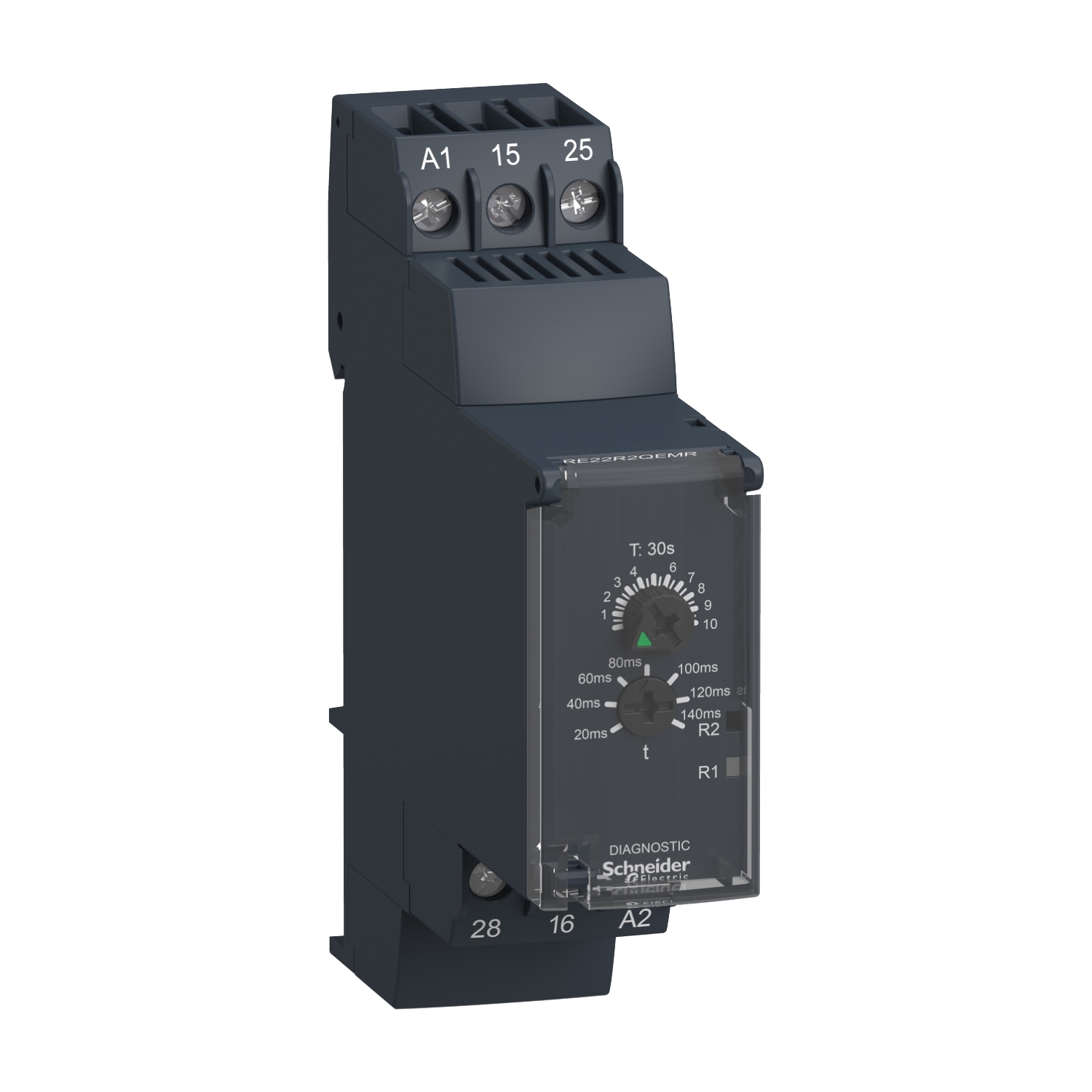

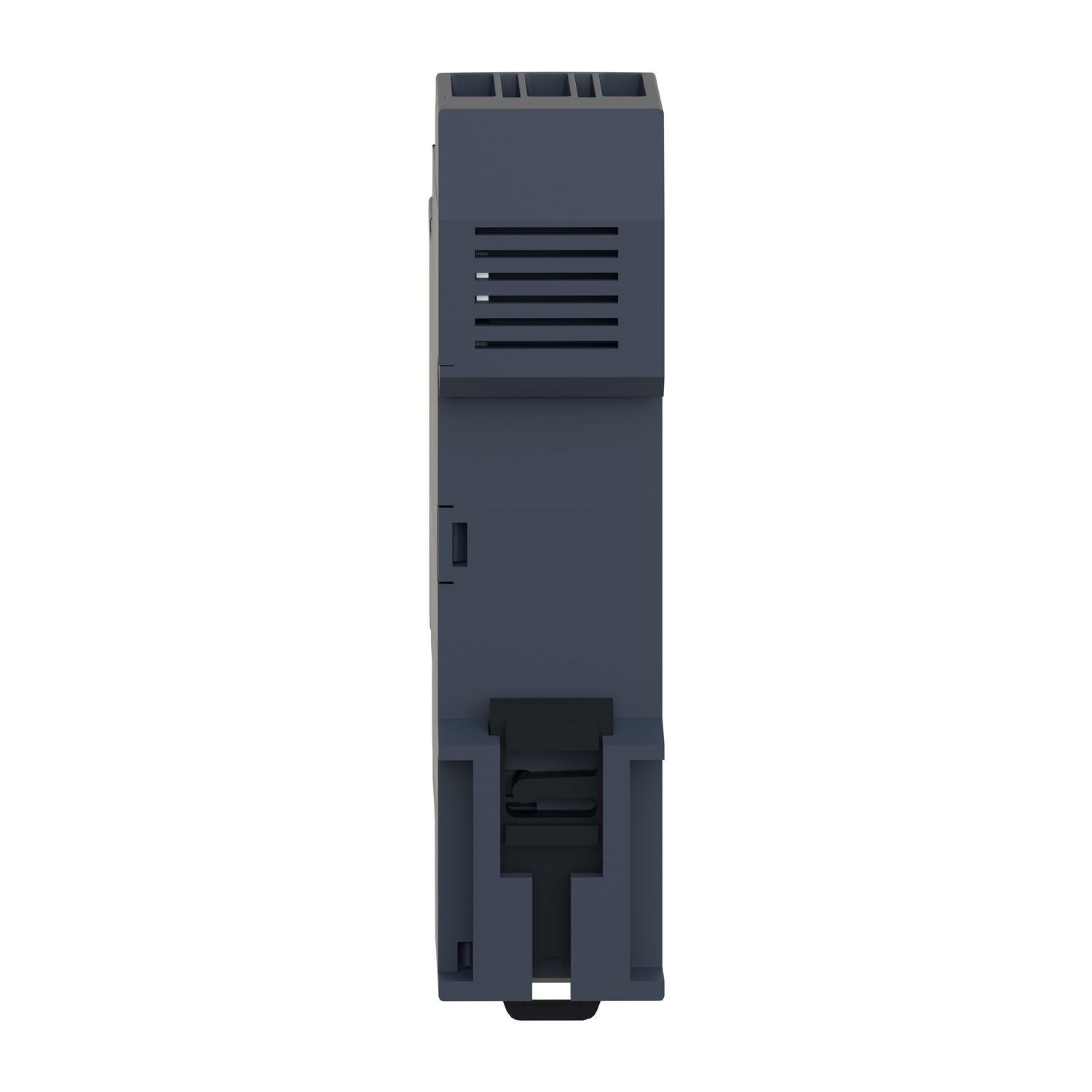

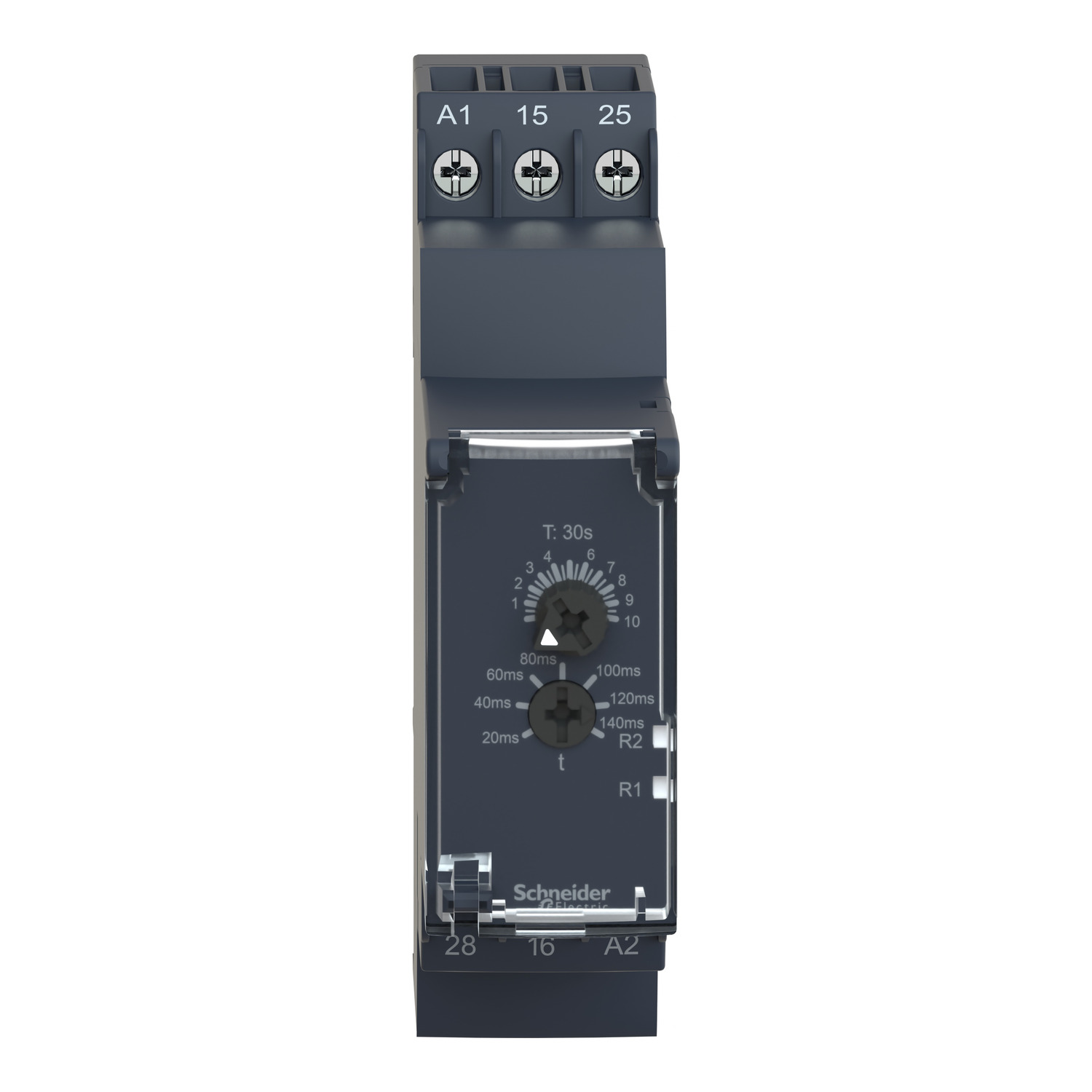

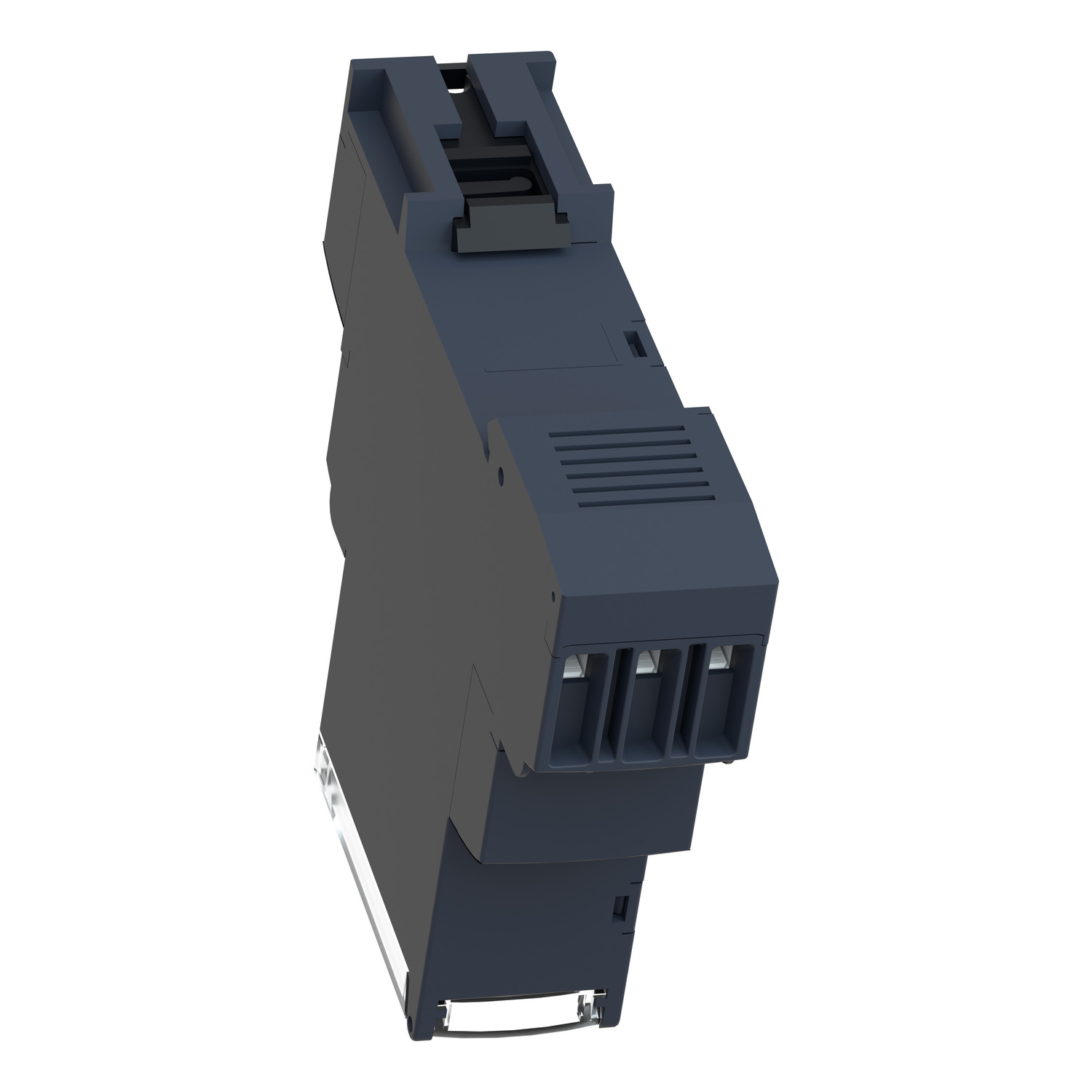

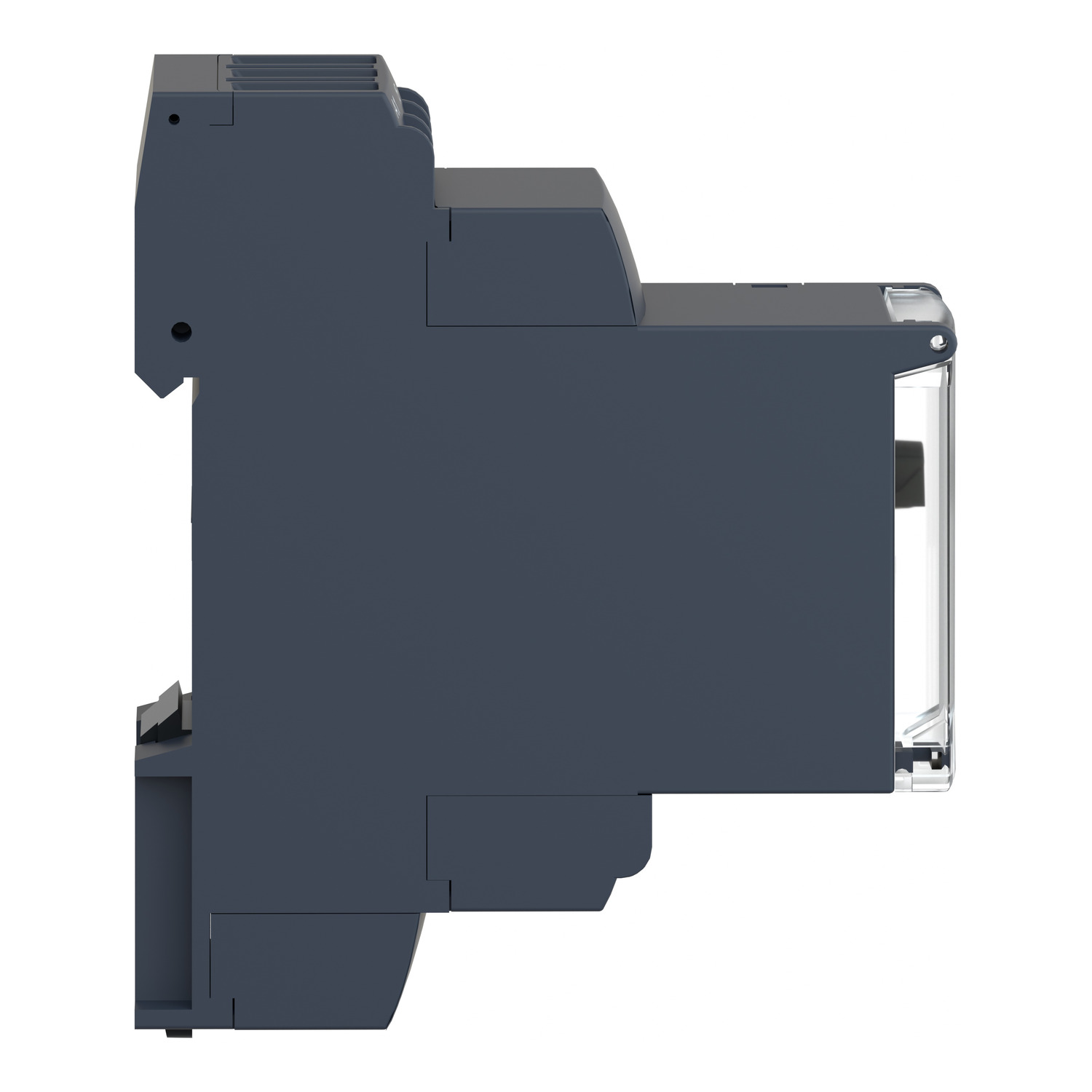

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact, cadmium free · IP40 · RE22R2QEMRRE22R2QEMR↓ 1% off MRP1 / 11
BrandSchneider
CategoryIndustrial Control
Specification2 C/O timed contact, cadmium free
Brand SKURE22R2QEMR
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact, cadmium free · IP40 · RE22R2QEMR

NEW added this week
₹11,416/pcincl. GST-1%
₹9,675 + 18% GST · MRP ₹11,531
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹11,416 /pc incl. GST
Free pan-India delivery

Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact, cadmium free · IP40 · RE22R2QEMR: Elume price today ₹11,416 per pc incl. GST, 1% below the ₹11,531 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹12,338₹11,908₹11,478₹11,047₹10,617₹11,531₹11,416
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹11,416
MRP
₹11,531
Lowest in view · 17 Oct
₹11,416
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹10,845/pc on this product

"This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours." "It provides function Qe and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC."

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Timer RE22 Timing Relay · 2 C/O timed contact, cadmium free · IP40 · RE22R2QEMR · RE22R2QEMR
Ingress protectionIP40 housing:· IP20 terminals:· IP50 front panel:
Reference standardIEC 61812-1
Net weight0.09 kg
BrandSchneider
Brand SKURE22R2QEMR
ELINEMM9R473K9
Sold asPer pc
Width22.5 mm
StandardsIEC 61812-1 · UL 508
Status LEDLED backlight green (steady) for dial pointer indication · LED yellow (steady) for output relay energised · LED yellow (fast flashing) for timing in progress and output relay de-energised · LED yellow (slow flashing) for timing in progress and output relay energised
Control typeRotary knob · Diagnostic button
Recovery time120 ms on de-energisation
Voltage drift+/- 0.2 %/V
Voltage range0.85...1.1 Us
Power on delay100 ms
Repeat accuracy+/- 0.5 % conforming to IEC 61812-1
Time delay typeStar-delta
Housing materialPolycarbonate
Mounting support35 mm DIN rail conforming to IEC 60715
Range of productHarmony Timer Relays
Supply frequency50...60 Hz +/- 5 %
Time delay range0.3...30 s
Creepage distance4 kV/3 conforming to IEC 60664-1
Device short nameRE22
Mounting positionAny position
Temperature drift+/- 0.05 %/°C
Tightening torque0.6…1 N.m conforming to IEC 60947-1

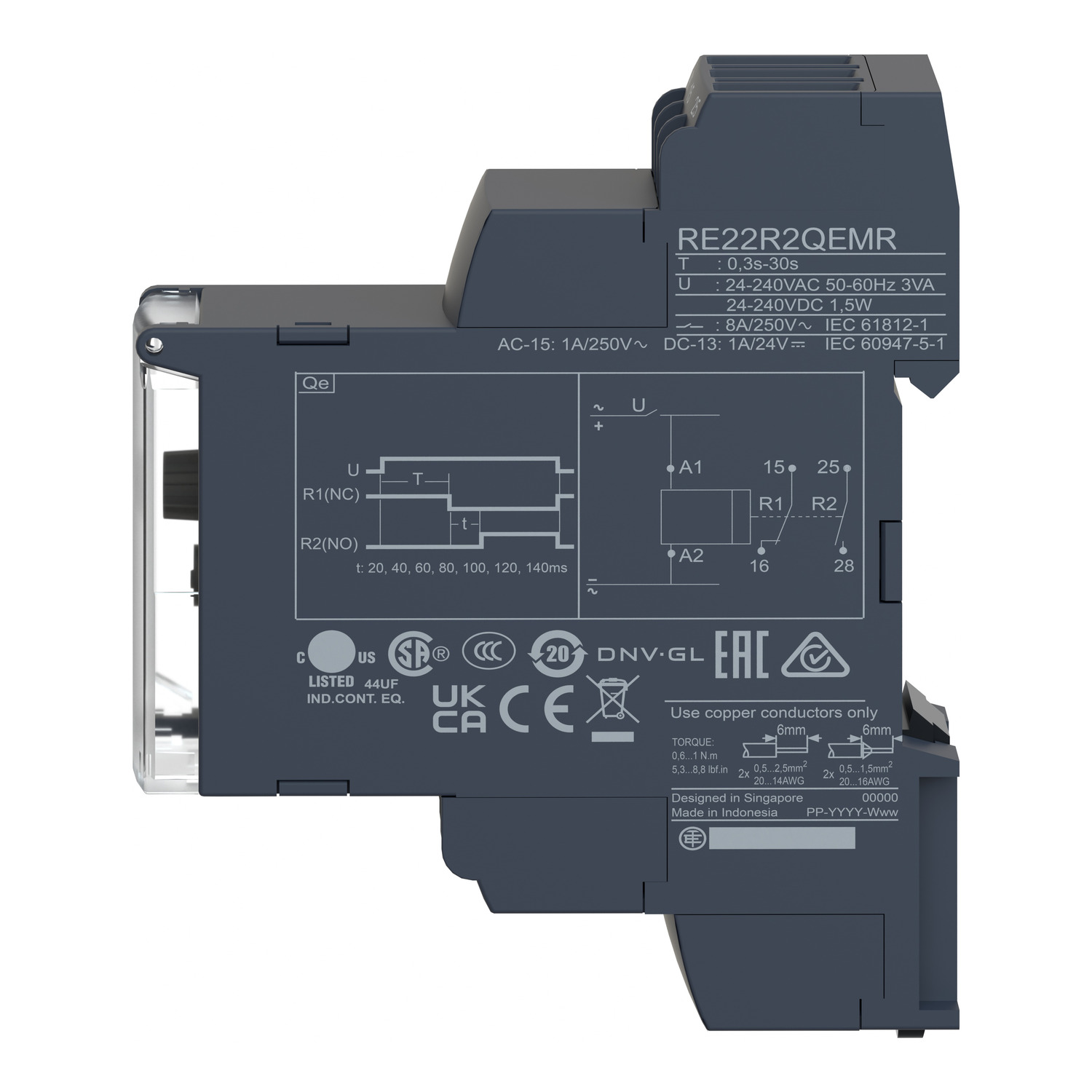

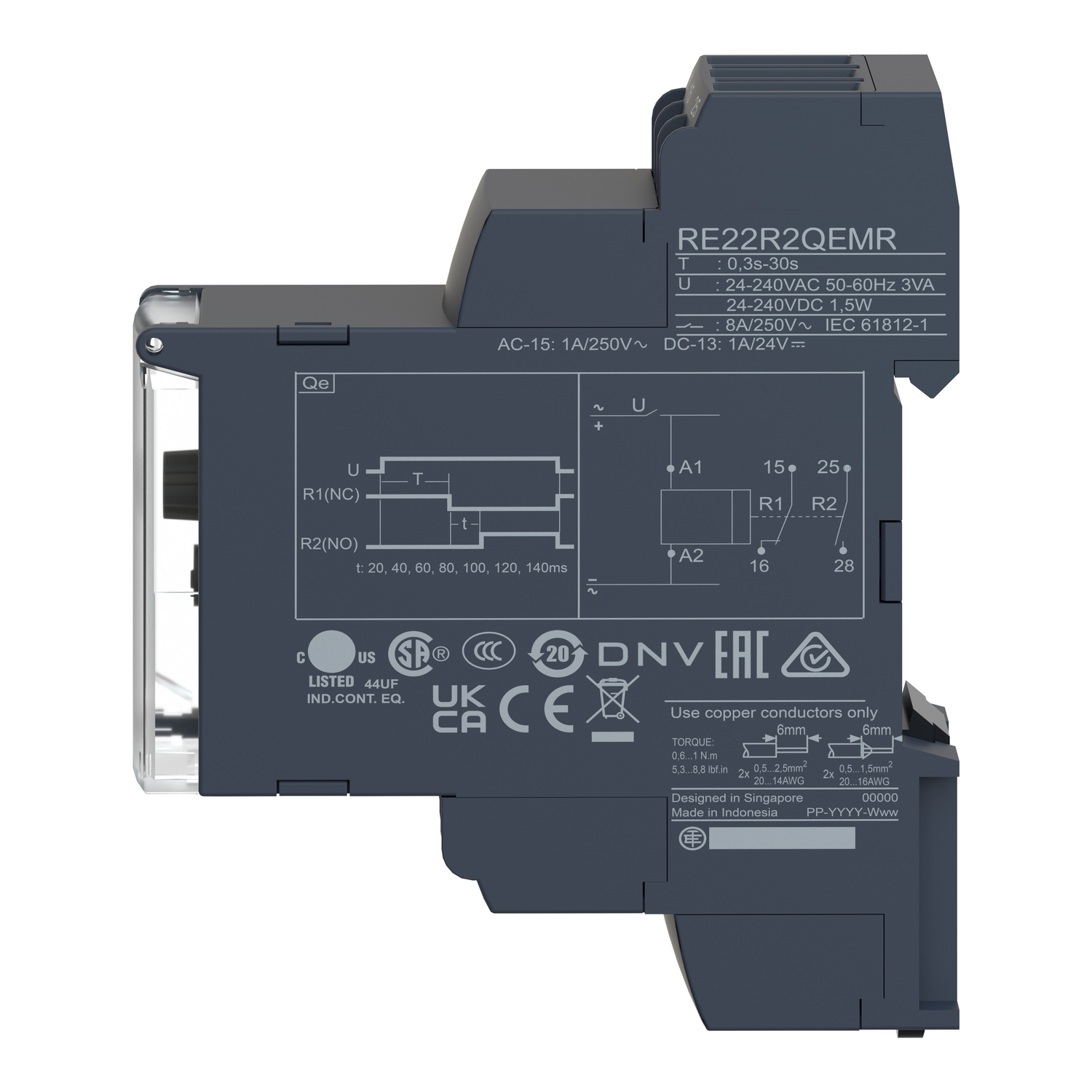

Function availableQe-Star-delta relay (1 NC + 1 NO outputs with split common)-2 C/O
Dielectric strength2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1
Number of functions1
Discrete output typeRelay
Overvoltage categoryIII conforming to IEC 60664-1
Electrical durability100000 cycles, 8 A at 250 V, AC-1 · 100000 cycles, 2 A at 24 V, DC-1
Insulation resistance100 MOhm at 500 V DC conforming to IEC 60664-1
Mechanical durability10000000 cycles
Release input voltage<= 2.4 V
Power consumption in W1.5 W at 240 V DC
nominal output current8 A
Connections - terminalsScrew terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end
Immunity to microbreaks10 ms
Power consumption in VA3 VA at 240 V AC
Safety reliability dataB10d = 320000 · MTTFd = 353.8 years
Switching capacity in VA2000 VA
Maximum switching current8 A
Maximum switching voltage250 V AC
Minimum switching current10 mA at 5 V DC
Product or component typeModular timing relay
[Us] rated supply voltage24...240 V AC/DC 50/60 Hz
Contacts type and composition2 C/O timed contact, cadmium free
Setting accuracy of time delay+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
Rated impulse withstand voltage5 kV for 1.2…50 µs conforming to IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
