Schneider Acti9 iPRD20 SPD · 3P+NA9L20600↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Brand SKUA9L20600
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

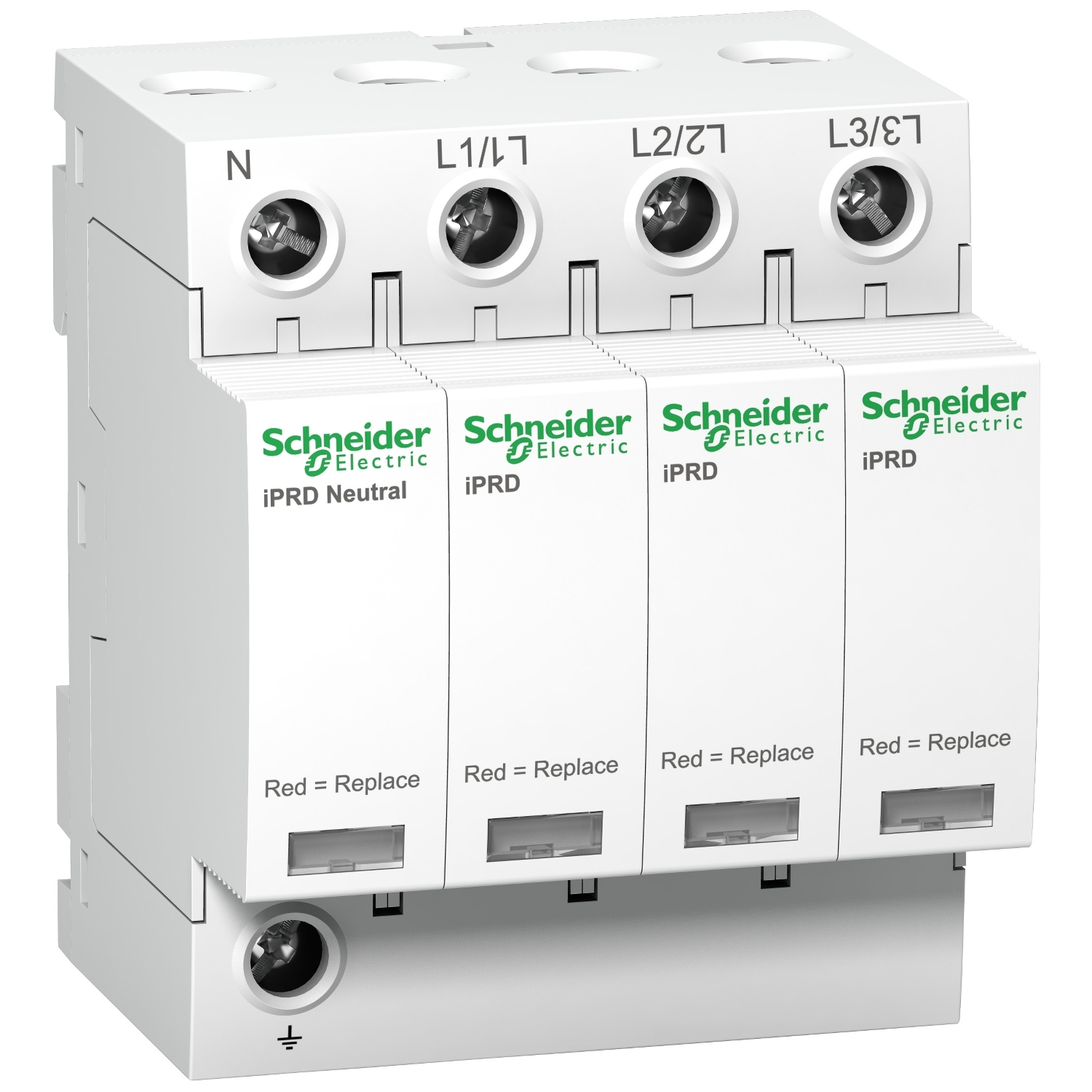

Schneider Acti9 iPRD20 SPD · 3P+N

Poles: 3P+N
NEW added this week
₹33,178/pcincl. GST-1%
₹28,117 + 18% GST · MRP ₹33,513
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹33,178 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 iPRD20 SPD · 3P+N: Elume price today ₹33,178 per pc incl. GST, 1% below the ₹33,513 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹35,859₹34,608₹33,357₹32,106₹30,856₹33,513₹33,178
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹33,178
MRP
₹33,513
Lowest in view · 17 Oct
₹33,178
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹31,519/pc on this product

This Acti9 iPRD20 surge arrester protects 3P+N installations. It allows quick replacement of damaged cartridges. This Type 2 device is recommended for medium risk level and incoming panel board. It can be turned over to allow the phase/neutral/earth cables to enter through either the top or the bottom. The associated circuit breaker Isc breaking capacity can go up to 50kA. This Acti9 iPRD20 is compatible with TT and TN-S earthing system. The Imax rated discharge current is 20kA. The In nominal discharge current is 5kA. The Uc maximum continuous operating voltage in common mode is 260VAC between neutral and earth, and 350VAC between phase and earth. The Up Voltage protection level in differential mode (between phase and neutral) is 1.1kV. The Up Voltage protection level in common mode (between neutral and earth) is 1.4kV. The Ue operating voltage is 230VAC or 400VAC +/- 10%. The operating frequency is 50Hz or 60Hz. The dimensions are (W) 72mm x (H) 85mm x (D) 69mm. The width in 9mm pitches is 8. The weight is 450g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C. This product is comp

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iPRD20 SPD · 3P+N · A9L20600
Poles3P+N
Reference standardEN 61643-11:2012
Net weight0.414 kg
ColourWhite (RAL 9003)
Device typeMiniature circuit breaker (MCB)
BrandSchneider
Brand SKUA9L20600
ELINEMM7PD67DM
Sold asPer pc
Depth69 mm
Width72 mm
Height85 mm
StandardsEN 61643-11:2012 · IEC 61643-11:2011
9 mm pitches8
Product nameActi9 iPRD
Mounting modeClip-on (DIN rail)
Quality labelsNF · KEMA-KEUR
Earthing systemTT · TN-S
Range of productIPRD
Device short nameiPRD20
Poles description3P + N
Relative humidity5…95 %
Remote signallingWithout
Tightening torque2.5 N.m
Compatibility codeIPRD20
Device applicationDistribution
Operating altitude2000 m
Surge arrester typeElectrical distribution network
Product certificationsCE
Connections - terminalsTunnel type terminal (downside) 2.5…35 mm² · Tunnel type terminal (upside) 2.5…35 mm²
IK degree of protectionIK03 conforming to IEC 62262
Disconnector device typeAssociated circuit breaker IC60N 20 A curve C - Icu 10 kA · Associated circuit breaker iC60H 20 A curve C - Icu 15 kA · Associated circuit breaker iC60L 20 A curve C - Icu 25 kA · Associated circuit breaker NG125H 20 A curve C - Icu 36 kA · Associated circuit breaker NG125L 20 A curve C - Icu 50 kA · Associated fuse gG 40 A - Icu 15 kA · Associated fuse gG 80 A - Icu 50 kA
Maximum discharge currentCommon mode: 20 kA L/PE · Common mode: 20 kA N/PE · Differential mode: 20 kA L/N
Nominal discharge currentCommon mode: 5 kA (L/PE) · Common mode: 5 kA (N/PE) · Differential mode: 5 kA (L/N)
Product or component typeSurge arrester with pluggable cartridge
Surge arrester class typeType 2
Surge arrester technologyMOV + GDT
[Ut] temporary overvoltage337 V L/N 5 s withstand · 1200 V N/PE 200 ms safe failure mode · 442 V L/PE 5 s withstand · 1453 V L/PE 200 ms safe failure mode
[Ipe] Ground residual current0.6 mA · 0.003 mA
[Ue] rated operational voltage230/400 V AC (+/- 10 %) at 50/60 Hz
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelDifferential mode 1.1 kV type 2 L/N · Common mode 1.4 kV type 2 N/PE
[Uc] maximum continuous operating voltageCommon mode: 260 V N/PE · Common mode: 350 V L/PE · Differential mode: 350 V L/N
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
