Legrand Allzy Cover Plate with Frame · 2 M · White · 681301: Elume price today ₹104 per pc incl. GST, 33% below the ₹156 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹84, ₹20 less than here. The lowest tracked seller lists it at ₹84, ₹20 below it (tell us and we match it).

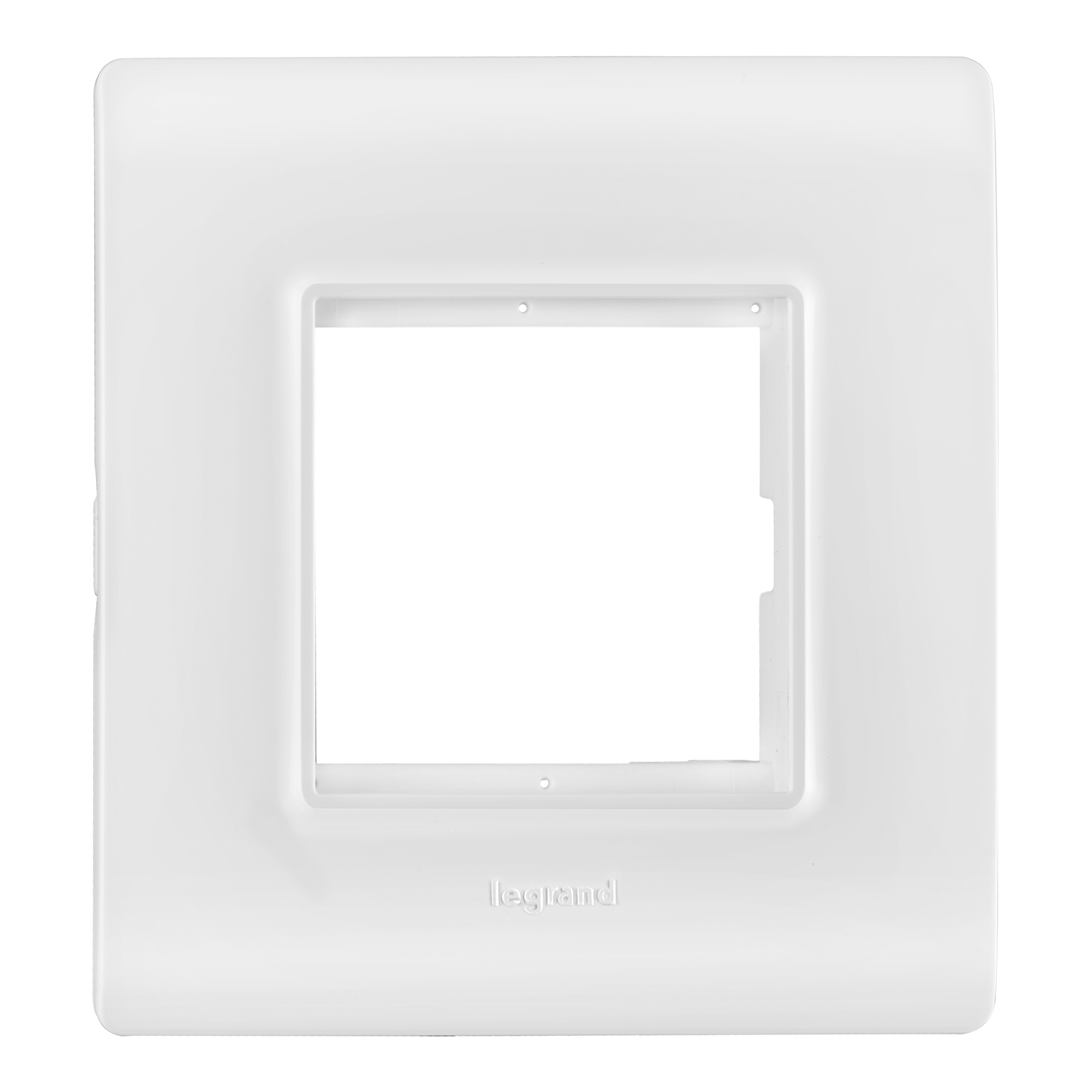

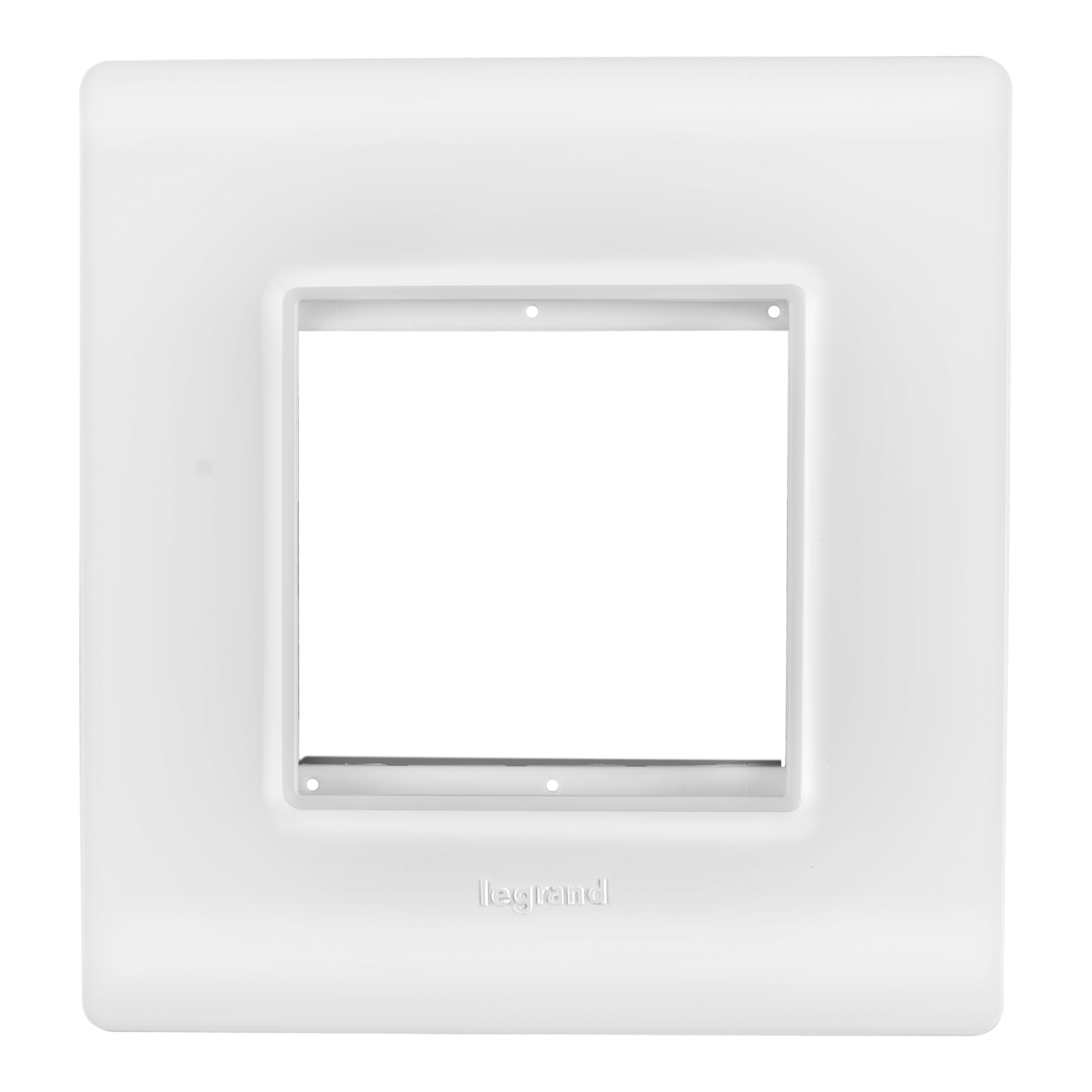

The Allzy range product with CAT number 681301 is a Plate and Frame 2M White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This 2-module plate is available in a sleek white color and can be mounted both flush and surface-mounted, providing versatility in installation. The overall dimensions of the plate are 86 mm in width, 90 mm in height, and 8.2 mm in depth, with a weight of 36 grams, making it a compact and lightweight solution for various electrical installations. The connection is facilitated through screwing with screws on either a flush box or a surface box, ensuring a secure and stable installation. The plate is constructed from high-quality polycarbonate material, while the frame is made from High Impact Polystyrene (HIPS), both known for their durability and strength. The screws used are made of steel with zinc plating, adding to the robustness of the assembly. The plate also features self-extinguishing properties, rated at 850°C for 30 seconds, enhancing its safety profile. This product conforms to company standards, ensuring reliability and performance. The Allzy Plate and Frame 2M White is an ideal choice for those seeking
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
