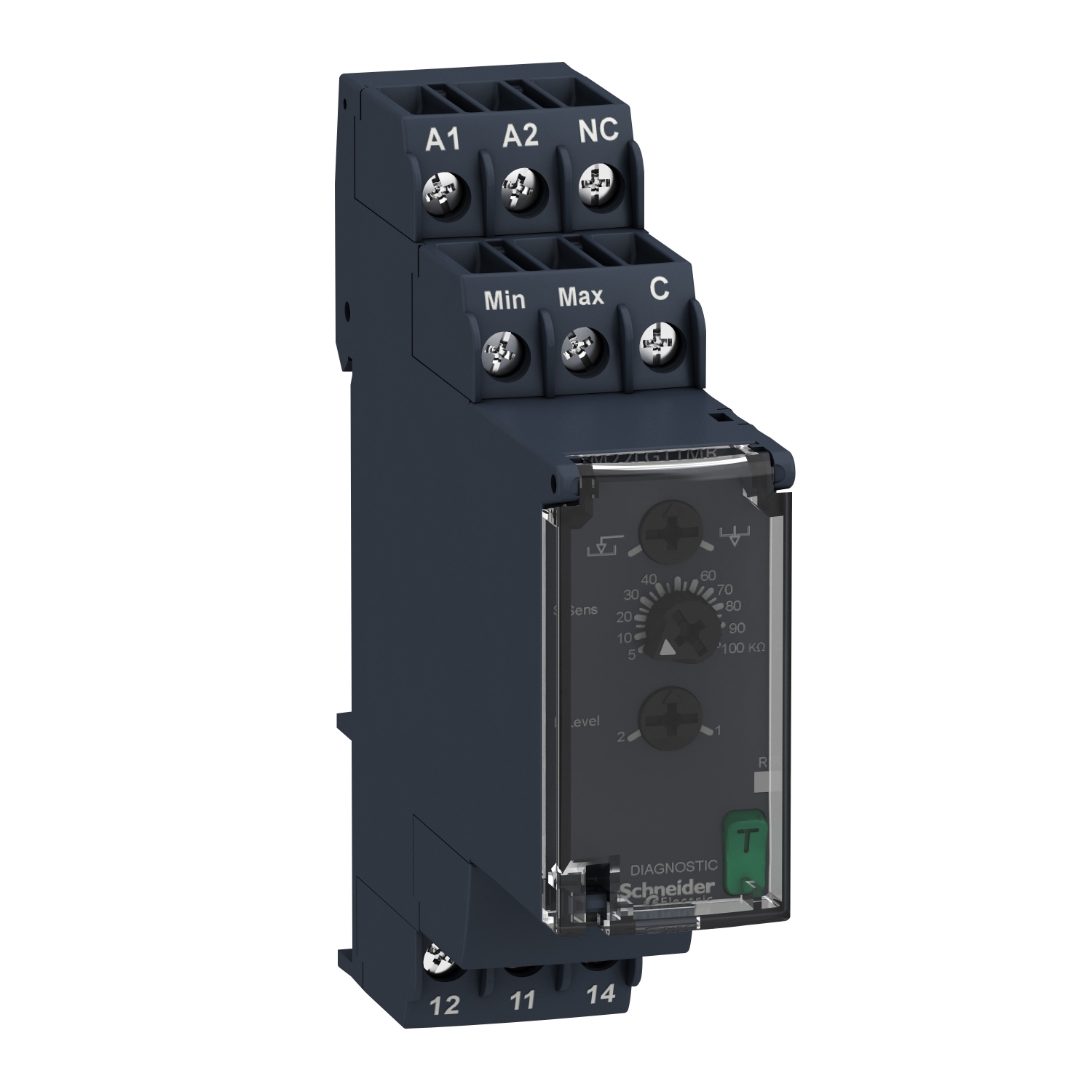

Schneider Harmony Control Relay · 1 C/O · IP20 · RM22LG11MRRM22LG11MR↓ 1% off MRP1 / 12
BrandSchneider
CategoryIndustrial Control
Specification1 C/O
Brand SKURM22LG11MR
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

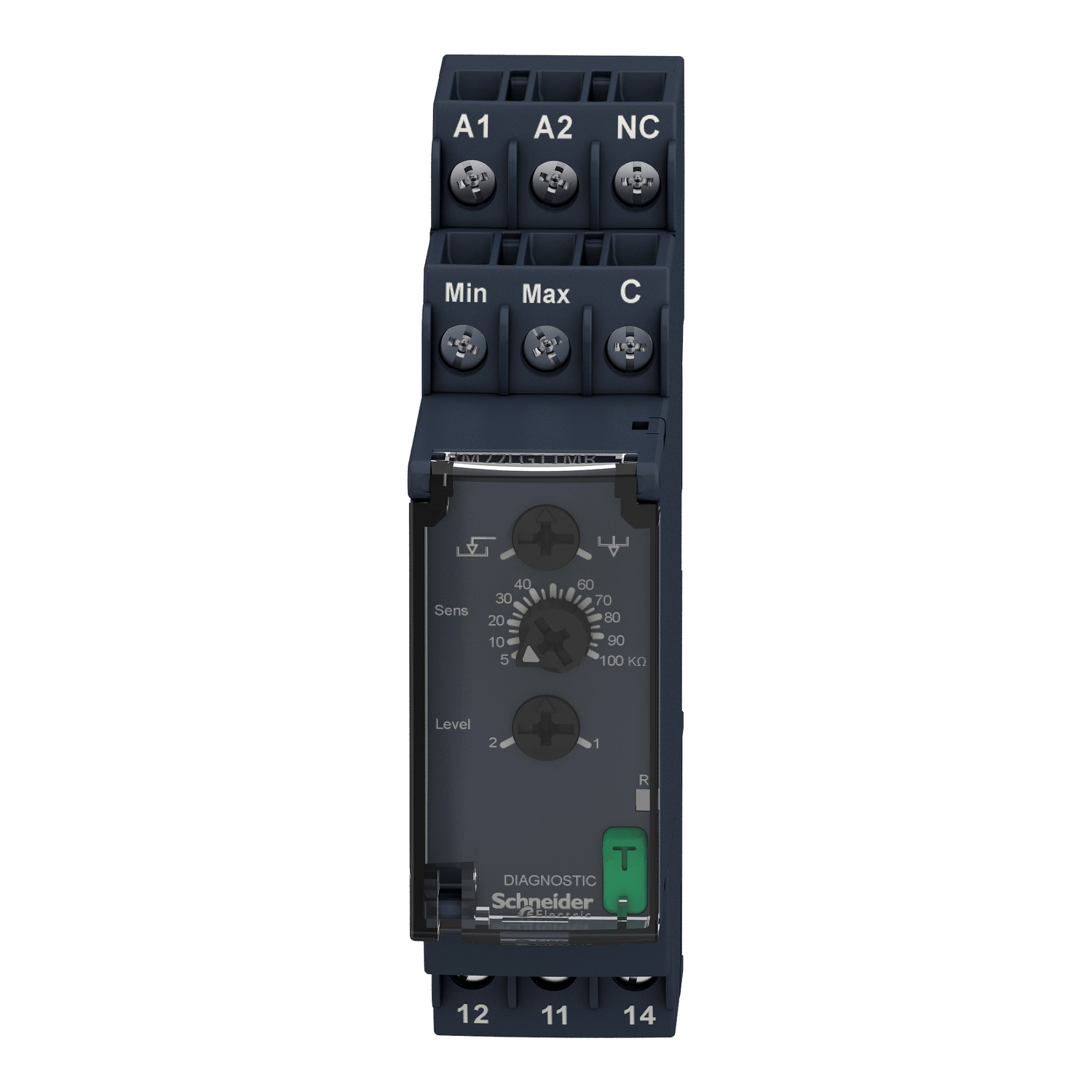

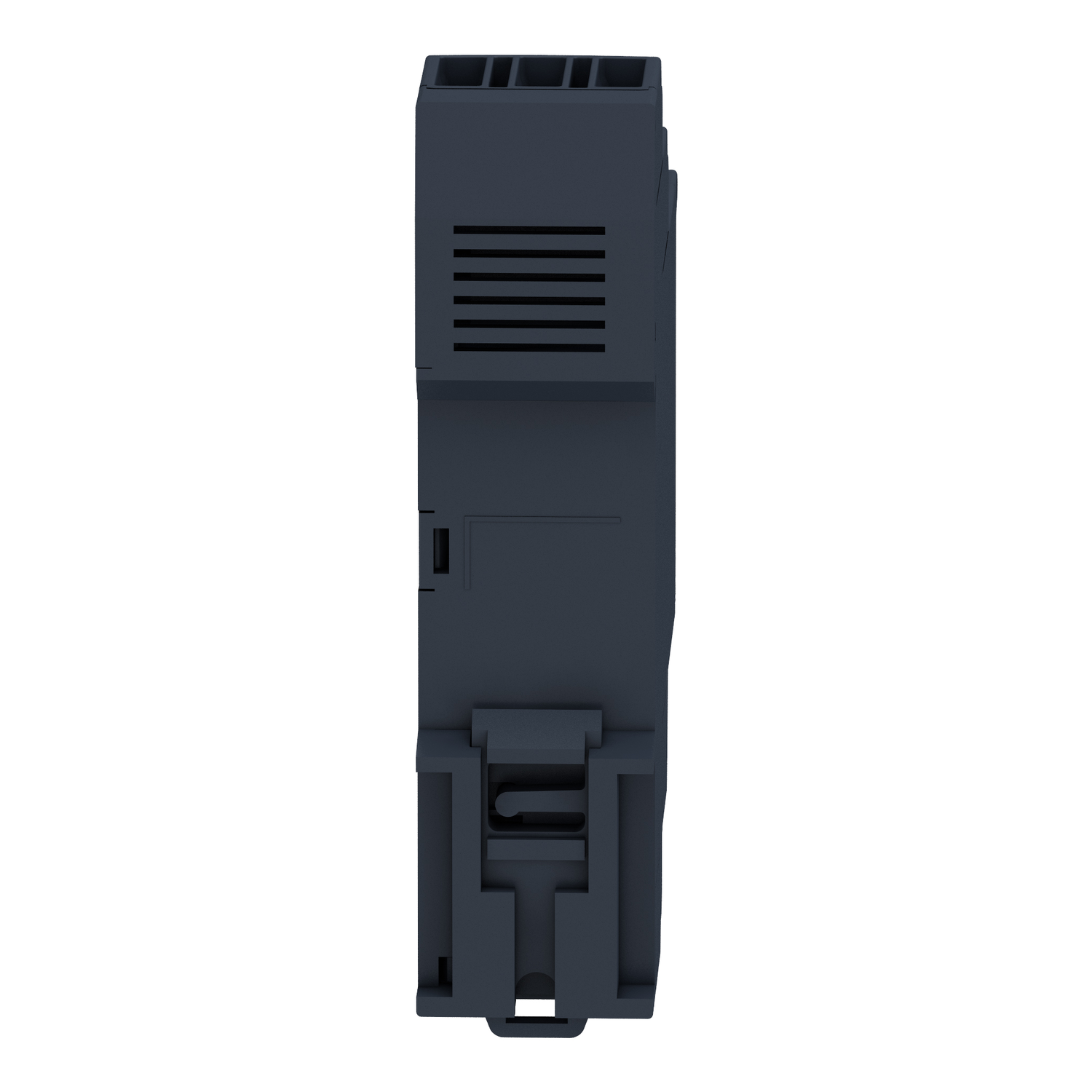

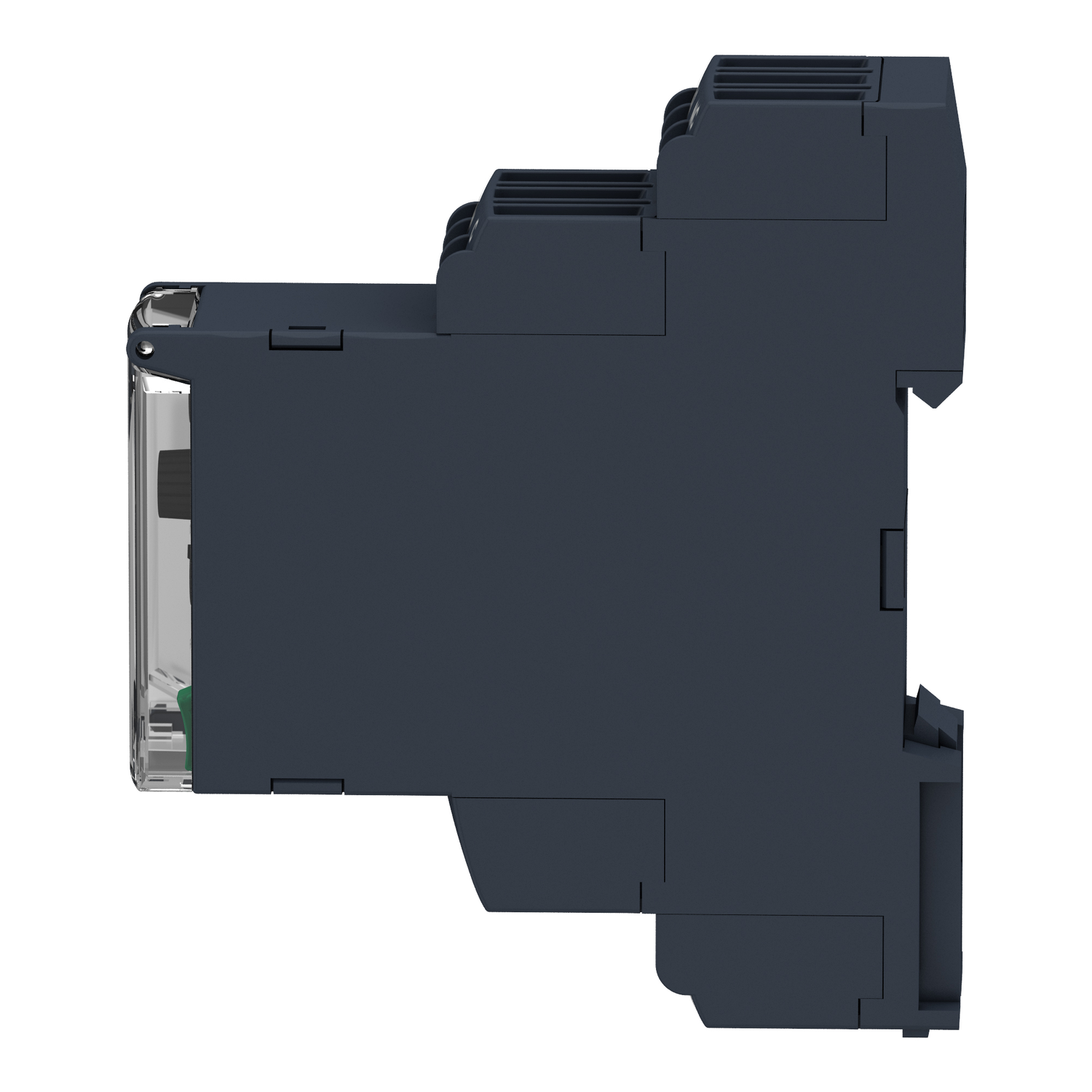

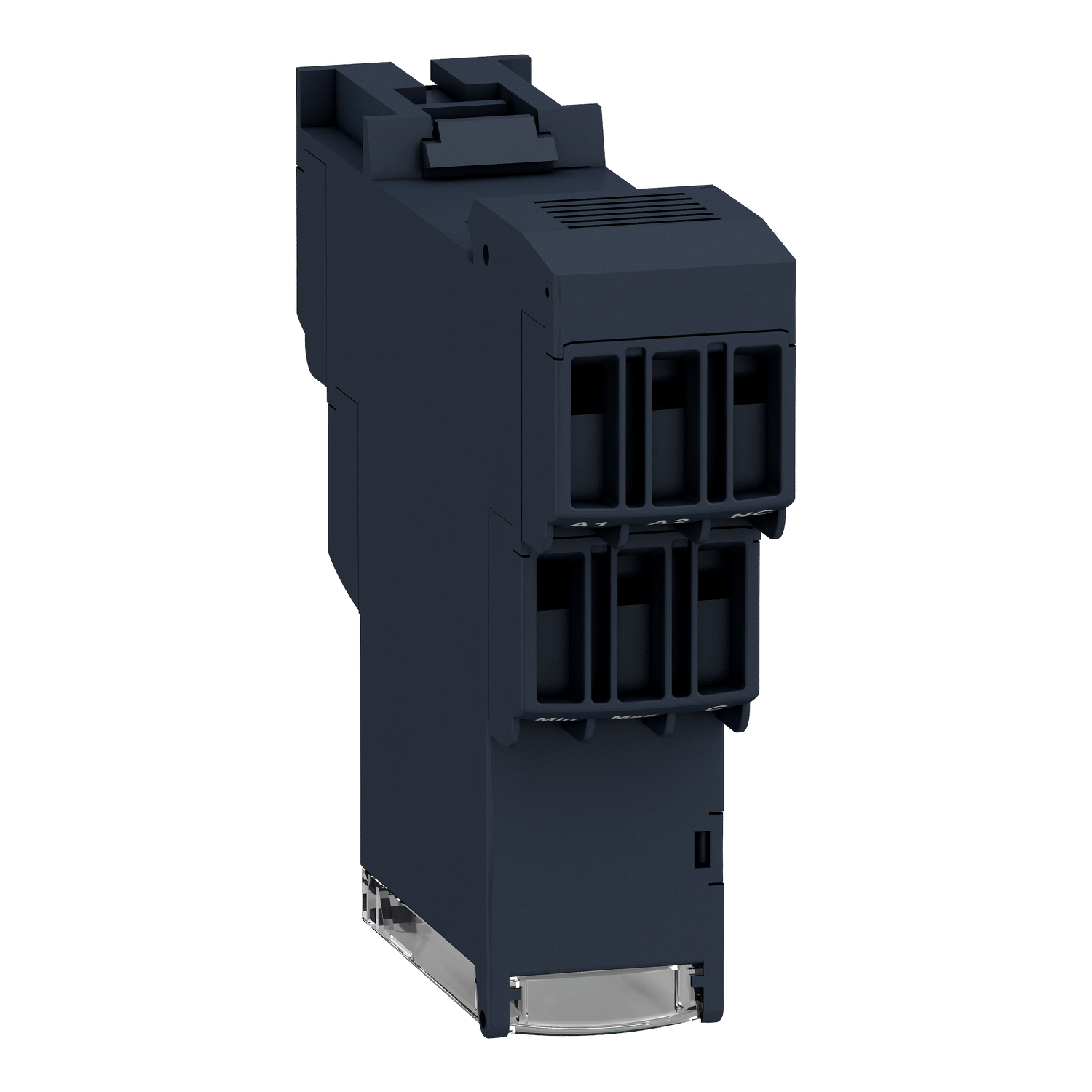

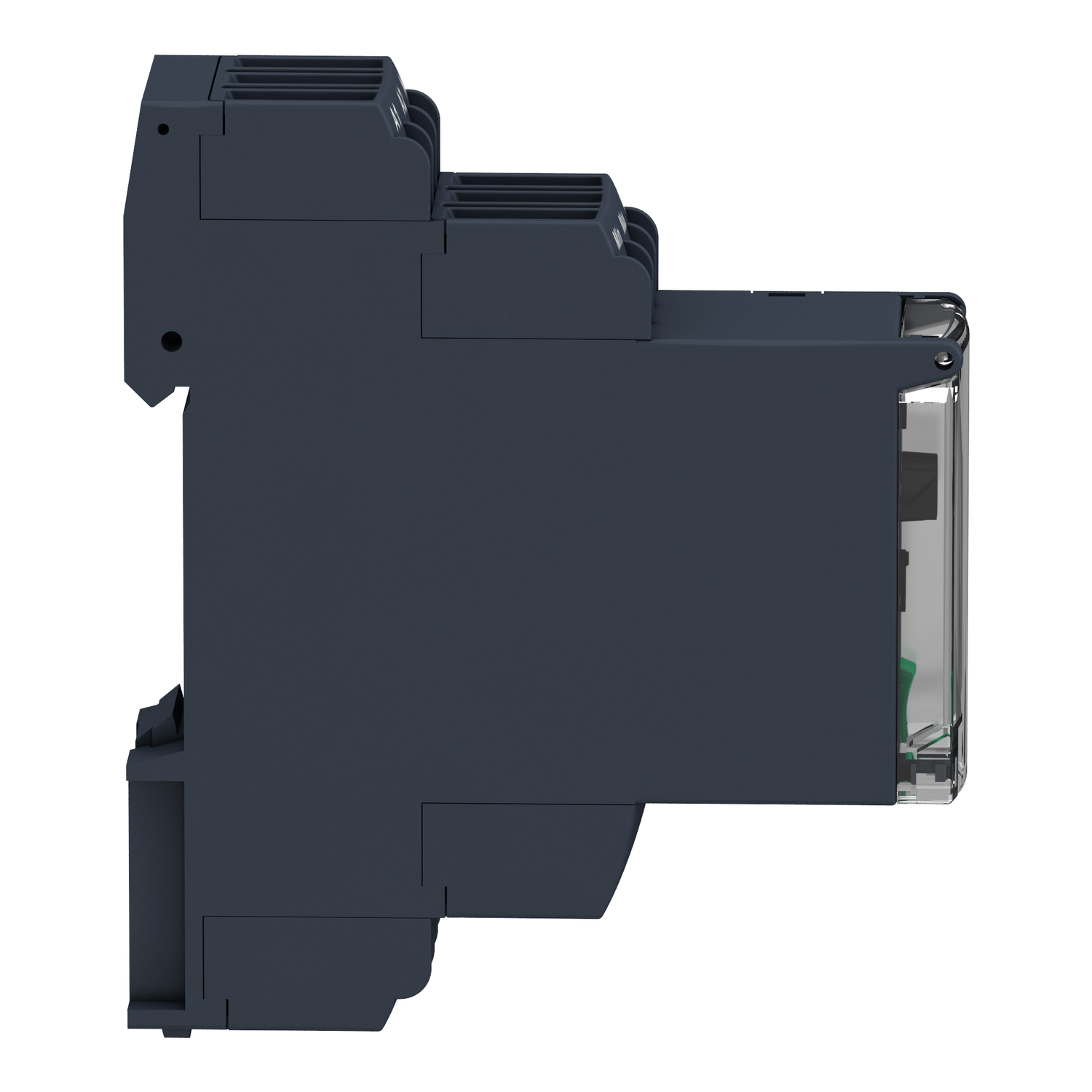

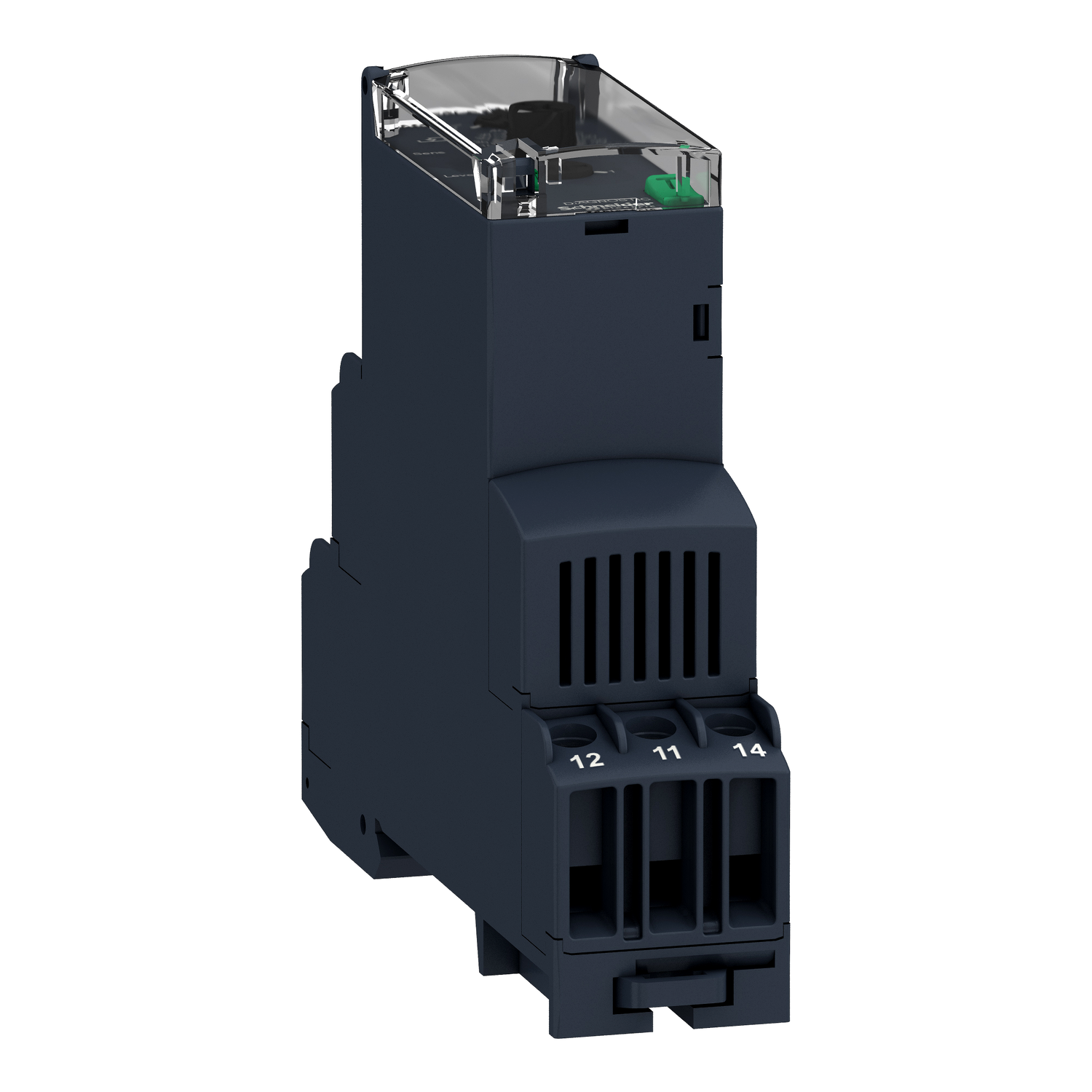

Schneider Harmony Control Relay · 1 C/O · IP20 · RM22LG11MR

NEW added this week
₹9,370/pcincl. GST-1%
₹7,941 + 18% GST · MRP ₹9,465
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹9,370 /pc incl. GST
Free pan-India delivery

Schneider Harmony Control Relay · 1 C/O · IP20 · RM22LG11MR: Elume price today ₹9,370 per pc incl. GST, 1% below the ₹9,465 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹10,128₹9,774₹9,421₹9,067₹8,714₹9,465₹9,370
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹9,370
MRP
₹9,465
Lowest in view · 17 Oct
₹9,370
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹8,902/pc on this product

This Harmony RM22-LG relay allows monitoring of liquid level control in 3-phase networks. This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Control Relay · 1 C/O · IP20 · RM22LG11MR · RM22LG11MR
Ingress protectionIP20 (terminals)· IP40 (housing)· IP50 (front panel)
Reference standardIEC 60255-1
Net weight0.1 kg
BrandSchneider
Brand SKURM22LG11MR
ELINEM9R62HJ7P
Sold asPer pc

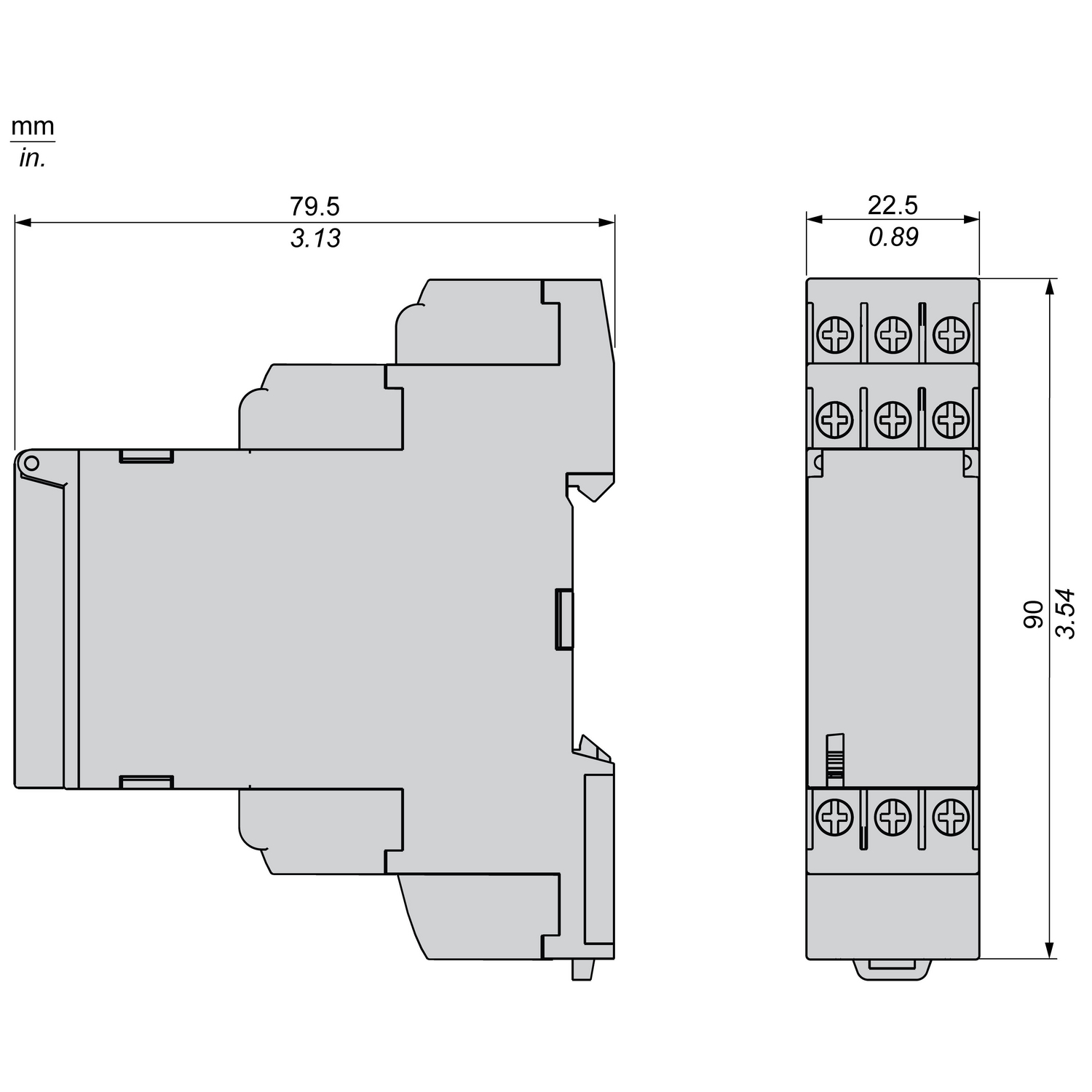

Width22.5 mm
StandardsIEC 60255-1
InsulationBetween supply and measurement
Relay nameRM22L
Relay typeLevel control relay
time delayWithout
Control typeWith test button
Output contacts1 C/O
Repeat accuracy+/- 2 % for time delay
Housing materialPolycarbonate
Mounting support35 mm DIN rail conforming to IEC 60715
Range of productHarmony Control Relays
Cable capacitance1 nF at HS (High Sensitivity) for probe cable · 2.2 nF at St (Standard Sensitivity) for probe cable · 4.7 nF at LS (Low Sensitivity) for probe cable
Contacts materialCadmium free
Measurement error< 1 % over the whole range with voltage variation · 0.05 %/°C with temperature variation
Measurement range5...100 kOhm
Mounting positionAny position
Sensitivity scale5...100 kOhm St (Standard Sensitivity)
Tightening torque0.6…1 N.m conforming to IEC 60947-1
delay at power up0.6 s
power consumption1.5 W DC
Overvoltage categoryIII conforming to IEC 60664-1
Utilisation categoryAC-15 conforming to IEC 60947-5-1 · DC-13 conforming to IEC 60947-5-1 · AC-1 conforming to IEC 60947-4-1 · DC-1 conforming to IEC 60947-4-1
Electrical durability100000 cycles
Mechanical durability10000000 cycles
Supply voltage limits20.4…264 V AC/DC
Sensitivity adjustment5…100 %
nominal output current8 A
Connections - terminalsScrew terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end · Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end
Immunity to microbreaks100 ms DC · 90 ms AC
Safety reliability dataB10d = 120000 · MTTFd = 125.5 years
Switching capacity in VA2000 VA
Maximum electrode current1 mA
Maximum electrode voltage12 V AC
Maximum switching current8 A AC
Maximum switching voltage250 V AC
Minimum switching current10 mA at 5 V DC
Product or component typeLevel control relay

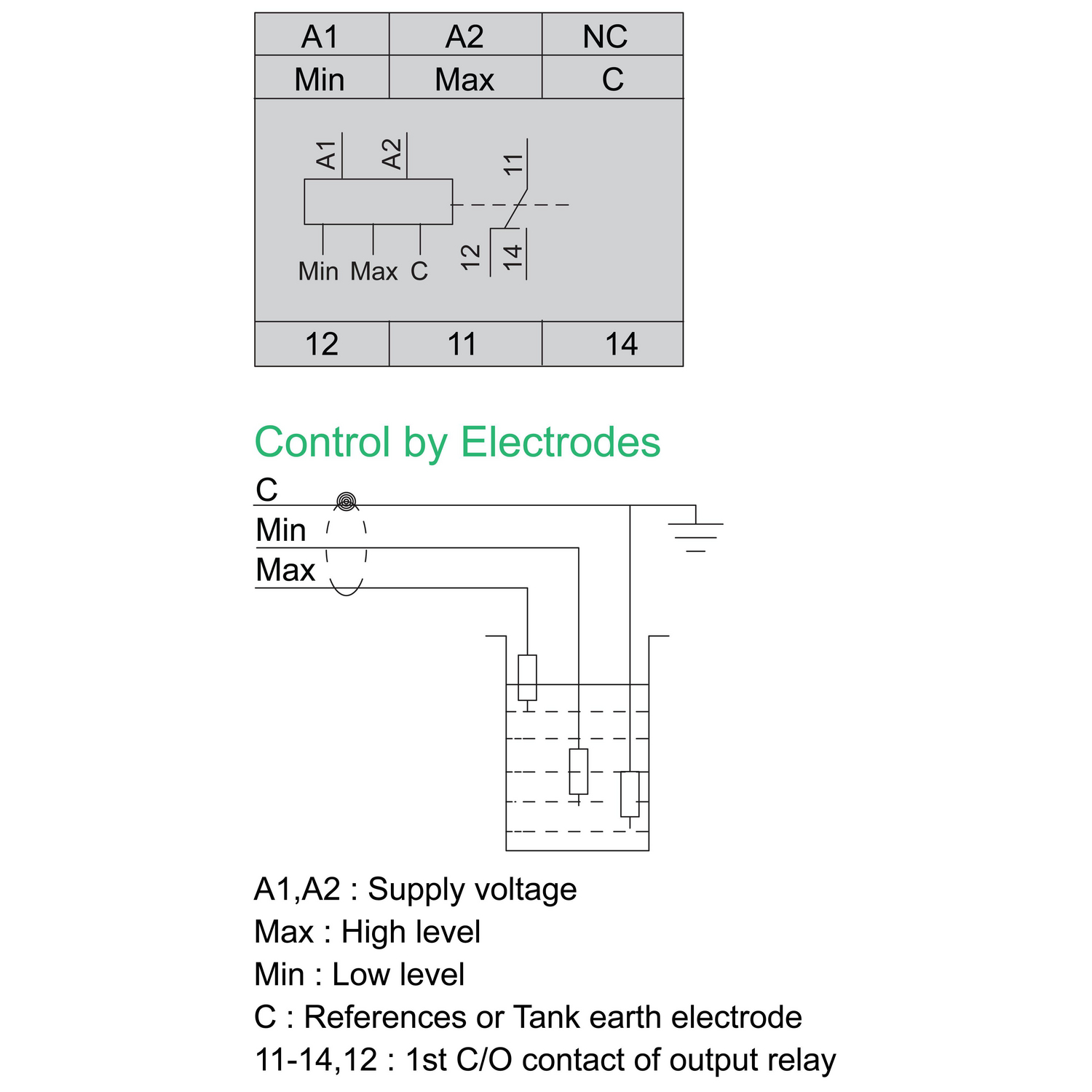

Relay monitored parametersDetection by resistive probes
[Un] rated nominal voltage24...240 V AC/DC 50/60 Hz, non self-powered
Contacts type and composition1 C/O
Electromagnetic compatibilityImmunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 · Immunity for industrial environments conforming to IEC 61000-6-2 · Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 · Emission standard for industrial environments conforming to IEC 61000-6-4 · Electrostatic discharge - test level: 6 kV lev
Maximum supply current for sensors1 mA
Maximum cable distance between devices100 m between probe and delay
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
