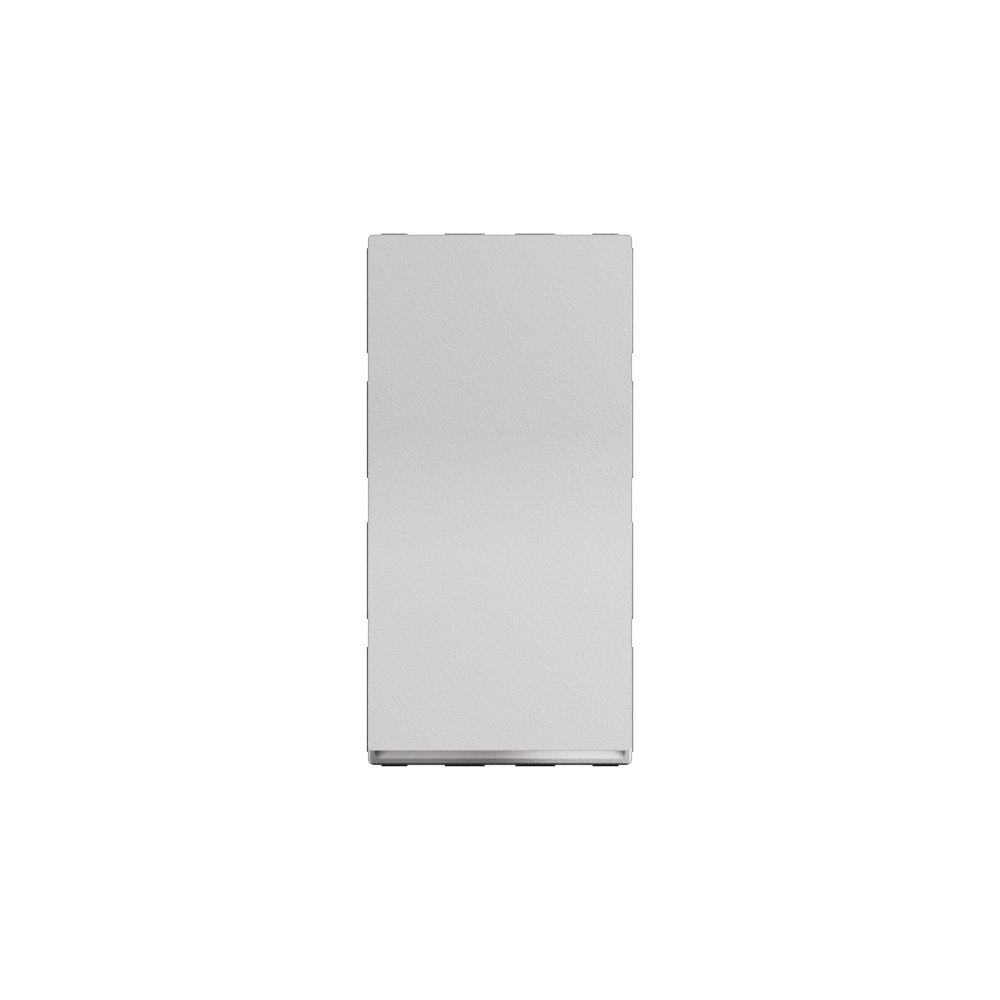

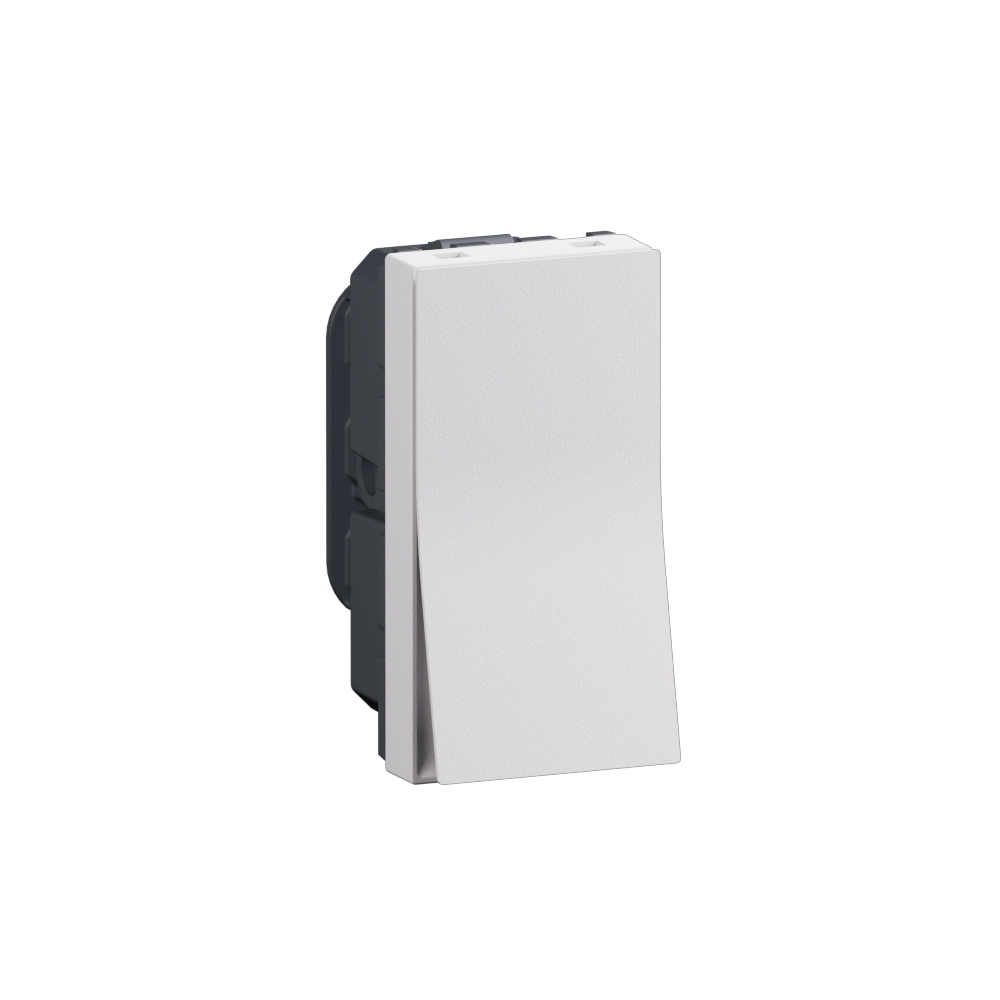

Legrand Legrand Arteor Advance Classic Push Button · 2-way · 10 A · 1 M · Matt White · AC23108MW · AC23108MW
Device typeBell push switch
SeriesArteor Advance Classic
Module size1 M
Rated current10 A
Rated voltage230 V AC
ColourMatt White
MaterialPolycarbonateUnder rocker
Current rating10 A
Control2-way
FinishWhite
Reference standardIS 3854
BrandLegrand
Brand SKUAC23108MW
ELINEM936PFH43
Sold asPer pc
ColorMatt White
Warranty2 years warranty provided by the manufacturer from date of purchase
Product CodeAC23108MW
Product features• Rated current 10A Push Button• Switch with Rocker
• Single Module Mechanism• Automaticaly Returns to its Original State
• General Lighting Control Mechanism• Finger Proof protection for IP 20 protection against accidental contact
• Switch operating mechanically by rocker toggling
• Flush and Surface Mounting
Product Width (mm)22.5
Product Technical specifications6.1 Material CharacteristicsRocker : PolycarbonateUnder rocker : PolypropyleneDriver : PolycarbonateSparkshield : PolypropylenePush Spring : Stainless steelRocker Spring : Stainless steelTransmitter : PolypropyleneMoving Contact : BrassPivot Terminal : BrassContact Tip : SilverContact Terminal : BrassScrews : Steel with Zinc platingBase : Polycarbonate6.2 Electricals CharacteristicsVoltage : 230V ACCurrent : 10ASelf - extinguishing : 850°C / 30 Sec
Ratings as published by Legrand (shop.legrand.co.in). Verify critical parameters against the datasheet before specifying.
