Legrand Living Now Metal Flush Box · 3 M · 503MT: Elume price today ₹163 per pc incl. GST, 12% below the ₹186 MRP. Today's price is the lowest of the last 30 days (high ₹164). The average price across the sellers we track is ₹132, ₹31 less than here. The lowest tracked seller lists it at ₹132, ₹31 below it (tell us and we match it).

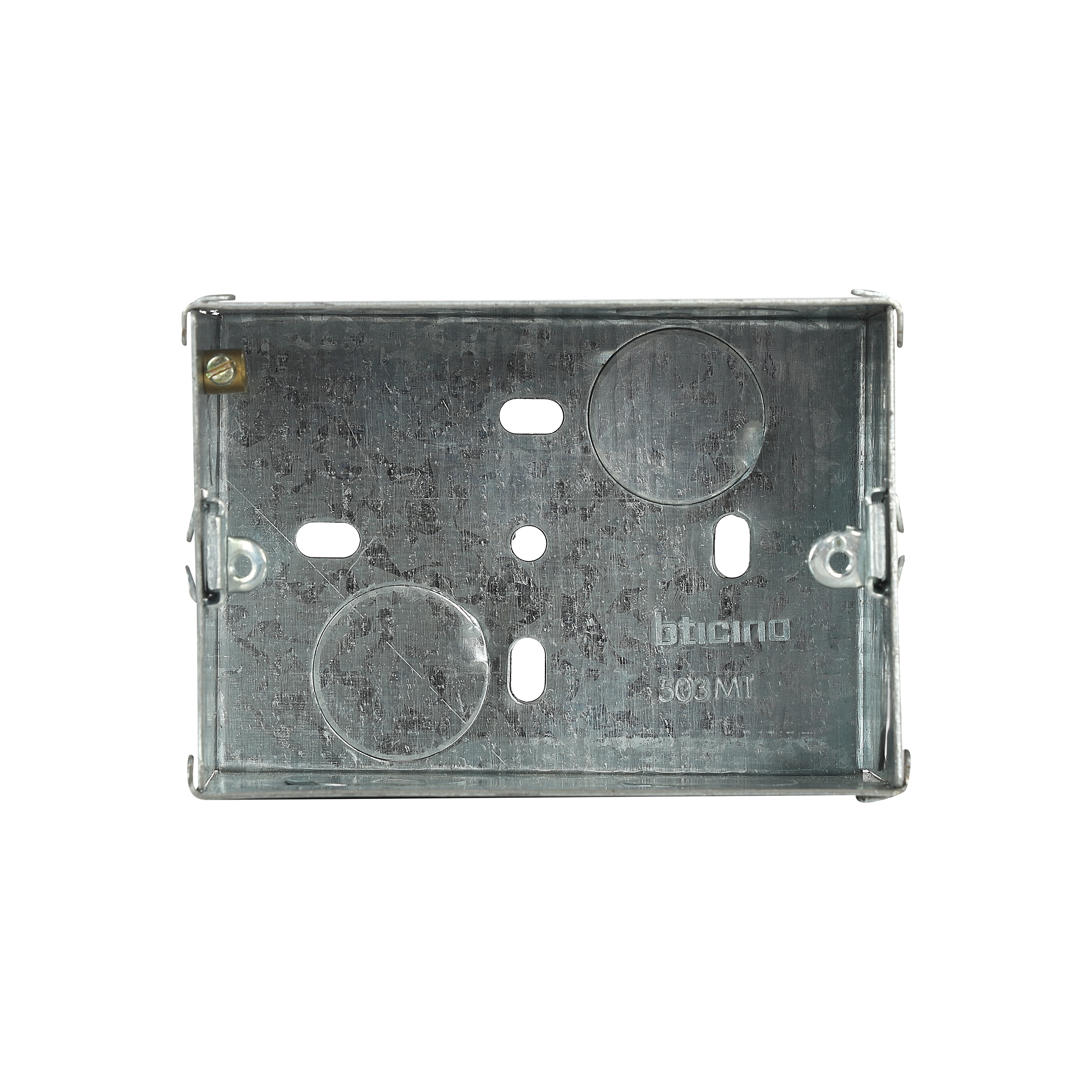

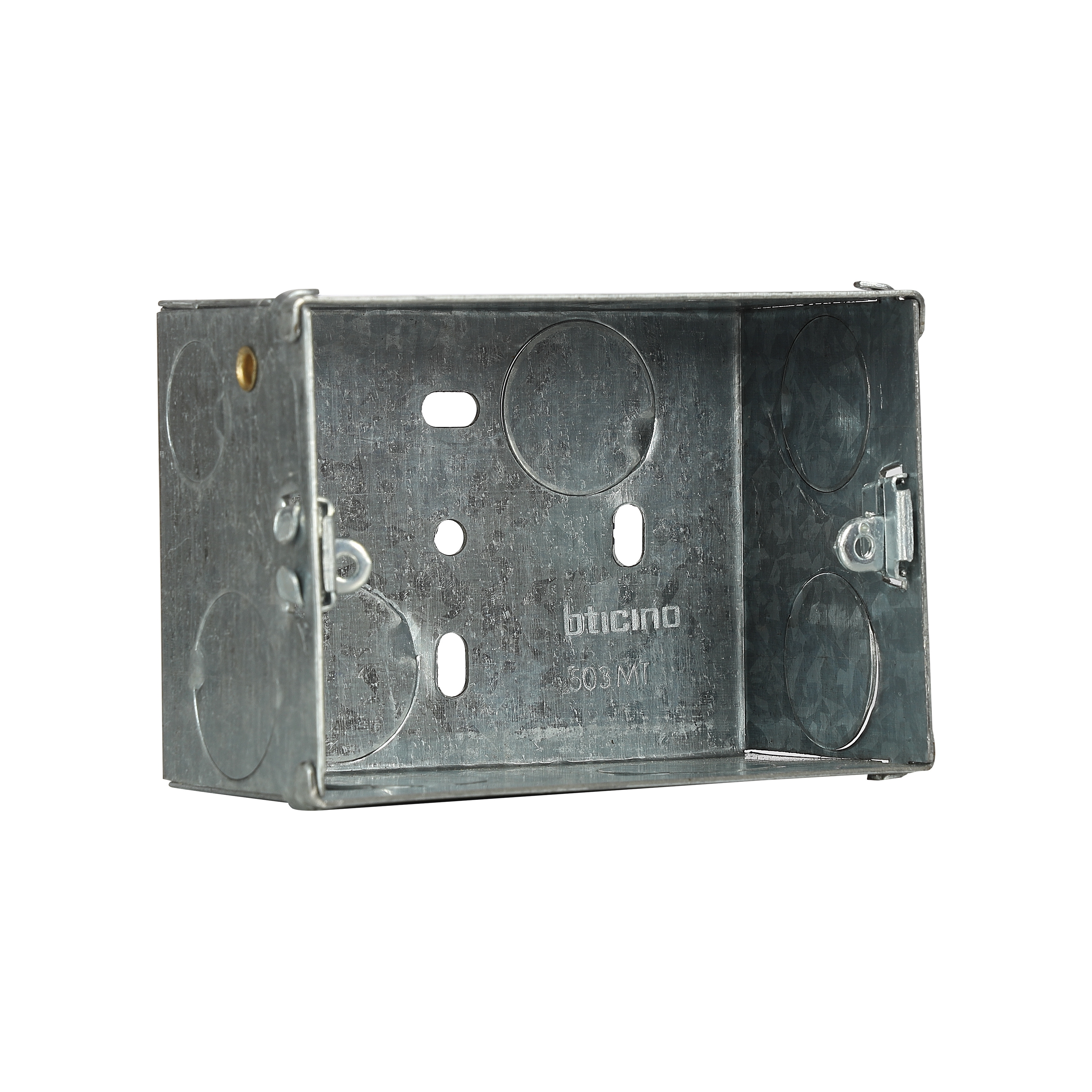

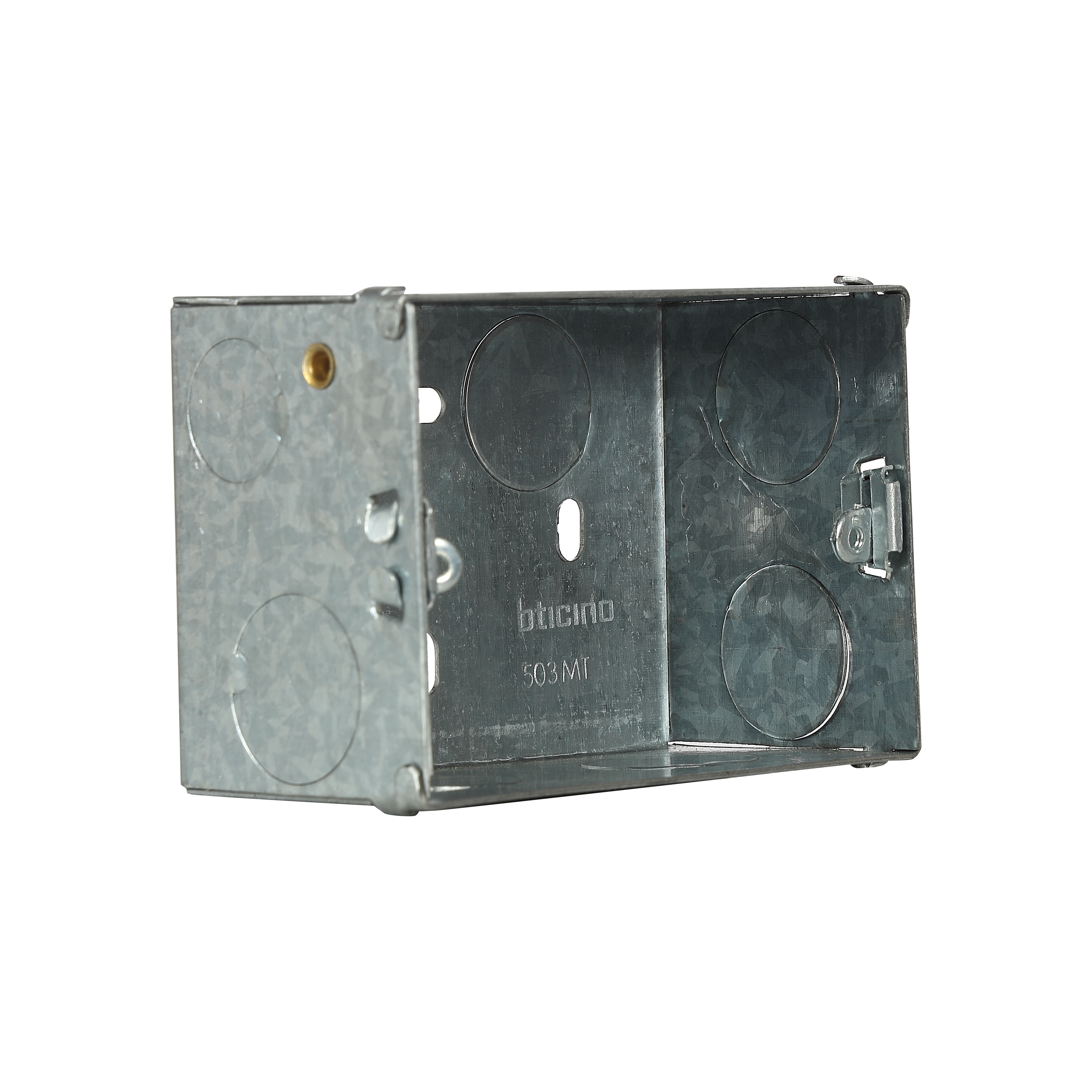

This product with CAT number 503MT is a Flush Box 3M designed for plate and frame mounting with mechanisms. This box is compatible with and can be used with the Living Now range. It accommodates 3 modules and features a spangle bright surface finish for a polished appearance. Made from 0.8 mm thick galvanized steel with zinc coating, it ensures durability and corrosion resistance. The box is flush-mounted and has dimensions of 99.7 mm width, 71 mm height, and 52 mm depth, with a weight of 184.6 g. It conforms to Legrand standards, making it a reliable choice for electrical installations.
Choose the box by the number of modules on the plate - for example 1/2, 3, 4, 6, 8, 12 or 18 module - and the plate's orientation. The box should match the brand's plate fixing so the screws line up.
Galvanised iron boxes are sturdy, fire resistant and can be earthed, so they are preferred in many specifications. PVC boxes are lighter, do not rust and are fine where allowed; follow your electrician's or architect's specification.
Many brands use similar fixing-screw spacing, but it is not guaranteed. It is safest to use boxes recommended by the plate's brand or check the screw centre distance.
Deeper boxes leave more room for wires and regulators, which reduces cramped connections and heating. Choose a deeper box where many wires meet or for smart switches with electronics.
Concealed boxes are fixed in the wall chase during the conduiting stage, before plastering, and set flush with the final wall surface. Setting them too deep or crooked makes plates hard to fit later.
Most smart switches fit standard modular boxes, but they need space for the electronics and often a neutral wire. Check the switch's depth and wiring requirements before choosing the box.
