Legrand Allzy Cover Plate with Frame · 9 M · Gold · 681340: Elume price today ₹403 per pc incl. GST, 33% below the ₹604 MRP. Today's price is the lowest of the last 30 days (high ₹404). The average price across the sellers we track is ₹326, ₹77 less than here. The lowest tracked seller lists it at ₹326, ₹77 below it (tell us and we match it).

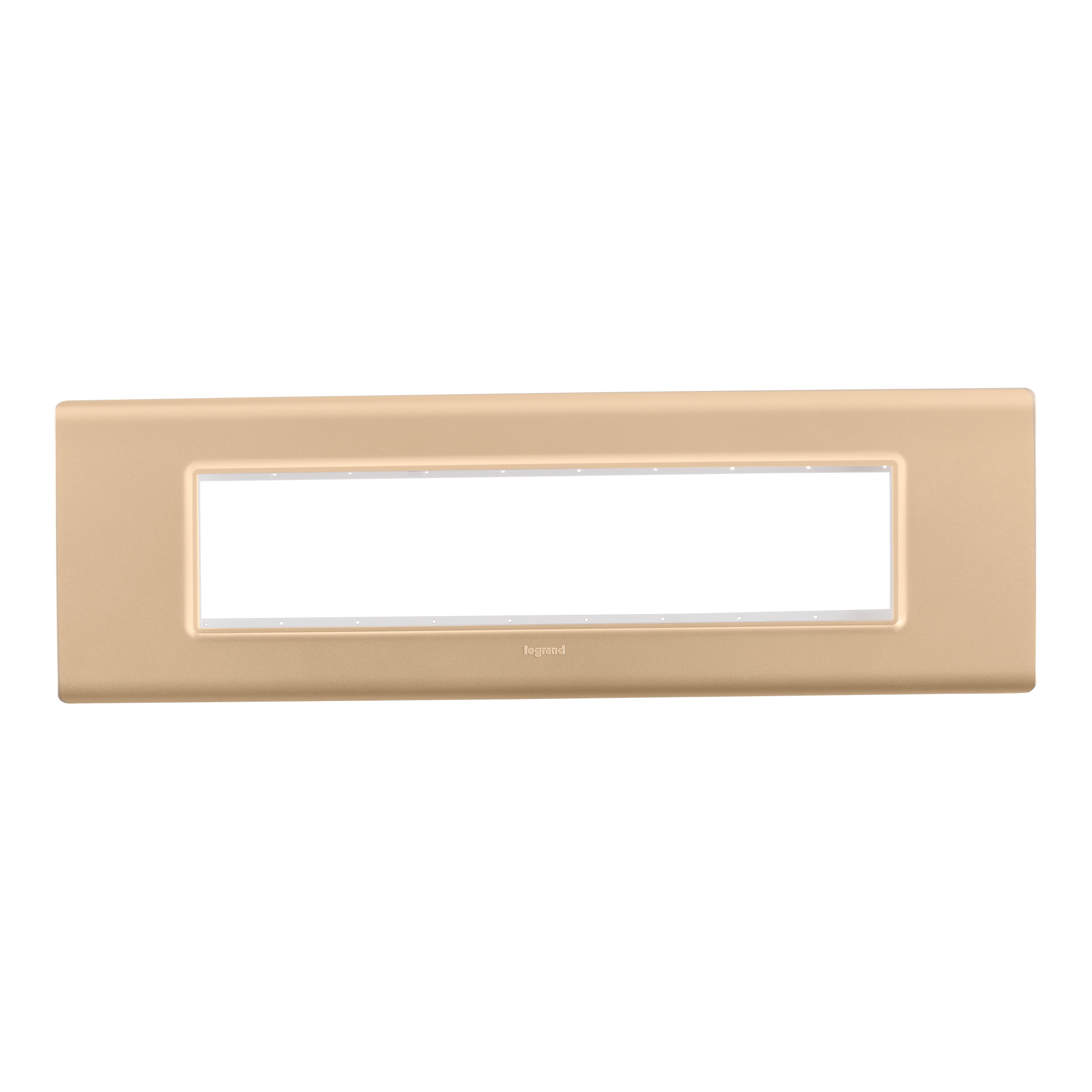

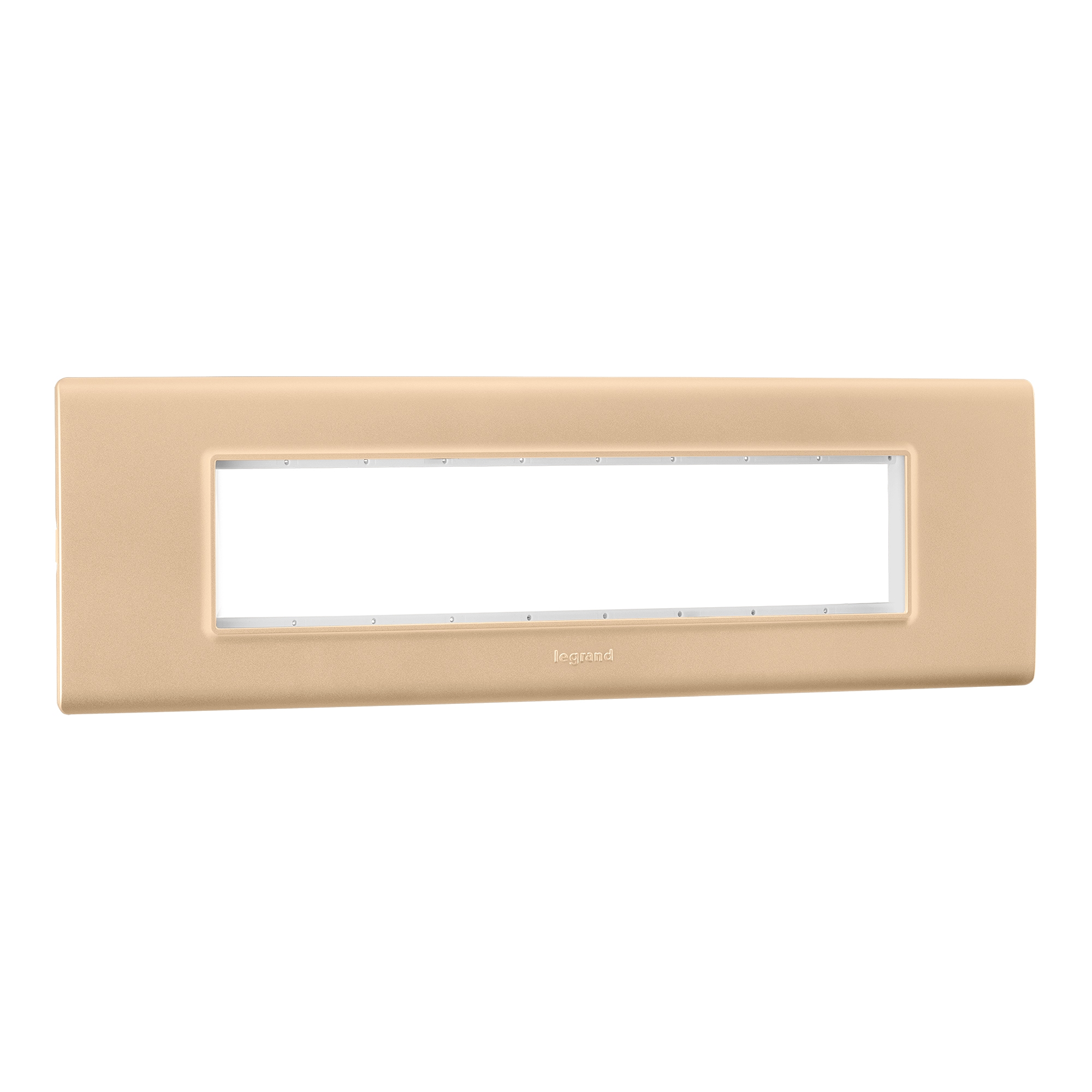

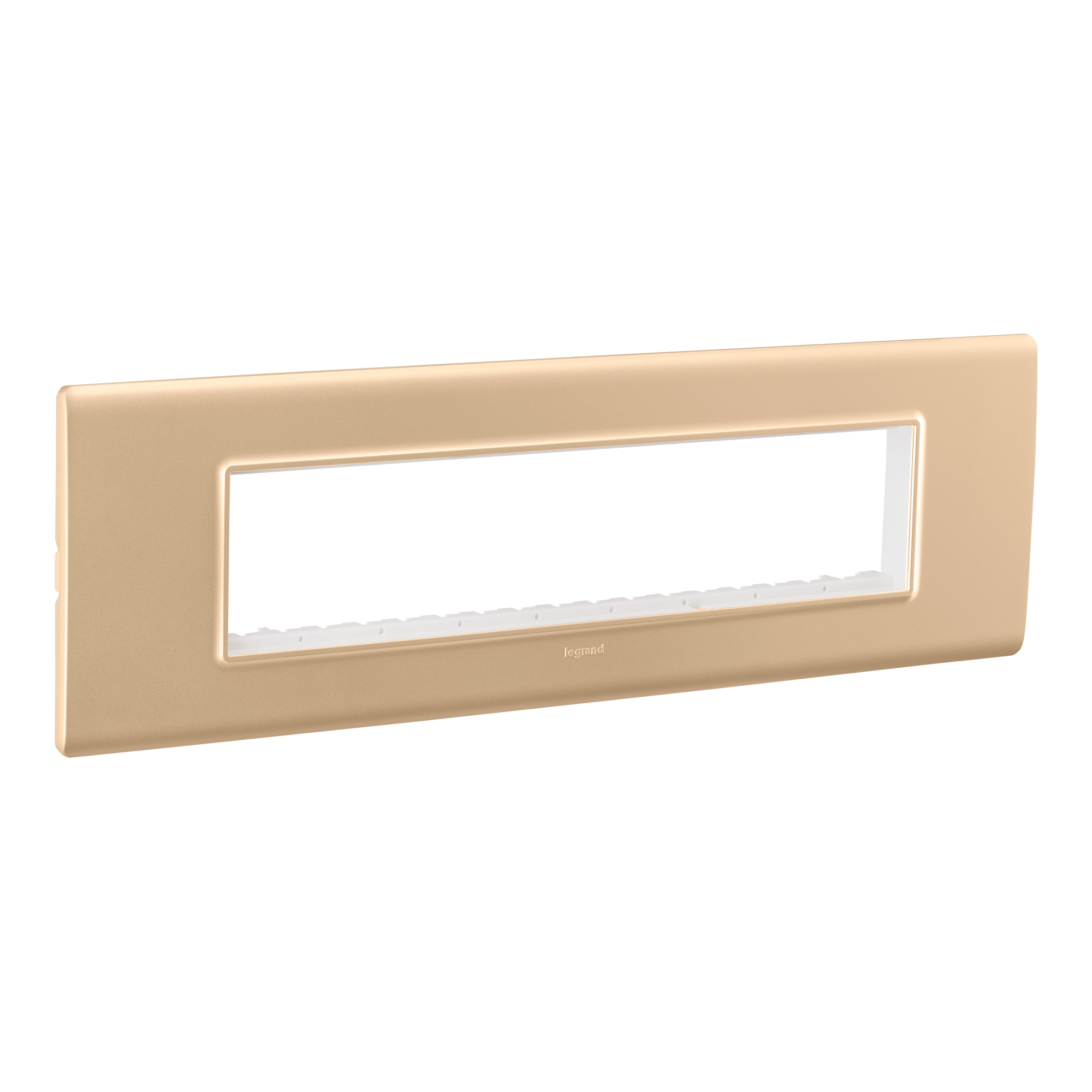

The Allzy range CAT number 681340 refers to a Plate and Frame 9M in Gold. It is designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. The plate is made of polycarbonate white, and the frame is constructed from high impact polystyrene (HIPS). It features a flush and surface-mounted installation with overall dimensions of 288 mm in width, 90 mm in height, and 8.2 mm in depth, weighing 118 grams. The connection is achieved through screwing with screws on a flush box or surface box. The product is self-extinguishing at 850°C for 30 seconds and conforms to company standards.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
