Schneider TeSys LP1D Power Contactor · 4P · 125 A AC-3 · 2 NO + 2 NC aux · 110 V DC coilLP1D80008FD↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Brand SKULP1D80008FD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

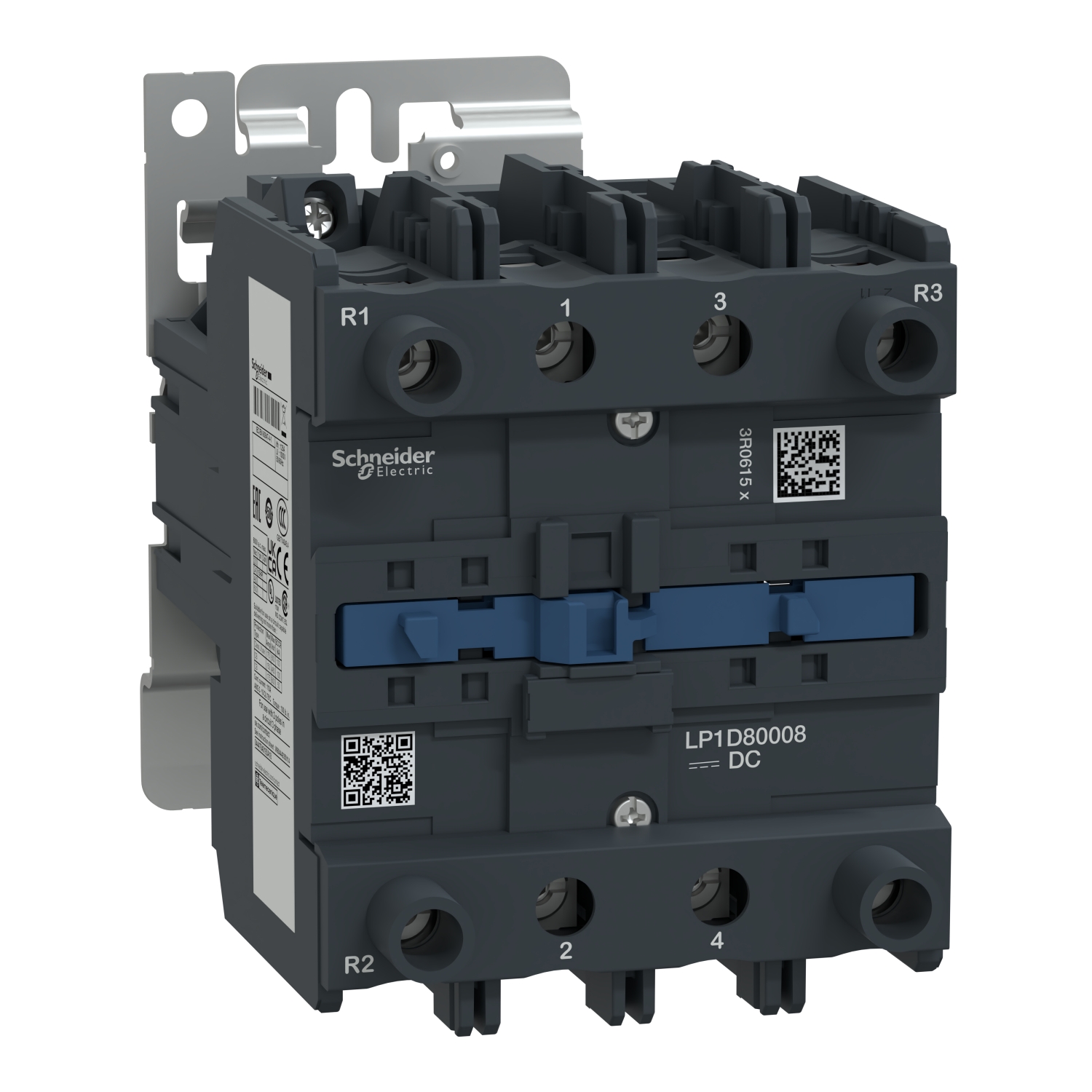

Schneider TeSys LP1D Power Contactor · 4P · 125 A AC-3 · 2 NO + 2 NC aux · 110 V DC coil

Rating: 125 A AC-3
Coil: 110 V DC coil
NEW added this week
₹66,114/pcincl. GST-1%
₹56,029 + 18% GST · MRP ₹66,782
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹66,114 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys LP1D Power Contactor · 4P · 125 A AC-3 · 2 NO + 2 NC aux · 110 V DC coil: Elume price today ₹66,114 per pc incl. GST, 1% below the ₹66,782 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹71,457₹68,964₹66,471₹63,979₹61,486₹66,782₹66,114
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹66,114
MRP
₹66,782
Lowest in view · 17 Oct
₹66,114
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹62,808/pc on this product

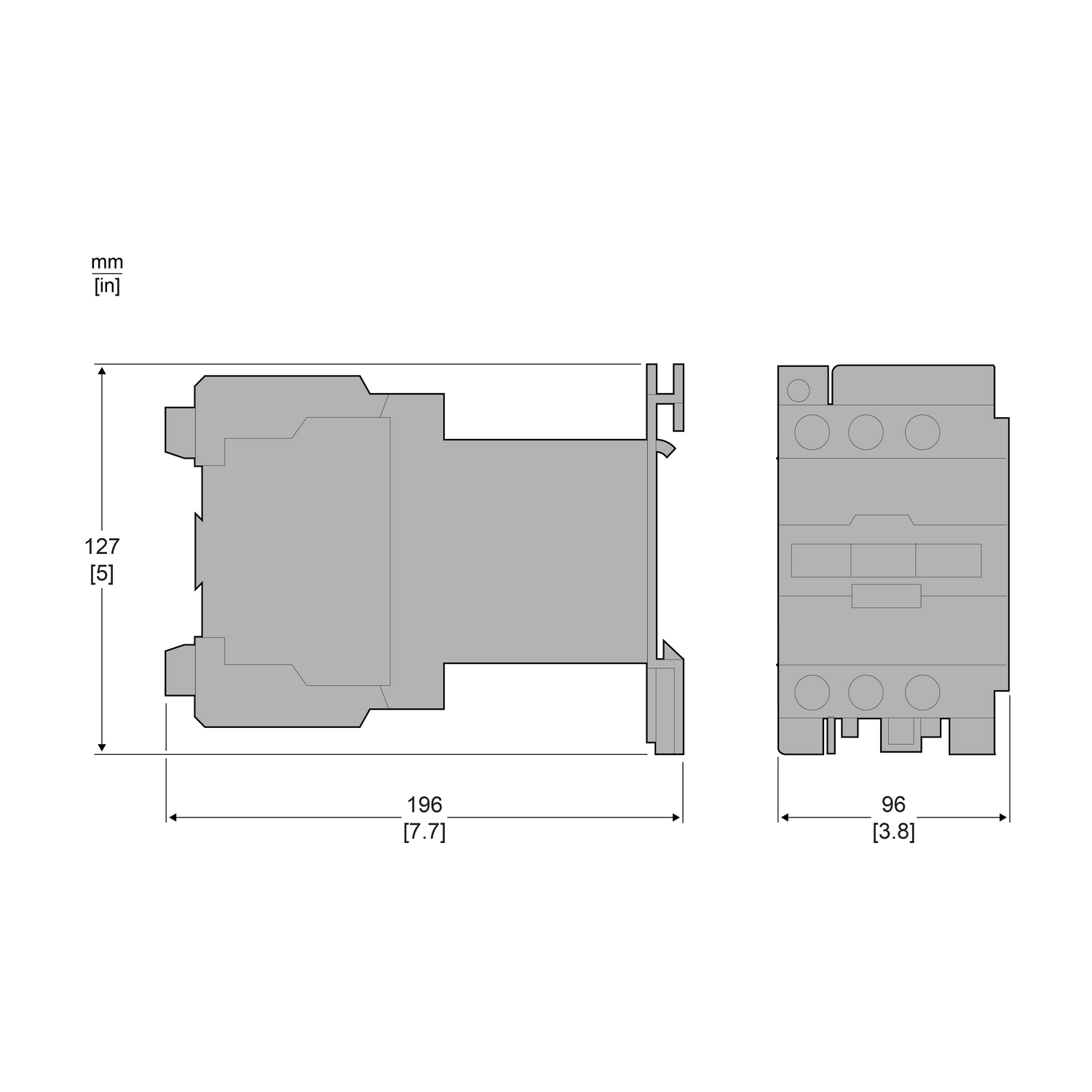

TeSys Deca contactor, 4P(2NO/2NC) for category AC-1 applications up to 125A @440V. It provides with 110V DC sdandard coil, with no auxiliary contacts, power and control connections by screw clamp terminals. It procures with 10 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 196mm (H x W x D), mounting on rail or plate. Multi standards certified(UL,LROS,CSA,CCC,EAC,UKCA,CB,DNV-GL,RINA,BV) and Green Premium compliant (RoHs/Reach).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys LP1D Power Contactor · 4P · 125 A AC-3 · 2 NO + 2 NC aux · 110 V DC coil · LP1D80008FD
Poles4P
Rated current125 A
Ingress protectionIP20 front face
Reference standardCSA C22.2 No 14
coil voltage110 V DC
Net weight2.91 kg
BrandSchneider
Brand SKULP1D80008FD
ELINEKMF44D6JK
Sold asPer pc
RangeTeSys
StandardsCSA C22.2 No 14 · EN 60947-4-1 · EN 60947-5-1 · IEC 60947-4-1 · IEC 60947-5-1 · UL 60947-4-1
Time constant75 ms
Operating time6...20 ms opening · 20...35 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Mounting supportRail · Plate
Pollution degree3
Protective coverWith
Range of productTeSys Deca Advanced
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLP1D
Inrush power in W22 W (at 20 °C)
Poles description4P
Tightening torqueControl circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm · Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 · Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm · Power circuit: 12 N.m - on connector hexagonal screw head 4 mm · Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Compatibility codeLP1D
Operating altitude0...3000 m
Control circuit typeDC DC standard
Overvoltage categoryIII
Utilisation categoryAC-1
Contactor applicationResistive load
Electrical durability0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Mechanical durability10 Mcycles
Associated fuse rating200 A gG at <= 690 V coordination type 1 for power circuit · 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Product certificationsUL · CSA · CCC · EAC · UKCA · CB · DNV-GL · RINA · BV · LROS (Lloyds register of shipping)
Connections - terminalsControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end · Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end · Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid · Control circuit: screw clamp termi
IP degree of protectionIP20 front face conforming to IEC 60529
Rated breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
Pole contact composition2 NO + 2 NC
Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 · B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Product or component typeContactor
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole12.5 W AC-1
[Uc] control circuit voltage110 V DC
[Ui] rated insulation voltagePower circuit: 600 V CSA certified · Power circuit: 600 V UL certified · Power circuit: 1000 V conforming to IEC 60947-4-1
Control circuit voltage limits0.1...0.3 Uc (-40…55 °C):drop-out DC · 0.85...1.1 Uc (-40…55 °C):operational DC
Hold-in power consumption in W22 W at 20 °C
[Ie] rated operational current125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz
[Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947
[Icw] rated short-time withstand current135 A 40 °C - 10 min for power circuit · 320 A 40 °C - 1 min for power circuit · 640 A 40 °C - 10 s for power circuit · 990 A 40 °C - 1 s for power circuit
[Ith] conventional free air thermal current125 A (at 60 °C) for power circuit
Permissible ambient air temperature around the device-40…60 °C · 60…70 °C with derating
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
