Legrand Mylinc Cover Plate with Frame · 6 M · White · 675566: Elume price today ₹203 per pc incl. GST, 47% below the ₹380 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹164, ₹39 less than here. The lowest tracked seller lists it at ₹164, ₹39 below it (tell us and we match it).

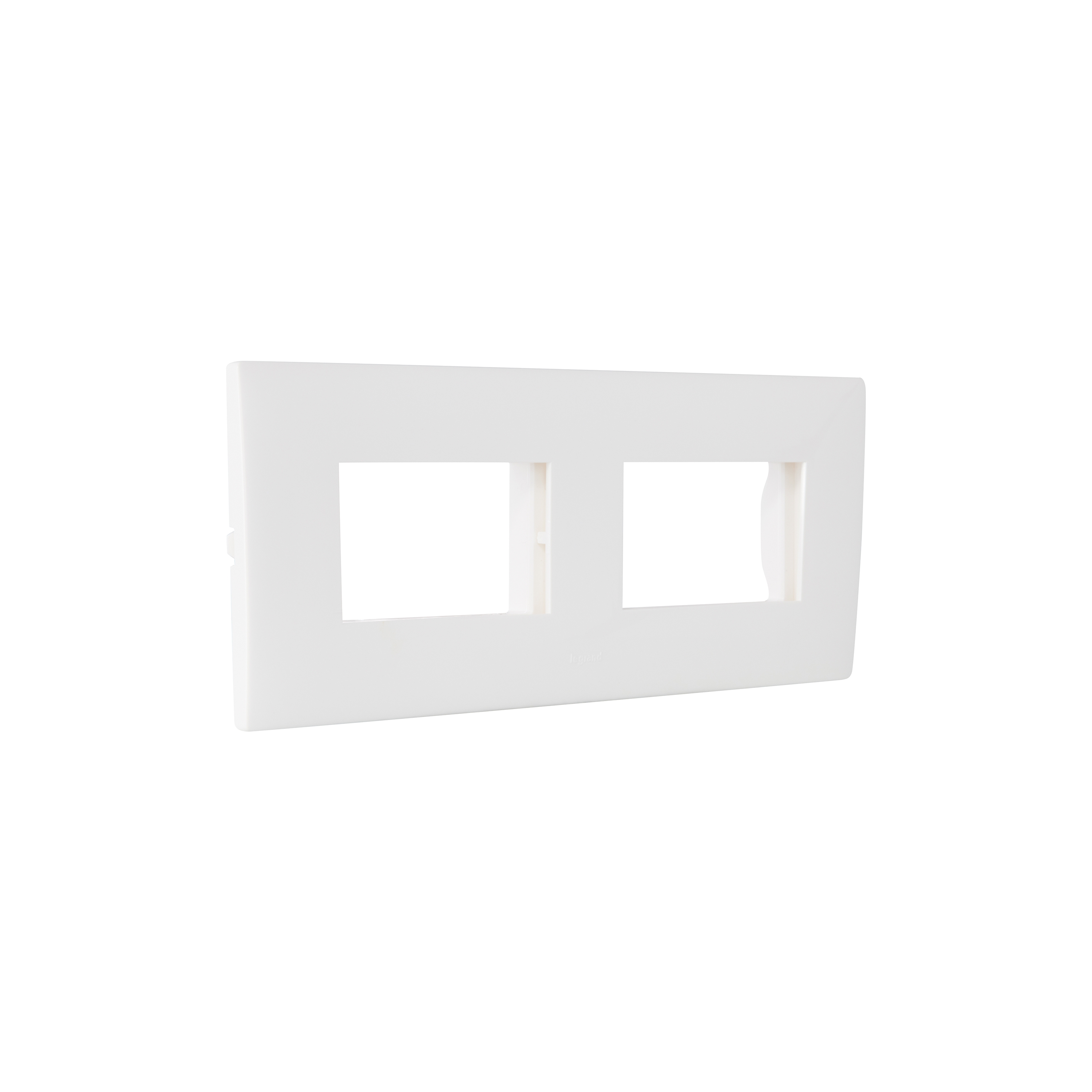

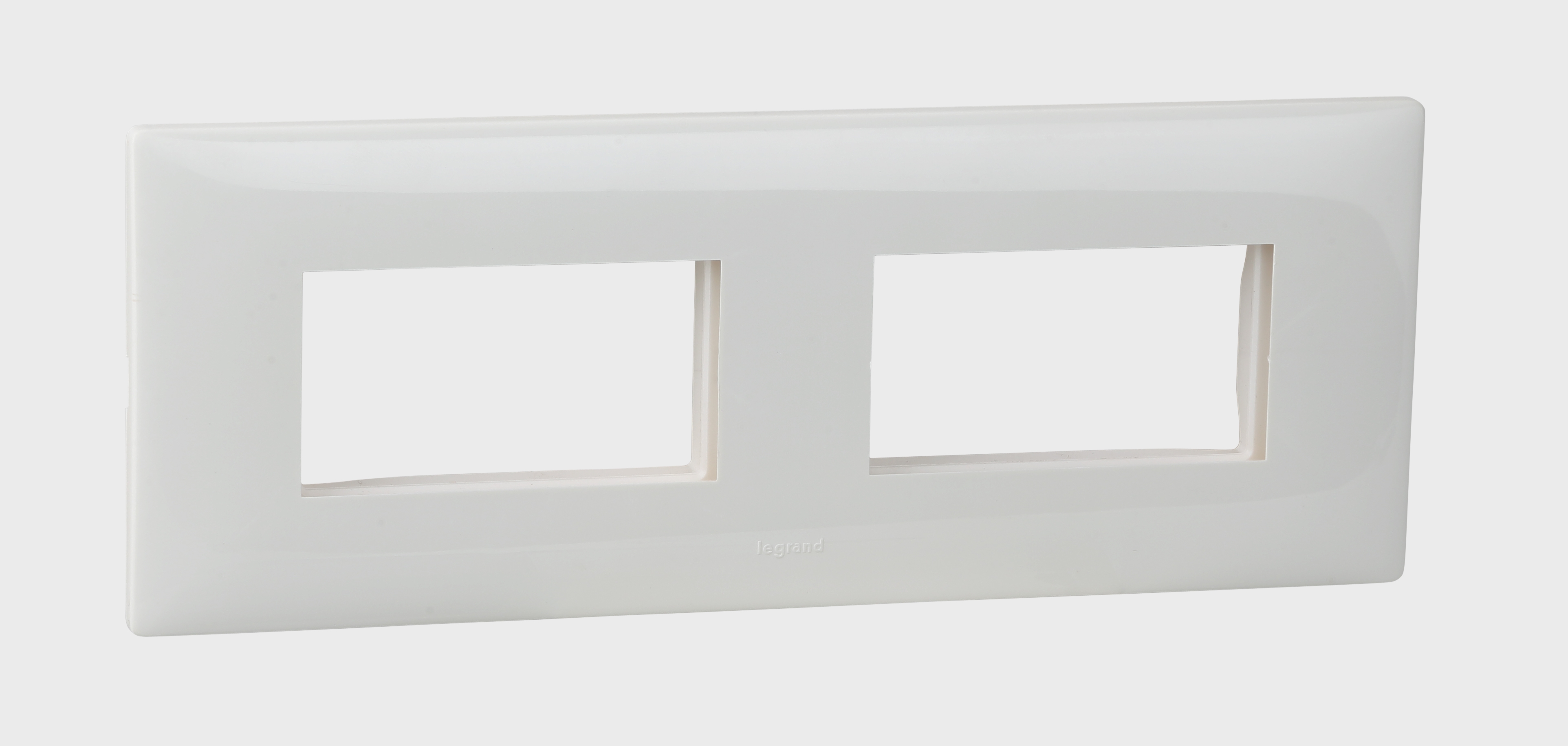

The Mylinc range product with CAT number 675566 is a Plate and Frame 6M designed for mechanism mounting. It features a white color and supports both flush and surface-mounted installations. The plate is made of Acrylonitrile Butadiene Styrene (ABS), while the frame is constructed from high-impact polystyrene with steel screws that are zinc-plated. It has dimensions of 224 mm width, 86 mm height, and 14.5 mm depth, weighing 79.5 grams. The product is self-extinguishing at 650°C for 30 seconds and conforms to Legrand standards, ensuring reliability and safety.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
