Schneider Acti9 iPRC SPD · A9L16337A9L16337↓ 1% off MRP
BrandSchneider
CategorySwitchgear
SpecificationiPRC - 2 poles - 0.45 A - 130 V AC
Brand SKUA9L16337
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iPRC SPD · A9L16337

NEW added this week
₹17,855/pcincl. GST-1%
₹15,131 + 18% GST · MRP ₹18,035
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹17,855 /pc incl. GST
Free pan-India delivery

Schneider Acti9 iPRC SPD · A9L16337: Elume price today ₹17,855 per pc incl. GST, 1% below the ₹18,035 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹19,297₹18,624₹17,951₹17,278₹16,605₹18,035₹17,855
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹17,855
MRP
₹18,035
Lowest in view · 17 Oct
₹17,855
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹16,962/pc on this product

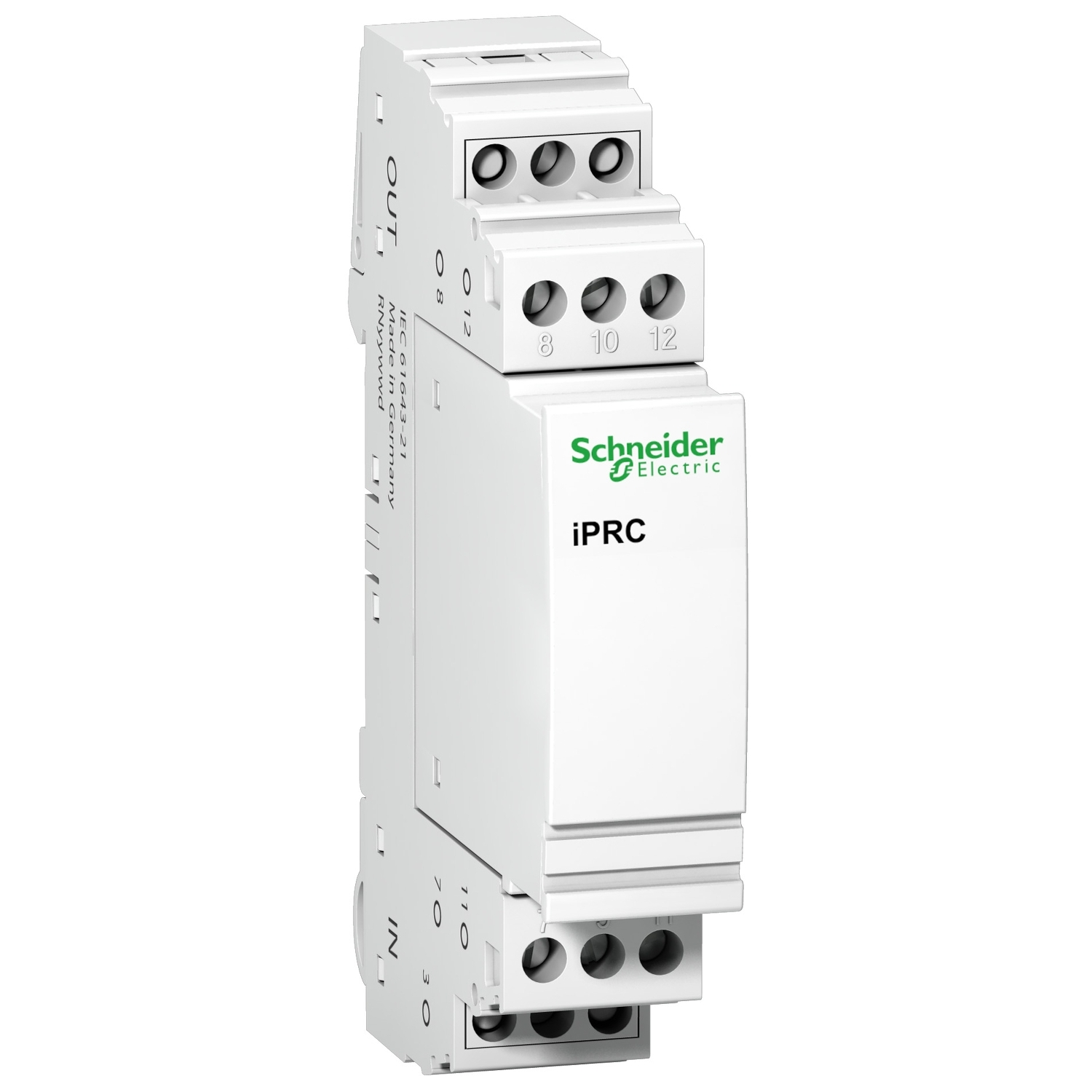

This Acti9 iPRC product is a surge arrester protecting against overvoltage related to lightning strikes. The DC power supply inputs up to 53V and AC power supply inputs up to 37V. The iPRI surge arrester protects the measuring instrument and PLC "sensor" inputs. It protects for 2 low-current lines without common potential or 4 lines with common reference potential. The input current must not exceed 300mA. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 130VAC or 185VDC. The Uc maximum continuous operating voltage in differential mode (between pgase and neutral) is 130VAC or 185VAC. The Up Voltage protection level in differential mode (between phase and neutral) is 160V. The Up Voltage protection level in common mode (between phase and earth) is 200V. The Ue rated operational voltage is 130VAC +/- 10%. The product colour is white (RAL9003).The dimensions are (W) 18mm x (H) 90mm x (D) 66mm. The weight is 25g. The degree of protection is IP20 and IP40 in modular enclosure. The operating temperature is -25°C to 60°C. The storage temperature is -40°C to 85°C.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iPRC SPD · A9L16337 · A9L16337
Rated current0.45 A
Ingress protectionIP40 (modular enclosure)· IP20
Reference standardEN 61643-21
Net weight0.025 kg
ColourWhite
Device typeMiniature circuit breaker (MCB)
Current rating45 A
BrandSchneider
Brand SKUA9L16337
ELINEKCPM97R4H
Sold asPer pc
Depth66 mm
Width18 mm
Height90 mm
MaterialPA6
StandardsEN 61643-21 · IEC 61643-21
9 mm pitches2
Product nameActi9 iPRC
Mounting modeFixed
Response time< 500 ns
Mounting support35 mm symmetrical DIN rail
range of productActi9
Device short nameiPRC
Relative humidity5…90 %
Remote signallingWithout
Tightening torque0.8 N.m
Operating altitude2000 m
[In] rated current0.45 A at 45 °C
Surge arrester typeTelecom protection
Output voltage limitsCommon mode: < 300 V at 1 kV/µs · Differential mode: < 300 V at 1 kV/µs
Wire stripping length8 mm
Product certificationsxDSL compliance
[Iimp] impulse current100 A
Connections - terminalsScrew clamp terminal0.2…4 mm² rigid · Screw clamp terminal0.2…2.5 mm² flexible · Screw clamp terminal0.2…2.5 mm² flexible with ferrule
IK degree of protectionIK05 conforming to IEC 62262
IP degree of protectionIP40 (modular enclosure) conforming to IEC 60529 · IP20 conforming to IEC 60529
Nominal discharge currentCommon mode: 10 kA (L/PE) · Differential mode: 10 kA (L/N)
Number of protected lines2
Product or component typeSurge arrester
Surge arrester technologyGDT + diode
[I total] discharge current10 kA
[Ue] rated operational voltage130 V AC
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelDifferential mode 160 V type 2 L/N · Common mode 200 V type 2 L/PE
[Uc] maximum continuous operating voltageCommon mode: 130 V AC L/PE · Common mode: 185 V DC L/PE · Differential mode: 130 V AC L/N · Differential mode: 185 V DC L/N
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
