Legrand Allzy Cover Plate with Frame · 18 M · White · 681310: Elume price today ₹426 per pc incl. GST, 33% below the ₹638 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹344, ₹82 less than here. The lowest tracked seller lists it at ₹344, ₹82 below it (tell us and we match it).

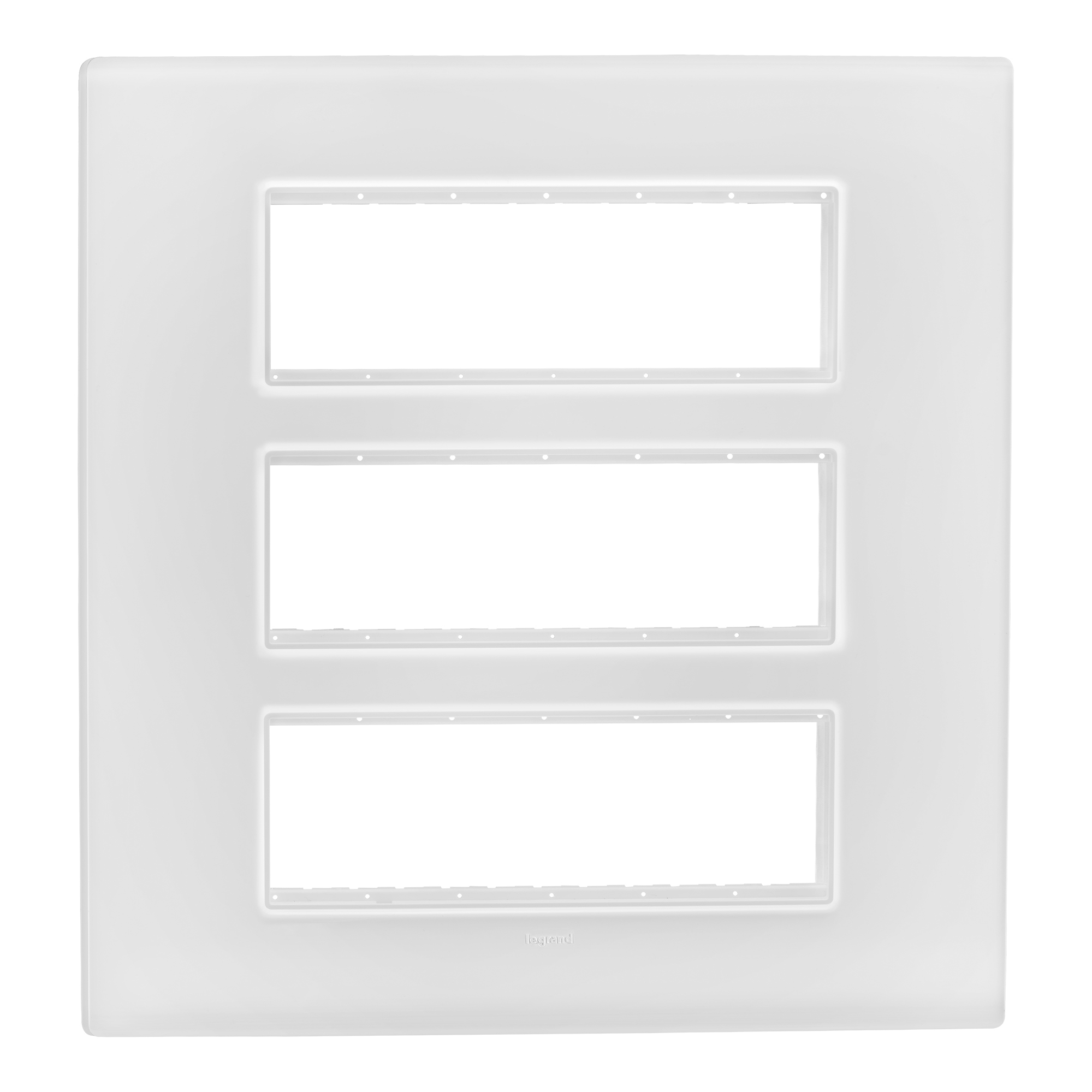

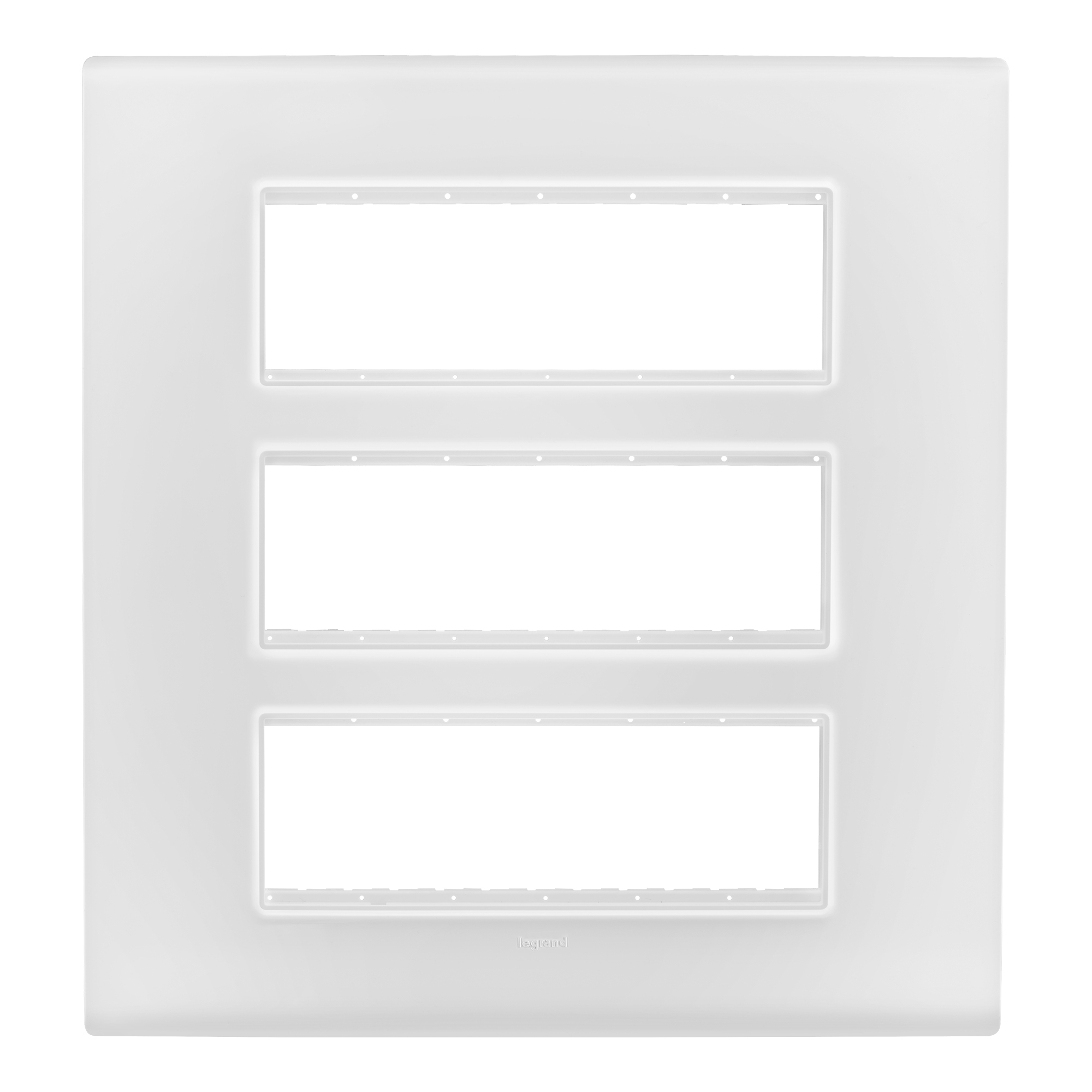

The Allzy range product with CAT number 681310 is a Plate and Frame 3X6M (18M) in White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This product, referenced as 681310, is a Plate 6X3M with a frame, accommodating 18 modules. It is available in a white color and can be mounted both flush and surface-mounted. The overall dimensions of the plate are 240 mm in width, 224 mm in height, and 8.2 mm in depth, with a weight of 270 grams. The connection is facilitated through screwing with screws on either a Flush Box or Surface Box. The material characteristics include a polycarbonate white plate and a frame made of High Impact Polystyrene (HIPS), with steel screws that are zinc-plated. The electrical characteristics highlight its self-extinguishing property at 850° C for 30 seconds. This product conforms to the company standards, ensuring reliability and safety in its application. The Allzy Plate and Frame 3X6M (18M) White is a robust and versatile solution for mounting mechanisms, providing a secure and aesthetically pleasing installation for various electrical components.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
