Schneider Zelio Logic Discrete I/O Extension Module · 6 I O · 24 V DC · for Zelio LogicSR3XT61BD↓ 1% off MRP1 / 2
BrandSchneider
CategoryIndustrial Control
Brand SKUSR3XT61BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

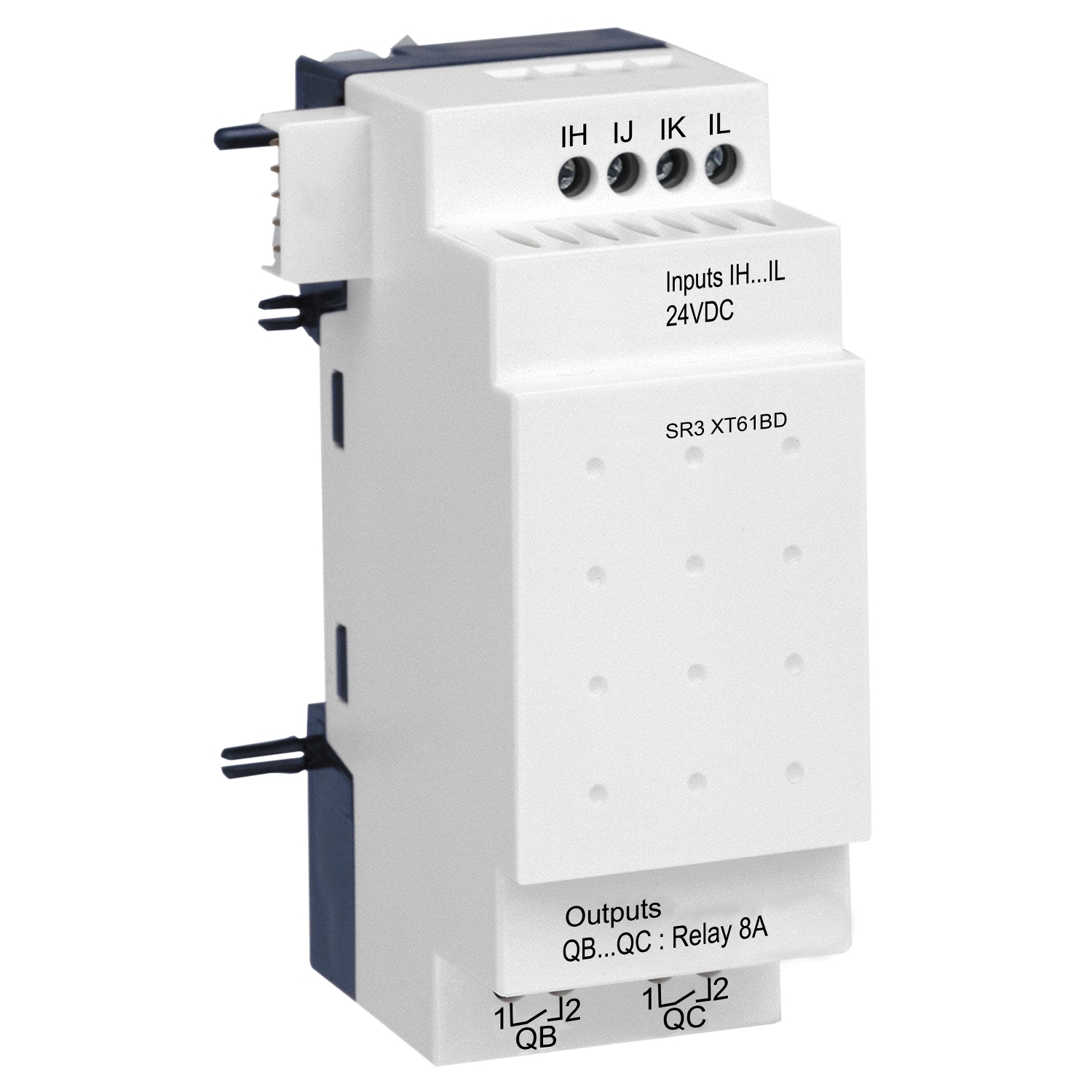

Schneider Zelio Logic Discrete I/O Extension Module · 6 I O · 24 V DC · for Zelio Logic

NEW added this week
₹11,608/pcincl. GST-1%
₹9,837 + 18% GST · MRP ₹11,726
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹11,608 /pc incl. GST
Free pan-India delivery

Schneider Zelio Logic Discrete I/O Extension Module · 6 I O · 24 V DC · for Zelio Logic: Elume price today ₹11,608 per pc incl. GST, 1% below the ₹11,726 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹12,547₹12,109₹11,671₹11,233₹10,795₹11,726₹11,608
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹11,608
MRP
₹11,726
Lowest in view · 17 Oct
₹11,608
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹11,028/pc on this product

This product is part of Smart Relay Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This discrete I/O extension module features 6 I/Os and 120 with ladder programming control scheme lines. It is a module with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 4 resistive discrete inputs with voltage of 24V DC and 2 relay outputs with voltage ranges from 24V to 250V AC and 5V to 30V DC. It is an IP20 and IP40 rated product. It weighs 0.125kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Discrete I/O Extension Module · 6 I O · 24 V DC · for Zelio Logic · SR3XT61BD
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 61000-4-6 level 3
Net weight0.125 kg
BrandSchneider
Brand SKUSR3XT61BD
ELINEJR74FGD34
Sold asPer pc
ChecksProgram memory on each power up
StandardsIEC 61000-4-6 level 3 · IEC 61000-4-3 · IEC 61000-4-4 level 3 · IEC 61000-4-5 · IEC 61000-4-12 · IEC 61000-4-11 · IEC 60068-2-6 Fc · IEC 61000-4-2 level 3 · IEC 60068-2-27 Ea
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C
Response time10 ms (from state 0 to state 1) for relay output · 5 ms (from state 1 to state 0) for relay output
Input impedance12 kOhm for IB...IG used as discrete input circuit · 7.4 kOhm for I1...IA and IH...IR discrete input circuit
Pollution degree2 conforming to IEC 61131-2
Range of productZelio Logic
Number of outputs2 relay
Tightening torque0.5 N.m
Counting frequency1 kHz for discrete input
Operating altitude2000 m
Discrete input typeResistive
Input compatibility3-wire proximity sensors PNP for discrete input
Operating rate in Hz0.1 Hz (at Ie) for relay output · 10 Hz (no load) for relay output
Overvoltage categoryIII conforming to IEC 60664-1
Discrete input number4 conforming to IEC 61131-2 Type 1
Electrical durabilityAC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1 · AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1 · DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1 · DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
Mechanical durability10000000 cycles for relay output
Output voltage limits24...250 V AC (relay output) · 5...30 V DC (relay output)
Supply voltage limits19.2…30 V
Discrete input current4 mA
Discrete input voltage24 V DC
Output thermal current8 A for all 2 outputs for relay output
Product certificationsGL · C-Tick · GOST · UL · CSA
Connections - terminalsScrew terminals, 1 x 0.25...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end · Screw terminals, 2 x 0.25...2 x 0.75 mm² (24 AWG...18 AWG) flexible with cable end · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) semi-solid · Screw terminals, 1 x 0.2...1 x 2.5 mm² (25 AWG...14 AWG) solid · Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) solid
IP degree of protectionIP20 (terminal block) conforming to IEC 60529 · IP40 (front panel) conforming to IEC 60529
Switching capacity in mA>= 10 mA at 12 V (relay output)
Product or component typeDiscrete I/O extension module
[Us] rated supply voltage24 V DC
Current state 0 guaranteed<= 0.5 mA (IB...IG used as discrete input circuit) · <= 0.75 mA (I1...IA and IH...IR discrete input circuit)
Current state 1 guaranteed>= 1.2 mA (IB...IG used as discrete input circuit) · >= 2.2 mA (I1...IA and IH...IR discrete input circuit)
Maximum altitude transport3048 m
Voltage state 0 guaranteed<= 5 V for I1...IA and IH...IR discrete input circuit · <= 5 V for IB...IG used as discrete input circuit
Voltage state 1 guaranteed>= 15 V for I1...IA and IH...IR discrete input circuit · >= 15 V for IB...IG used as discrete input circuit
Reverse polarity protectionWith
Environmental characteristicEMC directive conforming to IEC 61000-6-2 · EMC directive conforming to IEC 61000-6-3 · EMC directive conforming to IEC 61000-6-4 · EMC directive conforming to IEC 61131-2 zone B · Low voltage directive conforming to IEC 61131-2
Contacts type and compositionNO for relay output
Disturbance radiated/conductedClass B conforming to EN 55022-11 group 1
Number or control scheme lines120 with ladder programming
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2 · -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
