Legrand Myrius NextGen Key Card Switch · 16 A · 2 M · Classic White · 679253: Elume price today ₹3,685 per pc incl. GST, 36% below the ₹5,740 MRP. The price has held steady for the last 30 days.

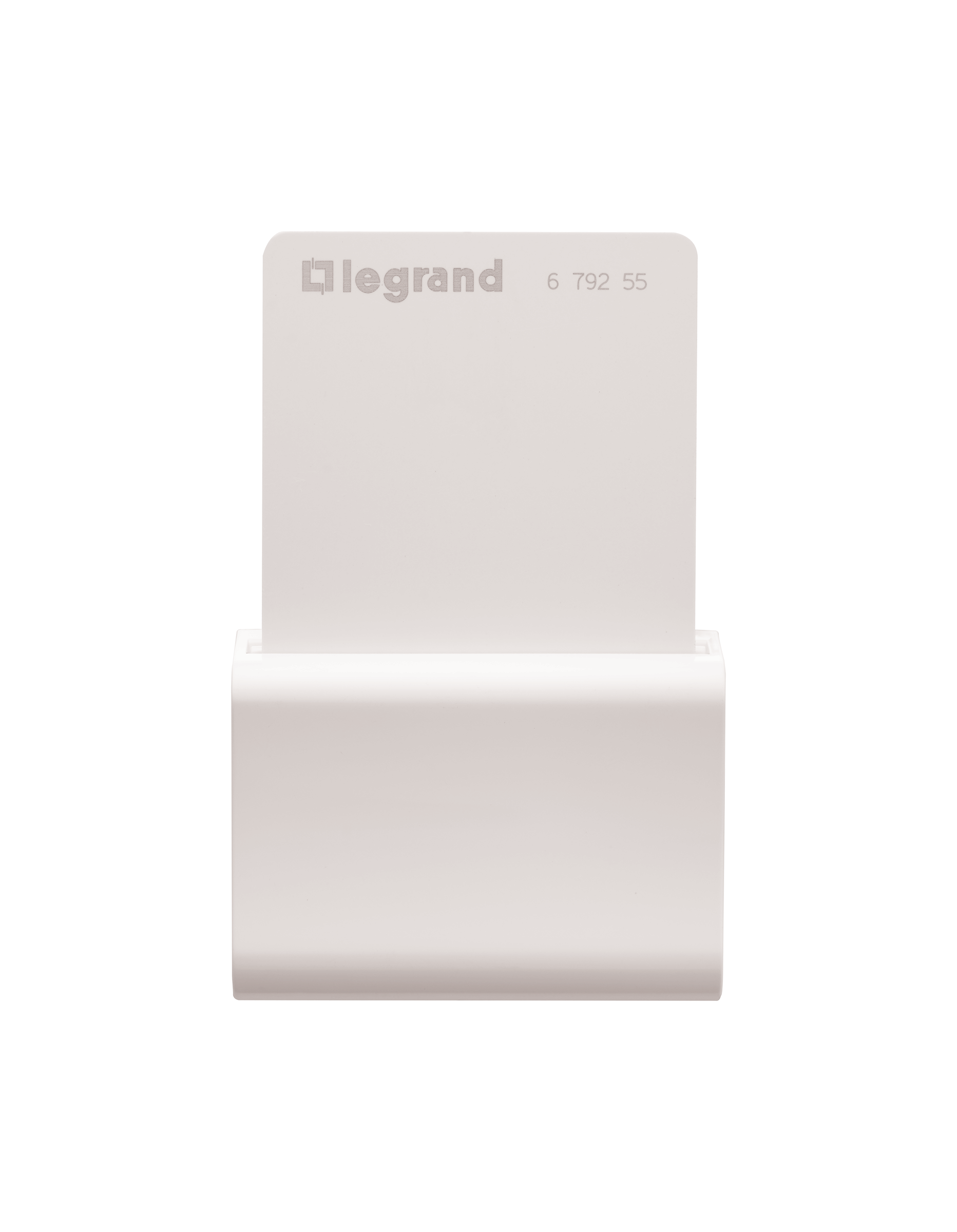

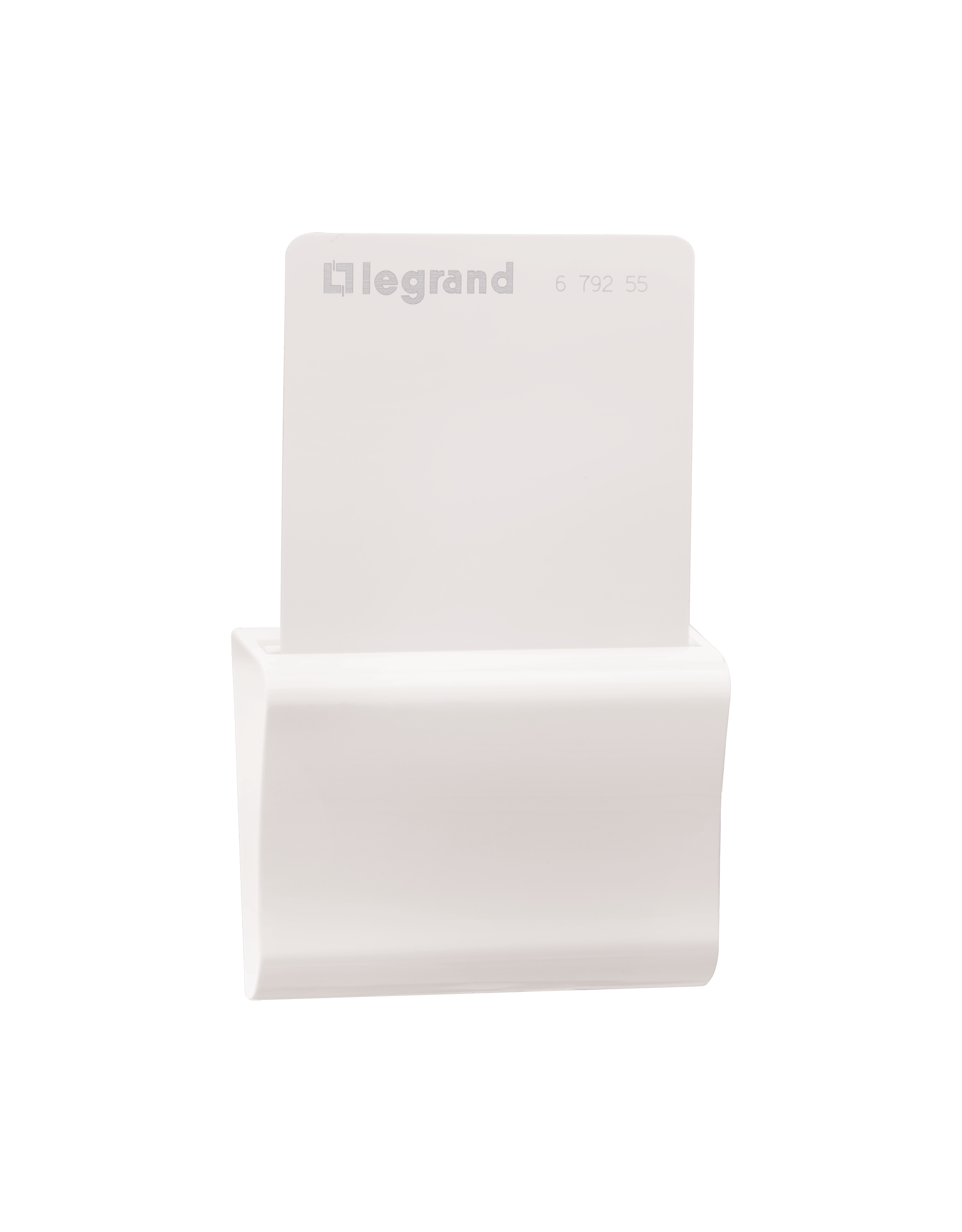

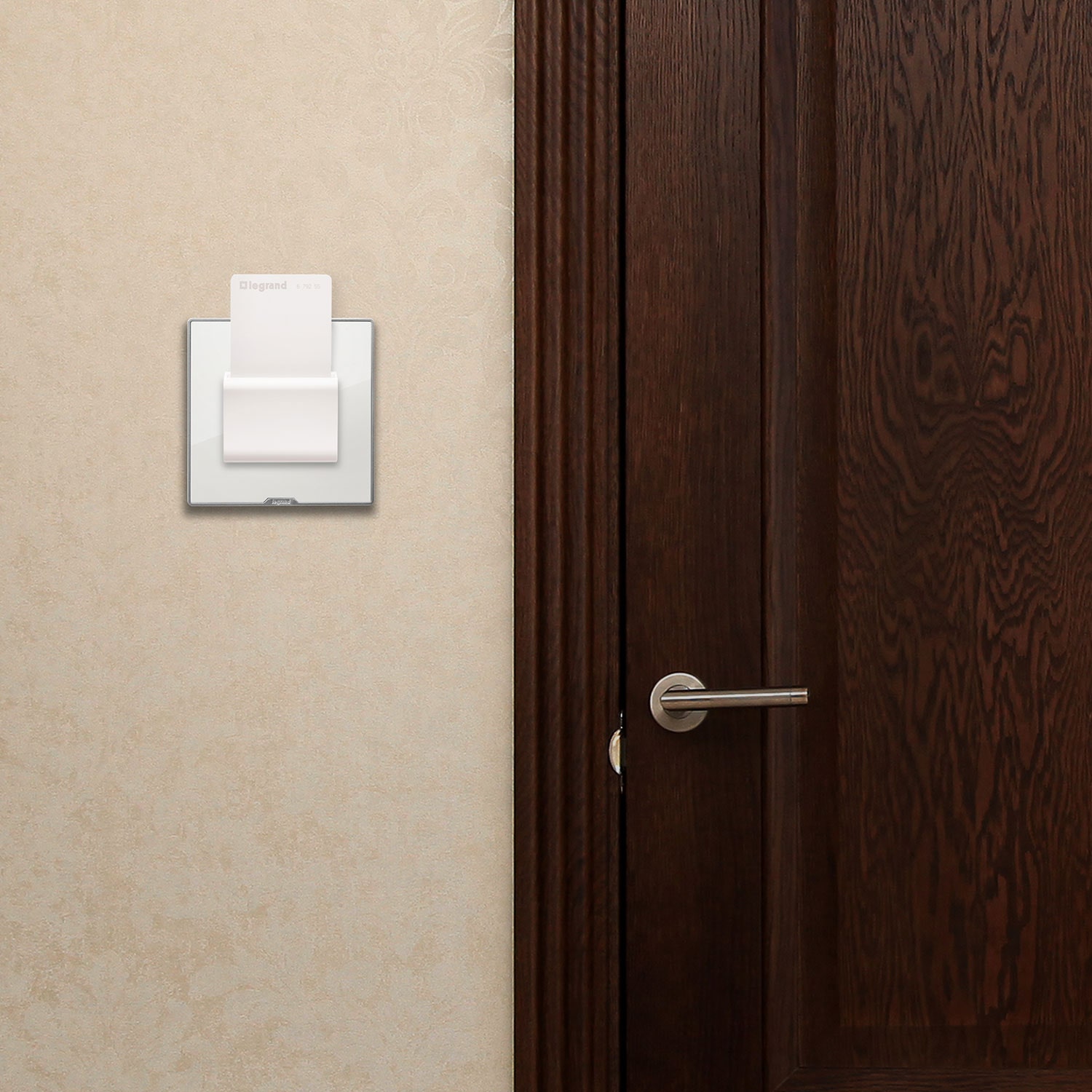

The Myrius range product with CAT number 679253 is a 16A Hotel Key FOB Switch designed as a main switch for hotel rooms, activated by inserting a card. Upon card removal, the switch deactivates after a 30-second delay. It is a 2-module device available in white and charcoal grey colors, compatible with flush box and surface box mounting. The switch features screw terminals with a terminal capacity of 1 x 2.5 sq.mm, an 8mm stripping length, and requires a flat 3.5mm screwdriver for installation. Made of polycarbonate material, it includes an electronic remote control mechanism. It operates at 230V AC with a maximum current of 16A and supports various loads, including incandescent lamps (1800W), inductive motors (800W), compensated fluorescent lamps (400VA), fluorescent lamps with electronic ballast (800VA), and LED lamps (100VA). The operating temperature range is 0°C to 40°C, and the product conforms to internal Legrand standards. Dimensions are 61mm width, 47mm height, 55.7mm depth, and it weighs 138g.
6A switches are for lights, fans and small sockets. Use a 16A switch for heavy appliances such as an AC, geyser, microwave or room heater, usually paired with a 16A socket on a 2.5-4 sq mm circuit.
Modular switches generally fit only the plates and frames of the same brand and series, because the clip design and module width differ. If you are replacing only switches, check the series of your existing plates first.
A 1-way switch controls a light from one place. A 2-way switch is used in pairs to control the same light from two places, such as the top and bottom of a staircase or both ends of a corridor.
A standard switch takes 1 module. Larger items like 16A sockets, fan regulators and some USB chargers take 2 modules, so count modules before choosing the plate size.
Some switches have a built-in neon or LED indicator that glows when on or off, which helps locate them in the dark. Check the product details; otherwise a separate indicator module can be added.
Switches for household use in India are made to IS 3854 and should carry the ISI mark. Look for flame-retardant polycarbonate housings and silver alloy contacts for a longer life.
