Schneider Acti9 PRD1 Master SPD · 3P+N16363↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Brand SKU16363
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

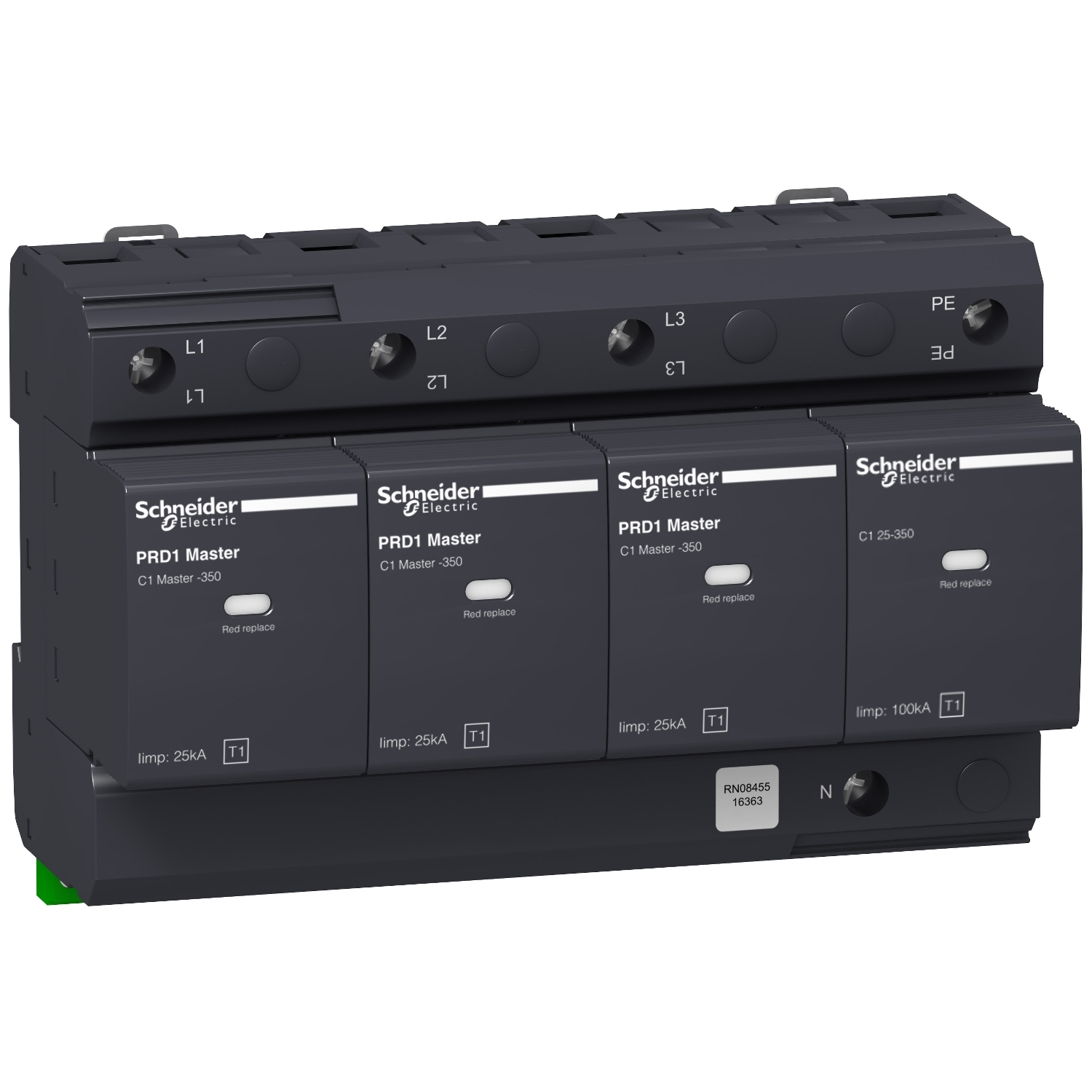

Schneider Acti9 PRD1 Master SPD · 3P+N

NEW added this week
₹74,890/pcincl. GST-1%
₹63,466 + 18% GST · MRP ₹75,646
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹74,890 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Acti9 PRD1 Master SPD · 3P+N: Elume price today ₹74,890 per pc incl. GST, 1% below the ₹75,646 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹80,941₹78,118₹75,294₹72,471₹69,648₹75,646₹74,890
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹74,890
MRP
₹75,646
Lowest in view · 17 Oct
₹74,890
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹71,146/pc on this product

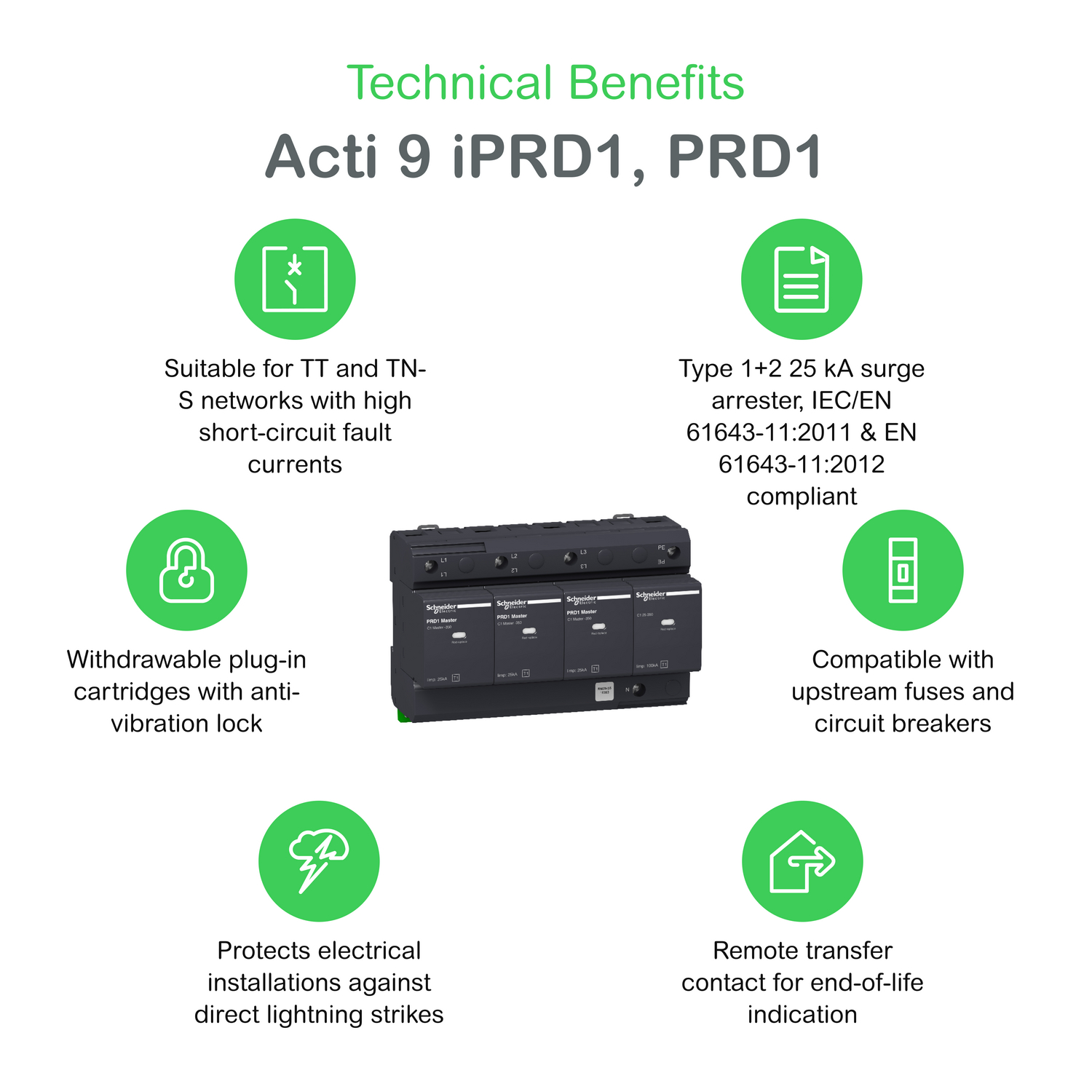

This Acti9 PRD1 Master is a surge arrester with pluggable cartridge. It has 3P+N pole. The maximum continuous operating voltage is 350V (L-N or N-PE). It is available for TT or TN-S earthing system. It is a type 1 surge arrester. It protects electrical installations against direct lightning strikes. It is fitted with easy-to-replace withdrawable cartridges. The device has an end-of-life indication (white for correct operation, red at end of life) with remote signalling. The nominal discharge current (impulse 8-20 µs) is 25kA with a maximum of 50kA. The Uc maximum continuous operating voltage in differential mode (between phase and neutral) is 350VAC. The Uc maximum continuous operating voltage in common mode (between neutral and earth) is 350VAC. The maximum lightning current Iimp (impulse current 10-350 µs) is 25kA between L-N and 100kA between N-PE. The rated voltage network is 230VAC or 400VAC. The voltage protection level goes up to 1.5kV. The dimensions are (W) 18mm x (H) 90mm x (D) 66mm. The width in 9mm pitches is 8. The degree of protection is IK05 and IP20 on its terminals becoming IP40 once in modular enclosure. It can be mounted on DIN rail for modular installation. Its

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 PRD1 Master SPD · 3P+N · 16363
Poles3P+N
Reference standardEN 61643-11:2012
Net weight1.31 kg
ColourAnthracite grey (RAL 7016)
Device typeMiniature circuit breaker (MCB)
BrandSchneider
Brand SKU16363
ELINEJKM7KGJRR
Sold asPer pc
Depth70 mm
Width142.8 mm
Height90 mm
MaterialPBT (polybutylene terephthalate)
StandardsEN 61643-11:2012 · IEC 61643-11:2011
9 mm pitches16
Product nameActi9 PRD1 Master
Mounting modeClip-on (DIN rail)
Market segmentSmall commercial
Quality labelsKEMA-KEUR
Earthing systemTT · TN-S
Impulse current25 kA
Range of productPRD1 Master
Device short namePRD1 Master
Poles description3P + N
Relative humidity5…90 %
Remote signallingWith
Tightening torque4.5 N.m
Compatibility codePRD1_Master
Device applicationDistribution
Operating altitude2000 m
Surge arrester typeElectrical distribution network
[Ifi] follow current0.1 kA common mode N/PE · 50 kA differential mode L/N
Product certificationsCE
[Iimp] impulse currentCommon mode: 100 kA N/PE 50 A.s · Differential mode: 25 kA L/N 12.5 A.s
Connections - terminalsTunnel type terminal (downside) 2.5…35 mm² · Tunnel type terminal (upside) 2.5…35 mm²
IK degree of protectionIK05 conforming to IEC 62262
Short-circuit withstand50 kA
Disconnector device typeAssociated fuse gG 315 A standard · Associated circuit breaker Compact NSX100F 100 A curve C - Icu 36 kA · Associated circuit breaker Compact NSX100N 100 A curve C - Icu 50 kA
Maximum discharge currentCommon mode: 50 kA L/N
Nominal discharge currentCommon mode: 100 kA (N/PE) · Differential mode: 25 kA (L/N)
Product or component typeSurge arrester with pluggable cartridge
Surge arrester class typeType 1
Surge arrester technologySpark gap
Signalling circuit voltage1 A/250 V AC 50/60 Hz
Signal contacts composition1 SD (1 C/O)
[Ue] rated operational voltage230/400 V AC (+/- 10 %) at 50/60 Hz
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-25…60 °C
Maximum [Up] voltage protection levelCommon mode 1.5 kV type 2 N/PE · Differential mode 1.5 kV type 2 L/N
[Uc] maximum continuous operating voltageDifferential mode: 350 V L/N · Common mode: 350 V N/PE
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
