Legrand Allzy Cover Plate with Frame · 16 M · White · 681309: Elume price today ₹398 per pc incl. GST, 33% below the ₹596 MRP. Today's price is the lowest of the last 30 days (high ₹399). The average price across the sellers we track is ₹322, ₹76 less than here. The lowest tracked seller lists it at ₹322, ₹76 below it (tell us and we match it).

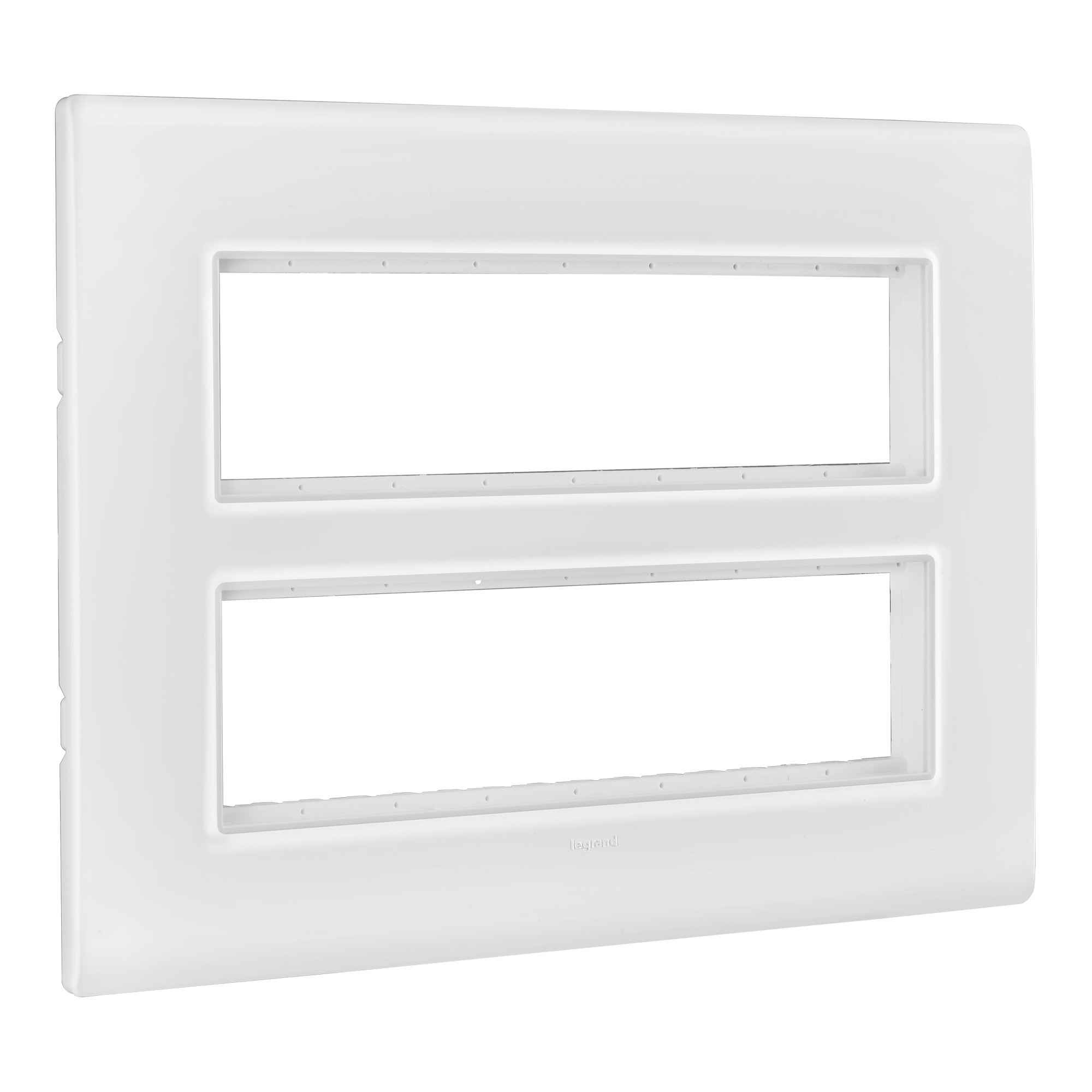

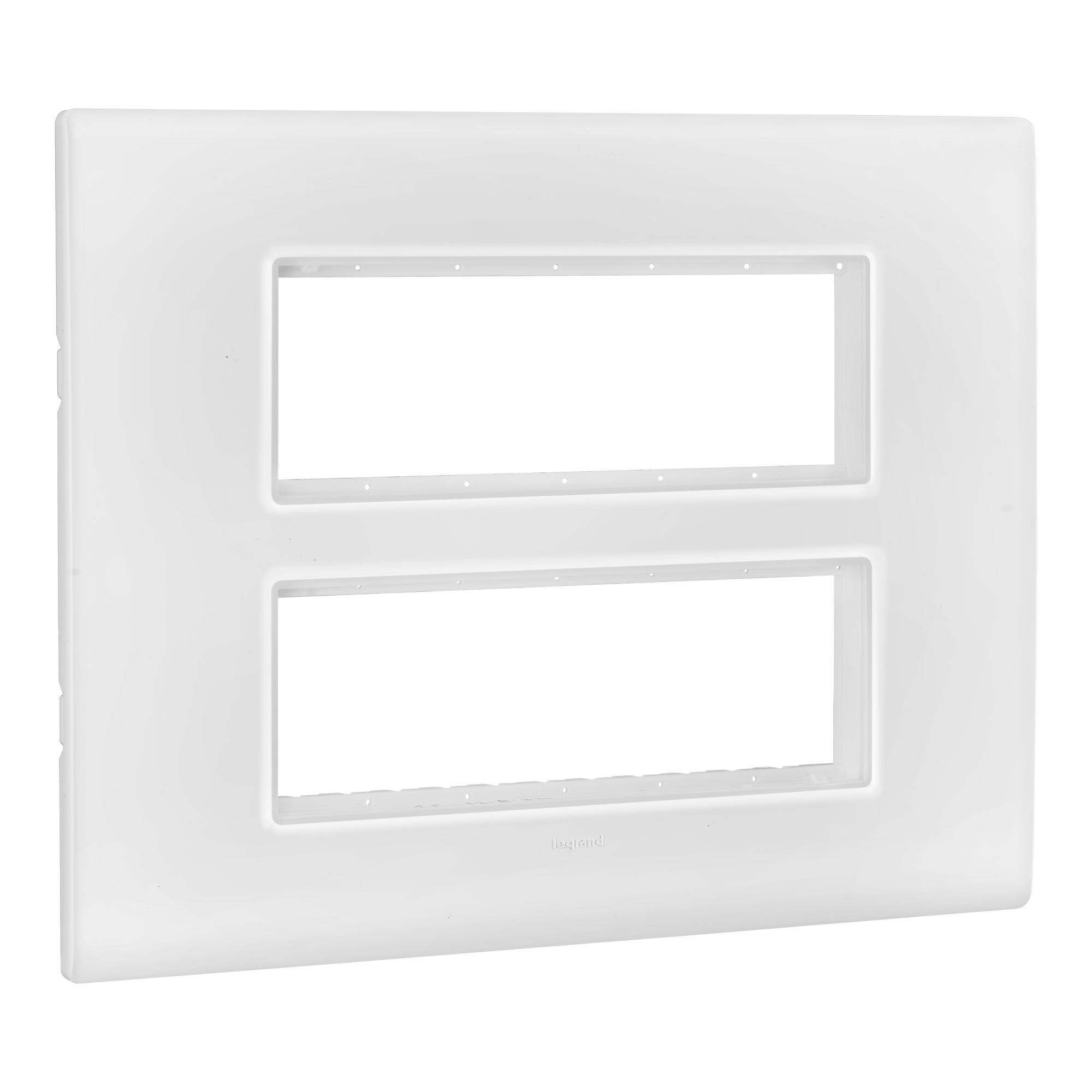

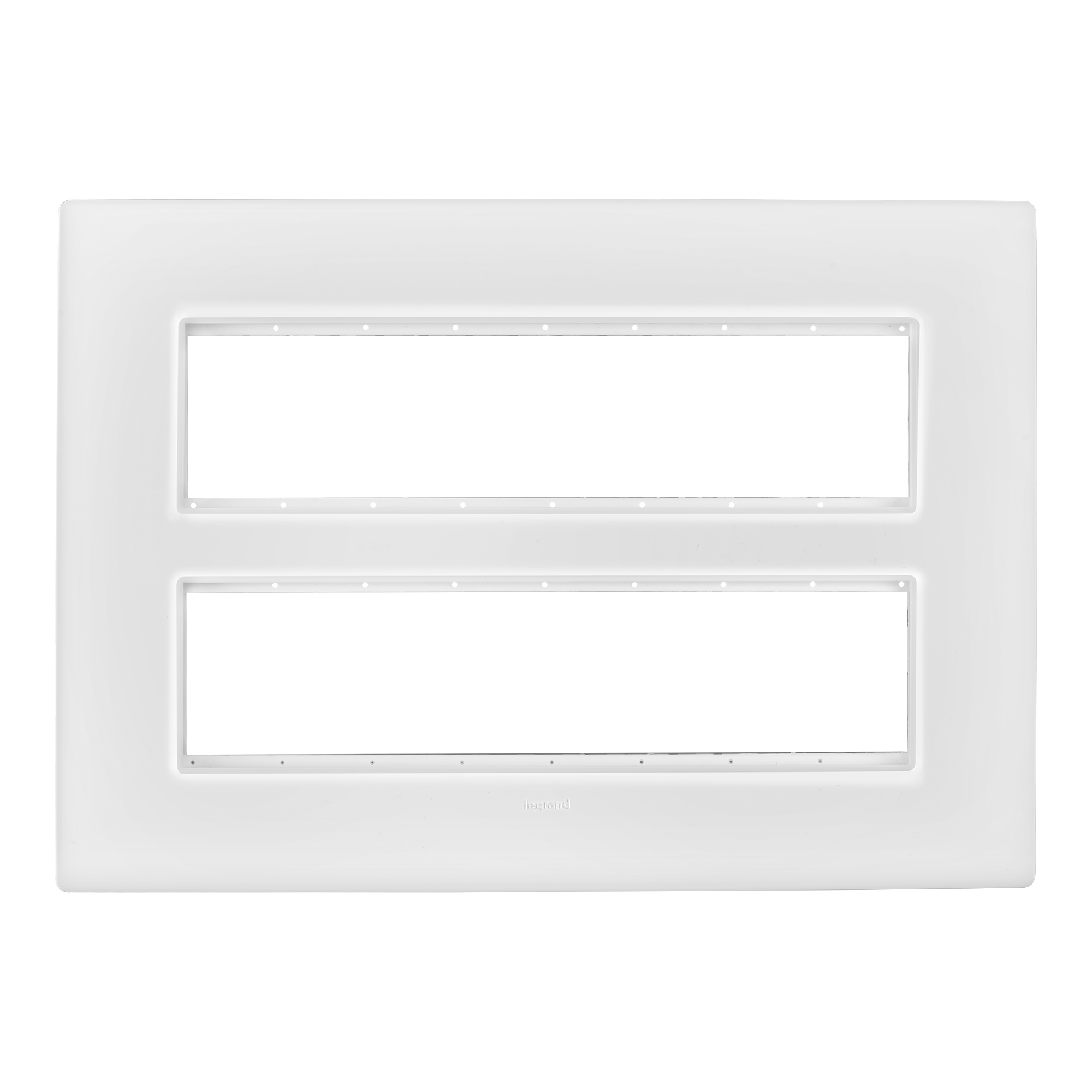

The Allzy range product with CAT number 681309 is a Plate and Frame 4X4M (16M) in White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This product is a 16M plate with a frame, accommodating 4 modules of 4M each. It is available in a white color and can be mounted both flush and surface-mounted. The overall dimensions of the plate are 245 mm in width, 172 mm in height, and 8.2 mm in depth, with a weight of 180 grams. The connection is facilitated through screwing with screws on either a flush box or a surface box. The material characteristics include a polycarbonate white plate and a frame made of High Impact Polystyrene (HIPS), with steel screws that are zinc-plated for durability. The electrical characteristics of the product ensure safety with a self-extinguishing feature rated at 850° C for 30 seconds. The product conforms to the company standards, ensuring reliability and quality. This technical datasheet provides comprehensive details about the product, ensuring that it meets the high standards expected from Legrand's Allzy range. The product is designed to offer a robust and reliable solution for mounting mechanisms, making it an
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
