Legrand Lyncus Bell Push Switch · with Indicator · 6 A · 1 M · White · 677221: Elume price today ₹177 per pc incl. GST, 33% below the ₹264 MRP. Today's price is the lowest of the last 30 days (high ₹178). The average price across the sellers we track is ₹143, ₹34 less than here. The lowest tracked seller lists it at ₹143, ₹34 below it (tell us and we match it).

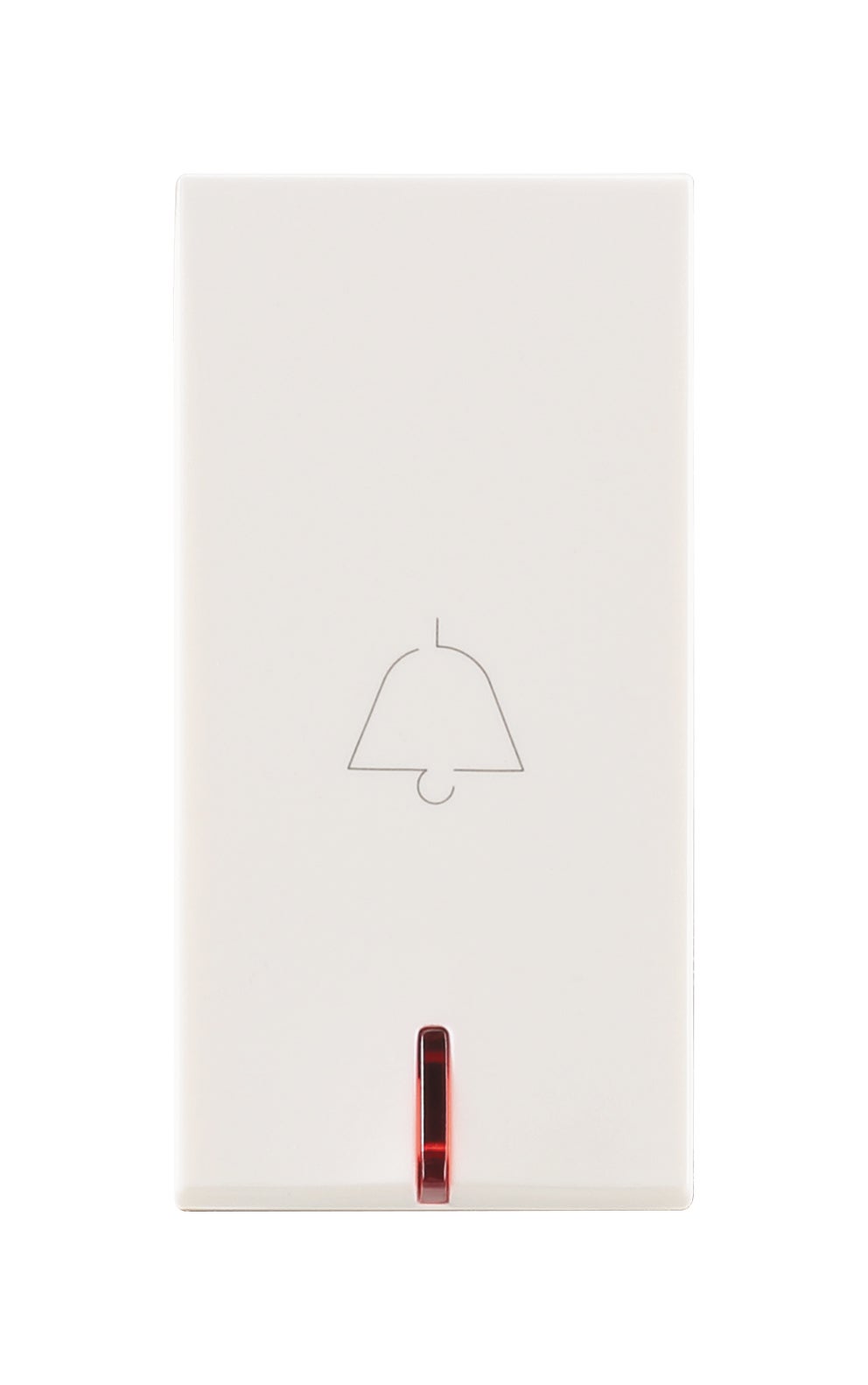

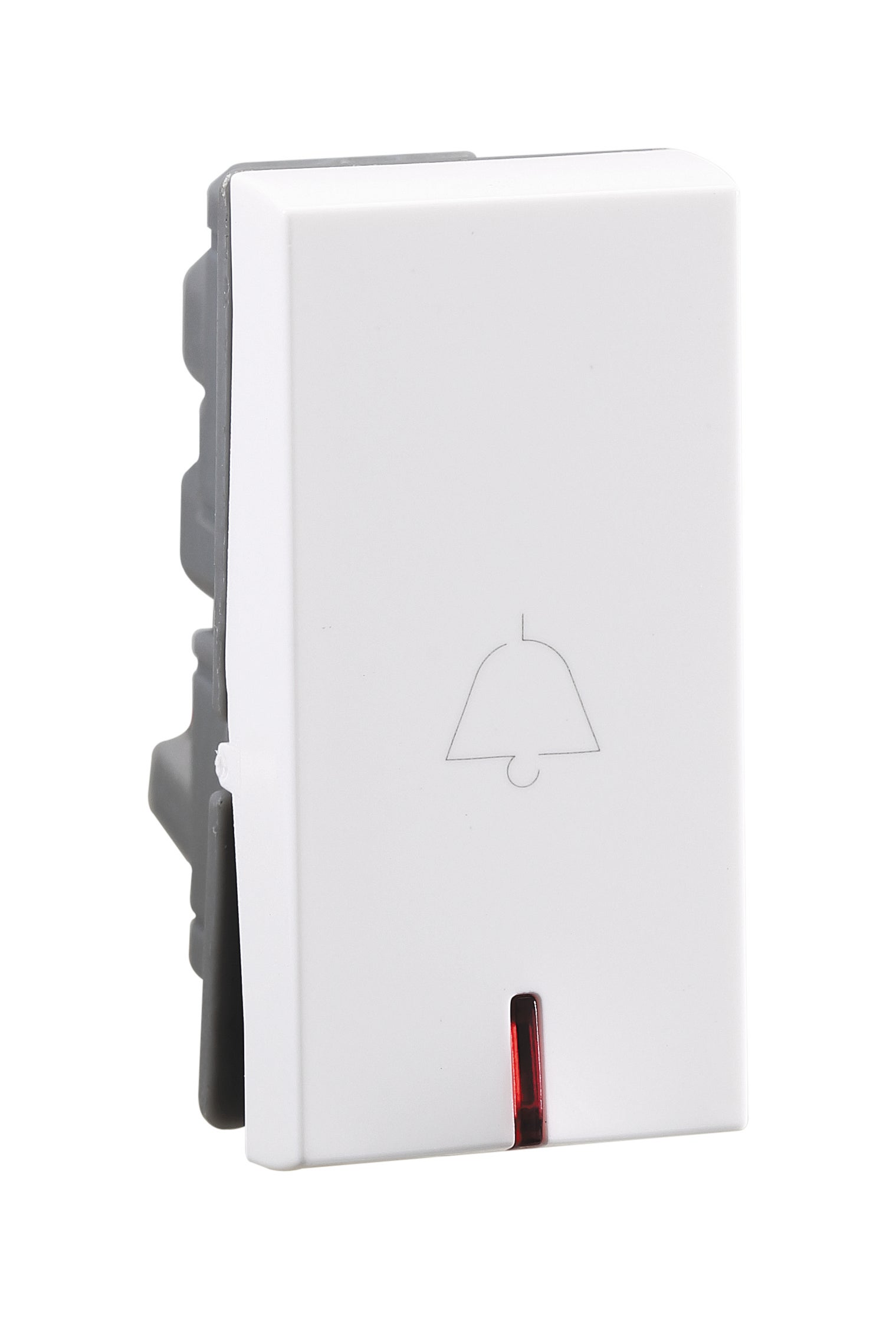

The Lyncus range CAT number 677221 refers to a 6A Bell Push 1W 1M in White color, designed for general lighting control. It is a one-way switch (square) single pole with 1 module, suitable for both flush and surface mounting. The overall dimensions are 22.5 mm in width, 45 mm in height, and 33.6 mm in depth, with a weight of 16.2 grams. The connection is made with screws, supporting a capacity of 0.75mm² to 1.5mm², and requires a 4mm flat-blade screwdriver. The switch operates with a rocker mechanism and is constructed from materials including polycarbonate for the rocker and lens, polypropylene for the base and transmitter, and brass for the contact and pivot terminals. It operates at 230V AC with a current rating of 6A and features self-extinguishing properties at 850°C for 30 seconds. The product conforms to IS: 3854 standards.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
