Schneider EcoStruxure PAS600 Gateway · EcoStruxure Panel Server · universal wirelessPAS600↓ 1% off MRP1 / 3
BrandSchneider
CategoryIndustrial Control
Brand SKUPAS600
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

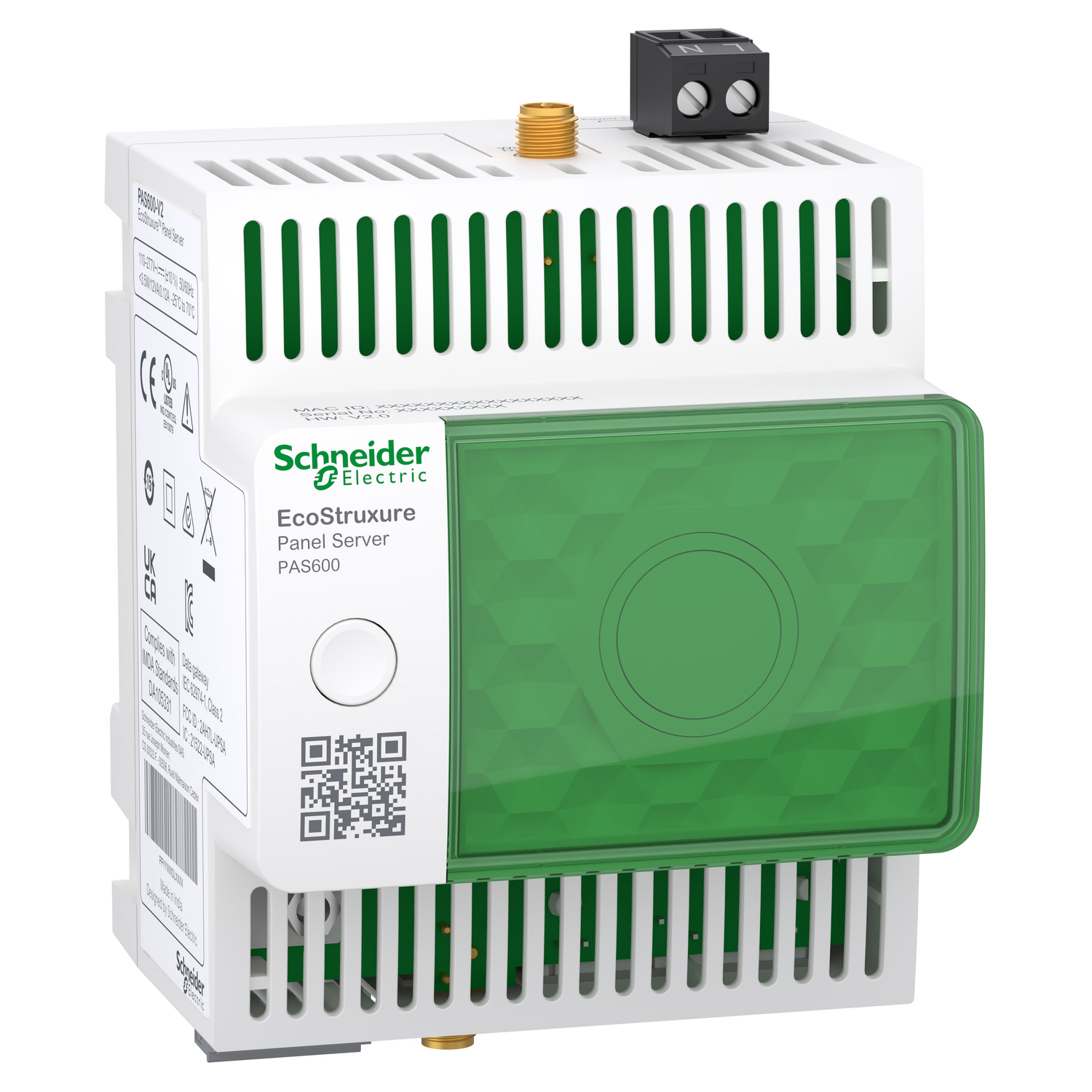

Schneider EcoStruxure PAS600 Gateway · EcoStruxure Panel Server · universal wireless

NEW added this week
₹58,855/pcincl. GST-1%
₹49,877 + 18% GST · MRP ₹59,450
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹58,855 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider EcoStruxure PAS600 Gateway · EcoStruxure Panel Server · universal wireless: Elume price today ₹58,855 per pc incl. GST, 1% below the ₹59,450 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹63,612₹61,392₹59,173₹56,954₹54,735₹59,450₹58,855
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹58,855
MRP
₹59,450
Lowest in view · 17 Oct
₹58,855
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹55,912/pc on this product

EcoStruxure Panel Server is a gateway, providing connection of wired or wireless smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, Power Tag Ambiant, Power Tag control and others. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third party. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission on your laptop, or mobile, that will offer commissioning reports and advanced features. Product dimensions are as follows: width 72 millimeters, depth 70,2 millimeters and height 93 millimeters. From 110 to 277 VAC/DC 50-60Hz power supply. -25°C to +70°C Operating temperature. Up to 93% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gatewa

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EcoStruxure PAS600 Gateway · EcoStruxure Panel Server · universal wireless · PAS600
Ingress protectionIP40 (front face)
Reference standardIEC 61010
Net weight0.201 kg
BrandSchneider
Brand SKUPAS600
ELINEGP4G42HK6
Sold asPer pc

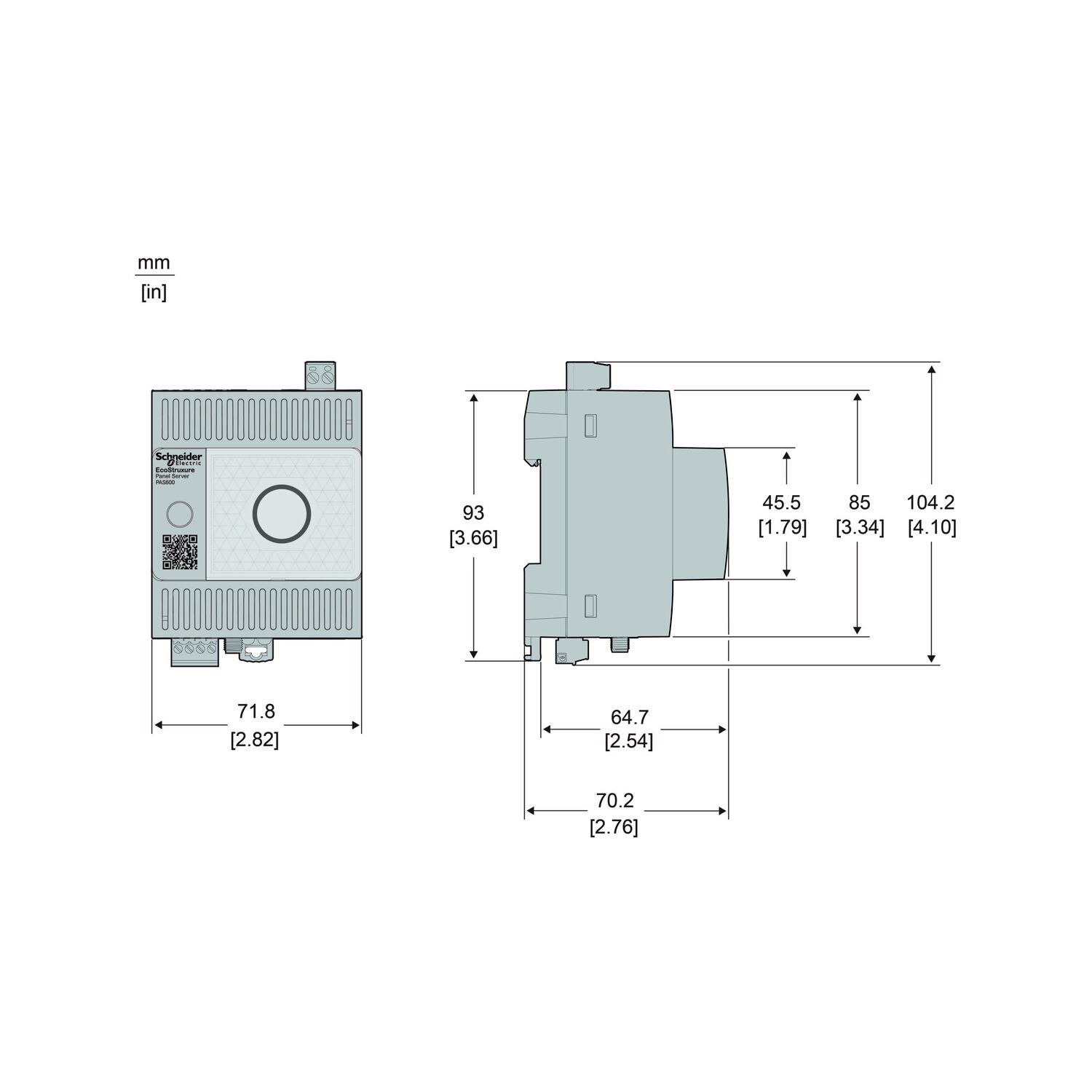

Depth70.2 mm
RangeEcoStruxure
Width72 mm
Height93 mm
TopologySeparated Ethernet network · Switched Ethernet network
StandardsIEC 61010 · IEC 61010-1 · IEC 61010-2-201 · UL 61010 · UL 61010-1 · UL 61010-2-201 · EN 61010-1 · EN 61010-2-201 · CAN/CSA C22.2 No. 61010-1-12 · CAN/CSA C22.2 No. 61010-2-201 · IEC 62974-1 · IEC 61326-1 · EN 61326-1 · ETSI EN 301 489-1 · ETSI EN 301 489-17 · EN 301-893 · EN 55032 · CISPR 11 · ETSI EN 300 328 · IEEE 802.15.4 · IEEE 802.11a/b/g/n · IEEE 802.3 af/at · FCC CFR 47 part 15 class A · EN
Product namePanel Server Universal
Web servicesHTTPS server · SFTP publication (CSV / JSON) · HTTPS publication (CSV / JSON)

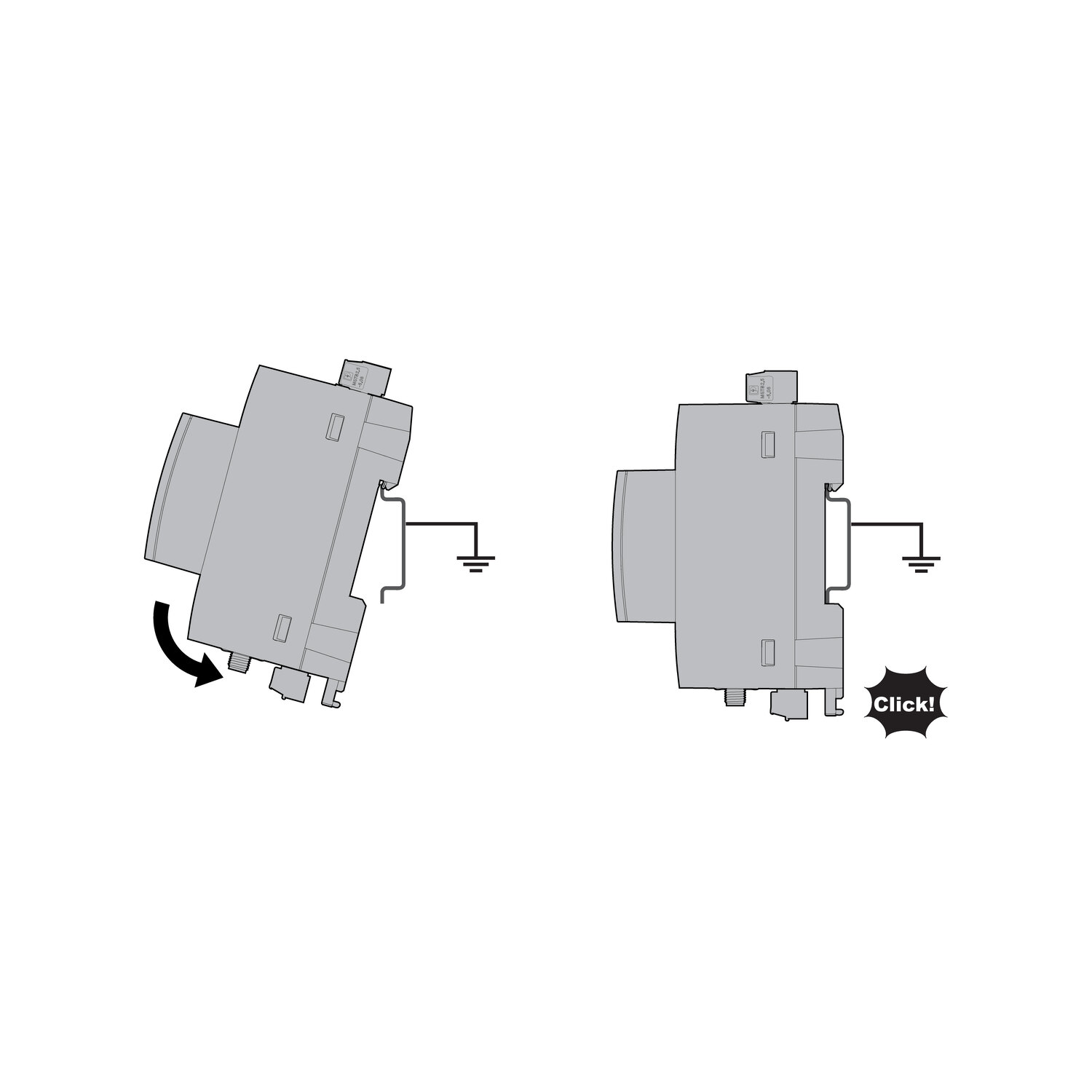

Mounting modeClip-on
Connector typeHW V2: connector(s)1 x RP-SMA Wi-Fi for antenna bottom · HW V2: connector(s)1 x RP-SMA IEEE 802.15.4 for antenna top · HW V1: connector(s)1 x RP-SMA Wi-Fi for antenna bottom
Data recordingReal time data monitoring
Realtime clockWith RTC-battery set · With user calibration
Memory capacityHW V2: 32 GB eMMC · HW V1: 512 MB NAND
Mounting supportDIN rail
Number of inputs0
Device short namePAS600
Number of devices64 Modbus TCP/IP
Relative humidity5…95 %
Tightening torquePower supply: 0.6 N.m · Communication: 0.25 N.m
Device applicationGateway
Function availableEmbedded web page for configuration and upgrade · Diagnosis capabilities · Diagnostic report · Diagnostics on communication · Energy management · With integrated web server · Firmware update · Backup/restore configuration · Configurable event
Range compatibilityEcoStruxure Facility Expert · EcoStruxure Building Operation · EcoStruxure Power Operation · EcoStruxure Power Monitoring Expert · EcoStruxure Asset Advisor · EcoStruxure Energy Hub · EcoStruxure Resource Advisor · Third party SCADA
Number of connectorsHW V2: 2 screw connector for Wi-Fi and IEEE 802.15.4 · HW V1: 1 screw connector for Wi-Fi
Communication gatewayEthernet TCP/IP to wireless devices · Ethernet/serial
Communication serviceDevice Profile for Web Services (DPWS) · Modbus TCP client · Modbus TCP server · SNTP client · DHCP client · RSTP
Product compatibilityWireless access point
Wire stripping lengthPower supply: 7 mm · Communication: 7 mm
Product certificationsCE · cULus · CB · RCM · UKCA · FCC · IC · DNV Marine · ANSI RF · IACS E10
Commissioning interfaceEcoStruxure Power Commission desktop · EcoStruxure Power Commission Mobile (through Wi-Fi Access point) · EcoStruxure Power Commission web (for third party device integration) · Web page
Connections - terminalsPower supply: screw terminal block (top) 1.5…2.5 mm² cable(s) · Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s)
IP degree of protectionIP40 (front face) · IP20 (casing)
Communication iinterfaceModbus and wireless (IEEE802.15.4) product
Product or component typeGateway
[Us] rated supply voltage110...277 V AC 50/60 Hz · 110...277 V DC
Communication network typeHW V2: Wi-Fi infrastructure5 GHz · HW V2: Wi-Fi infrastructure2.4 GHz · HW V1: Wi-Fi infrastructure 10/100BASE-T2.4 GHz · Ethernet 10/100BASE-T2.4 GHz · Wi-Fi access point IEEE 802.15.42.4 GHz · Wireless IEEE 802.15.4 even/odd or none parity 1.2...115.2 kbit/s · Modbus RTU Modbus RTU client even/odd or none parity 1.2...115.2 kbit/s
Communication port support2 RJ45: ETHERNET · Screw terminal block: RS485
Number of server device(s)32 Modbus RTU product(s) · 128 Modbus TCP/IP product(s) · 40 wireless (IEEE 802.15.4) product(s) - mixed · 85 wireless (IEEE 802.15.4) product(s) - depending on configuration
Communication port protocolModbus TCP · DHCP · HTTPS · NTP/SNTP · IPv4 · IPv6 · TCP/IP
Product specific applicationWireless Schneider Electric devices ecosystem
Time synchronisation protocolNTP · SNTP
Maximum power consumption in WHW V2: 3.5 W 110...277 V · HW V1: 3 W 110...277 V
Maximum power consumption in VAHW V2: 12 VA at 110...277 V · HW V1: 10 VA at 110...277 V
Ambient air temperature for operation-25…70 °C
Data buffer for data publication (cloud, SFTP, HTTPS) depending on network1 month(s)
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
