Schneider Zelio Logic Modular Smart Relay · 26 I O · 24 V DC · clock · displaySR3B262BD↓ 1% off MRP1 / 5
BrandSchneider
CategoryIndustrial Control
Brand SKUSR3B262BD
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Zelio Logic Modular Smart Relay · 26 I O · 24 V DC · clock · display

NEW added this week
₹59,149/pcincl. GST-1%
₹50,126 + 18% GST · MRP ₹59,747
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹59,149 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider Zelio Logic Modular Smart Relay · 26 I O · 24 V DC · clock · display: Elume price today ₹59,149 per pc incl. GST, 1% below the ₹59,747 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹63,929₹61,699₹59,469₹57,239₹55,009₹59,747₹59,149
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹59,149
MRP
₹59,747
Lowest in view · 17 Oct
₹59,149
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹56,192/pc on this product

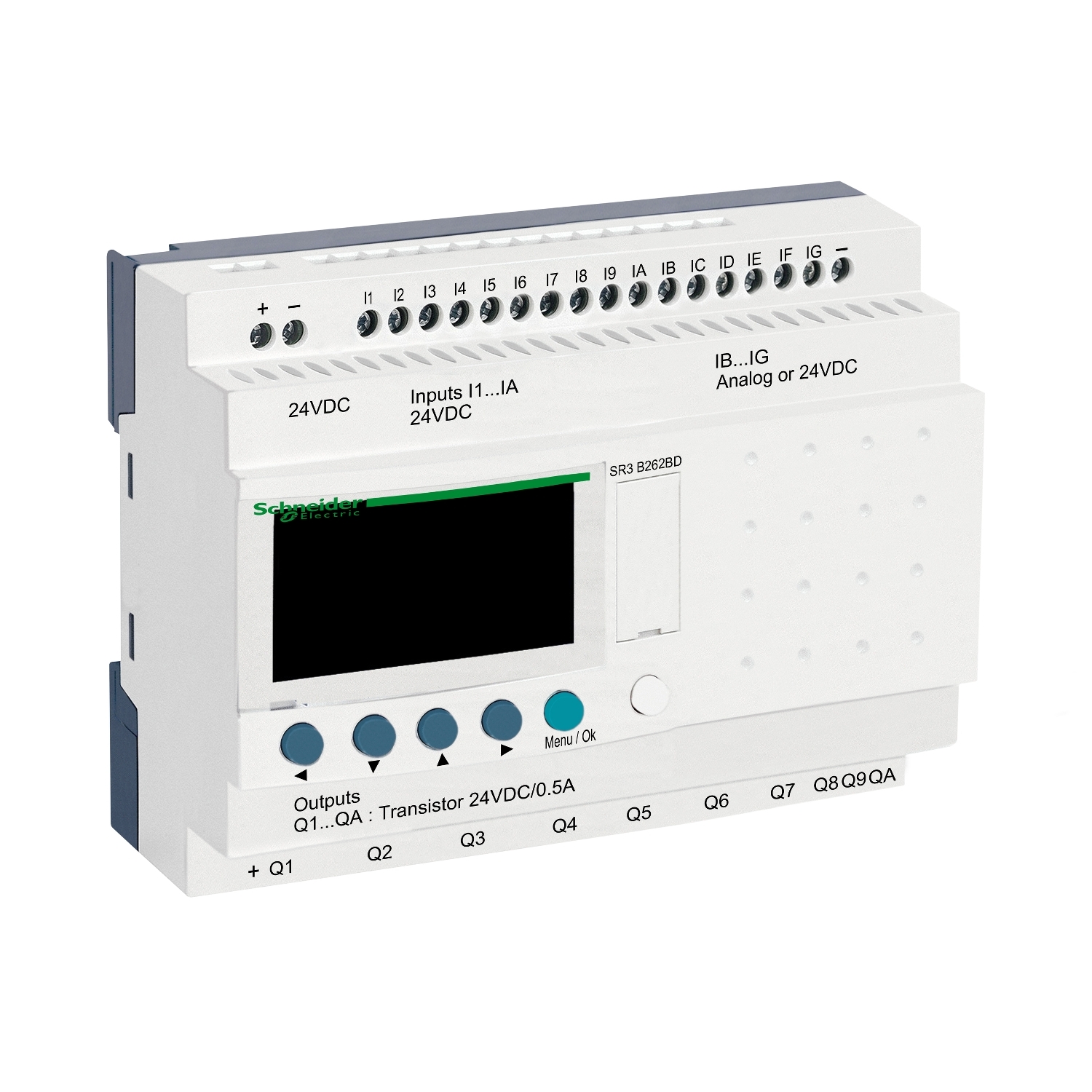

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Zelio Logic Modular Smart Relay · 26 I O · 24 V DC · clock · display · SR3B262BD
Ingress protectionIP20 (terminal block)· IP40 (front panel)
Reference standardIEC 60068-2-27 Ea
Net weight0.3 kg
BrandSchneider
Brand SKUSR3B262BD
ELINEGMPKJ447D
Sold asPer pc
ClockWith
ChecksProgram memory on each power up
LSB value39 mV for analogue input circuit
Cycle time6…90 ms
Backup time10 years at 25 °C
Clock drift12 min/year at 0…55 °C · 6 s/month at 25 °C
Load current0.5…0.625 A transistor output
Local displayWith
Output voltage24 V transistor output
Conversion timeSmart relay cycle time for analogue input circuit
Input impedance12 kOhm for IB...IG used as analogue input circuit · 12 kOhm for IB...IG used as discrete input circuit · 7.4 kOhm for I1...IA and IH...IR discrete input circuit
Repeat accuracy+/- 2 % at 55 °C for analogue input circuit
Conversion error+/- 5 % at 25 °C for analogue input circuit · +/- 6.2 % at 55 °C for analogue input circuit
Range of productZelio Logic
Number of outputs10 transistor
Counting frequency1 kHz for discrete input
Operating distance10 m between stations, with screened cable (sensor not isolated) for analogue input circuit
Analogue input typeCommon mode
Discrete input typeResistive
Input compatibility3-wire proximity sensors PNP for discrete input
Overload protectionWith overload protection for transistor output
Analogue input range0...24 V · 0...10 V
Analogue input number6
Discrete input number16 conforming to IEC 61131-2 Type 1
Output voltage limits19.2...30 V DC (transistor output)
Supply voltage limits19.2…30 V
Discrete input current4 mA
Discrete input voltage24 V DC
Maximum supply current180 mA (with extensions) · 70 mA (without extension)
Overvoltage protectionWith overvoltage protection for transistor output
Power dissipation in W10 W with extensions · 5 W without extension
Temperature probe typeNTC 10k at 25 °C · NTC 1000k at 25 °C · KTY81 210/220/221/222/250 · Pt 500
[Ures] residual voltage2 V at state 1 transistor output
Short-circuit protectionWith transistor output
Analogue input resolution8 bits
Product or component typeModular smart relay
[Us] rated supply voltage24 V
Current state 0 guaranteed<= 0.5 mA (IB...IG used as discrete input circuit) · <= 0.75 mA (I1...IA and IH...IR discrete input circuit)
Current state 1 guaranteed>= 1.2 mA (IB...IG used as discrete input circuit) · >= 2.2 mA (I1...IA and IH...IR discrete input circuit)
Voltage state 0 guaranteed<= 5 V for I1...IA and IH...IR discrete input circuit · <= 5 V for IB...IG used as discrete input circuit
Voltage state 1 guaranteed>= 15 V for I1...IA and IH...IR discrete input circuit · >= 15 V for IB...IG used as discrete input circuit
Maximum permissible voltage30 V for analogue input circuit
Reverse polarity protectionWith
Number or control scheme lines0…500 with FBD programming · 0…240 with ladder programming
[Uimp] rated impulse withstand voltage4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Other Schneider ranges and models in this category, closest in price to this one.
Is Schneider Zelio Logic Modular Smart Relay · 26 I O · 24 V DC · clock · display genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
