Legrand Allzy Cover Plate with Frame · 2 x 4 M · White · 681306: Elume price today ₹259 per pc incl. GST, 33% below the ₹388 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹209, ₹50 less than here. The lowest tracked seller lists it at ₹209, ₹50 below it (tell us and we match it).

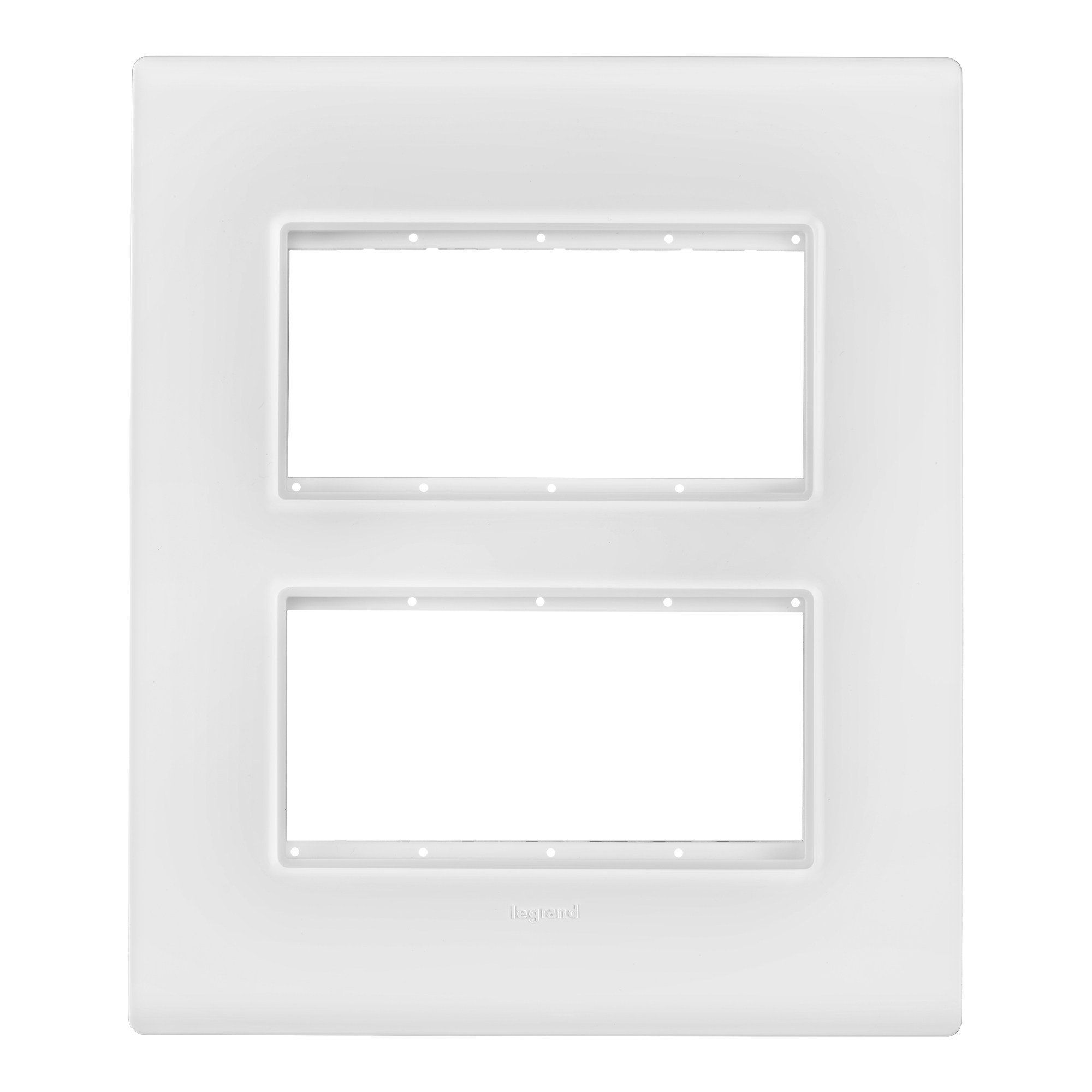

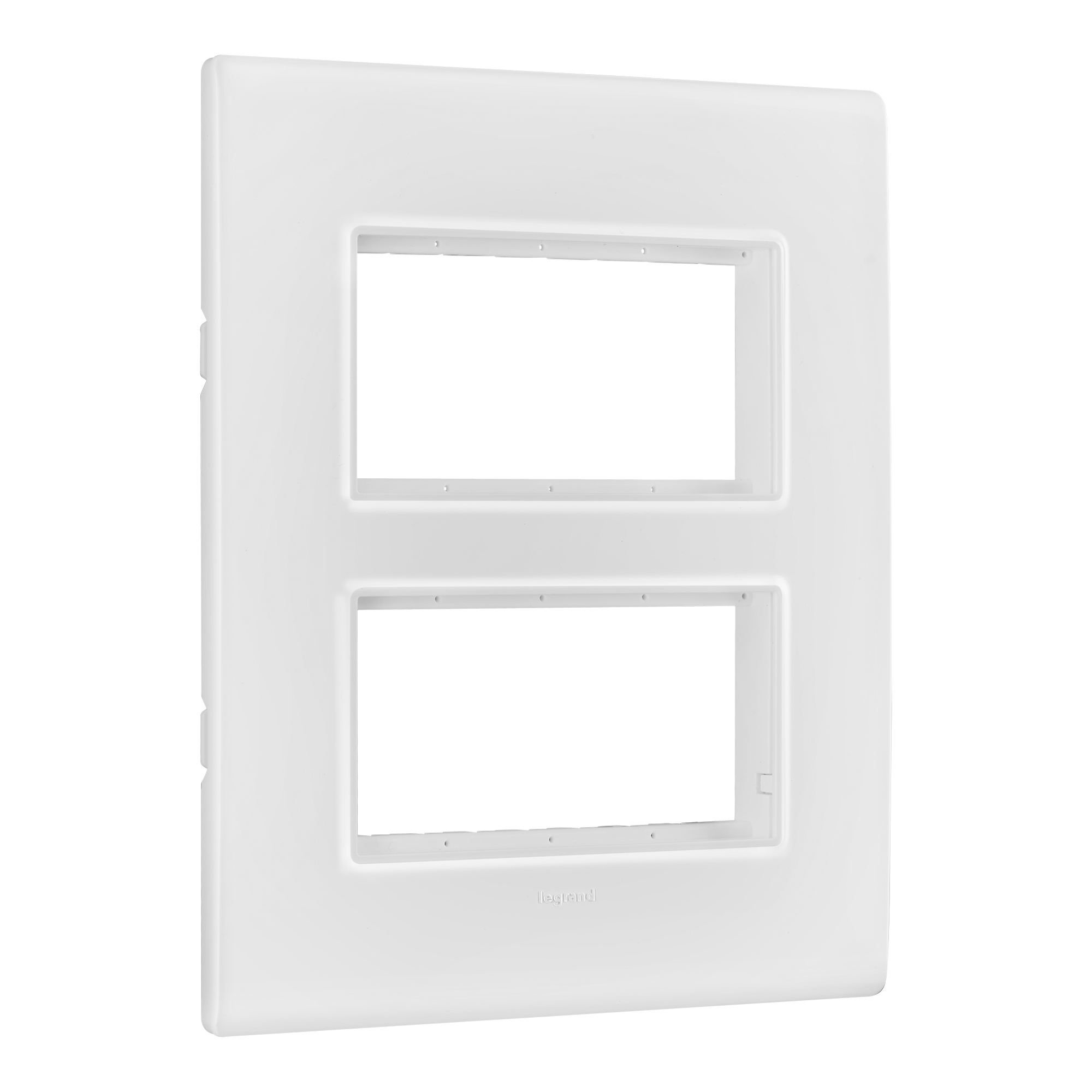

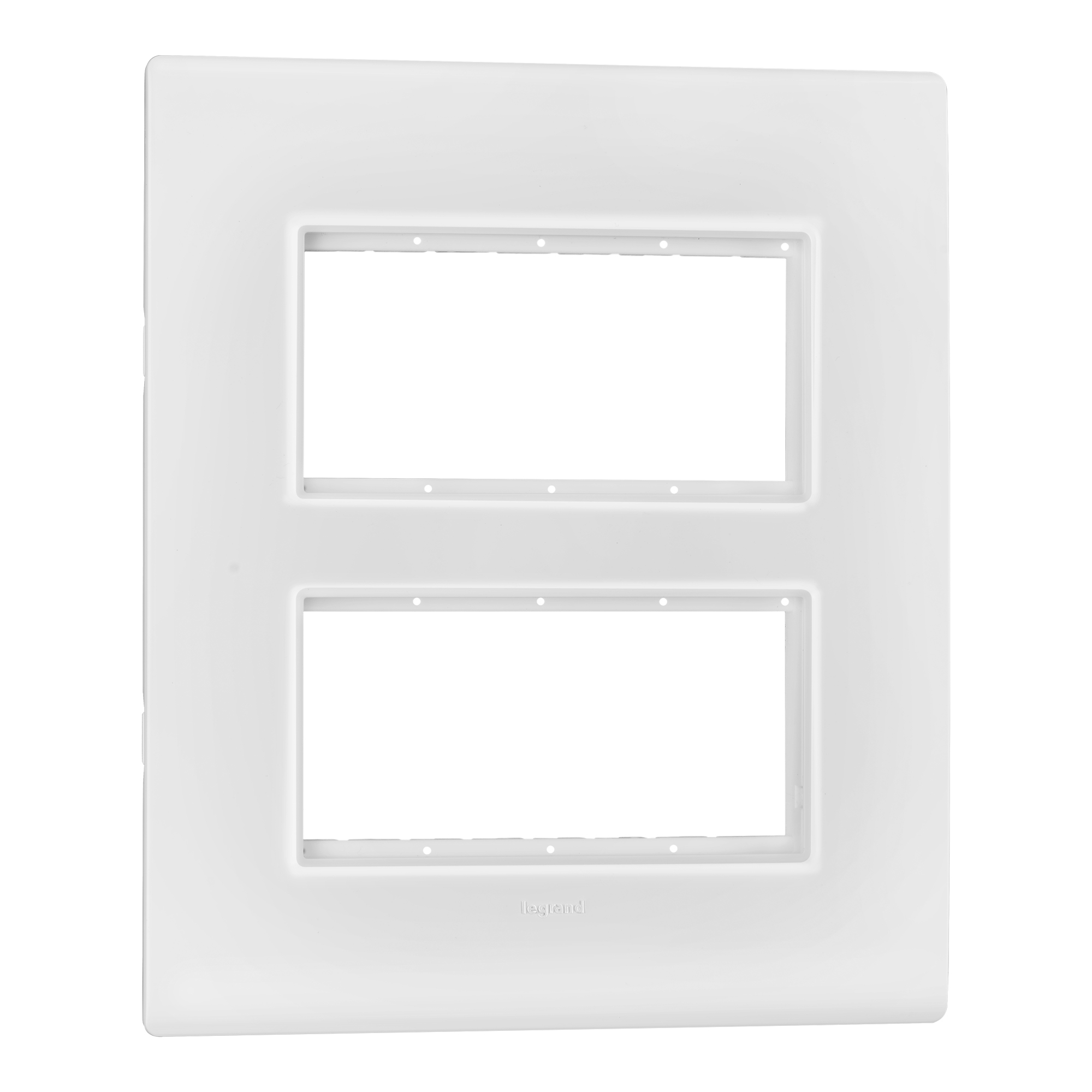

The Allzy range product with CAT number 681306 is a Plate and Frame 2X4M (8M V) in White, designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. This plate and frame combination is suitable for both flush and surface-mounted installations, providing flexibility in various mounting environments. The product features a 2X4M (8M V) module configuration, making it versatile for different applications. The overall dimensions of the plate and frame are 146 mm in width, 172 mm in height, and 8.2 mm in depth, with a weight of 112 grams, ensuring a compact and lightweight design. The connection is achieved through screwing with screws on either a flush box or a surface box, ensuring a secure and stable installation. The material characteristics include a polycarbonate plate in white and a frame made of High Impact Polystyrene (HIPS), both known for their durability and strength. The screws are made of steel with zinc plating, providing corrosion resistance and longevity. The product also features self-extinguishing properties rated at 850°C for 30 seconds, ensuring safety in case of overheating. The Allzy Plate and Frame 2X4M (8M V) conforms to company s
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
