Legrand Myrius NextGen Cover Plate with Frame · 4 M · Classic White · 679504: Elume price today ₹209 per pc incl. GST, 35% below the ₹324 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹169, ₹40 less than here. The lowest tracked seller lists it at ₹169, ₹40 below it (tell us and we match it).

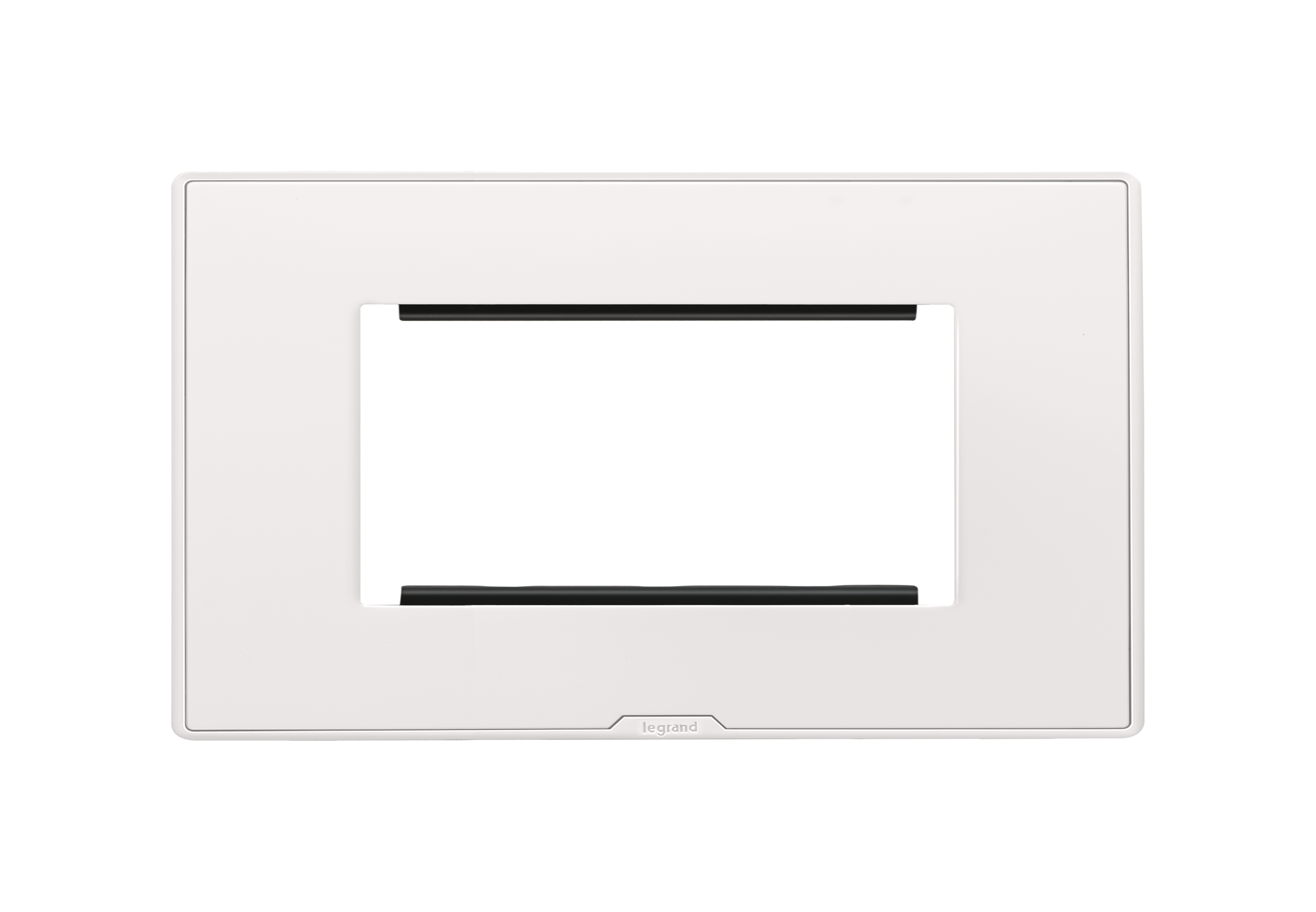

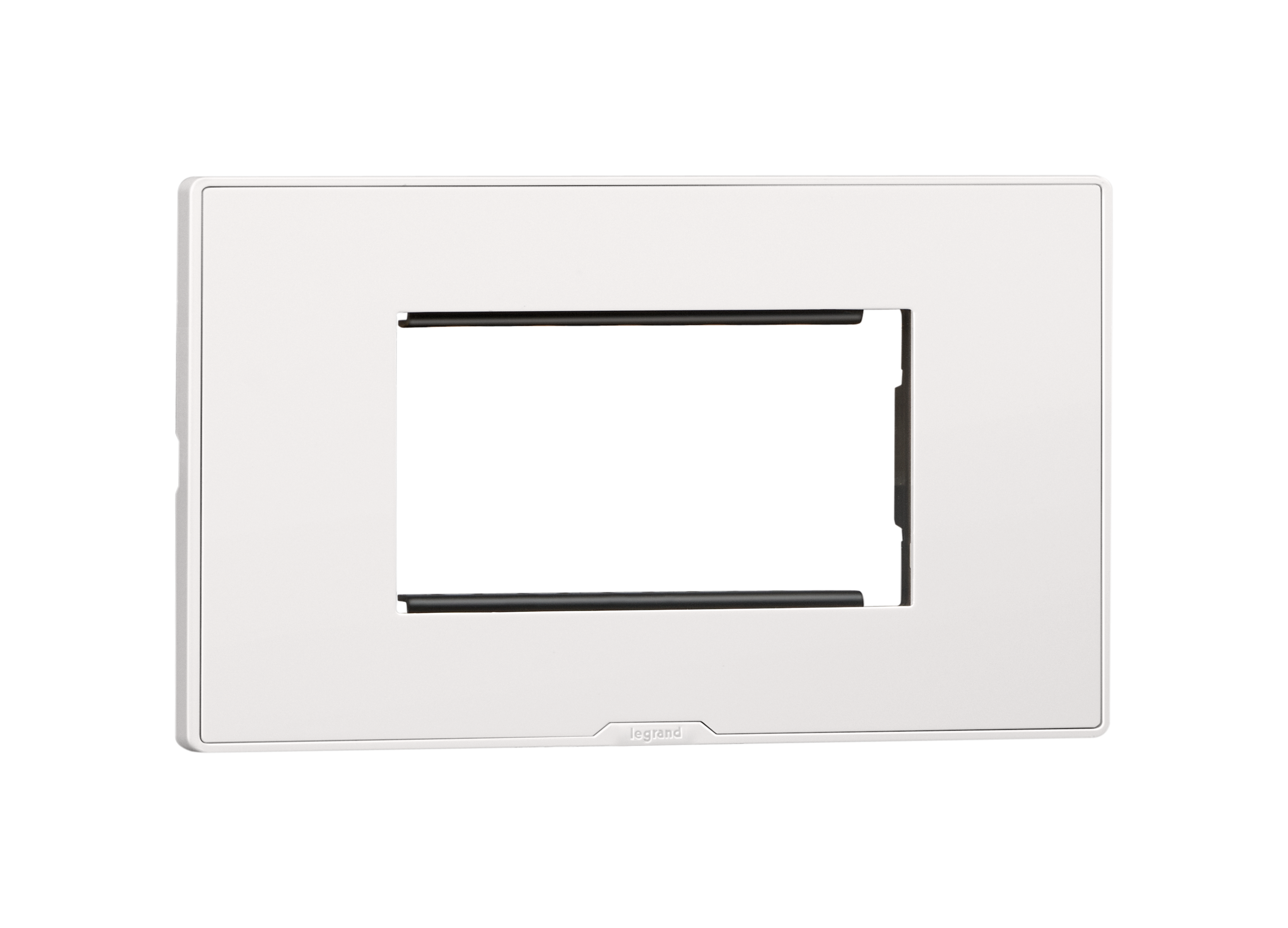

The Myrius range product with CAT number 679504 is a Plate and Frame 4M White, designed for mechanism mounting and subsequent fixing of the complete assembly on walls. It is a 4-module plate with a classic white color, suitable for both flush and surface-mounted installations. The product has compact dimensions of 146 mm width, 86 mm height, and 6.5 mm depth, with a weight of 99.32 grams. Connection is achieved through screwing with screws on a flush box or surface box. The front and under plates are made of durable polycarbonate material, while the frame is constructed from CRCA steel, ensuring robustness. The screws are steel with zinc plating for added durability. The product is self-extinguishing at 850°C for 30 seconds, adhering to Legrand standards for safety and reliability.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
