Legrand Myrius NextGen Bell Push Switch · 1-way · 6 A · 1 M · Classic White · 679220: Elume price today ₹223 per pc incl. GST, 36% below the ₹346 MRP. The price has held steady for the last 30 days. The average price across the sellers we track is ₹180, ₹43 less than here. The lowest tracked seller lists it at ₹180, ₹43 below it (tell us and we match it).

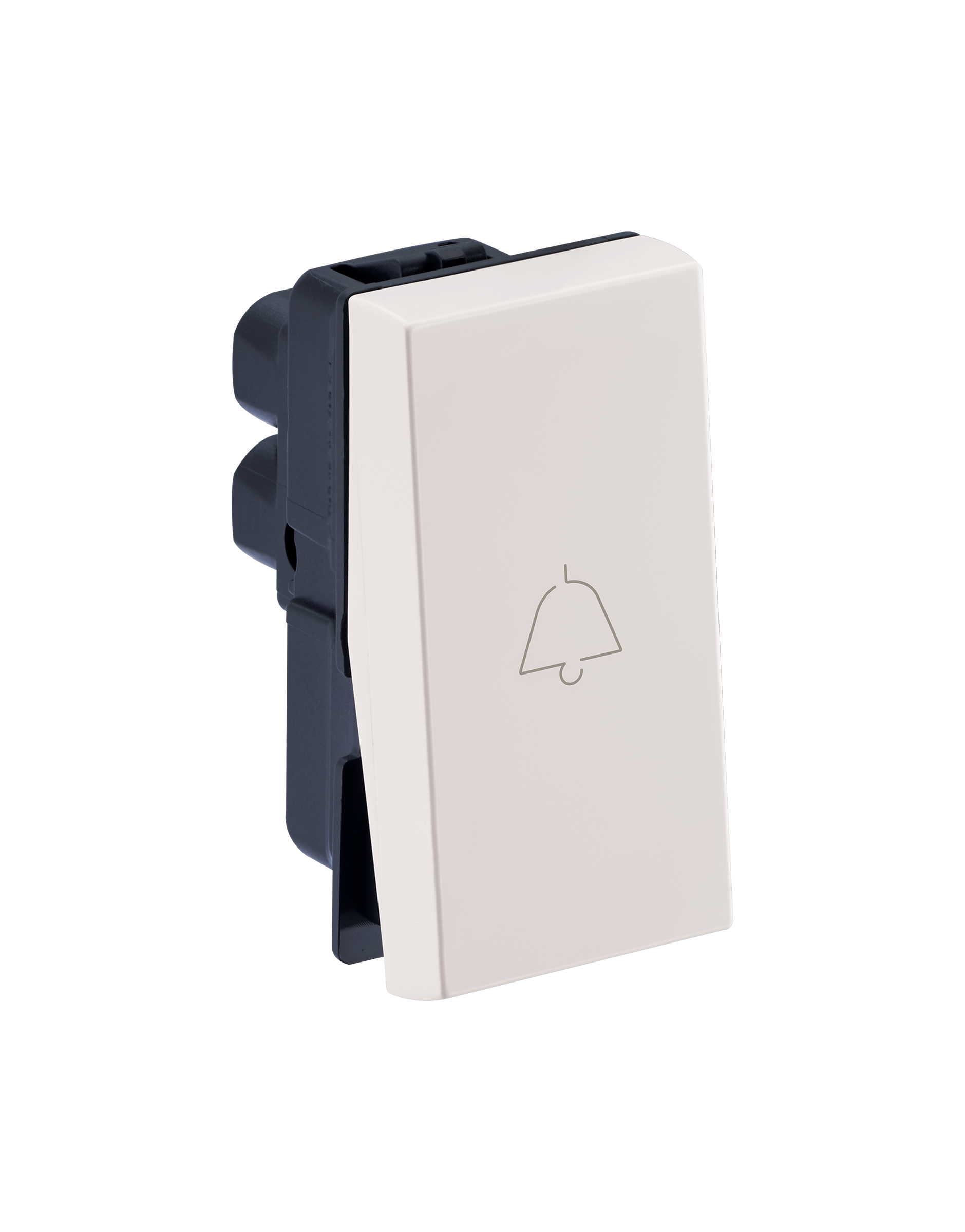

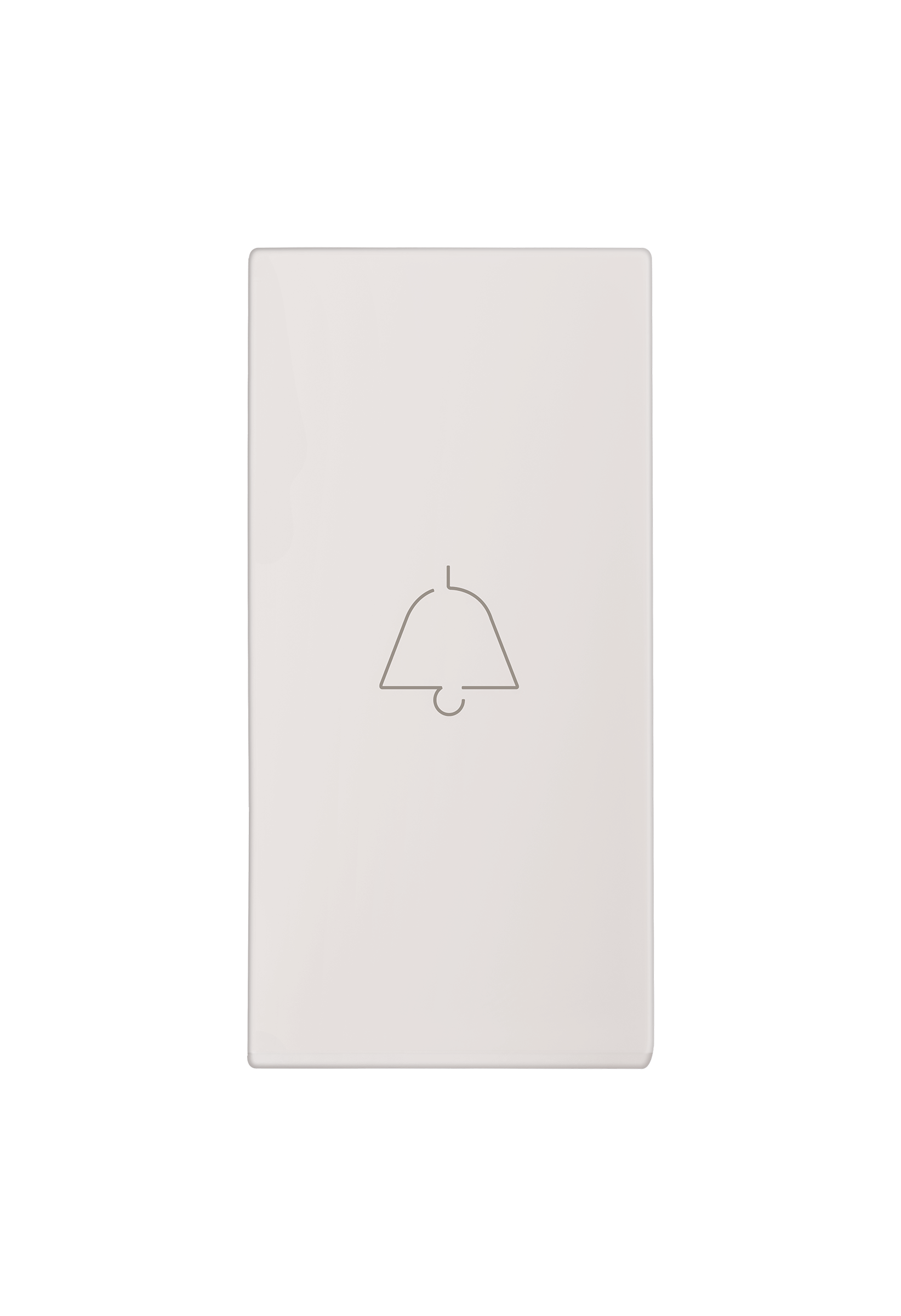

The Myrius range product with CAT number 679220 is a 6A Bell Push 1W1M White switch designed for general lighting control. It is a one-way square single pole switch with a bell symbol, featuring a single module. The switch is available in white color and supports both flush and surface mounting. Its dimensions are 22.5 mm (width), 45.1 mm (height), and 37.8 mm (depth), with a weight of 15.6 grams. The connection terminals are screw-based, with a capacity of 0.75mm² to 1.5mm² and a wire stripping length of 10 mm. It operates with a rocker mechanism and is constructed using high-quality materials such as polycarbonate for the rocker, base, and plunger, brass for contact and pivot terminals, stainless steel for the rocker spring, and silver for the contact tip. The switch is rated for 230V AC and 6A current, with self-extinguishing properties of 850°C/30s. It conforms to IS:3854 standards, ensuring reliability and safety.
A bell push is a momentary switch that completes the circuit only while it is pressed and springs back when released. It is used for doorbells and buzzers.
Yes, it works with standard 230 V doorbells and chimes wired through a switch. Wireless doorbells do not need a wired bell push.
No, a normal switch stays on, which would keep the bell ringing and can burn the bell coil. Use a bell push or a press switch.
An indicator module glows to show that power is present or that a load such as a geyser or pump is on. It is useful for heavy appliances and for locating switchboards in the dark.
Neon and LED indicators consume very little power, typically well under a watt. Their running cost is negligible.
Standard modular bell pushes are meant for indoor or sheltered locations. For an exposed gate or wall, use a weatherproof box or an outdoor-rated bell push.
