Schneider Acti9 iOF/SD+OF Double OC Or Fault Contact · Auxiliary contact · Acti9 A9 A · 2 C/OA9A26909↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
SpecificationAuxiliary contact · Acti9 A9 A · 2 C/O · 100mA to 6 A · 24 VAC to 415 VAC
Brand SKUA9A26909
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Acti9 iOF/SD+OF Double OC Or Fault Contact · Auxiliary contact · Acti9 A9 A · 2 C/O

NEW added this week
₹3,287/pcincl. GST-1%
₹2,786 + 18% GST · MRP ₹3,321
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹3,287 /pc incl. GST
Free delivery over ₹4,000

Schneider Acti9 iOF/SD+OF Double OC Or Fault Contact · Auxiliary contact · Acti9 A9 A · 2 C/O: Elume price today ₹3,287 per pc incl. GST, 1% below the ₹3,321 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹3,553₹3,429₹3,305₹3,181₹3,057₹3,321₹3,287
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹3,287
MRP
₹3,321
Lowest in view · 17 Oct
₹3,287
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹3,123/pc on this product

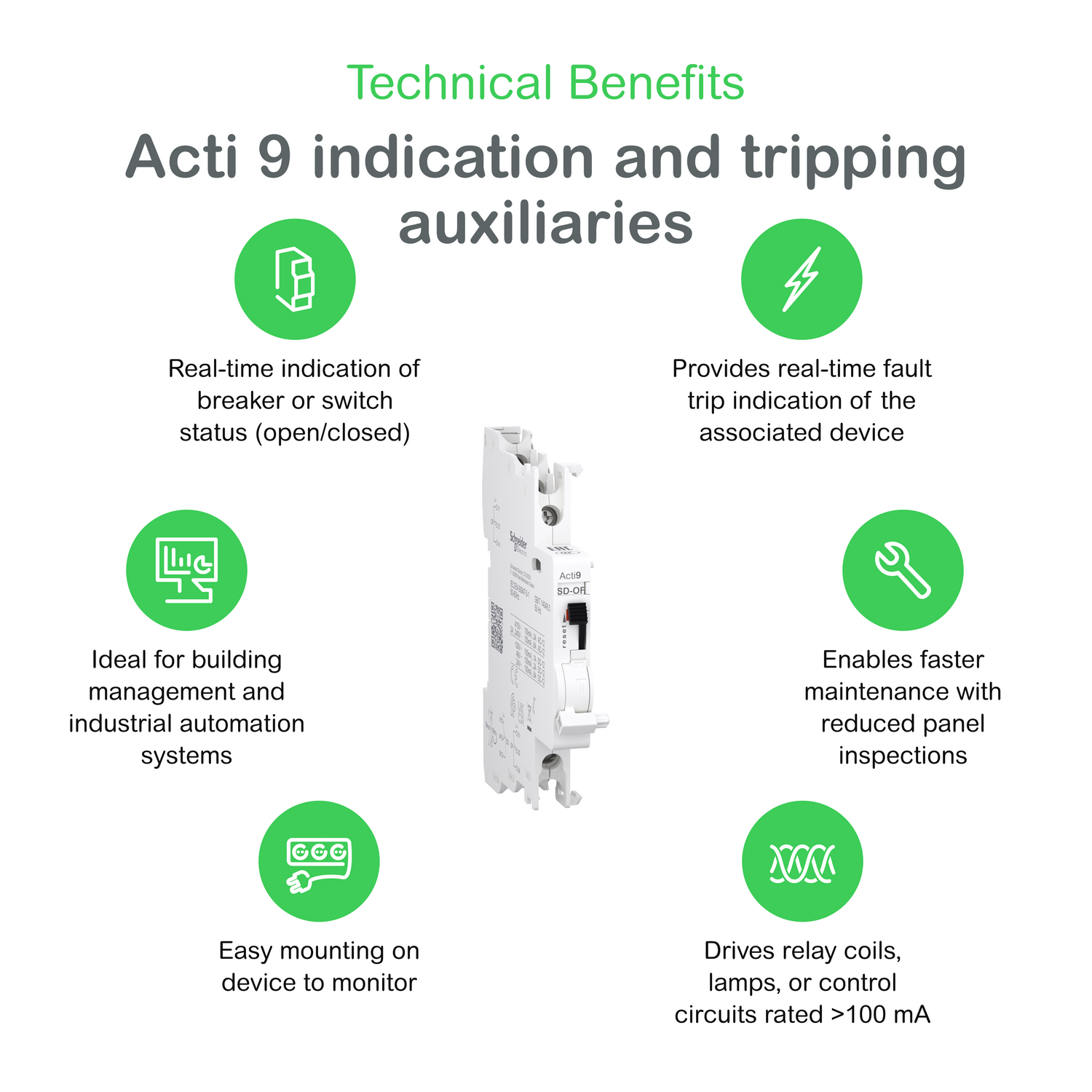

This Acti9 electrical auxiliary is a modular OC and fault contact. The 2 contacts (2 NO/NC) can report the signalling information of the associated device. In AC network, the In rated current is from 100mA to 6A with operating frequency of 50Hz to 60Hz at 240VAC, and from 100mA to 3A with operating frequency of 50Hz to 60Hz at 415VAC. In DC network, the In rated current always begins at 100mA at 24VDC to 130VDC. It goes up 6A at 24VDC, 2A at 48VDC, 1.5A at 60VDC and 1A at 130VDC. It has 2 position switches with contacts type 2 C/O. It is intended for new or renovated installation in small commercial or buildings. This OC and fault contact is compatible with Acti9 ranges such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC60 and iID double terminals residual current circuit breaker (RCCB). The OC and fault contact is installed for only Acti9 ranges such as iID, iDPN Vigi, iSW-NA, ARA, iC60 and RCA devices which includes 2 changeover contacts. If there is no comb busbar, it is also compatible with iC40, iC40 ARC, iCV40, iCV40 Vigi ARC. The iSD+OF is either used for device short name or compatibility code. The mechanical indicator is provided on the product for signalling (L

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 iOF/SD+OF Double OC Or Fault Contact · Auxiliary contact · Acti9 A9 A · 2 C/O · A9A26909
Rated current6 A
Ingress protectionIP20
Reference standardEN/IEC 60947-5-1
Net weight0.043 kg
ColourWhite
Device typeMiniature circuit breaker (MCB)
Current rating9 A
BrandSchneider
Brand SKUA9A26909
ELINEG933CJ97G
Sold asPer pc
Depth73 mm
Width9 mm
Height90 mm
StandardsEN/IEC 60947-5-1 · GB/T 14048.5
9 mm pitches1
Mounting modeClip-on
Quality labelsEAC · CCC · CMIM
Tropicalisation2
Local signallingMechanical indicator
Mounting supportDIN rail
Pollution degree3
range of productActi9
Device short nameiOF/SD+OF
Mounting locationLeft side of circuit-breaker
Relative humidity95 % at 55 °C
Tightening torque1 N.m top and bottom
[In] rated current0.1…6 A at 24...240 V, AC 50/60 Hz · 0.1…3 A at 415 V, AC 50/60 Hz · 0.1…6 A at 24 V, DC · 0.1…2 A at 48 V, DC · 0.1…1.5 A at 60 V, DC · 0.1…1 A at 130 V, DC
Range compatibilityActi9 iC60 · Acti9 iID · Acti9 ARA · Acti9 RCA · Acti9 iDPN Vigi · Acti9 iC40 · Acti9 iSW-NA · Acti9 iCVm40 · Acti9 iCVr40 · Acti9 iDDm40
Wire stripping length10 mm
Product certificationsCE · UKCA
Connections - terminalsScrew clamp terminal (top and bottom): 1 cable(s) 0.5…2.5 mm² - flexible · Screw clamp terminal (top and bottom): 1 cable(s) 1…4 mm² - rigid · Screw clamp terminal (top and bottom): 2 cable(s) 2.5 mm² - rigid · Screw clamp terminal (top and bottom): 2 cable(s) 1.5 mm² - flexible with ferrule
IP degree of protectionIP20
Product or component typeDouble OC or fault contact
Signal contacts composition2 C/O
[Ui] rated insulation voltage500 V
Ambient air temperature for storage-40…85 °C
Ambient air temperature for operation-35…70 °C
[Uimp] rated impulse withstand voltage4 kV
Comb busbar and distribution block compatibilityNO
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
