Legrand Myrius NextGen Cover Plate with Frame · 8 M · Ice White · 679528: Elume price today ₹570 per pc incl. GST, 36% below the ₹890 MRP. The price has held steady for the last 30 days.

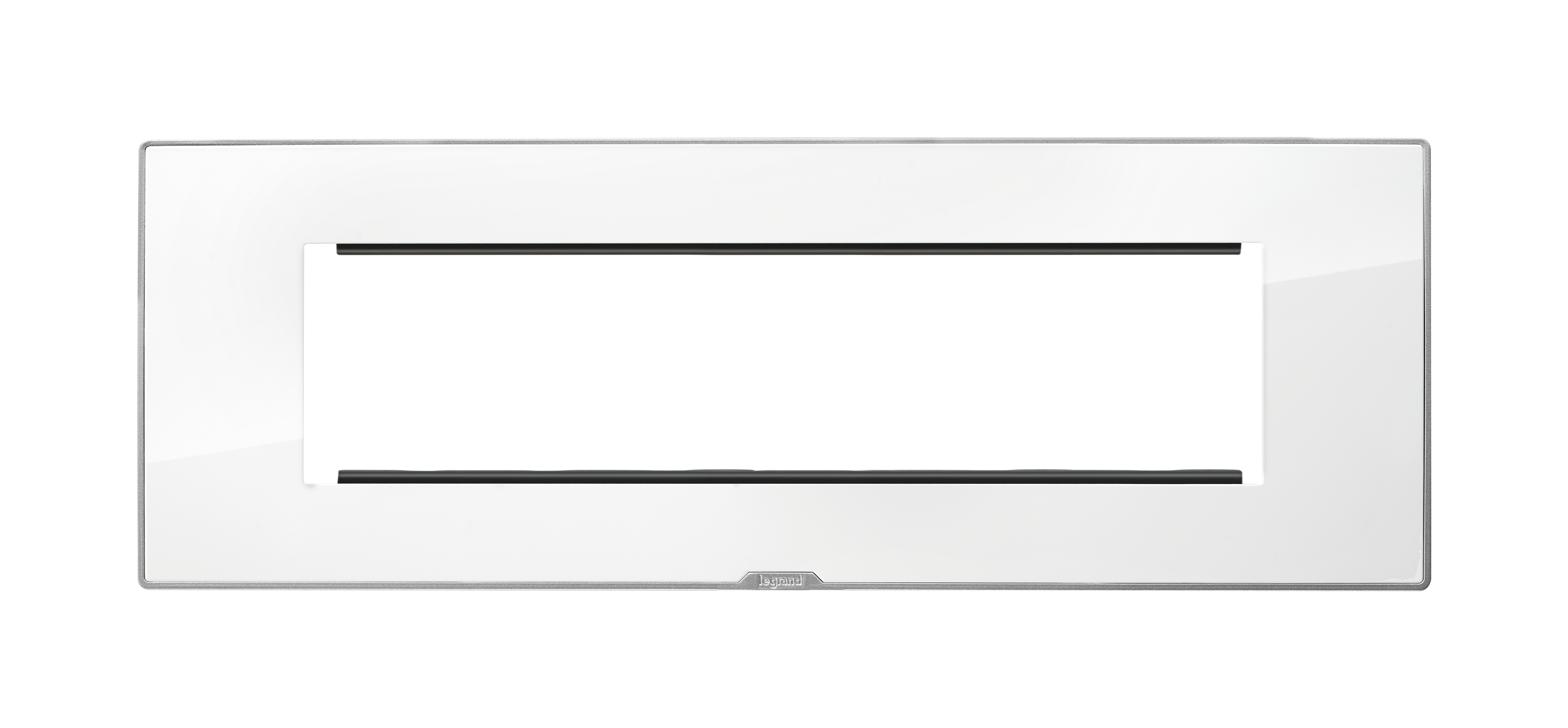

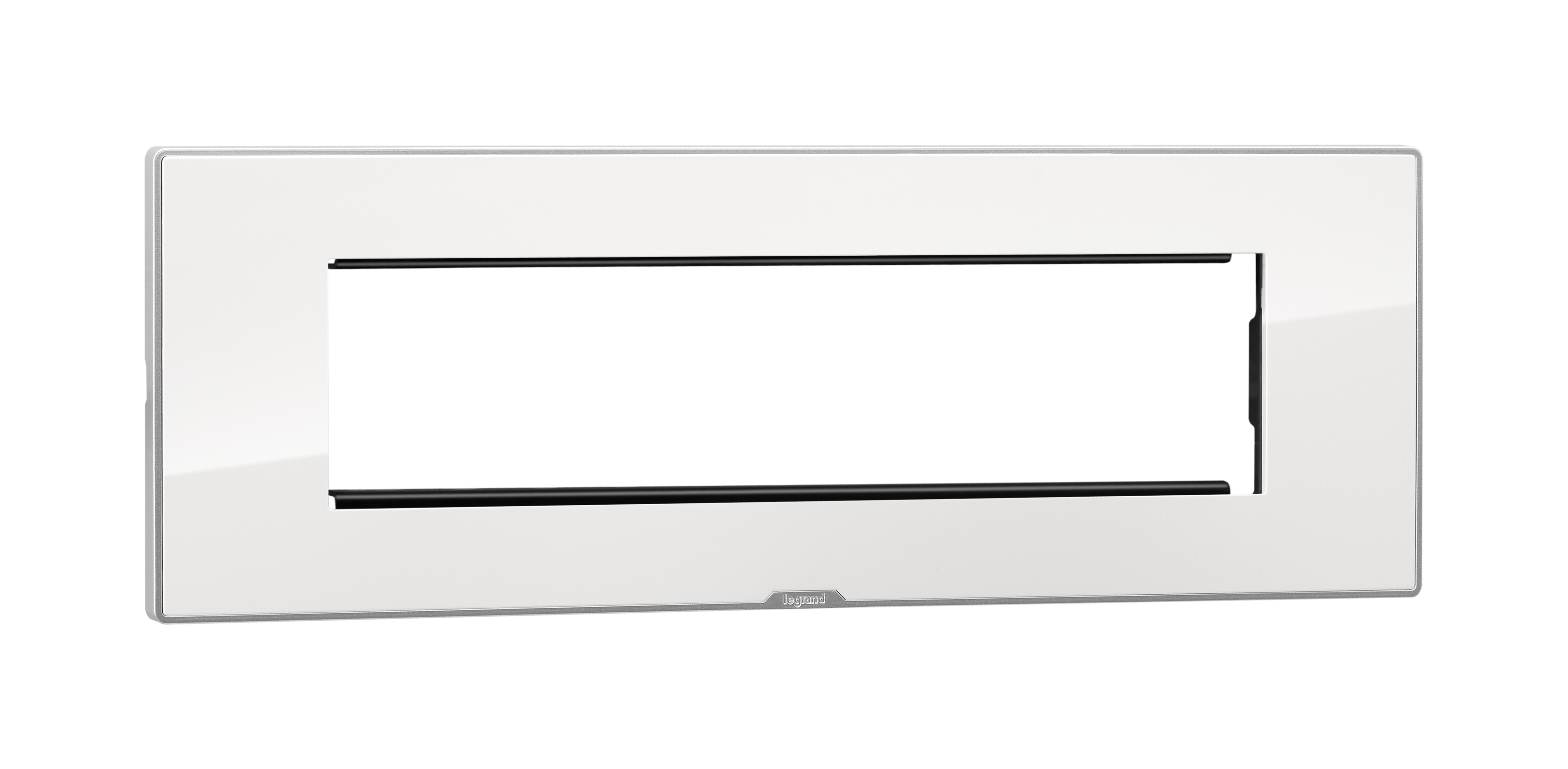

The Myrius range product with CAT number 679528 is an 8M Plate and Frame in Ice White color. It is designed for mechanism mounting and subsequent fixing of the complete assembly on the wall. The plate supports both flush and surface mounting, with dimensions of 245.2 mm width, 86 mm height, and 6.5 mm depth. It is made of Acrylonitrile Butadiene Styrene (ABS) for the front plate, polycarbonate for the under plate, and CRCA steel for the frame. The screws are steel with zinc plating, and the product is self-extinguishing at 850°C for 30 seconds. It conforms to Legrand standards.
Usually not - plates and frames are designed for the switches of the same brand and series. Mixing brands can lead to loose modules or gaps, so buy switches and plates from the same range.
It will fit a modular box of the same module size and fixing-screw spacing, which is fairly standard within a brand. Older non-modular boxes may need replacing or an adaptor frame.
Many series use a grid or support frame that holds the modules, with a decorative cover plate clipping on top. Some plates come with the frame included; check the product description.
Yes, glass and metal finish plates from reputed brands are designed for safe use, with the live parts enclosed in the switch modules. Metal plates should be earthed as per the manufacturer's instructions.
Most plates can be mounted either way if the box is fixed in that orientation, but the box must be installed to match before plastering. Decide the layout during wiring.
