Schneider TeSys Deca GV3L Motor Protection Circuit Breaker · 3P · 100 kA · Dark grey · GV3L50GV3L50↓ 1% off MRP1 / 8
BrandSchneider
CategoryIndustrial Control
Specification3P · 100 kA
Brand SKUGV3L50
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

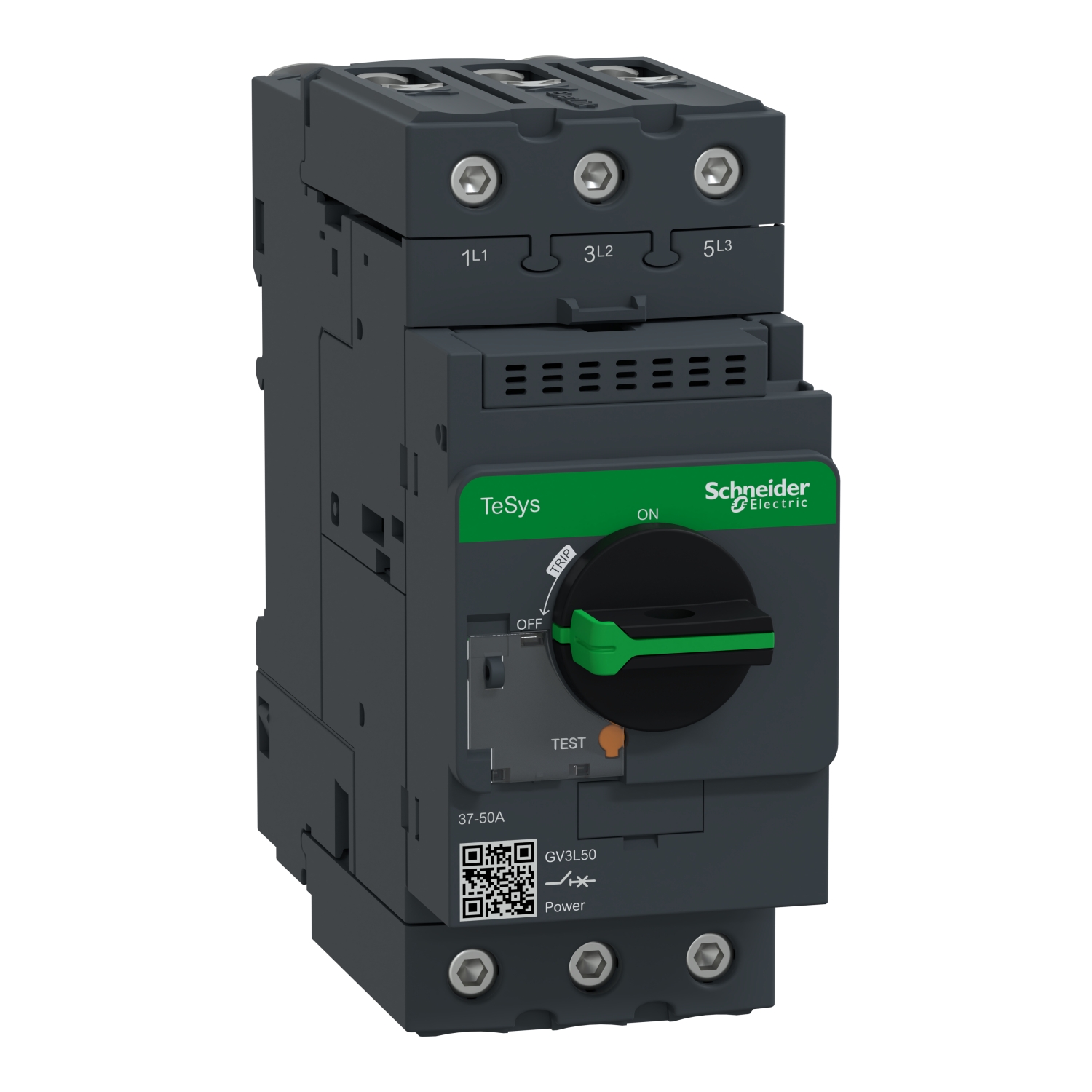

Schneider TeSys Deca GV3L Motor Protection Circuit Breaker · 3P · 100 kA · Dark grey · GV3L50

NEW added this week
₹35,507/pcincl. GST-1%
₹30,091 + 18% GST · MRP ₹35,866
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹35,507 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider TeSys Deca GV3L Motor Protection Circuit Breaker · 3P · 100 kA · Dark grey · GV3L50: Elume price today ₹35,507 per pc incl. GST, 1% below the ₹35,866 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
14 Oct to 20 Oct
₹38,377₹37,038₹35,699₹34,360₹33,022₹35,866₹35,507
14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct20 Oct
Elume today
₹35,507
MRP
₹35,866
Lowest in view · 17 Oct
₹35,507
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹33,732/pc on this product

TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for 3-phase motor applications 22kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD350 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider TeSys Deca GV3L Motor Protection Circuit Breaker · 3P · 100 kA · Dark grey · GV3L50 · GV3L50
Poles3P
Rated current50 A
Breaking capacity100 kA
Ingress protectionIP20
Reference standardEN/IEC 60947-2
ColourDark grey
Net weight0.96 kg
BrandSchneider
Brand SKUGV3L50
ELINEFRH44F322
Sold asPer pc
Depth136 mm
RangeTeSys Deca
Width55 mm
Height132 mm
StandardsEN/IEC 60947-2 · EN/IEC 60947-4-1 · UL 60947-4-1 · CSA C22.2 No 60947-4-1 · IEC/EN 60335-1:Clause 30.2 · IEC/EN 60335-2-40:Annex JJ
Rated dutyUninterrupted conforming to IEC 60947-4-1
Fixing mode35 mm symmetrical DIN rail: clipped · Panel: screwed (with 3 x M4 screws)
Control typeRotary handle
Network typeAC
Product nameTeSys GV3
Motor power kW22 kW at 400/415 V AC 50/60 Hz · 30 kW at 500 V AC 50/60 Hz · 45 kW at 690 V AC 50/60 Hz
Fire resistance960 °C conforming to IEC 60695-2-11
Device short nameGV3L
Mounting positionHorizontal · Vertical
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description3P
Tightening torque5 N.m - on screw clamp terminal
Climatic withstandconforming to IACS E10
Device applicationMotor protection
Operating altitude3000 m
[In] rated current50 A
Trip unit technologyMagnetic
Utilisation categoryCategory A conforming to IEC 60947-2 · AC-3 conforming to IEC 60947-4-1
Electrical durability50000 cycles for AC-3 at 415 V In
Mechanical durability50000 cycles
Mechanical robustnessShocks: 15 Gn for 11 ms contactor open · Shocks: 30 Gn for 11 ms contactor closed · Vibrations: 4 Gn, 5...300 Hz
Product certificationsCB Scheme · CE · UKCA · CCC · cULus · EAC · LROS (Lloyds register of shipping) · BV · ABS · DNV-GL
IP degree of protectionIP20 conforming to IEC 60529
Magnetic tripping current700 A
Product or component typeMotor circuit breaker
Suitability for isolationYes conforming to IEC 60947-1
Power dissipation per pole8 W
[Ui] rated insulation voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
Ambient air temperature for storage-40…80 °C
Ambient air temperature for operation-20…60 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
[Ith] conventional free air thermal current50 A conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz · 100 % at 400/415 V AC 50/60 Hz · 100 % at 440 V AC 50/60 Hz · 50 % at 500 V AC 50/60 Hz · 50 % at 690 V AC 50/60 Hz
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
