Schneider VigiPacT SA200 Earth Leakage Current Sensor · closed toroid A type50441↓ 1% off MRP1 / 2
BrandSchneider
CategorySwitchgear
Specificationclosed toroid A type · for Vigirex and Vigilhom · inner diameter 200 mm · rated current 400 A
Brand SKU50441
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider VigiPacT SA200 Earth Leakage Current Sensor · closed toroid A type

NEW added this week
₹58,831/pcincl. GST-1%
₹49,857 + 18% GST · MRP ₹59,425
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹58,831 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider VigiPacT SA200 Earth Leakage Current Sensor · closed toroid A type: Elume price today ₹58,831 per pc incl. GST, 1% below the ₹59,425 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹63,585₹61,367₹59,149₹56,931₹54,713₹59,425₹58,831
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹58,831
MRP
₹59,425
Lowest in view · 17 Oct
₹58,831
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹55,889/pc on this product

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 400A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 200 millimeters and the weight is 1.320kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 100 millimeters. The maximum cross section per phase (R, S, T, N) is 2 cables of 185mm² for a copper conductor.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider VigiPacT SA200 Earth Leakage Current Sensor · closed toroid A type · 50441
Rated current400 A
Ingress protectionBody: IP30
Reference standardIEC 60947-2
Net weight1.32 kg
Device typeMiniature circuit breaker (MCB)
Current rating400 A
BrandSchneider
Brand SKU50441
ELINEFJH7PG6P4
Sold asPer pc

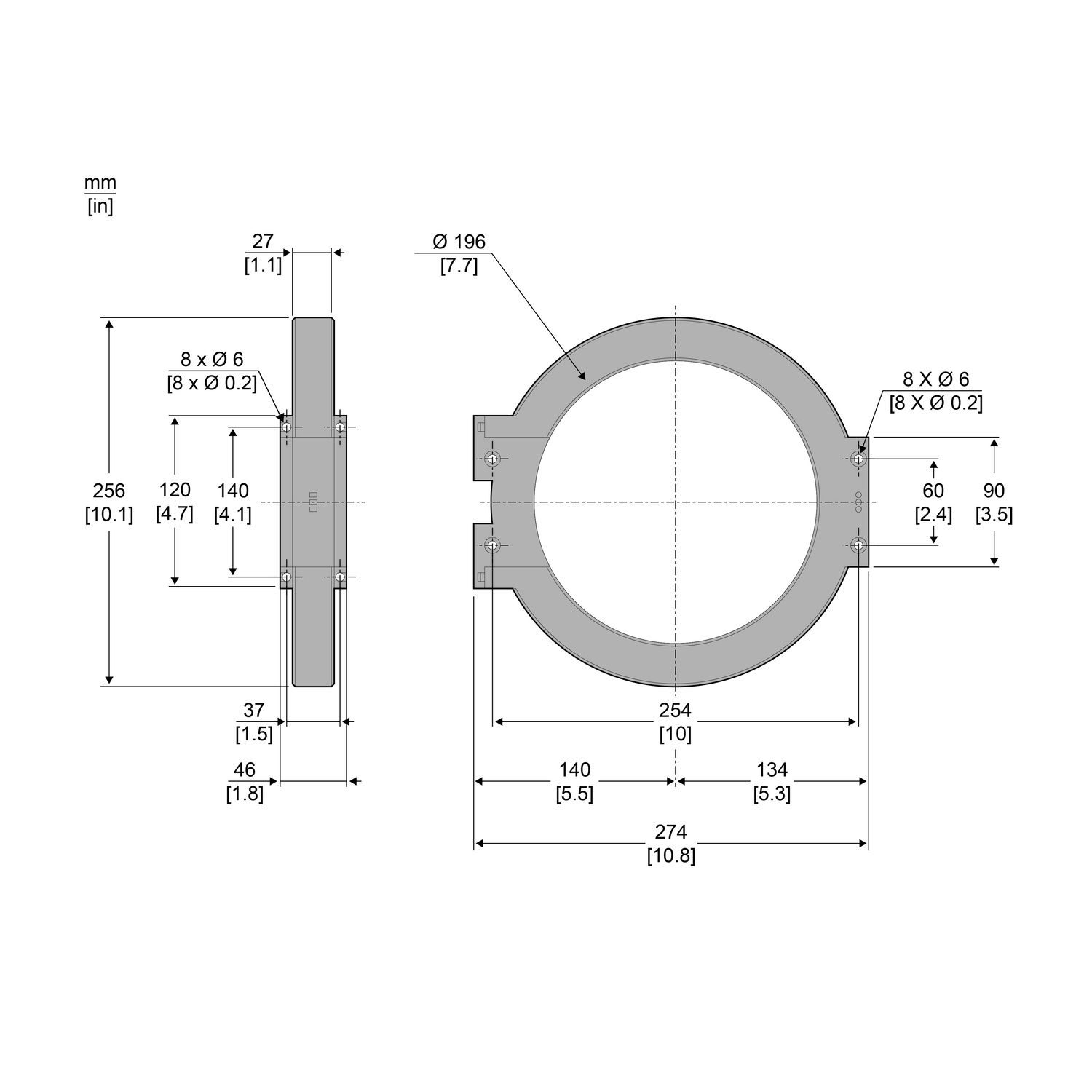

Depth46 mm
RangeVigiPacT
Width274 mm
Height256 mm
Diameter196 mm inner:
StandardsIEC 60947-2
Mounting modeFixed (cables) · Fixed (plain backplate) · Fixed (profiled sheet metal) · Fixed (slotted backplate)
Calorific value7.05 MJ
Pollution degreeLevel 3 conforming to IEC 60664-1
Device short nameSA200
Network frequency50/60 Hz · 400 Hz
Transformer ratio1/1000
Device applicationEquipment monitoring and control
Range compatibilityVigiPacT RH10M residual current protection relay · VigiPacT RH10P residual current protection relay · VigiPacT RH21M residual current protection relay · VigiPacT RH21P residual current protection relay · VigiPacT RH68M residual current protection relay · VigiPacT RH86M residual current protection relay · VigiPacT RH86P residual current protection relay · VigiPacT RH99M residual current protection
current sensor typeA type closed toroid
Overvoltage categoryIV
Product certificationsCE
Connections - terminalsScrew connection 0.22…2.5 mm²
IP degree of protectionBody: IP30 · Connectors: IP20
Product or component typeEarth leakage current sensor
Environmental characteristicExposure to damp heat in service: category C2: 48 hours conforming to IEC 60068-2-56 · Exposure to damp heat not in service (25...55 °C, RH 95 %) : 28 cycles conforming to IEC 60068-2-30 · Salt mist: Kb/2 conforming to IEC 60068-2-52
[Ui] rated insulation voltage1000 V
[Ie] rated operational current400 A
Ambient air temperature for storage-55…85 °C
Ambient air temperature for operation-35…70 °C
[Uimp] rated impulse withstand voltage12 kV
Residual short-circuit withstand current85 kA / 0.5 s conforming to IEC 60947-2
[Icw] rated short-time withstand current85 kA for 0.5 s
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
