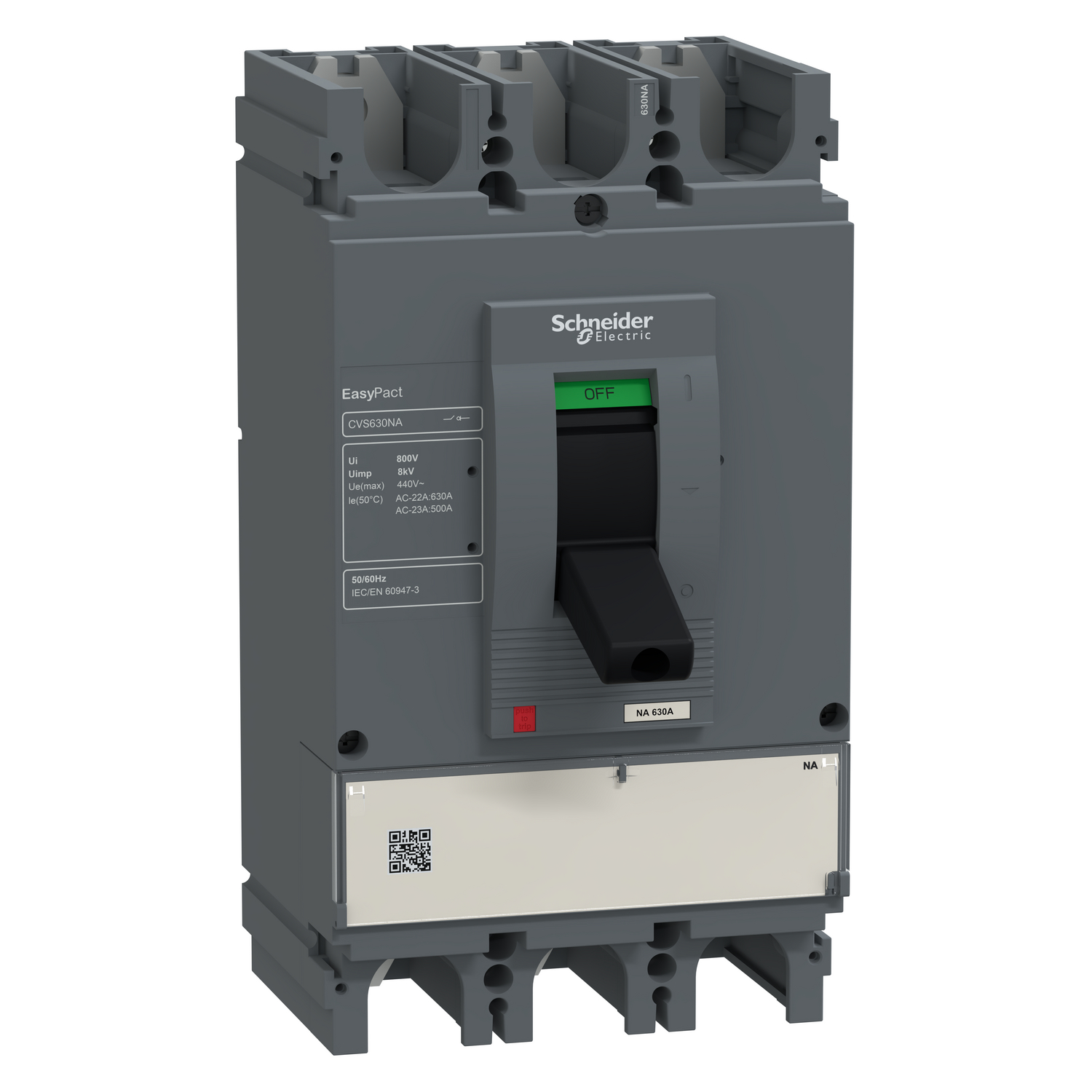

Schneider EasyPact CVS630NA Switch Disconnector · 3 poles · 630 A AC22 A · 500 A AC23 ALV563400↓ 1% off MRP1 / 5
BrandSchneider
CategorySwitchgear
Brand SKULV563400
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider EasyPact CVS630NA Switch Disconnector · 3 poles · 630 A AC22 A · 500 A AC23 A

NEW added this week
₹72,872/pcincl. GST-1%
₹61,756 + 18% GST · MRP ₹73,608
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹72,872 /pc incl. GST
Delivery ₹1,000, ships insured

Schneider EasyPact CVS630NA Switch Disconnector · 3 poles · 630 A AC22 A · 500 A AC23 A: Elume price today ₹72,872 per pc incl. GST, 1% below the ₹73,608 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹78,761₹76,013₹73,266₹70,518₹67,771₹73,608₹72,872
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹72,872
MRP
₹73,608
Lowest in view · 17 Oct
₹72,872
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹69,228/pc on this product

This device is a 630/500A switch disconnector from EasyPact CVS630. This operational current(Ie) is 630/500A, which is depending on utilisation category AC22 or AC23. The rated short-time withstand current(Icw) is 6000A(1s). The version of device is 3poles frame without tripping protection. It is conformed to standard EN/IEC60947-3 for switch disconnector products. This device is certified for operation in pollution degree III environment as defined IEC60947-1& IEC60664-1, and respected for RoHs requirement as european environment directive EC/2002/95. It can be mounted by blackplate or Din rail,also through the door of class II switchboard without downgrading switchboard insulation. The front of toggle offers IP40 protection, but when it is equiped extended rotary handle, additional IP54 protection degree for extended rotary handle. This series have slots for control auxiliaries(MN/MX),which is indicated contact status. The fixed dimension is 140mm(width).255mm(height),110mm(Depth),

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyPact CVS630NA Switch Disconnector · 3 poles · 630 A AC22 A · 500 A AC23 A · LV563400
Poles3P
Rated current22 A
Reference standardIEC 60947-3
Net weight6.2 kg
Device typeSwitch disconnector (isolator)
Current rating630 A
BrandSchneider
Brand SKULV563400
ELINEFJH32MMPF
Sold asPer pc
Depth110 mm
RangeEasyPact
Width140 mm
Height255 mm
StandardsIEC 60947-3 · EN 60947-3
Control typeToggle
Network typeAC
Product nameEasyPact CVS
Mounting modeFixed
Visible breakNo
Connection pitch45 mm
Mounting supportBackplate
Pollution degree3 conforming to IEC 60664-1
Range of productEasyPact CVS400...630
Device short nameCVS630NA
Network frequency50/60 Hz
Poles description3P
Upside connectionFront
Device applicationDistribution
Downside connectionFront
Utilisation categoryAC-22A · AC-23A
Electrical durabilityAC-22A: 2500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3 · AC-23A: 2500 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3
Mechanical durability15000 cycles conforming to IEC 60947-3
Breaking capacity codeNA
Product certificationsIEC · GOST
Earth-leakage protectionWithout
Product or component typeSwitch disconnector
Suitability for isolationYes conforming to EN 60947-3 · Yes conforming to IEC 60947-3
Contact position indicatorYes
[Ie] rated operational currentAC-22A: 630 A AC 50/60 Hz 220/240 V · AC-22A: 630 A AC 50/60 Hz 380/415 V · AC-22A: 630 A AC 50/60 Hz 440 V · AC-23A: 500 A AC 50/60 Hz 220/240 V · AC-23A: 500 A AC 50/60 Hz 380/415 V · AC-23A: 500 A AC 50/60 Hz 440 V
Electrical shock protection classClass II
Ambient air temperature for storage-50…85 °C
Ambient air temperature for operation-25…70 °C
[Icw] rated short-time withstand current6 kA during 1 s conforming to IEC 60947-3 · 6 kA during 3 s conforming to IEC 60947-3 · 2.32 kA during 20 s conforming to IEC 60947-3
[Icm] rated short-circuit making capacity105 kA with upstream protection circuit breaker · 8.5 kA switch-disconnector alone
[Ith] conventional free air thermal current600 A at 50 °C
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
