Schneider Harmony Timer Timing Relay · 1 NO + 1 NO · 5 ARE10RQM7N↓ 1% off MRP1 / 10
BrandSchneider
CategoryIndustrial Control
Brand SKURE10RQM7N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony Timer Timing Relay · 1 NO + 1 NO · 5 A

NEW added this week
₹1,783/pcincl. GST-1%
₹1,511 + 18% GST · MRP ₹1,801
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹1,783 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony Timer Timing Relay · 1 NO + 1 NO · 5 A: Elume price today ₹1,783 per pc incl. GST, 1% below the ₹1,801 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹1,927₹1,860₹1,793₹1,725₹1,658₹1,801₹1,783
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹1,783
MRP
₹1,801
Lowest in view · 17 Oct
₹1,783
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,694/pc on this product

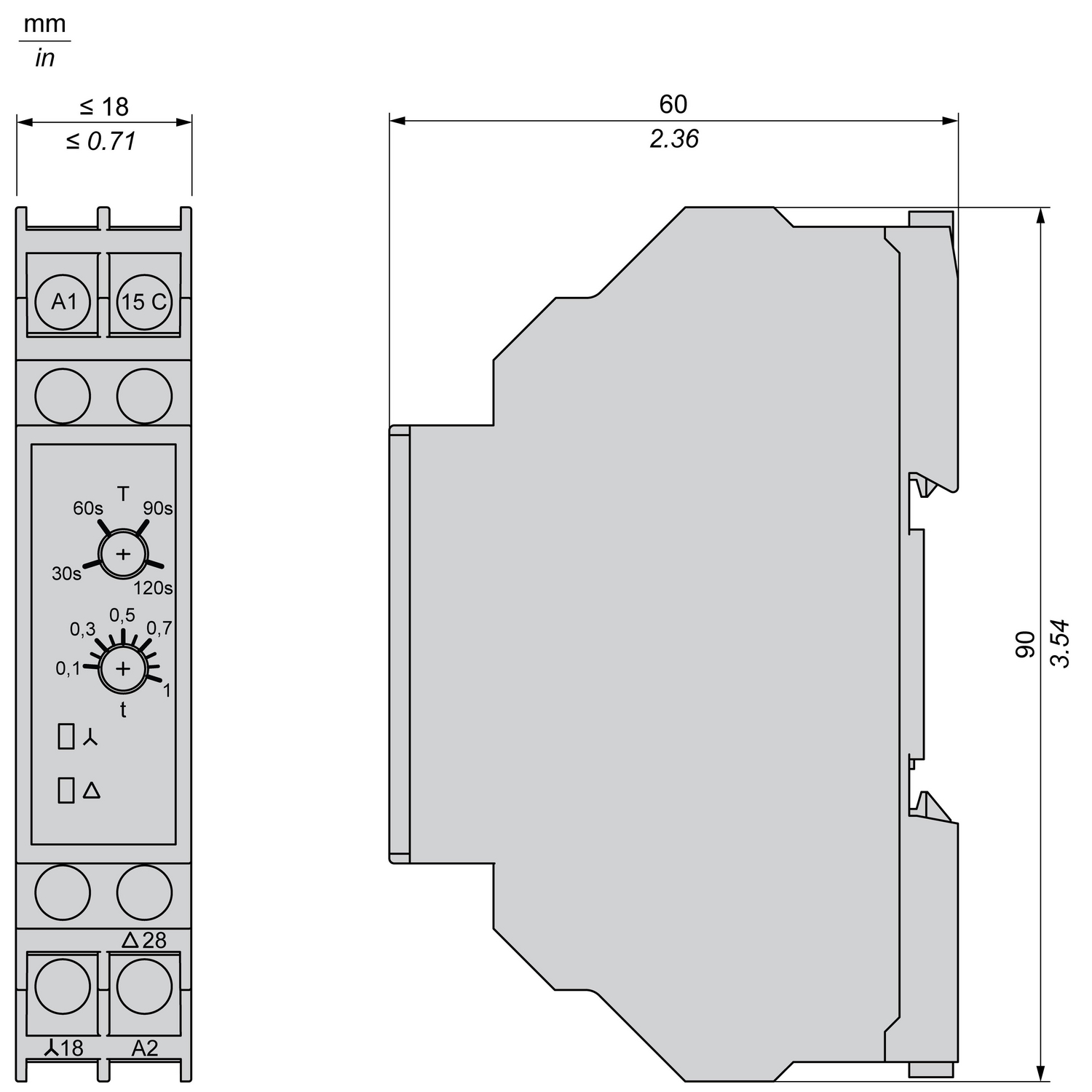

This modular timing relay relay belongs to Schneider Electric's Easy Harmony Timer relays range. This is a 5A, 240Vac, 1 CO, din rail mount timer relay, star-delta 'Q' time function. This timer relay can be set between 0.1 seconds and 120s, star-delta switch over. It has 1 changeover (CO) 5A contact, in SPDT (single pole double throw) configuration. It has single STAR-DELTA time function in 17.5mm form-factors, allowing for a flexible and easy installation on DIN rail. This product comes with simple rotary dial setting for intended timing control. Its dimensions are 17.5mm (width) x 58.5mm (height) x 90mm (depth) and weighs 0.075 kg. Its design is suitable for industrial machines, HVAC compressor, pump fan control machines, automation control panels, low/medium voltage switchgear, motor controls. It is also suitable for building automation, panel electrical distribution, and lighting controls. It conforms to international standard, certifications and markings cULus, CE, CCC, and UKCA.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony Timer Timing Relay · 1 NO + 1 NO · 5 A · RE10RQM7N
Rated current5 A
Ingress protectionIP20 terminals:
Reference standardIEC 61812-1
Net weight0.075 kg
BrandSchneider
Brand SKURE10RQM7N
ELINEFH9C2KHP9
Sold asPer pc
Depth90 mm
Width18 mm
Height58.5 mm
MarkingCULus · CE · CCC · UKCA
StandardsIEC 61812-1
Reset time100 ms on de-energisation
Control typeSelector switch front panel
Voltage range0.8...1.1 Un
Repeat accuracy+/- 0.5 %
Time delay typeQ
Housing materialPolycarbonate
Local signallingLED indicator red, steady for ST (status)
Mounting support35 mm symmetrical mounting rail
Range of productHarmony Timer Relays
Time delay range2...120 s
Relative humidity10…95 % without condensation
Compatibility codeRE10
Function availableQ-Star-delta relay (2 NO outputs with same common)-1 NO + 1 NO
Dielectric strength2.5 kV for 1 mA/1 minute at 50 Hz
Number of functions1
Discrete output typeRelay
Vibration resistance0.15 mm (f= 10…150 Hz)
Electrical durability100000 cycles at 5 A, 250 V for resistive load
Mechanical durability5000000 cycles
Width pitch dimension17.5 mm
Product certificationscULus · CE · CCC · UKCA
nominal output current5 A
Connections - terminalsScrew connectors, 2 x 0.5...2 x 1.5 mm² (22 AWG...16 AWG) solid with or without cable end
IP degree of protectionIP20 terminals: · IP40 casing:
Power consumption in VA8 VA at 240 V
Product or component typeModular timing relay
[Us] rated supply voltage240 V AC 50/60 Hz
Contacts type and composition1 NO + 1 NO
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 · Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 · Fast transients immunity test - test level: 2 kV level 3 conforming to IEC 61000-4-4
Setting accuracy of time delay+/- 10 % of full scale at 25 °C
[Ie] rated operational current5 A 250 V AC-1 conforming to IEC 60947-5-1 · 5 A 28 V DC-1 conforming to IEC 60947-5-1 · 1.5 A 240 V AC-15 conforming to IEC 60947-5-1 · 2 A 24 V DC-13 conforming to IEC 60947-5-1
Ambient air temperature for storage-20…60 °C
Ambient air temperature for operation-10…55 °C
[Uimp] rated impulse withstand voltage5 kV for 1.2…50 µs
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
