Schneider Harmony XB5N Push Button · 22 mm · 1 NO + 1 NCXB5AL845N↓ 1% off MRP1 / 7
BrandSchneider
CategoryIndustrial Control
Brand SKUXB5AL845N
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider Harmony XB5N Push Button · 22 mm · 1 NO + 1 NC

NEW added this week
₹2,070/pcincl. GST-1%
₹1,754 + 18% GST · MRP ₹2,091
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹2,070 /pc incl. GST
Free delivery over ₹4,000

Schneider Harmony XB5N Push Button · 22 mm · 1 NO + 1 NC: Elume price today ₹2,070 per pc incl. GST, 1% below the ₹2,091 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹2,237₹2,159₹2,081₹2,003₹1,925₹2,091₹2,070
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹2,070
MRP
₹2,091
Lowest in view · 17 Oct
₹2,070
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹1,967/pc on this product

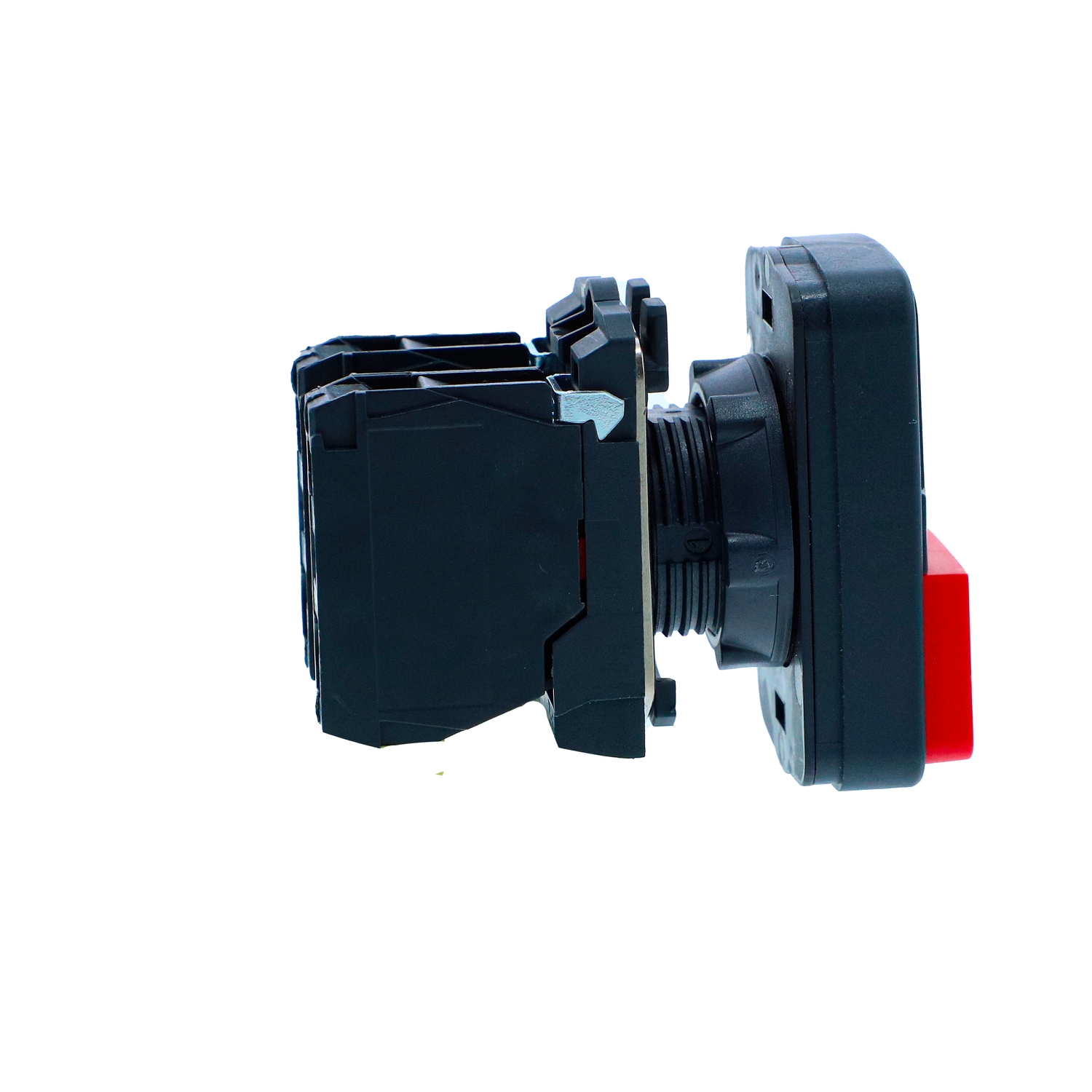

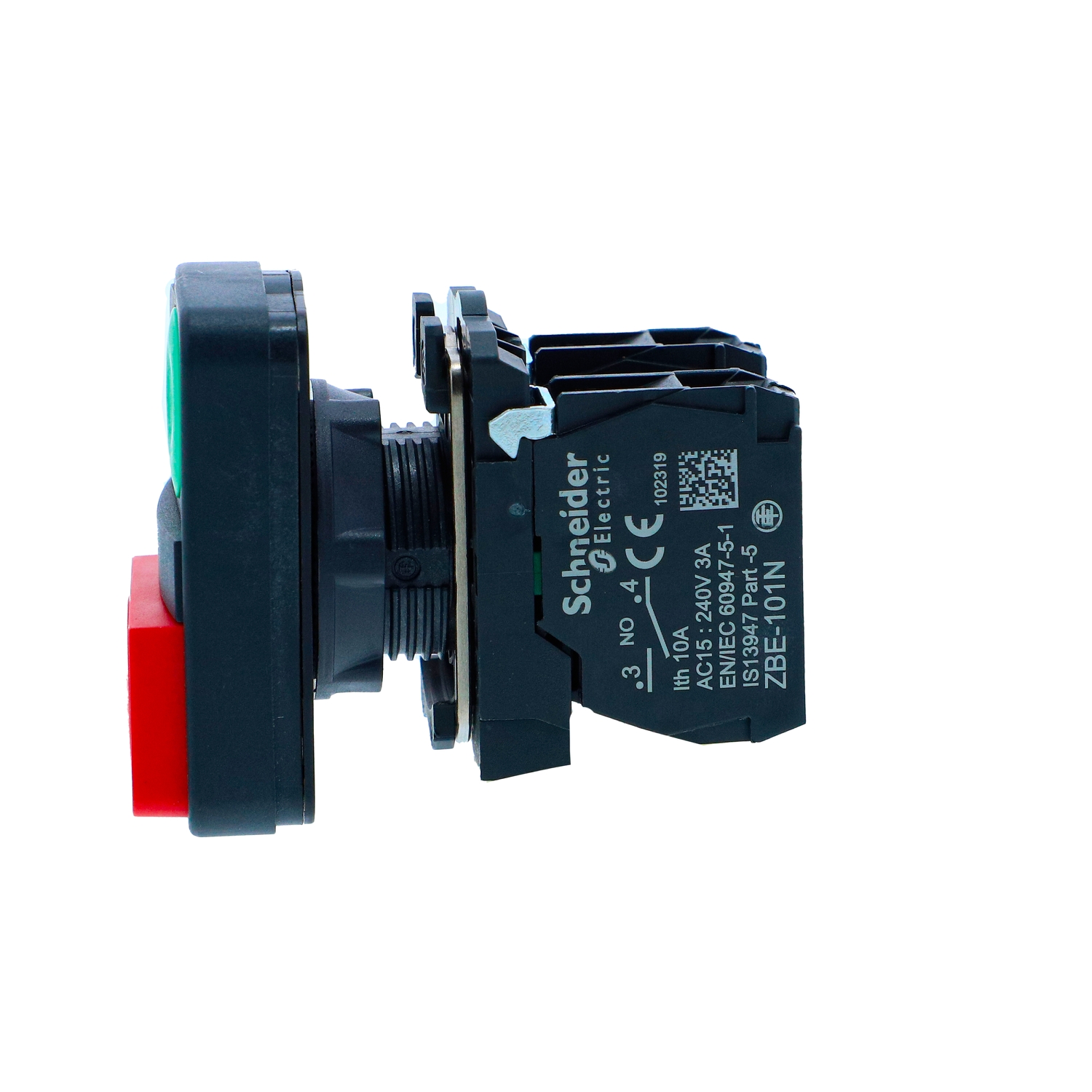

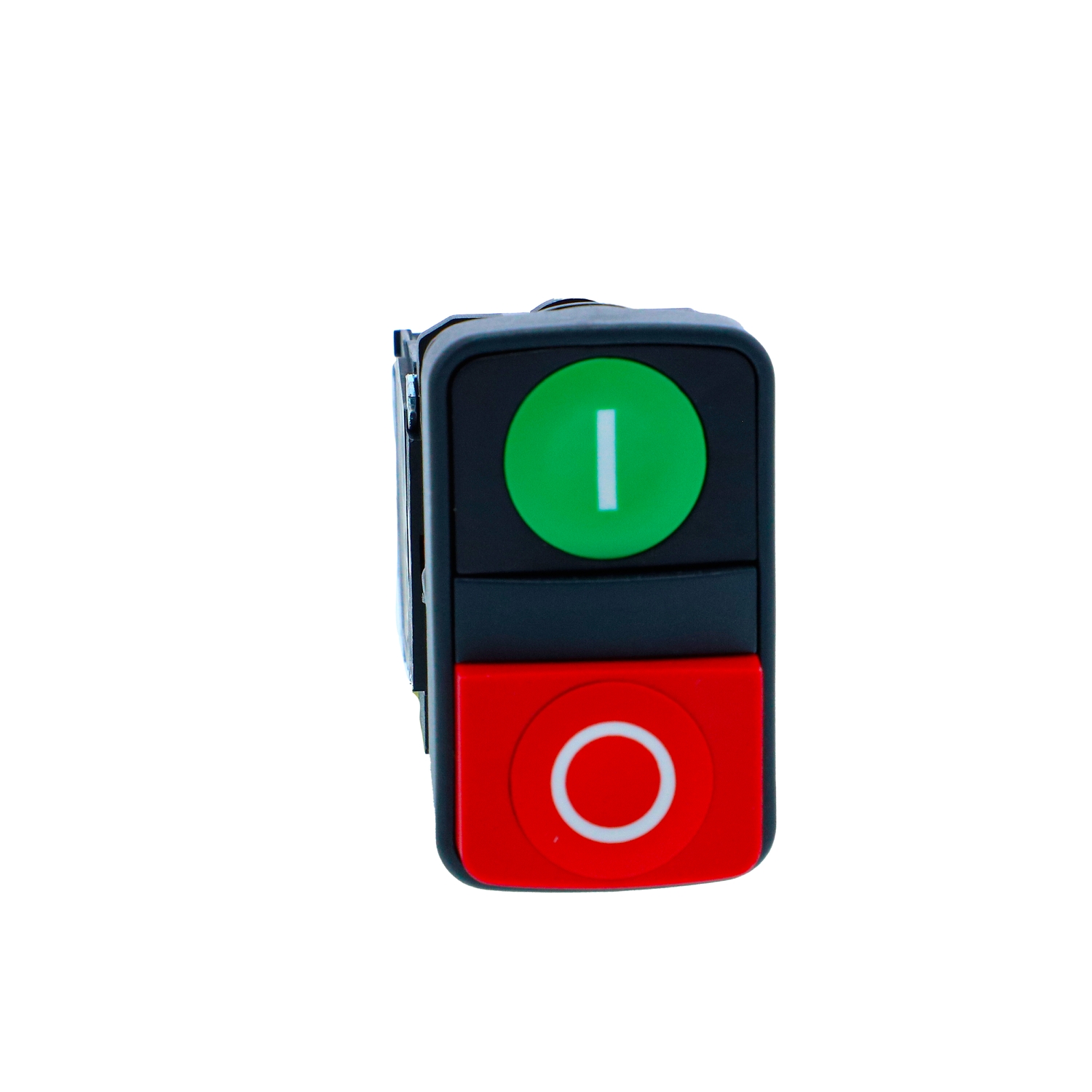

This Harmony XB5N/XB7N, double-headed modular push button has 1 flushed green marked 'I' button and 1 projecting red marked 'O' button, operates with a spring return mechanism and uses screw clamp terminals. This 2-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Harmony XB5N Push Button · 22 mm · 1 NO + 1 NC · XB5AL845N
Rated current3 A
Ingress protectionIP65
Reference standardIEC 60947-5-4
Net weight0.055 kg
BrandSchneider
Brand SKUXB5AL845N
ELINE2446FCDG6
Sold asPer pc
Depth59 mm
Width30 mm
Height50 mm
Head typeStandard
StandardsIEC 60947-5-4 · IEC 60947-1 · IEC 60947-5-1 · IS 13947-5-1
Bezel materialDark grey plastic
Contacts usageStandard contacts
Operating force3.5 N NC changing electrical state · 3.8 N NO changing electrical state
Operating travel1.5 mm (NC changing electrical state) · 2.6 mm (NO changing electrical state) · 4.3 mm (total travel)
Operator profile1 flush - 1 projecting push-buttons
Positive openingWith conforming to IEC 60947-5-1 appendix K
Range of productHarmony XB5N/XB7N
Type of operatorspring return
Colour of markingGreen · Red
Contact operationSlow-break
Contacts materialSilver alloy (Ag/Ni)
Device short nameXB5N
Mounting diameter22.5 mm
Tightening torque0.8…1.2 N.m conforming to IEC 60947-1
Device presentationComplete product
Shape of screw headCross compatible with JIS No 1 screwdriver · Cross compatible with Philips no 1 screwdriver · Cross compatible with pozidriv No 1 screwdriver · Slotted compatible with flat Ø 4 mm screwdriver · Slotted compatible with flat Ø 5.5 mm screwdriver
Overvoltage categoryClass II conforming to IEC 60536
Protective treatmentTH
Vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Electrical durability1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C · 1000000 cycles AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C · 1000000 cycles AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C · 1000000 cycles DC-13, 0.2 A at 1
Mechanical durability1000000 cycles
Operators descriptionGreen ''I'' - red ''O''
Product compatibilityZB5...N
Electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to IEC 60947-5-4 · Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to IEC 60947-5-4
Fixing collar materialPlastic
Product certificationsCE
Connections - terminalsScrew clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Short-circuit protection10 A cartridge fuse type gG conforming to IEC 60947-5-1
Product or component typeDouble-headed push-button
Shape of signaling unit headRectangular
Contacts type and composition1 NO + 1 NC
Sale per indivisible quantity20
[Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1

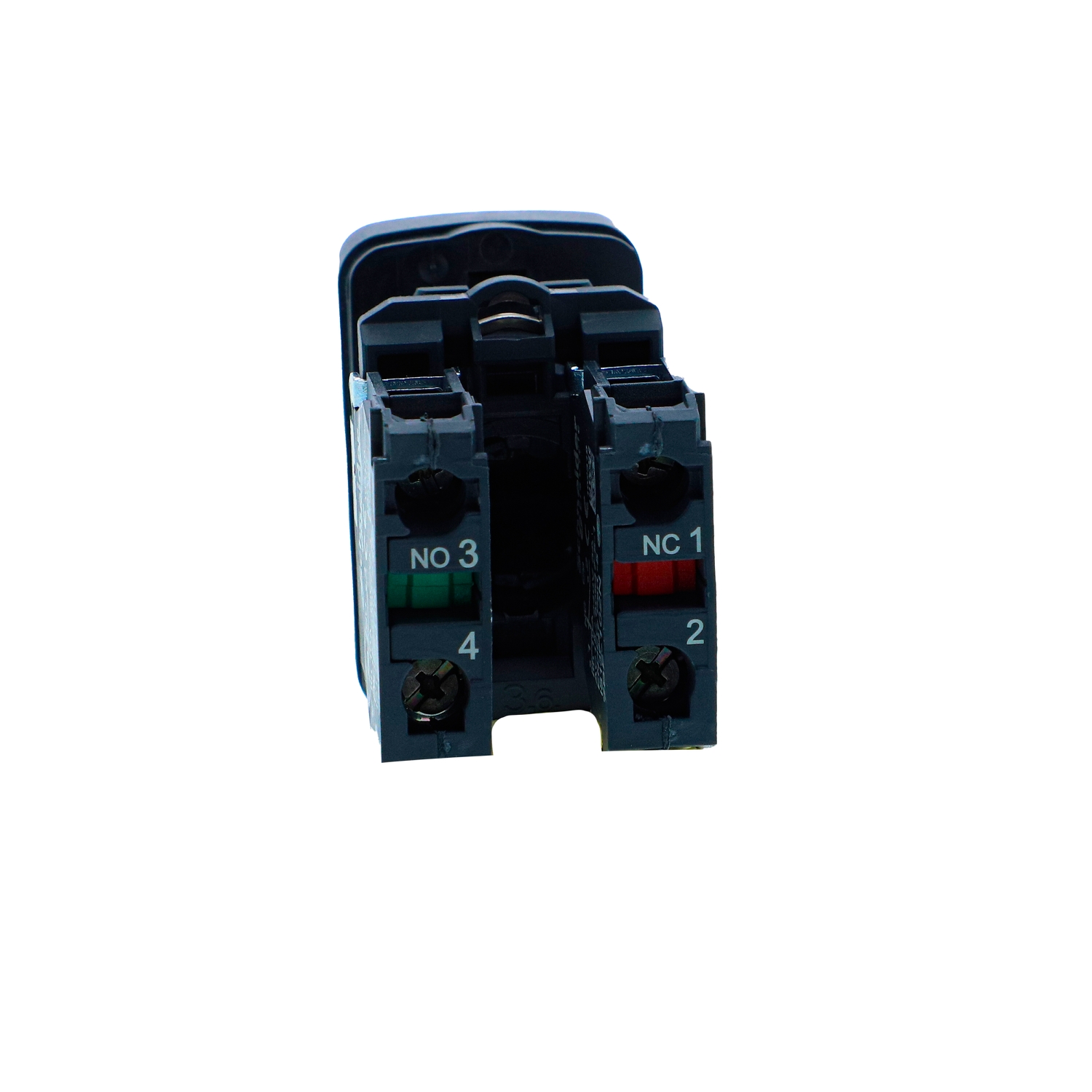

Terminals description ISO n°1(21-22)NO · (13-14)NC
[Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 · 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 · 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 · 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 · 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Ambient air temperature for storage-40…70 °C
Ambient air temperature for operation-25…70 °C
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
[Ith] conventional free air thermal current10 A conforming to IEC 60947-5-1
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
