Schneider EasyLogic EM6459H VAF PF Meter · CONZERV EM6459H VAF PF DPM RS485 CL 0.5METSEEM6459HCL05RS↓ 1% off MRP
BrandSchneider
CategoryIndustrial Control
Brand SKUMETSEEM6459HCL05RS
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

Schneider EasyLogic EM6459H VAF PF Meter · CONZERV EM6459H VAF PF DPM RS485 CL 0.5

NEW added this week
₹13,324/pcincl. GST-1%
₹11,292 + 18% GST · MRP ₹13,459
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹13,324 /pc incl. GST
Free pan-India delivery

Schneider EasyLogic EM6459H VAF PF Meter · CONZERV EM6459H VAF PF DPM RS485 CL 0.5: Elume price today ₹13,324 per pc incl. GST, 1% below the ₹13,459 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹14,401₹13,899₹13,396₹12,894₹12,391₹13,459₹13,324
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹13,324
MRP
₹13,459
Lowest in view · 17 Oct
₹13,324
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹12,658/pc on this product

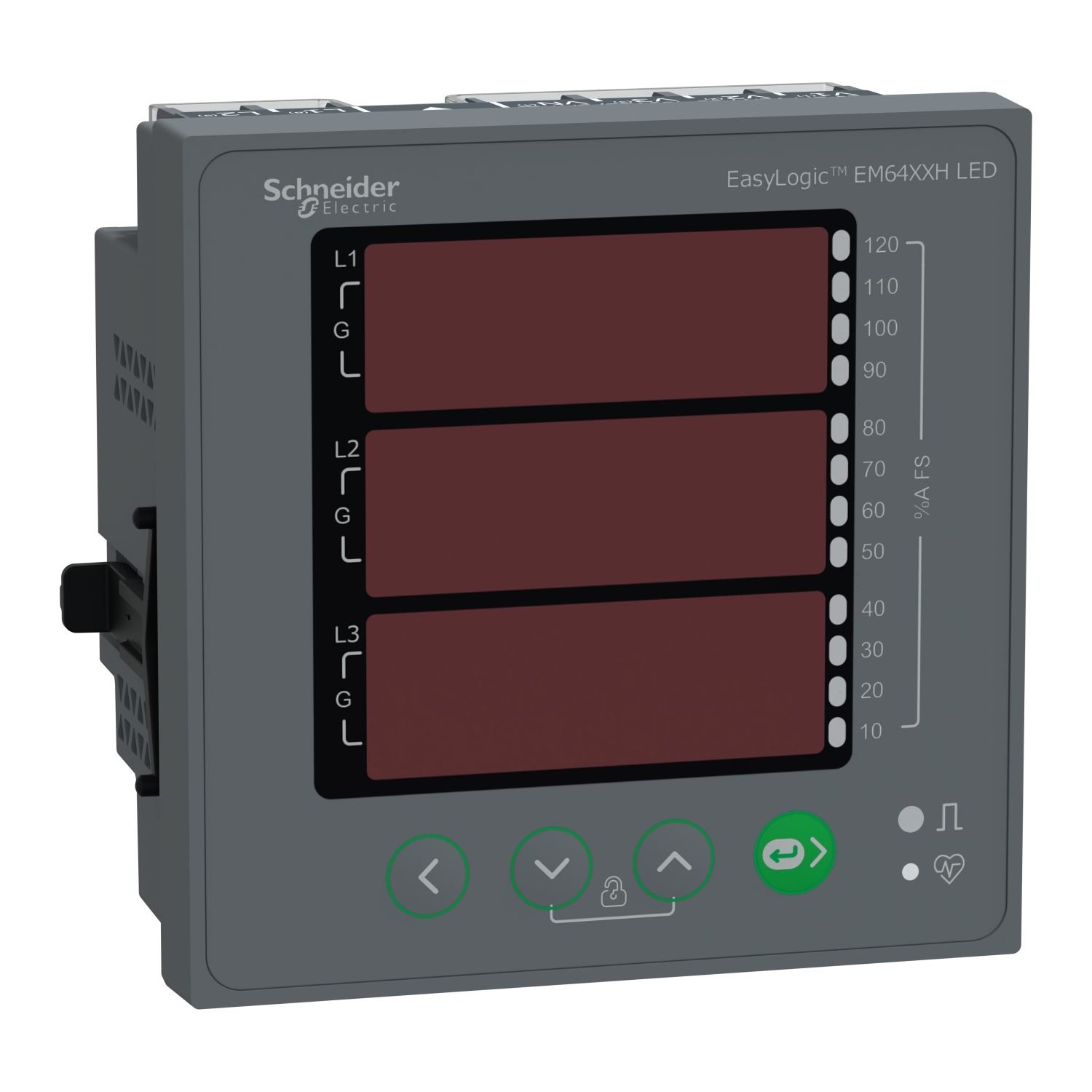

The EasyLogic EM6459H series is a combination of several panel instrument in a single device. it enable the measurement of voltage, current, frequency and power factor for all phases. The navigation is assured by 4 panel buttons. Providing Class 0.5S active energy accuracy per IEC 62053-21 standard, the meter will measure active and reactive energy. Communication protocol is Modbus RTU with RS485 port support. The display has 3 rows 14 mm height, 7 segment 4 digit LED display, multi parameter measurement. Mechanical dimensions are 96 mm in width, 96 mm in height and 62.7 mm in depth ; for 300 g.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider EasyLogic EM6459H VAF PF Meter · CONZERV EM6459H VAF PF DPM RS485 CL 0.5 · METSEEM6459HCL05RS
Rated current1 A
Ingress protectionIP51 front:· IP30 body:
Reference standardIEC 61010-1:ed. 3
Net weight0.3 kg
BrandSchneider
Brand SKUMETSEEM6459HCL05RS
ELINEF3KH4C7CH
Sold asPer pc
RangeEasyLogic
SignalVoltage (impedance 5 MOhm)4 x · Current 0.005...10 A (impedance 0.3 MOhm)6 x
MaterialPolycarbonate
StandardsIEC 61010-1:ed. 3 · UL 61010-1:ed. 3
fixing modeBy clamp
Display type7 segments LED
Product nameEasyLogic EM64XXH RS
Metering typePhase currents · Average voltage Vavg · Average current Iavg · Unbalance current · Calculated neutral current · Rotation speed · Voltage U21, U32, U13, V1, V2, V3 · Percentage of load · Power factor and displacement PF (signed, four quadrant) · Unbalance voltage · Frequency
Mounting modeFlush-mounted
Sampling rate32 samples/cycle
Display colourRed
Display digits12 digit(s) - 14.2 mm in height
type of network3P + N · 1P + N · 2P · 3P · 2P + N
Demand intervals1 s
Flame retardanceV-0 conforming to UL 94
Local signallingGreen LED: activity · Red LED: output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh)
Mounting supportFramework
Counter functionsPower interruption · ON hour counting · Power outage counting
Device short nameEM6459H
Network frequency50 Hz · 60 Hz
Number of outputs0
Tightening torqueCurrent circuit: 0.9…1 N.m Philips No 2 screwdriver · Voltage circuit: 0.9…1 N.m Philips No 2 screwdriver · Control circuit: 0.9…1 N.m Philips No 2 screwdriver · Communication: 0.5…0.6 N.m Philips No 2 screwdriver
Device applicationPower factor control · Load control · Power monitoring
Provided equipmentInstallation guide
[In] rated current1 A · 5 A
Measurement current5…6000 mA
Measurement voltage46…277 V AC 50...60 Hz between phase and neutral · 80…480 V AC 50...60 Hz between phases · 277…999000 V AC 50...60 Hz with external VT
Type of measurementCurrent · Voltage · Frequency · Power factor · RPM
Measurement accuracyCurrent +/- 0.5 % · Voltage +/- 0.5 % · Frequency +/- 0.05 % · Power factor +/- 0.01
Measurement categoryCategory III 35…480 V
Type of installationIndoor installation
Communication of dataReading of measurements · Revolution speed · All counters · Percentage of load
Installation categoryIII
Wire stripping lengthCurrent circuit: 3.68 mm · Voltage circuit: 7 mm · Control circuit: 7 mm · Communication: 7 mm
Connections - terminalsCurrent circuit: screw clamp terminals (bottom) 2.08…3.31 mm² cable(s) · Voltage circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s) · Control circuit: screw clamp terminals (top) 0.82…3.31 mm² cable(s)
Tamperproof of settingsProtected by access code
Messages display capacity3 fields of 4 characters
Product or component typeVAF PF meter
[Us] rated supply voltage44...277 V AC 45...65 Hz · 44...277 V DC
Communication port supportScrew terminal block: RS485
Communication port protocolModbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V
Electrical insulation classClass II
Frequency measurement range45…65 Hz
Maximum power consumption in W2 W at 240 V
Maximum power consumption in VA4 VA at 240 V between phase and neutral
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
