Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 25 A · 300 mAA9N26597↓ 1% off MRP
BrandSchneider
CategorySwitchgear
Brand SKUA9N26597
AvailabilityIn stock · ships in 24h
DeliveryPan-India · 3–7 working days
Schneider· In stock
Visit the Schneider store

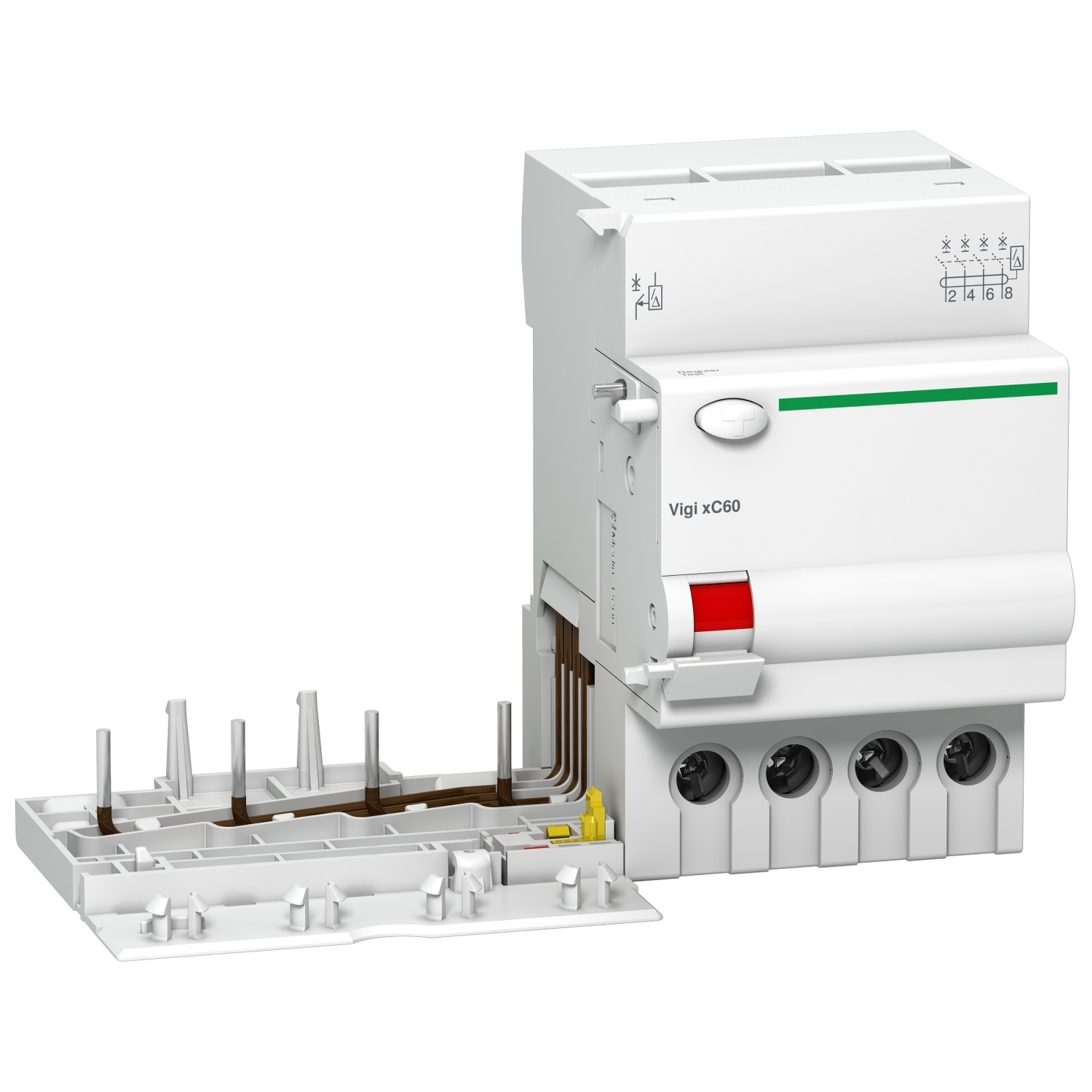

Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 25 A · 300 mA

Rating: 25 A
Poles: 4P
Sensitivity: 300 mA
NEW added this week
₹18,136/pcincl. GST-1%
₹15,369 + 18% GST · MRP ₹18,320
Add to cart
Buy now
  • Secured by Razorpay · UPI, cards, net banking, wallets
  • GST invoice with every order
  • Tracked delivery, 3 to 7 working days
✓ Full brand warranty on every order
✓Lowest price guarantee · found it cheaper? We match it.
💳 30 Day credit facility available launching soon - join waitlist.
₹18,136 /pc incl. GST
Free pan-India delivery

Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 25 A · 300 mA: Elume price today ₹18,136 per pc incl. GST, 1% below the ₹18,320 MRP. The price has held steady for the last 30 days.

Price history
Elume price over time, day by day. Market comparison appears once we track this item.
13 Oct to 19 Oct
₹19,602₹18,918₹18,234₹17,550₹16,866₹18,320₹18,136
13 Oct14 Oct15 Oct16 Oct17 Oct18 Oct19 Oct
Elume today
₹18,136
MRP
₹18,320
Lowest in view · 17 Oct
₹18,136
🏷️
100% genuine
Brand-authorised stock with full manufacturer warranty
🧾
GST invoice
Tax invoice on every order · GST billing with tax split
🚚
Pan-India delivery
3–7 working days to any site in India
📦
Wholesale built in
−5% auto-applies at 15+ units - ₹17,229/pc on this product

This Acti9 Vigi xC60 is a modular add-on residual current devices. It is a 4P and rated current is 25A. The earth leakage protection class is AC type with a sensitivity of 300mA and a electromechanical technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is from 400VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 6. The dimensions are (W) 126mm x (H) 87mm x (D) 74.5mm. The weight is 215g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C.

As published by Schneider. Verify critical parameters against the datasheet before specifying.
Schneider Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 25 A · 300 mA · A9N26597
Poles4P
Rated current25 A
Ingress protectionIP20· IP40 (modular enclosure)
Reference standardEN/IEC 61009-1
Net weight0.215 kg
Device typeMiniature circuit breaker (MCB)
Current rating25 A
BrandSchneider
Brand SKUA9N26597
ELINEF2DPJF6K7
Sold asPer pc
Depth74.5 mm
RangeActi9
Width126 mm
Height87 mm
StandardsEN/IEC 61009-1 · EN/IEC 61009-2-1
9 mm pitches6
Network typeAC
Mounting modeClip-on
Local signallingRed indicator light on the front face
Mounting supportDIN rail
Pollution degree3
Device short nameVigi xC60
Network frequency50/60 Hz
Poles description4P
Tightening torque2 N.m bottom
[In] rated current25 A
Range compatibilityActi9 iC60
Wire stripping length14 mm for bottom connection
Connections - terminalsTunnel type terminal downside for 1 cable(s) 1…25 mm² rigid without cable end · Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible without cable end · Tunnel type terminal downside for 1 cable(s) 1…16 mm² flexible with cable end
IP degree of protectionIP20 conforming to IEC 60529 · IP40 (modular enclosure) conforming to IEC 60529
Device location in systemOutgoer
Earth-leakage sensitivity300 mA
Product or component typeAdd-on residual current device
Electrical connection to mcbBy screws
Earth leakage protection typeType AC
Electromagnetic compatibility8/20 µs impulse withstand, 250 A
[Ui] rated insulation voltage500 V AC 50/60 Hz
[Ue] rated operational voltage400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1 · 400...415 V conforming to EN/IEC 61009-2-1
Ambient air temperature for storage-40…85 °C
Earth-leakage protection time delayInstantaneous
Residual current tripping technologyElectromechanical · Voltage independent
Ambient air temperature for operation-5…60 °C
[Uimp] rated impulse withstand voltage6 kV
Ratings as published by Schneider (se.com). Verify critical parameters against the datasheet before specifying.
Read: Havells vs ABB vs Lauritz Knudsen: Which Switchgear for Your Home? →
Which is the best MCB brand in India: Havells, ABB or Lauritz Knudsen?
At correct specification, all three protect reliably; they differ in range, price and availability rather than trip-when-needed quality. Havells wins on availability and range breadth, ABB on engineering pedigree, Lauritz Knudsen on premium build at keen prices.
Is Lauritz Knudsen the same as L&T Switchgear?
Yes; it is the renamed erstwhile L&T Switchgear business, continuing the same Indian manufacturing legacy under new ownership and branding. Ranges like Tripper and EXORA carry that lineage forward.
Can I mix MCB brands in one distribution board?
Electrically yes; DIN-rail standards make devices interchangeable, and a mixed board protects correctly if each device is rightly rated. Single-brand boards are still preferable for spares, warranty simplicity and appearance.
Is Schneider Acti9 Vigi xC60 Vigi Add-on RCD · 4P · 25 A · 300 mA genuine and warranty-backed?

Yes. Every Schneider product on Elume is 100% genuine, sourced through authorised channels, and carries the manufacturer's standard warranty.

Do you deliver across India?

Yes. We deliver anywhere in India our couriers serve, usually within 3 to 7 working days from order confirmation. The delivery charge follows the order value (the GST-inclusive goods total after any discount code): ₹200 under ₹2,000; ₹100 from ₹2,000 to under ₹4,000; free from ₹4,000 to ₹25,000; ₹1,000 above ₹25,000, because large orders ship insured, often in several boxes. Heavy consignments add ₹1,000 for every started 10 kg beyond the first 10 kg of the order's total shipping weight, even when delivery is free. A free-delivery code makes the whole delivery charge zero. Every charge is shown at checkout before you pay.

Can I get a GST invoice?

Yes, on orders delivered in India. Enter your GSTIN at checkout and we issue a GST invoice with tax shown separately, so businesses can claim input tax credit.

Is there a wholesale or bulk rate?

Yes. Orders of 15 or more pcs get a wholesale rate about 5% below the listed Elume price, shown on every product page.

What if I find it cheaper somewhere else?

Tell us. If the same Schneider product is listed for less, GST and delivery included, by an authorised Indian online seller, we match that price, before you order or within 7 days of ordering. The terms are on our lowest-price guarantee page.

What is the return policy?

For delivery in India, unused items in original packaging can be returned within 7 days of delivery, with free return shipping.
